A micro borescope is selected by matching the complete inspection route to the imaging system, not by choosing the smallest probe on a specification sheet. Start with the narrowest opening, then account for bends, target orientation, working distance, image quality, recording needs, and whether the tip must steer. Within the Milliscope family, HDF fiberoptic probes support the smallest access, HDV provides fixed-view digital imaging, and HDX adds two-way articulation for complex internal geometry.
Key Takeaways
- The smallest probe is not automatically the best probe. Access geometry and evidence requirements matter just as much.
- HDF fiberoptic probes are available from 0.35 mm to 3.1 mm and are the first option to evaluate for sub-1 mm access.
- Milliscope HDV uses a distal CMOS sensor in fixed-view probes starting at 1.0 mm for direct digital imaging and recording.

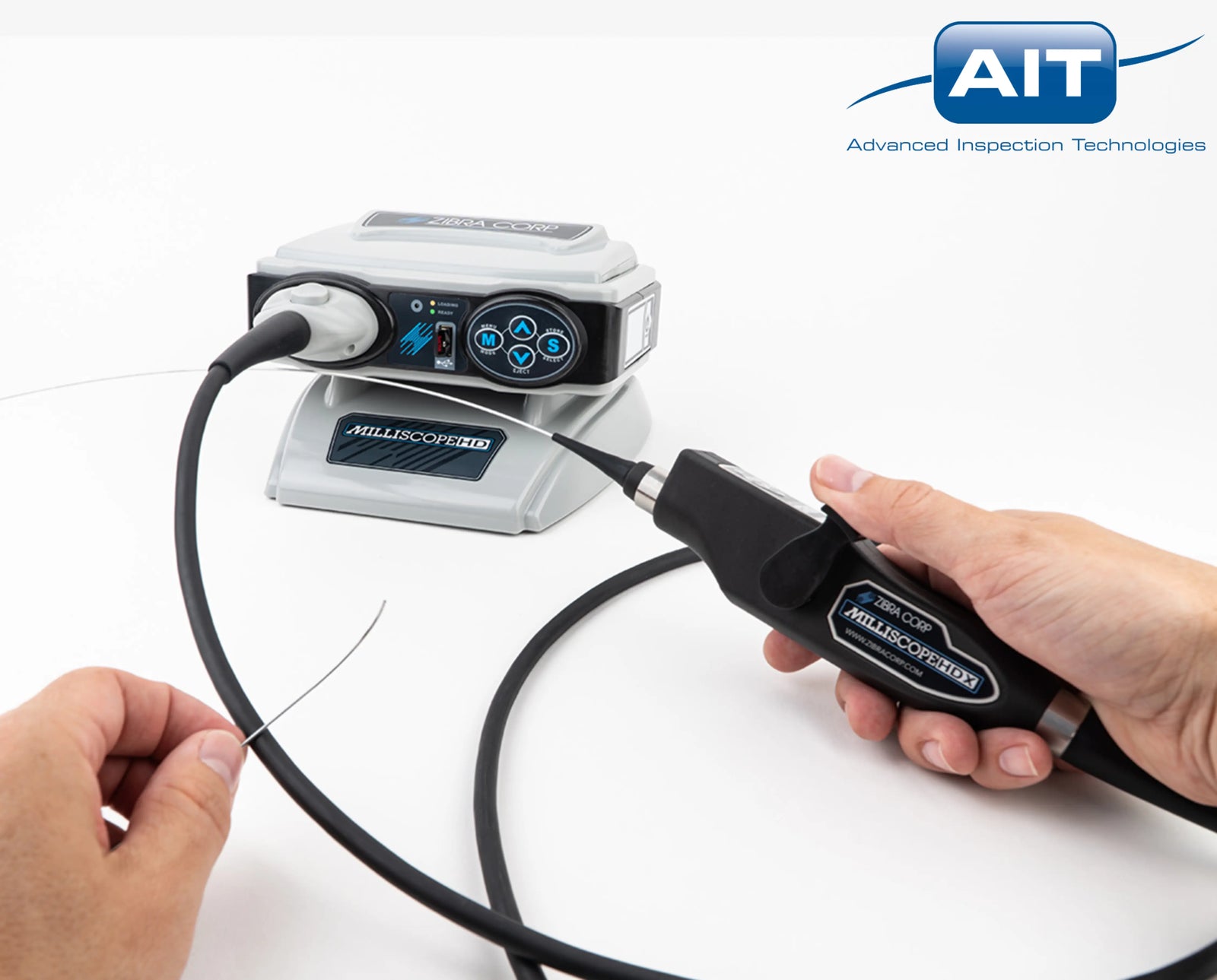

- Milliscope HDX adds two-way tip articulation of up to plus or minus 170 degrees in 1.1 mm and 1.6 mm diameters.
- All three technologies can operate through the modular Milliscope HD platform, depending on configuration.
- A microscope examines an exposed surface. A micro borescope reaches an enclosed or inaccessible internal surface.
What Is a Micro Borescope?
A micro borescope is a remote visual inspection instrument designed for internal features that ordinary borescopes cannot enter. The term usually applies to very small flexible fiberscopes, fixed-view micro videoscopes, and articulating micro videoscopes used to inspect narrow lumens, cooling holes, cross-drilled passages, miniature components, and other confined spaces.
The defining feature is not magnification. It is access. A micro inspection scope places optics or an image sensor inside an enclosed feature and returns a usable image without cutting the part open or fully disassembling the assembly.
The current HDF fiberoptic probe range starts as small as 0.35 mm. Fixed-view Milliscope HDV video probes begin at 1.0 mm, while articulating Milliscope HDX probes are available in 1.1 mm and 1.6 mm diameters.
Why Conventional Borescopes Fail in Precision Inspections
Conventional scopes often fail before image quality becomes relevant. The probe may not pass the smallest restriction, may be too stiff for the route, or may enter the cavity but point away from the target. A nominally small opening can also lead into a larger chamber through an offset, radius, weld neck, or cross-hole that changes the required probe behavior.
This is why experienced inspectors map the entire route before selecting a scope. The correct question is not, "Will the probe fit through the hole?" It is, "Can the probe reach the target, face the feature, illuminate it, and capture evidence at the required working distance?"
Why Extremely Small Probe Diameters Matter
In turbine blades, fuel system components, medical lumens, precision castings, hydraulic manifolds, and research hardware, a fraction of a millimeter can determine whether an inspection is possible. Smaller probes can reduce or eliminate destructive sectioning, disassembly, or fixture changes, but they also introduce trade-offs involving light transmission, durability, image structure, handling, and available steering.
Micro Fiberscope vs Micro Videoscope
A micro fiberscope forms the image at the distal optics and relays it through a coherent bundle of optical fibers. A micro videoscope places an electronic image sensor near the distal tip and sends a digital signal back to the base unit. Both can inspect restricted spaces, but they behave differently.
Micro Borescope vs Microscope
A microscope and a micro borescope solve different access problems. A microscope magnifies an exposed sample that can be placed under or in front of its optics. A micro borescope carries the viewing system through a small opening to inspect a surface that cannot be seen directly.
| Comparison | Industrial microscope | Micro borescope |
|---|---|---|
| Primary purpose | Magnify an exposed surface or prepared sample. | View an enclosed or inaccessible internal surface. |
| Access requirement | Requires direct optical access and suitable working space. | Requires only an opening and a navigable route to the target. |
| Best applications | Surface finish, electronics, metrology, particles, exposed defects. | Lumens, cooling holes, internal passages, cavities, assembled components. |
| Typical limitation | Cannot see around enclosure walls or through internal passages. | Provides less magnification than a dedicated microscope and is constrained by probe geometry. |
| Selection rule | Use when the target can be exposed without compromising the inspection. | Use when the target must be inspected in place through restricted access. |
How Experienced Inspectors Choose the Right Milliscope
1. Start with probe diameter, but do not stop there
Measure the narrowest restriction along the full route and allow practical clearance for insertion. A 1.0 mm probe is not guaranteed to pass through a nominal 1.0 mm opening. Manufacturing tolerances, coatings, debris, alignment and surface condition all reduce practical clearance.
2. Check flexibility, stiffness, and bend radius
A highly flexible probe can follow a curved path but may be difficult to push through a long unsupported route. A semi-rigid configuration can be easier to guide through a straight or gently curved feature. Review the required fiberscope bend radius and avoid forcing the insertion tube through resistance.
3. Match view direction to the target
Forward view is effective when the feature is at the end of a passage. Side view can be better for tube walls, cross-holes, or circumferential surfaces. When the route changes direction or the target must be squared up from inside a cavity, articulation may be the deciding requirement.
4. Define working distance and depth of field
A sharp image requires the target to fall within the optical working range. A probe that reaches the component but cannot focus at the actual stand-off distance will not deliver usable evidence. Review the practical role of borescope depth of field before finalizing optics.
5. Decide how the inspection will be documented
The Milliscope HD platform supports image and video recording to removable USB storage, but the choice between HDF, HDV, and HDX still changes how the image is formed and how the operator positions the view. Documentation needs should be defined before choosing the probe.
Milliscope HDF vs HDV vs HDX
There is no single best Milliscope. There is a best fit for the route.
HDF prioritizes the smallest access, HDV adds fixed-view digital imaging, and HDX combines active tip steering with shorter currently listed working lengths. The right choice depends on the complete path and where the target sits inside it.
Choose by inspection constraint, not model hierarchyHDF fiberoptic probes for ultra-small openings and long, narrow inspection paths.
Direct digital imaging for known or mostly straight routes that do not require steering.
Articulating micro video for turning toward sidewalls or targets beyond an internal bend.
| Capability | Milliscope HDF | Milliscope HDV | Milliscope HDX |
|---|---|---|---|
| Technology | Fiberoptic imaging through interchangeable HDF fiberscopes. | Fixed-view digital videoscope. | Articulating digital micro videoscope. |
| Available diameter | 0.35 mm to 3.1 mm. | 1.0 mm to 3.1 mm. | 1.1 mm and 1.6 mm. |
| Articulation | No active distal articulation. | No active distal articulation. | Two-way, up and down, up to plus or minus 170 degrees. |
| Working length | 61 mm to 7.5 m on AIT's current page, with custom configurations available. | Up to 5 m on AIT's current page, with custom configurations available. | 150 mm to 1.0 m. |
| View direction | Product-specific configurations. | 0 degree or 90 degree, product specific. | 0 degree to 90 degree, product specific. |
| Image system | Integrated HD CCD camera handle viewing the HDF fiberscope image. | 160,000-pixel CMOS sensor. | 160,000-pixel CMOS sensor. |
| Field and focus | Configuration dependent. Optical focus and 3x optical zoom are available through the handle. | 90 degree diagonal field of view and 3 to 50 mm depth of focus on AIT's current page, with custom optics available. | 120 degree diagonal field of view and 1 to 50 mm depth of focus, with custom optics available. |
| Recording | Still image and video recording to USB through the base unit. | Still image and video recording to USB through the base unit. | Still image and video recording to USB through the base unit. |
| Primary strength | Reaches the smallest passages and supports a wide range of optical probe configurations. | Direct digital image in a very small fixed-view probe with long-reach options. | Combines micro diameter with active steering for complex geometry. |
| Primary limitation | Image travels through a fiber bundle and the tip cannot actively steer. | Fixed tip may not face targets hidden around a bend or on a difficult sidewall. | Larger minimum diameter than the smallest fiberscopes and shorter maximum listed length. |
| Best fit | Medical lumens, micro holes, precision passages, and applications below 1 mm. | Straight or known-path passages requiring digital images and repeatable documentation. | Curved passages, turbine cooling features, sidewall targets, and geometry that requires steering. |
Product specifications should be confirmed for the exact probe configuration because view direction, optics, diameter, and working length are product specific and custom options may be available.
Inspection Decision Matrix
| If the inspection looks like this | Recommended system | Why | Verify before selection |
|---|---|---|---|
| Opening below 1.0 mm | Milliscope HDF | Fiberoptic probes begin at 0.35 mm. | Bend radius, illumination, optical working distance, and required image detail. |
| Long, mostly straight passage with digital documentation | Milliscope HDV | Fixed-view digital probes can provide direct CMOS imaging and long shaft options. | Exact length, direction of view, and ability to keep the target in the field. |
| Curved route or target hidden behind an edge | Milliscope HDX | Two-way articulation helps steer through geometry and align with the target. | Whether 1.1 mm or 1.6 mm clears the route and whether two-way steering is sufficient. |
| Medical lumen or catheter with extremely small access | Milliscope HDF | Small fiberoptic diameters can enter features that cannot accept a distal sensor. | Cleanliness, material compatibility, handling, and inspection protocol. |
| Cooling hole with a straight path | HDF or HDV | HDF solves minimum access; HDV adds direct digital imaging when diameter permits. | Hole diameter, length-to-diameter ratio, target location, and desired evidence. |
| Cooling feature with an internal turn | Milliscope HDX | Articulation can redirect the view after entering the feature. | Clearance, steering envelope, and risk of tip contact. |
| Need interchangeable fiber and video options on one platform | Milliscope HD platform | The base unit can support the fiberscope camera handle, HDV probes, and HDX probes. | Exact connector and configuration compatibility at time of order. |
| Exposed surface needing high magnification | Microscope, not a borescope | Direct-access microscopy is better suited to exposed surface detail. | Whether the target can be exposed without changing the condition being inspected. |
Realistic Precision Inspection Scenarios
The following scenarios illustrate engineering selection logic. They are not claims about named customers or guaranteed outcomes.
Common Micro Borescope Selection Mistakes
Choose the Milliscope Around the Inspection Route
The best starting point is not a model number. It is a complete description of the access path and the evidence your team must collect. Share the smallest opening, working length, bends, target direction, environment, and recording requirements with AIT for application-specific guidance.
