minCam MC360 Pan & Tilt Push Camera

SKU: MC360
Pan and tilt pipe inspection push camera with a 50 mm SK50 head, 200 ft (60 m) of 9.2 mm push rod, and a detachable 8.4 in. sunlight-readable control unit for 3 in. to 16 in. pipe. A 300 ft (90 m) reel is available. Endless 360° rotation and 150° tilt put the camera on joints, laterals, and the pipe crown from one pass.
Compare pipe inspection cameras
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

MC360 overview

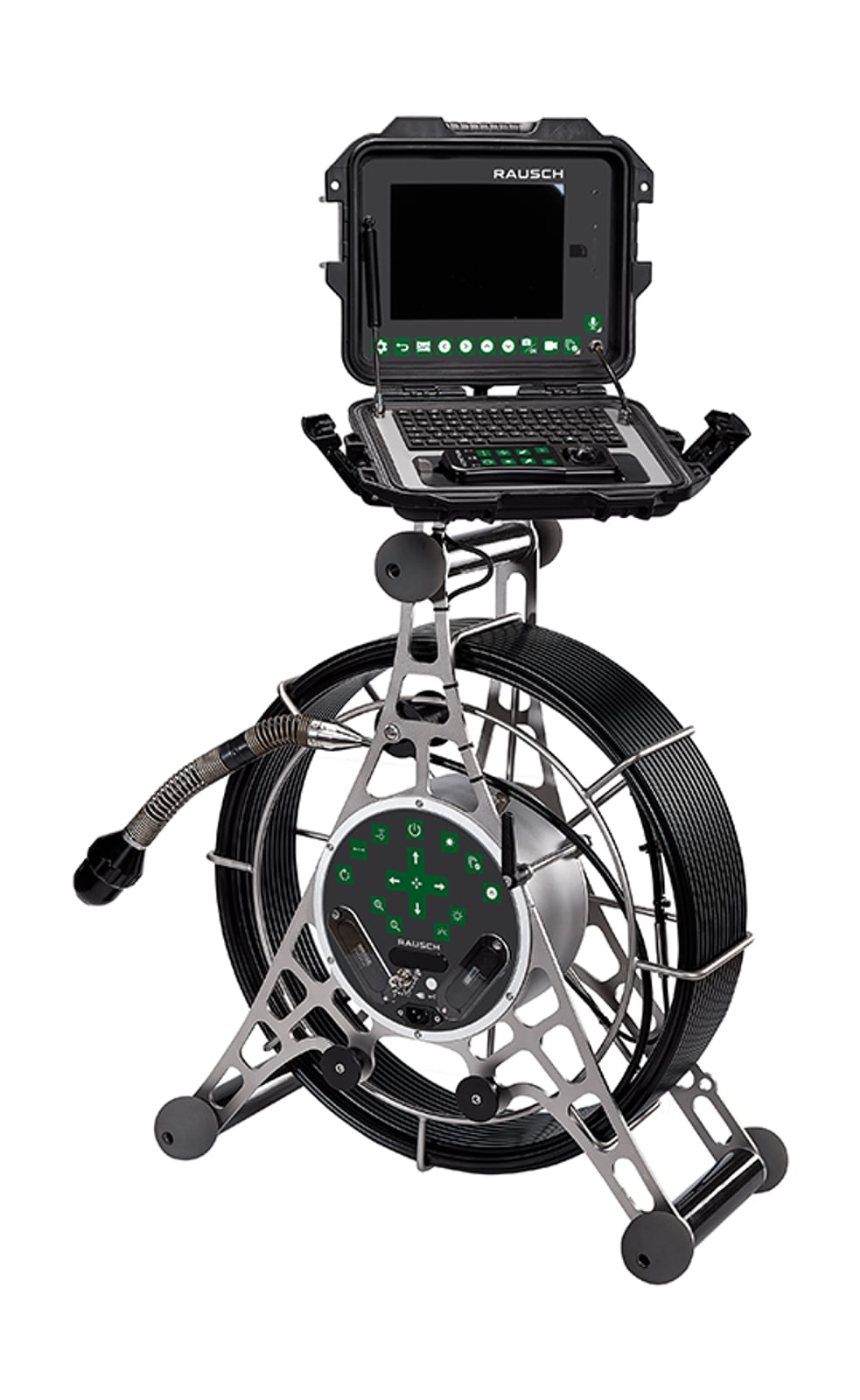

The minCam MC360 is the full-size Rausch pan and tilt pipe inspection camera. The 50 mm SK50 head is one of the smallest pan and tilt heads on the market, which is what lets a push camera, rather than a crawler, look into joints and laterals in 3 in. to 16 in. lines. The reel carries 200 ft (60 m) of 9.2 mm push rod, with a 300 ft (90 m) version available, and the 8.4 in. control unit detaches so the operator steers from the access point.

Why the MC360

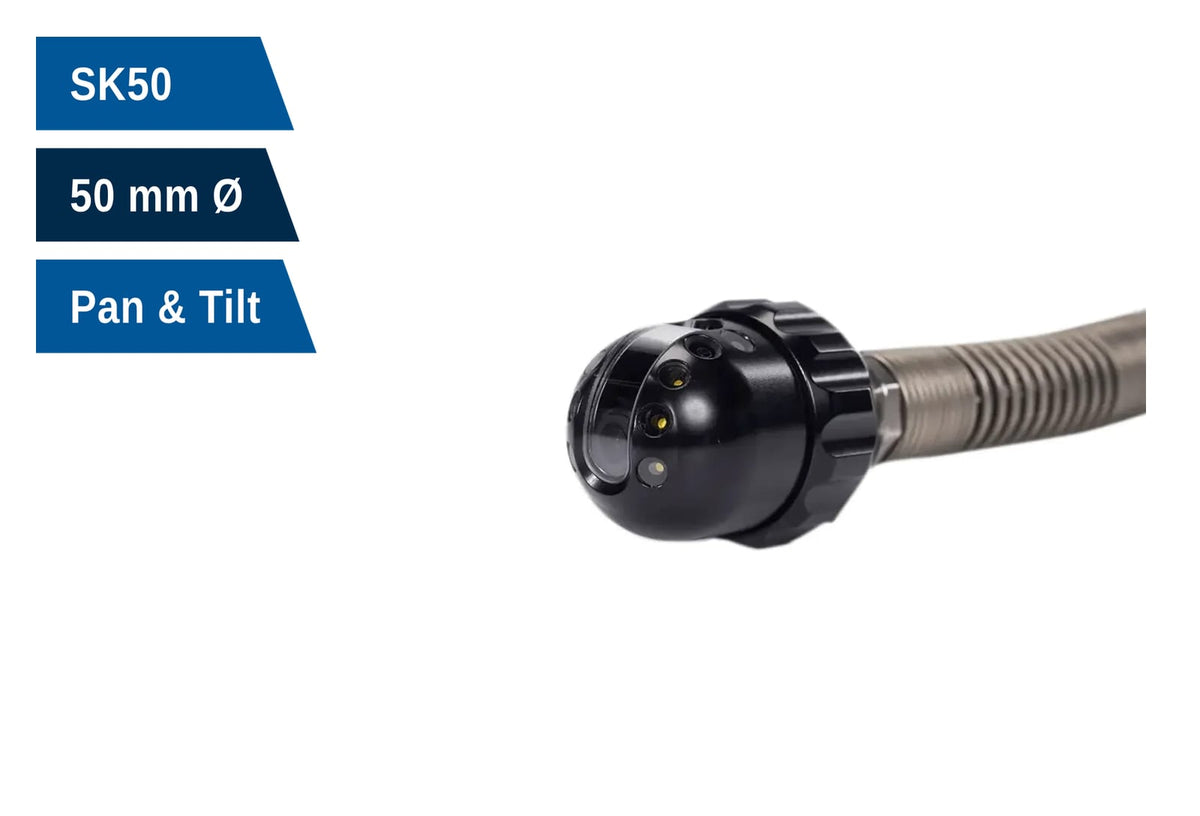

  • Pan and tilt in a 50 mm head. Endless 360° rotation and 150° tilt aim the camera at joints, laterals, cracks in the crown, and service connections without a second pass.
  • Roll-In Device option. The RID steers the head into lateral connections from the main so branch lines get inspected without opening another access point.
  • Joystick remote control. The operator steers the head and controls lighting from the access point while the reel stays where it was set down.
  • 200 ft (60 m) of 9.2 mm push rod, with a 300 ft (90 m) reel available. Turns 90° bends in 3 in. (80 mm) bore.
  • Pressure-tight to 6 bar (87 psi). The SK50 keeps working in flooded lines.
  • Dual-frequency sonde (512 Hz and 33 kHz). A standard locator finds the head from the surface so the crew can mark the defect after the visual call.

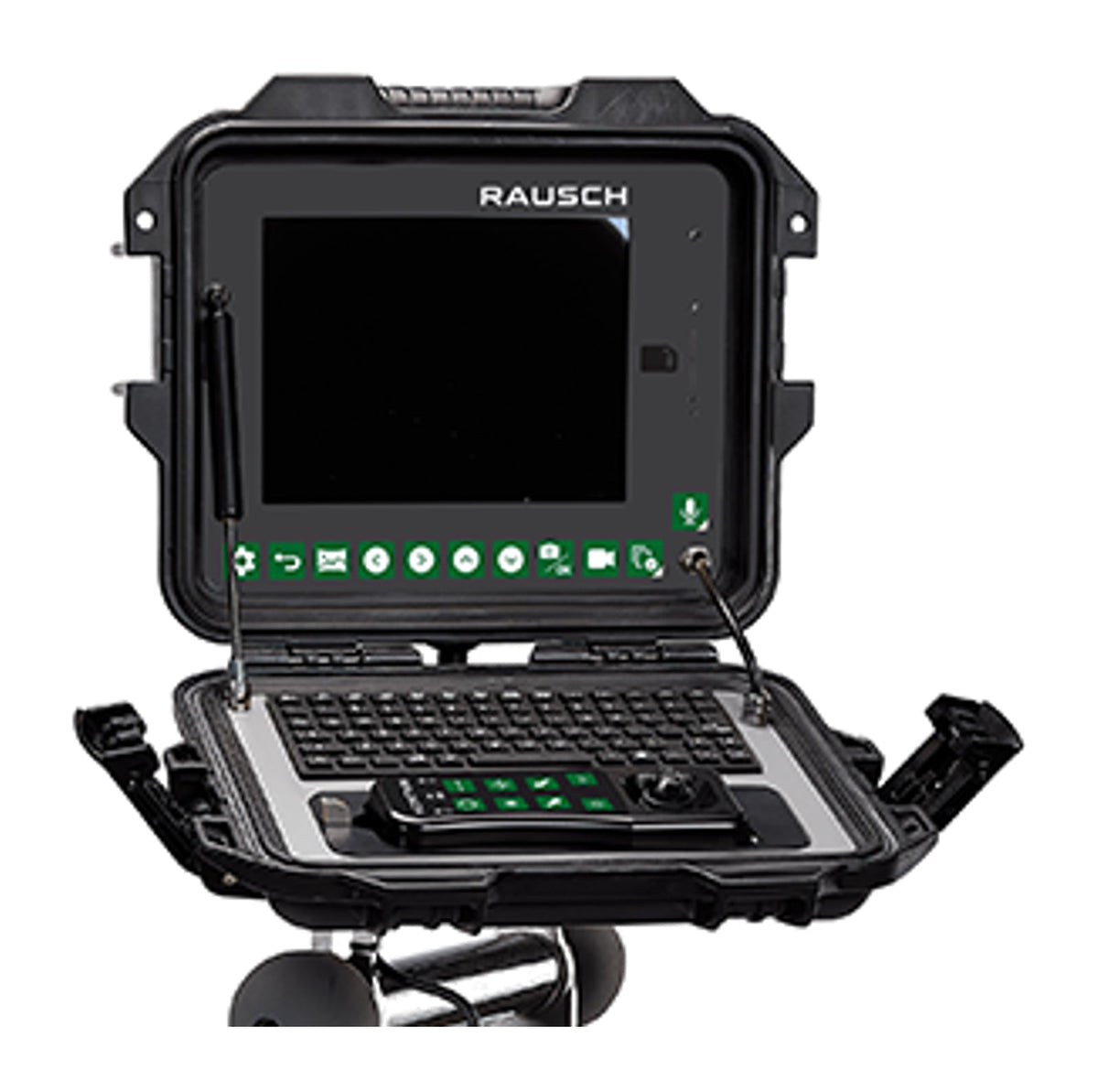

  • Detachable 8.4 in. sunlight-readable control unit. Records video and stills to SD card with distance and date in the frame; text generator with keyboard for annotation.
  • Interchangeable heads. Optional KK13, KK18, KK29SL, and KK55SL axial heads run on the same reel and control unit for lines the pan and tilt head cannot enter.

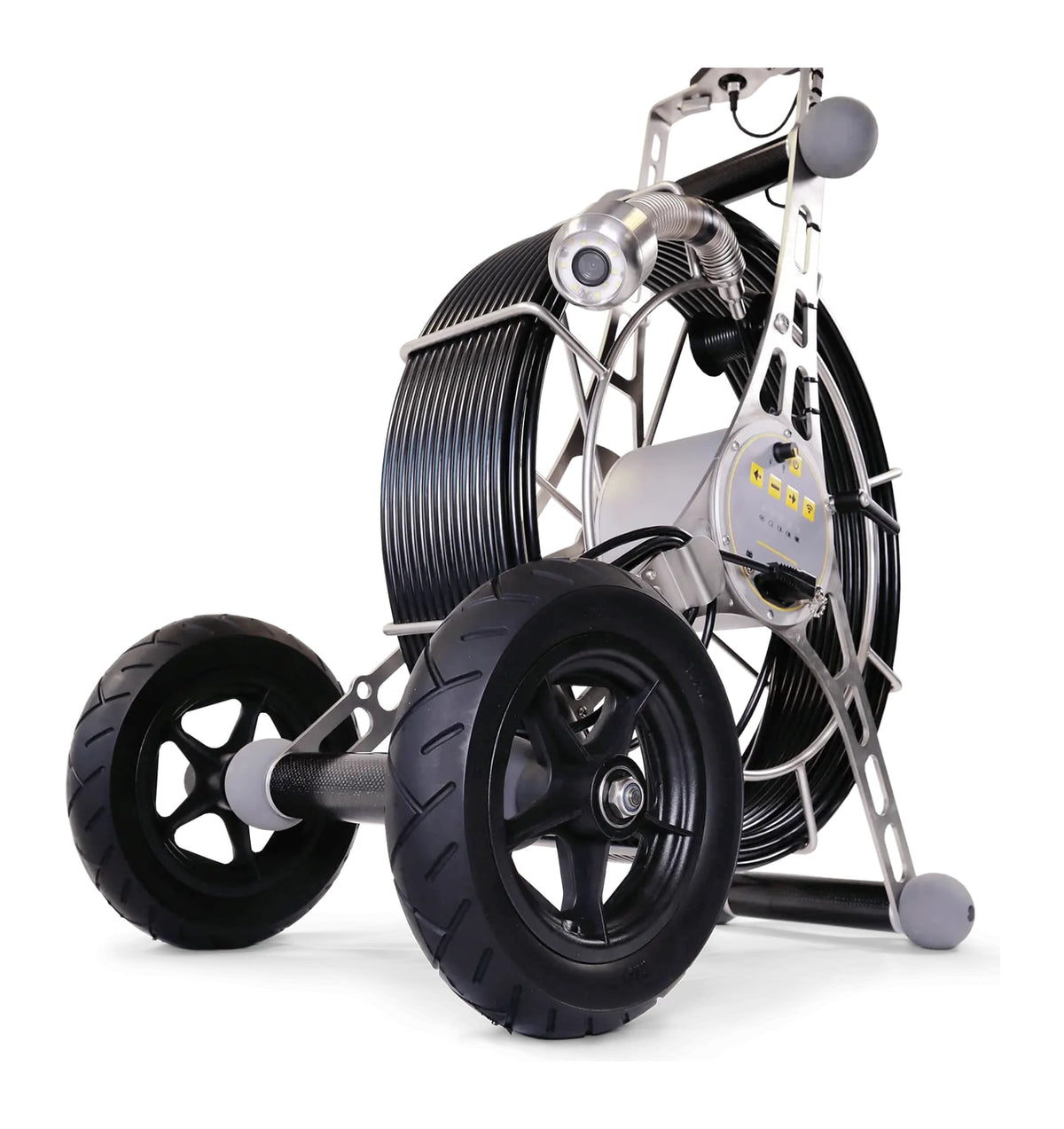

  • Stainless steel and carbon reel with an optional wheel set. Runs on interchangeable Li-ion batteries or AC.

Choose the MC360 if

You need pan and tilt with 200 ft or 300 ft of reach, or you want one reel that also takes axial heads. For the same head on a 100 ft reel one person can carry, see the minCam MC360 Compact. For fixed-view work in 3 in. to 16 in. lines at lower cost, see the minCam MC50. Compare the full range of pan and tilt push cameras and pipe inspection cameras AIT supplies.

What is included

  • MC360 reel with 200 ft (60 m) of 9.2 mm push rod (300 ft / 90 m reel available)
  • SK50 pan and tilt camera head, 50 mm
  • Detachable 8.4 in. sunlight-readable control unit with joystick remote
  • Li-ion batteries, charger, and AC power supply
  • Optional centering skids sized to the pipe range (quoted as needed)
  • SD card and operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977. AIT configures the head, optional centering skids, and rod length for your lines, supports the system after the sale, and offers push camera rentals for crews that want to run a job before they buy.

Related models: minCam MC360 Compact · minCam MC50 · pan and tilt push cameras

Specifications

  • Camera head: SK50 pan and tilt, color
  • Head diameter: 50 mm (1.97 in.)
  • Pipe diameter range: 3 in. to 16 in. (80 mm to 400 mm) with skids
  • 90° bends from: 3 in. (80 mm)
  • Rotation / tilt: Endless 360° rotation, 150° tilt
  • Pressure rating: 6 bar (87 psi)
  • Push cable: 200 ft (60 m); 300 ft (90 m) reel available
  • Cable diameter: 9.2 mm
  • Control unit: 8.4 in. sunlight-readable display, detachable, joystick remote, function keys
  • Recording: Video and still images to SD card, distance and date in frame, text generator with keyboard
  • Distance counter: Integrated
  • Sonde: Dual-frequency, 512 Hz and 33 kHz
  • Optional heads: KK13, KK18, KK29SL, KK55SL
  • Video out: BNC
  • Power: Interchangeable Li-ion batteries or 100 to 240 V AC
  • Battery runtime: Up to 4 hours per charge
  • Reel construction: Stainless steel and carbon fiber; wheel set optional
  • Origin: German-engineered, Rausch

Applications

  • Sewer and storm mains from 3 in. to 16 in. where joints, laterals, and the crown need a direct look
  • Lateral and service connection inspection from the main using the Roll-In Device
  • Plant process and waste piping where a crawler will not fit and a fixed-view camera misses the sidewall
  • Pre-lining and post-lining verification, including lateral reinstatement checks
  • Well casings, culverts, and vertical drops within the 6 bar rating
  • Small drains and tubes when fitted with the optional KK13 or KK18 axial head


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

What is the smallest pipe the MC360 can inspect?

With skids the working range is 3 in. to 16 in. (80 mm to 400 mm). The SK50 head turns 90° bends in 3 in. (80 mm) bore and larger.

What is the difference between the MC360 and the MC360 Compact?

Same SK50 head. The MC360 carries 200 ft or 300 ft of rod on a larger reel with an 8.4 in. control unit and an optional wheel set. The Compact carries 100 ft, uses a 7 in. control unit with WiFi as standard, and one person can carry it.

Self-leveling or pan and tilt: which do I need?

Self-leveling keeps the picture upright while you push and is enough for straight-down-the-line condition surveys; see the minCam MC50. Pan and tilt lets the operator aim the camera at joints, laterals, and the crown, which is what the MC360 is for.
