minCam MC30 / MC30Duo Push Camera

SKU: MC30 & MC30Duo

Inspect heat exchanger tubes, boilers, chillers, pipes, and floor drains from 15mm to 150mm ID. 30m (100') length, video and image recording, 3 hour internal battery, Interchangeable camera heads. Portable and industrial design allows operation anywhere.

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

MC30 / MC30 Duo Pipe Inspection Camera Overview:

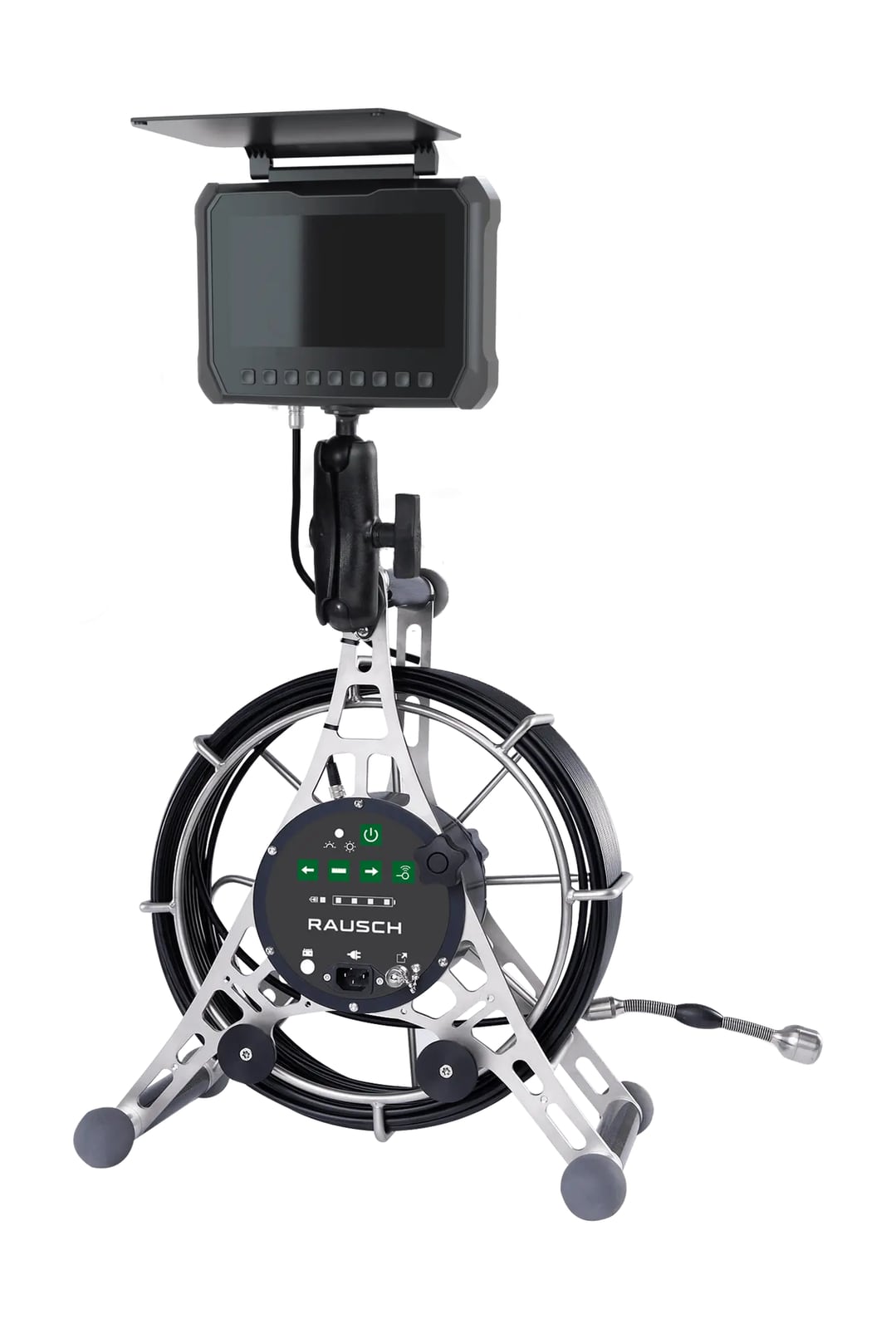

MC30 Set

  • 30m (98') Push Rod

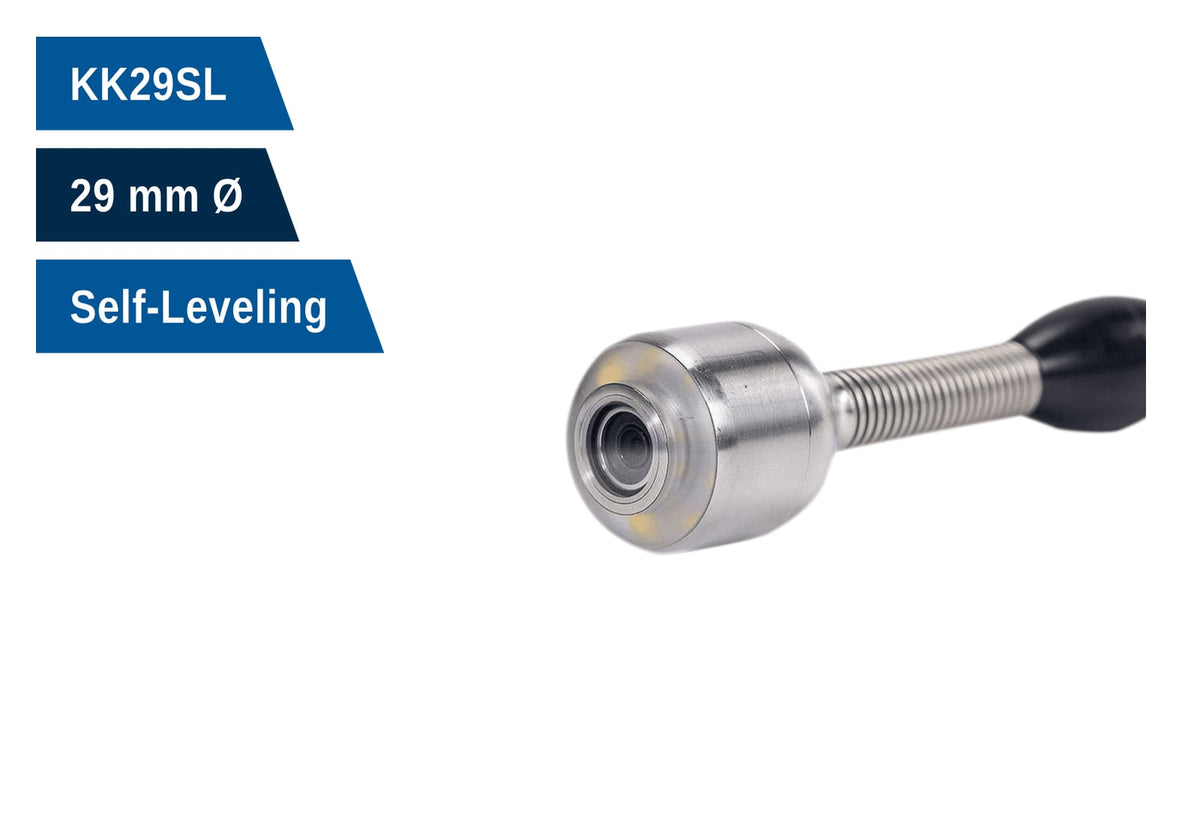

  • KK29SL Self-Leveling Camera Head
    • Diameter: 29mm
    • Cylinder Length: 16mm
    • Pressure Rating: 10bar
    • Resolution: 560 TV-lines
    • Sentisitivity: 0.02Lux
    • Field of View: 121°
    • Protection: 3mm Sapphire Lens
  • Construction: Stainless Steel And Carbon Fiber Frame
  • Power: AC And 3 Hour Internal Lithium Ion Battery

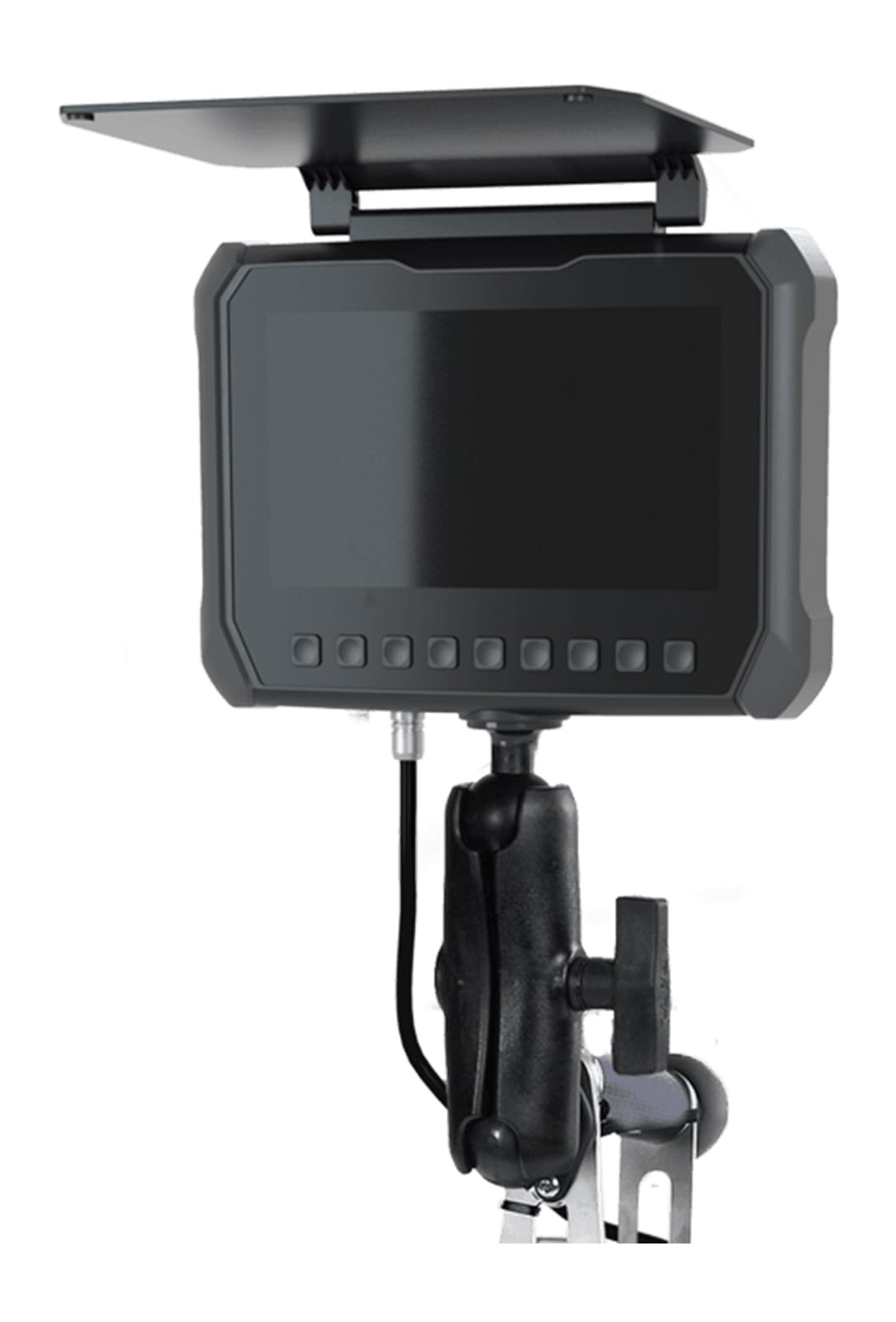

  • Display: 5.6 in. High-Resolution LCD Monitor
  • Recording: Digital Storage Of Video and Still Images
  • Memory: Removable SD Card (32 GB Max.)
  • Counter: Integrated Distance Counter, BNC Video Out (PAL)
  • Weight: (MC30: 8Kg (17.6 Lbs.)
  • Dimensions: MC30: 17 in. L x 10 in. W x 26 in. H, Basic 50: 21 in. L X  10 in. W X 26 in. H
  • Options: Text Generation, Location Transmitter, Roller Skids, 4 Different Diameter Camera Heads

MC30Duo Set

Includes everything in the MC30 Set and a second independent 15m (50') push-pull cable with a 13mm (1/2") camera head


minCam MC30 & MC30Duo Pipe Inspection Camera Features and Benefits

  • Optional Text annotation allows logging of inspection notes (serial numbers, dates, condition, location etc.). This saves time and allows for better reporting without the need to retype hand written data.
  • Stainless steel and carbon fiber construction provides a lightweight, robust and corrosion resistant frame. This intelligent design contributes to the portability of the minCam pipe inspection system and ensures long life.
  • Interchangeable Camera Heads provide the best camera and LED light output for large and small diameter applications. This makes inspection of multiple applications possible.
  • A removable SD Card records still images and video for later review and easy transfer to a PC for reporting or sharing via email.
  • Adjustable LED lighting allows adjustment of the image in extremely dark and highly reflective areas. This provides the optimum image for inspecting a variety of applications.
  • High resolution TFT display is the perfect combination of portability and ease of use.
  • Optional sonde locator allows the exact detection of the camera head to isolate damage in a line for precise corrective action.
  • Distance counter displays length of push rod that is extended to assist in determining the location of damage within a line.
  • Easy to change push rod cable allows quick replacement in the field.
  • Short cylindrical length of the camera heads allows the pipe inspection camera to more easily traverses 90-degree bends and allows inspection of smaller diameter pipelines than other designs.
  • Sapphire glass protects the objective lens for maximum durability to provide long life to the pipe inspection camera system.
  • Quick-change camera heads require no tools and are easily changed out in the field to save time.



mC30 Pipe inspection Camera:
  • KK29 camera with 30m 5.5mm rod
  • 5.6” TFT LCD monitor
  • Video with audio recording to SD card
  • Image capture to SD card
  • BNC video output (PAL)
  • Internal 2.5 hr. Lithium ion battery
  • Stainless steel and carbon fiber
  • Frame: 17”l x 9”w x 19”h, 15lbs
 Available Interchangable Camera Heads

KK18

  • 18mm diameter x 20mm cylindrical length color camera:
  • DoF 2.5cm – 10cm
  • FoV 78⁰
  • Temperature limit 140⁰F
  • Pressure limit 2 Bar
  • 2mm thick sapphire lens
  • Stainless steel housing
  • 365K pixels



KK29

  • 29mm diameter x 16mm cylindrical length color camera:
  • DoF 2.5cm - ∞
  • FoV 132⁰
  • Temperature limit 140⁰F
  • Pressure limit 6 Bar
  • 3mm thick sapphire lens
  • Stainless steel housing
  • 365K pixels
  • Available as self-leveling with upgrade



 KK55

  • 55mm diameter x 35mm cylindrical length color camera:
  • DoF 6cm - ∞
  • FoV 118⁰
  • Temperature limit 140⁰F
  • Pressure limit 6 Bar
  • 4mm thick sapphire lens
  • Stainless steel housing
  • 365K pixels / double ring LED’s
  • Available as self-leveling with upgrade

Inspection of boiler tubes. Boiler tubes need to be checked for scale, deposits, cracking and other defects. The most reliable method is an industrial pipe inspection camera.

Inspection of floor drains. Food plants need to check floor drains for cleanliness and blockages or food borne bacteria can grow. A pipe inspection camera allows for quick inspection.

Process lines need to be inspected for condition. A pipe inspection camera allows fast inspection of long industrial line to check for pitting, corrosion, erosion, cracking, scaling and other problems.

Cleaning Validation can be performed at pharmaceutical and chemical plants with a pipe inspection camera. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated. A push or pipe inspection camera is used to ensure no residue is remaining after cleaning.

Steam feed lines need to be inspected for interior condition. A pipe inspection camera can see scale build up, pitting, corrosion, cracking and other defects.

Foreign Material Exclusion (FME) programs benefit from the capability of a pipe camera to locate foreign objects, loose parts and other debris in industrial piping. Once the pipe inspection camera locates the foreign material it can then be used to direct retrieval tools to remove the objects without tear down.

Inspection of boiler tubes. Boiler tubes need to be checked for scale, deposits, cracking and other defects. The most reliable method is an industrial pipe inspection camera.

Inspection of floor drains. Food plants need to check floor drains for cleanliness and blockages or food borne bacteria can grow. A pipe inspection camera allows for quick inspection.

Process lines need to be inspected for condition. A pipe inspection camera allows fast inspection of long industrial line to check for pitting, corrosion, erosion, cracking, scaling and other problems.

Cleaning Validation can be performed at pharmaceutical and chemical plants with a pipe inspection camera. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated. A push or pipe inspection camera is used to ensure no residue is remaining after cleaning.

Steam feed lines need to be inspected for interior condition. A pipe inspection camera can see scale build up, pitting, corrosion, cracking and other defects.

Foreign Material Exclusion (FME) programs benefit from the capability of a pipe camera to locate foreign objects, loose parts and other debris in industrial piping. Once the pipe inspection camera locates the foreign material it can then be used to direct retrieval tools to remove the objects without tear down.
