CRYSOUND 8124 Acoustic Imaging Camera (200 mics, 2k-100khz)

SKU: CRY8124
Detect gas leaks, partial discharges, and mechanical faults up to 10 times faster than traditional methods. The CRY8124, with its 200 ultra-sensitive microphones and 100 kHz bandwidth, offers precise, real-time diagnostics. Its 8-inch high-resolution display and optional thermal imaging ensure you capture every critical detail. Wireless connectivity and advanced reporting capabilities reduce downtime and enhance safety, making the CRY8124 an essential tool for proactive maintenance.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

CRYSOUND 8124 Industrial Acoustic Imager Overview

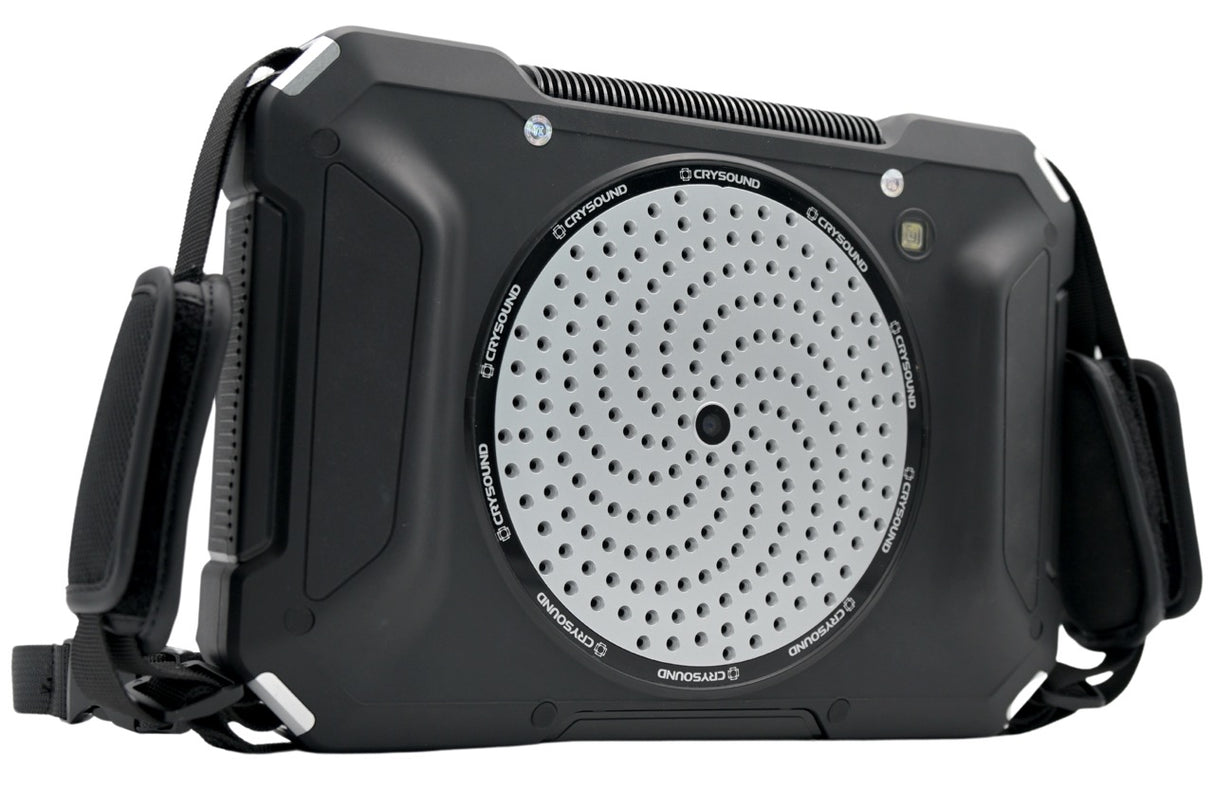

Introducing CRYSOUND’s cutting edge acoustic imaging camera, revolutionizing industrial inspections with advanced capabilities. The CRY8124 acoustic imaging camera excels at pinpointing leaks, identifying electrical partial discharge, and detecting mechanical deterioration. The CRY8124 sets a new standard for sensitivity and efficiency. Featuring 200 microphones (the most in the industry), the CRY8124 allows smaller leaks and partial discharges  to be detected at a greater distance.

The CRY8124 reporting software allows offline analysis, editing, and report generation, simplifying regular maintenance routines. Elevate the CRY8124 effectiveness of your industrial inspections with CRYSOUND’s acoustic cameras.

The Best Performance in the Industry: With 200 microphones, 100kHz bandwidth, and the fastest processor in the industry, the CRY8124 can pinpoint smaller leaks and partial discharges at a greater distance than any other system.

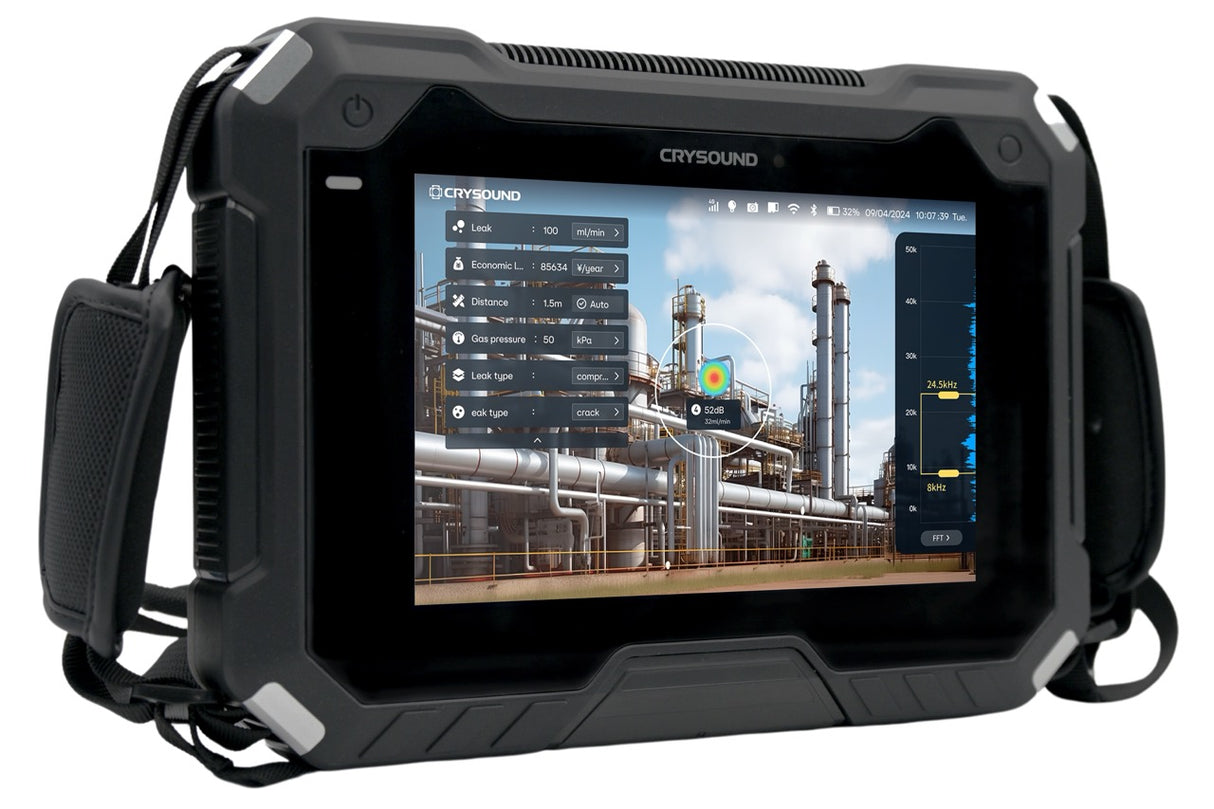

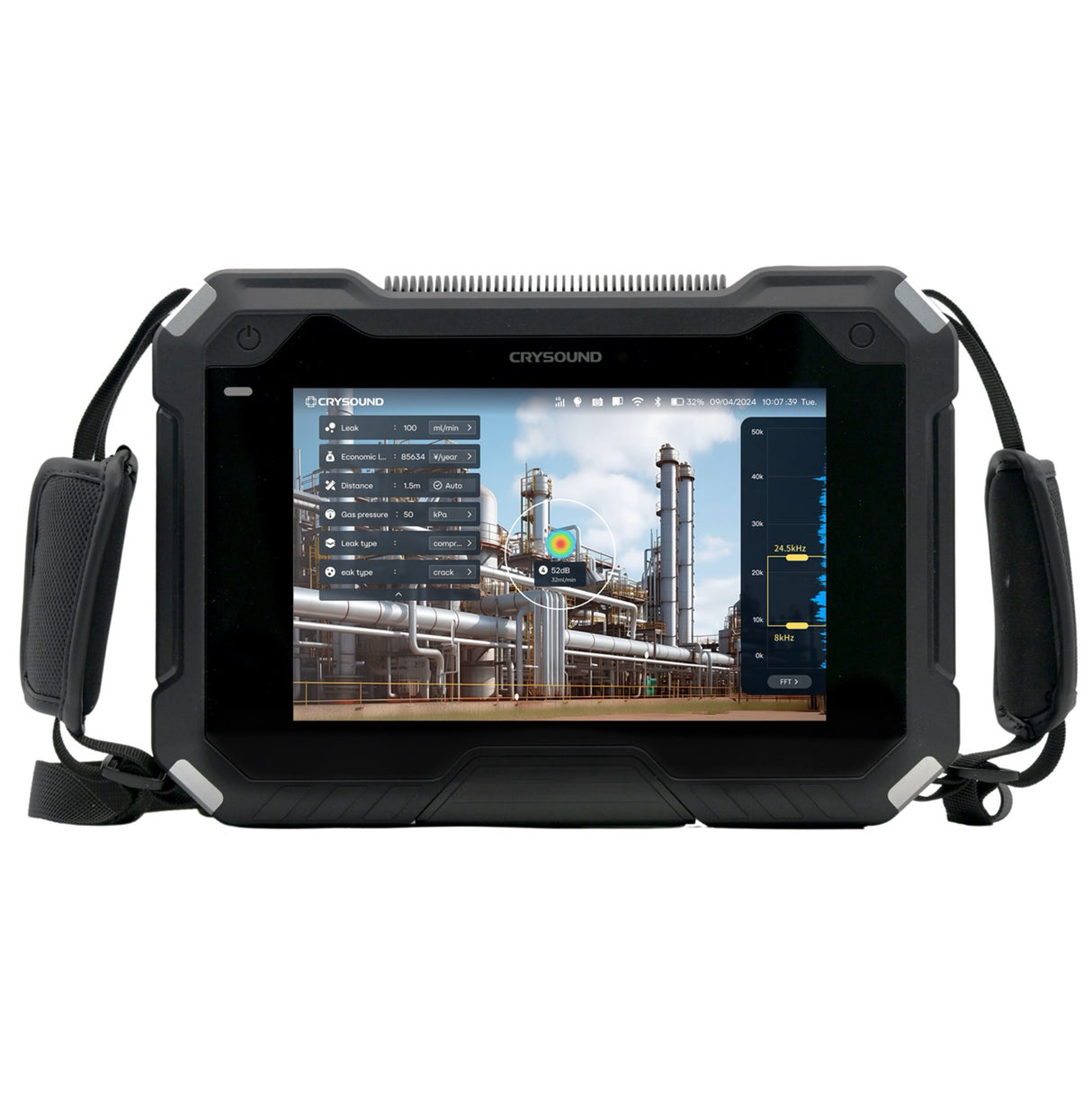

8 Inch, 2M Pixel Display for Clear Insights Into Problems: The CRY8124 display features 2K resolution, 6X digital zoom, and 600 nits display brightness for accurate viewing of field conditions in full sunlight.

Multiple Communication Methods: Bluetooth and WiFi enable direct data transmission to local devices.

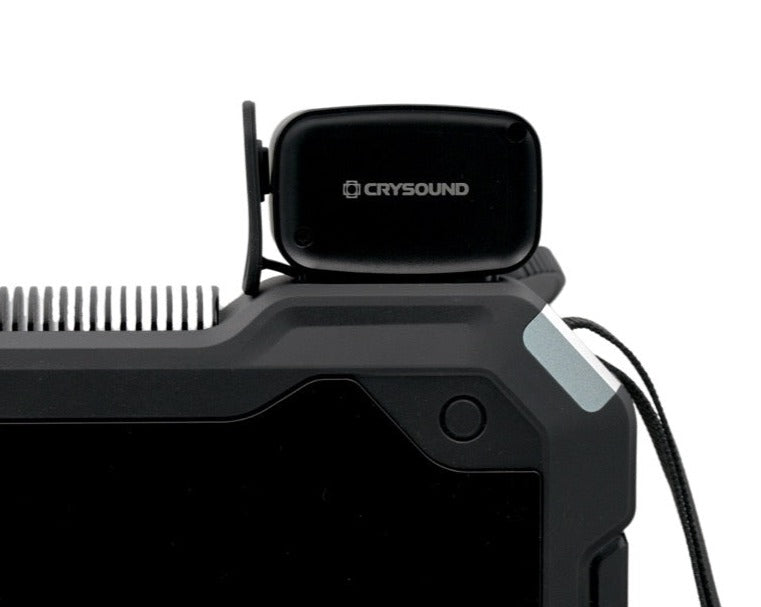

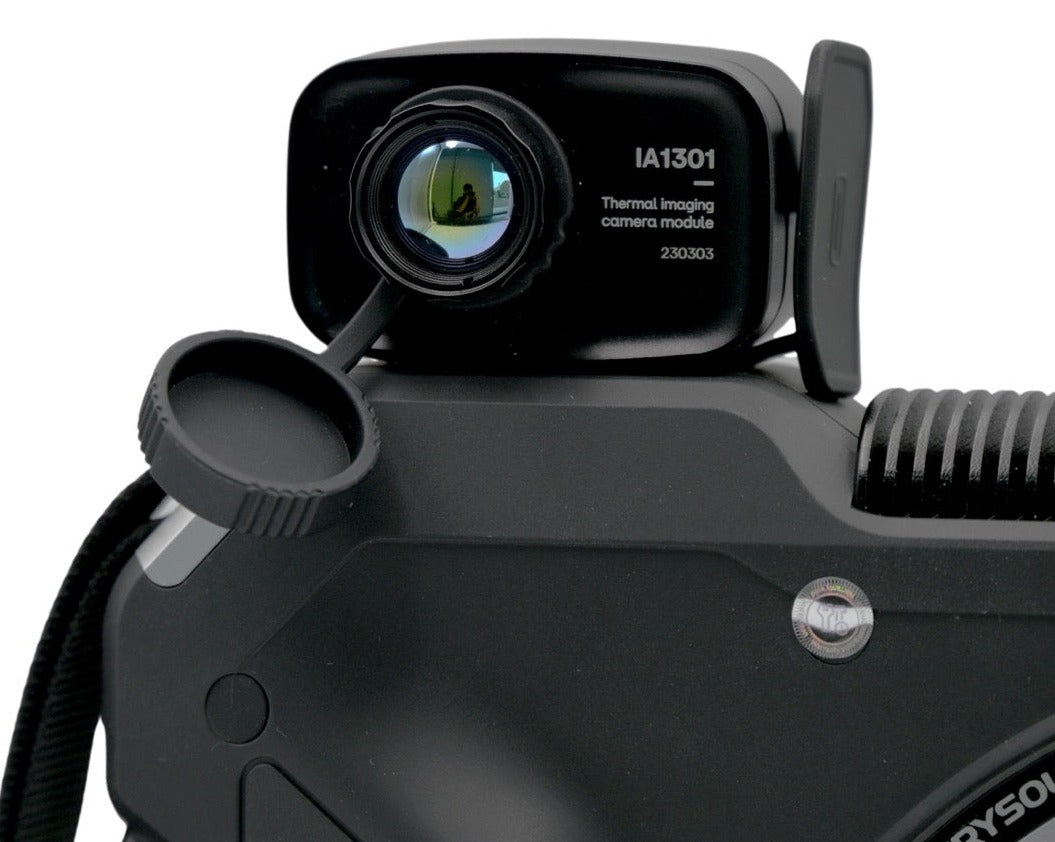

4 IEPE Sensor Inputs Enables a Wider Range of Applications: Up to 4 IEPE sensors (accelerometers, microphones, etc.) and thermal camera can be added to the system enabling complex detection scenarios and allowing for future expansion.

Up to 10 Hours of Operation: A single rechargeable Li ion battery provides up to 5 hours of continuous operation. The CRY8124 comes standard with 2 batteries, offering a total runtime of up to 10 hours.

Ergonomic Design and Operation: With a weight of only 3 lbs. (1.4kg), the CRY8124 features a rubber molded grip for safe,  single handed operation.

2 year warranty: CRY8124 is covered by a 2 year limited manufacturer's warranty.

Acoustic Specifications

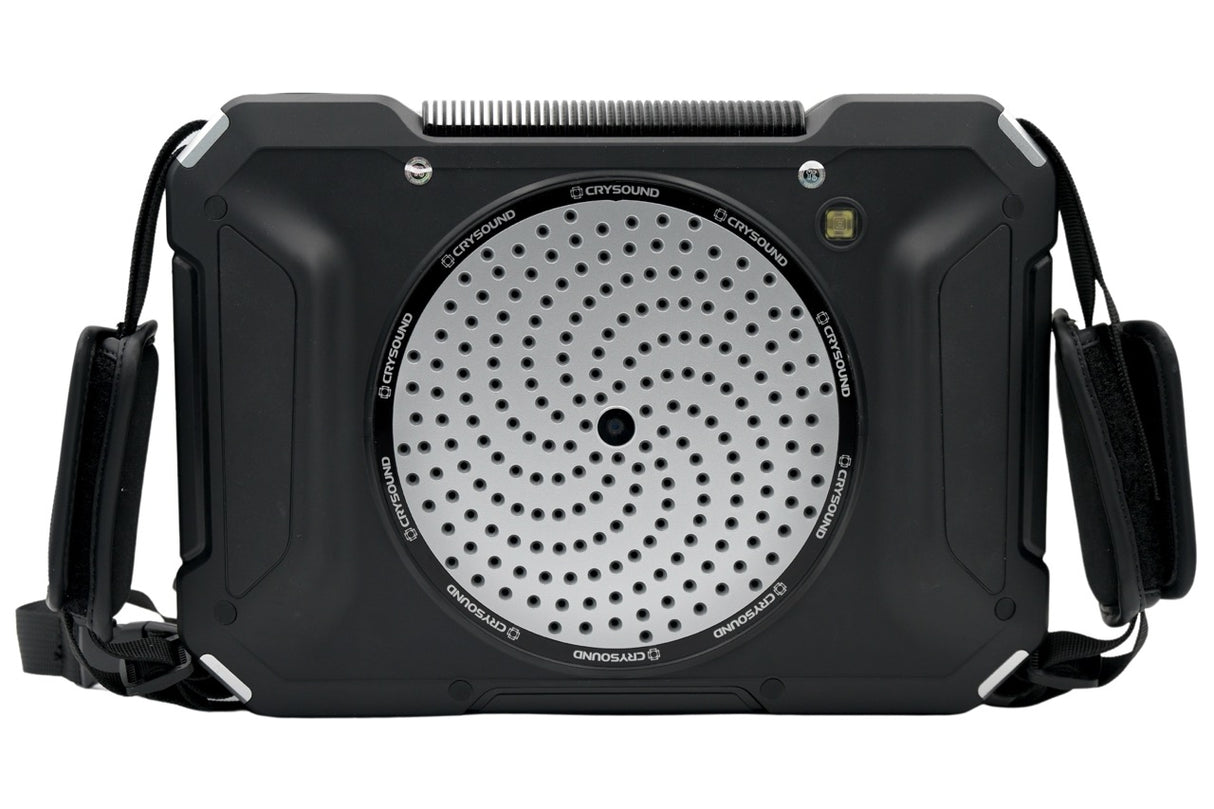

  • Microphone Array: 200 channels MEMS microphone
  • Frequency Range: 2k - 100k Hz
  • SPL Range: 28 - 132 dB
  • Test Distance: 0.5 - 200 m (1 - 656 ft)
  • Minimum Detectable Leak:

10 m, 2.7 bar, 0.0029 L/min

0.5 m, 1.9 bar, 0.0028 L/min

Camera

  • Field of View (FOV): 66°
  • Camera Resolution: 13M pixels
  • Focal Length: 4.3 mm (0.17 inches)
  • LED Light: 4*LED

Display

  • Resolution: 1920*1200 (6x digital zoom)
  • Touch Screen: 8 inches, capacitive touch screen
  • Brightness: 600 nits, auto adjustment

Hardware Ports

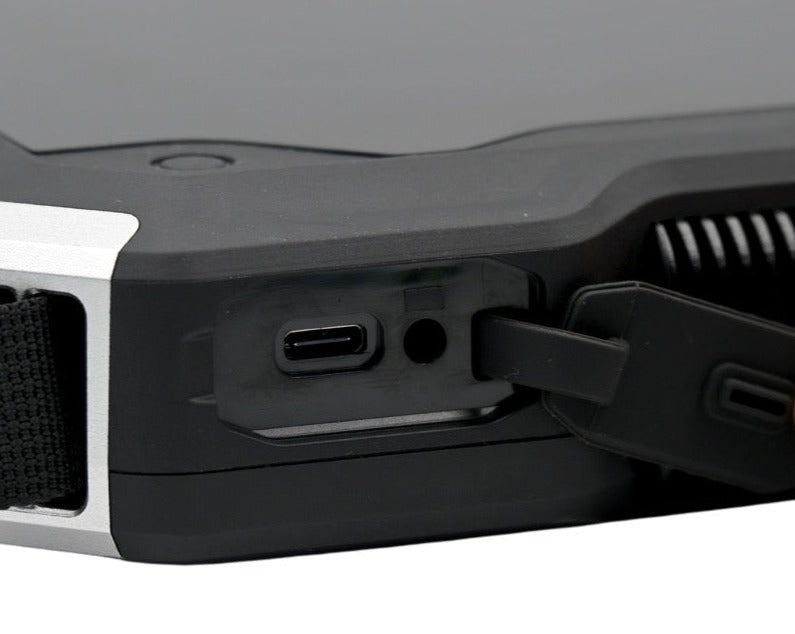

  • USB-C 1: USB 3.0 for charging, HDMI, data export
  • USB-C 2: USB 2.0 for data export, USB sensor
  • 3.5 mm Audio Jack: Headphone output
  • TF Card Slot: External storage
  • SIM Card Slot: Supports 4G/5G network communication card

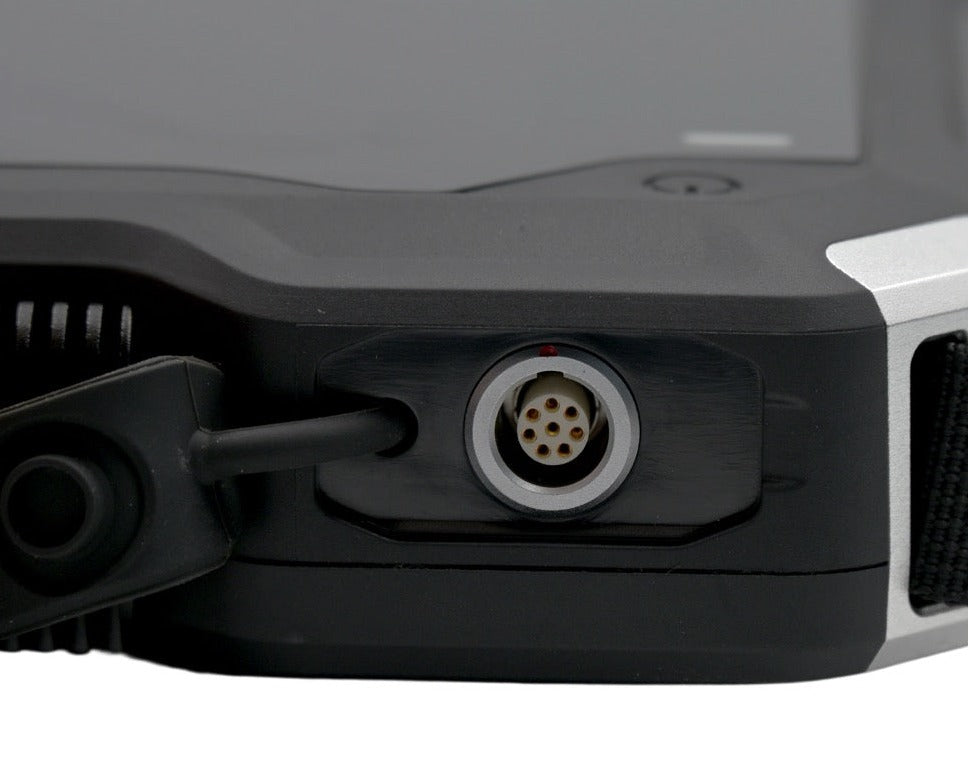

  • Analog Input: Connects external analog sensor (4 channels, 20 - 100k Hz)

General Specifications

  • Size: 270 * 190 * 51 mm (10.6 * 7.5 * 2.0 inches)
  • Weight: 1.4 kg (3 lbs)
  • Wi-Fi: 802.11a/b/g/n/ac
  • Bluetooth: BT 5.2
  • GNSS: GPS+BDS+GLONASS+GALILEO+QZSS
  • Operating Temperature: -20 to +50 ℃, 10 - 95% no condensation
  • Storage Temperature: -20 to +70 ℃, 10 - 95% no condensation
  • IP Rating: IP54
  • Storage Capacity: 64G internal, 64G external

Battery

  • Battery Type: Smart battery with indicator, replaceable
  • Battery Capacity: 6600mAh @7.2V
  • Battery Life: Up to 5 hours

Software

  • Functions: Multi-point imaging, directional focus, distance measurement, leak volume estimation, PRPD spectrum, type recognition, picture labeling, report export, and more.

Language Support

  • Languages: Chinese, English, Korean, French, Japanese, Russian, German, Italian, EU Spanish, Portuguese, Hungarian, Dutch, Cambodian, Vietnamese, Turkish, Polish

Aerospace

  • Aircraft pneumatic systems
  • Pressurized cabin testing
  • Fuel system leak detection

Power Generation

  • Compressed air systems in power plants
  • Gas turbines for leaks
  • Switchgear for partial discharge detection

Utilities

  • Electrical substations for partial discharge
  • Gas distribution networks
  • Water treatment plant air systems

Manufacturing

  • Compressed air systems in production lines
  • Pneumatic equipment and tools
  • Vacuum systems for material handling

Automotive

  • Assembly line air compressors
  • Paint booth air systems
  • Tire inflation stations

Food and Beverage

  • Packaging machinery using compressed air
  • Bottling and canning lines
  • Pneumatic conveyor systems

Pharmaceuticals

  • Sterile air systems in clean rooms
  • Tablet press machines
  • Pneumatic controls in production equipment

Oil and Gas

  • Compressed natural gas (CNG) systems
  • Pneumatic control valves
  • Gas processing equipment

Chemical Processing

  • Reactor vessels and piping systems
  • Pneumatic actuators and controls
  • Gas distribution networks

Electronics Manufacturing

  • Clean room air systems
  • Pneumatic pick-and-place machines
  • Vacuum systems for circuit board handling

Textiles

  • Air jet looms
  • Pneumatic material handling systems
  • Air-powered cutting tools

Mining

  • Compressed air systems for pneumatic drills
  • Ventilation systems in underground mines
  • Pneumatic conveyor systems

Pulp and Paper

  • Air systems in paper machines
  • Pneumatic actuators in process control
  • Vacuum systems for paper handling

Healthcare

  • Medical gas distribution systems in hospitals
  • Compressed air for dental equipment
  • Vacuum systems in operating rooms
