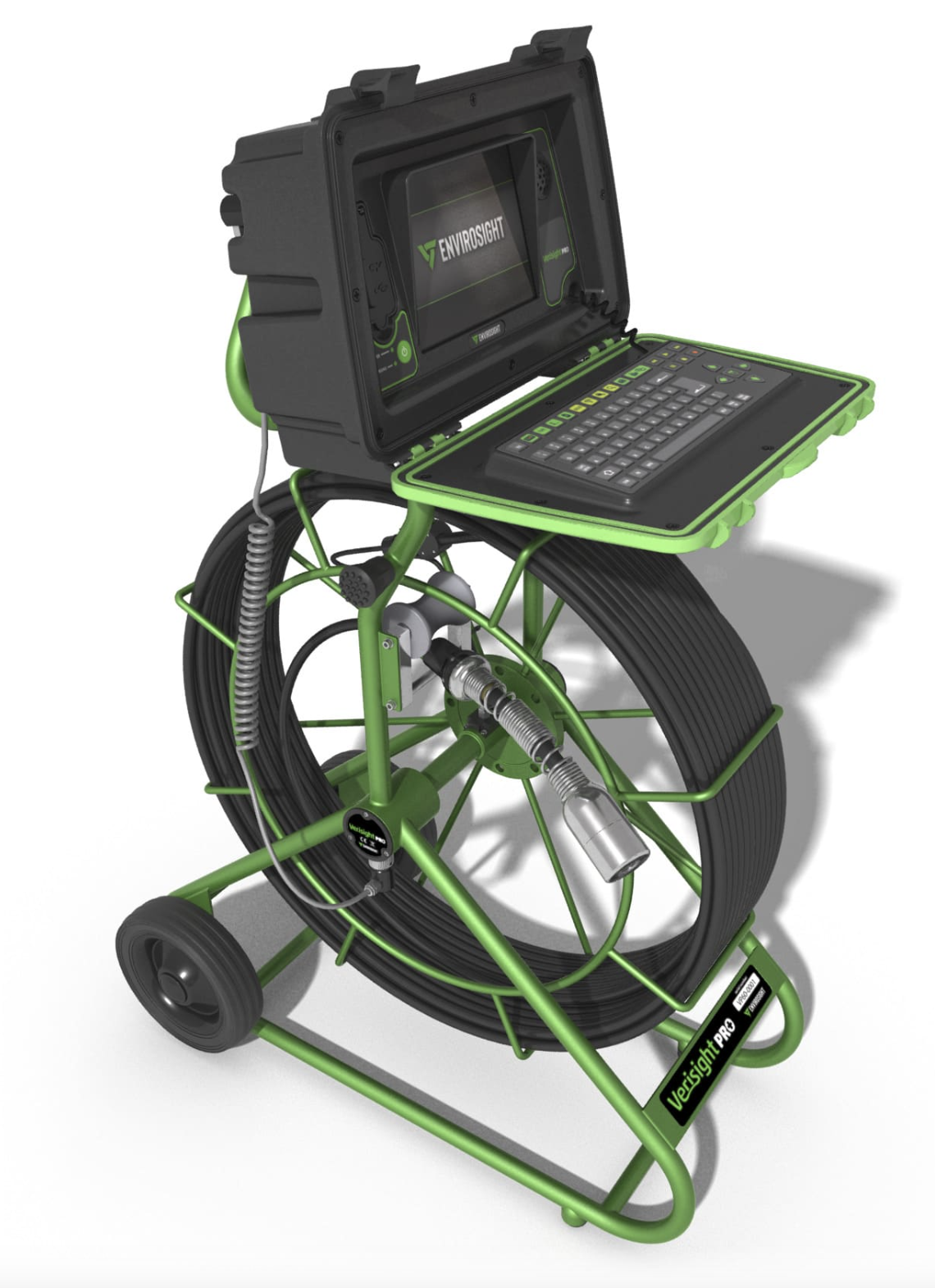

Verisight Pro Pipe Camera

SKU: Verisight Pro
The Verisight Pro pipe camera is our most rugged pan & tilt pipe inspection camera ever! Three sizes are available: 330', 200' and 130' push cable length. Built in inspection documentation and reporting.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Verisight Pro Industrial Pan & Tilt Pipe Camera Overview

VeriSight Pro pipe camera has everything you need to inspect pipes, document your findings, and generate reports:

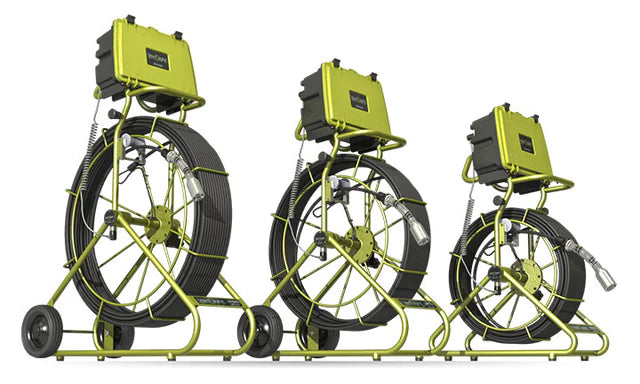

  • Reel: Welded steel constructions with a slip-ring design and powder coat finish withstand the punishing industrial environments. Three sizes are available: 330', 200' and 130'.
  • Camera: A self-leveling stainless-steel camera captures color footage from pipes 2" and up, or 4" and up with an optional pan/tilt camera. LED lamps deliver variable-intensity, shadow less illumination.
  • Controls: Zoom video 3X on live or recorded video, capture still images, browse thumbnail galleries, and select among several available languages. Rated IP54, the controls run off mains power, vehicle power, or an internal rechargeable 6-hr battery.
  • Footage: VeriSight Pro's interface displays real-time footage on an 8" LCD and records up to 90 hours of digital video.
  • Location: any locator can pick up the signal from VeriSight Pro's tri-band sonde.
  • Text Writing: Enter up to 16 pages of text, and display distance counter measurements appear onscreen.
  • Reporting: VeriSight Pro is the only pipe camera available with optional data entry and reporting capabilities. With these options, you can enter standards-compliant observations using onboard defect catalogs, and then generate reports.

System

Video format . . . . . . . . . . . Selectable NTSC or PAL

Battery . . . . . . . . . . . . . . . . . . . . . 6-hour lithium-ion

Charging . . . . . mains power (100-240 Vac) or vehicle Power (12 Vdc) using supplied adapters



Controller

Display . . . . . . . . . . . . . . . 8” TFT LCD (800×600 pixels)

Keyboard . . . . . full QWERTY membrane keyboard

With function keys and navigation pad

Video recording . . . . . . . . . MPEG4 (WinCan compatible)

Image capture . . . . . . JPEG (live or from recorded video)

Text overlay. . 16-page (selectable text/background colors)

Internal memory . . . . . . . 16 GB (expandable to 128 GB)

External media . . . . . . . . . . . . . SDHC and USB 2.0

Language support . . . . . . English, Spanish, French

Connections . . . . . . . . . . . . . . . . . . . . . . power, reel

Environmental rating . . . . . . . . . . . . . . . . . . . IP54

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.6 lb (3kg)

Size . . . . . . . . . 17.1” × 9.8” × 5.5” (435 × 250 × 140 mm)



Camera

Imager . . . . . . . . . . . . . . . . ¼” color CCD with DSP

Effective pixels . . . . . . . . . . . . . . . . . . . . . 512×582

Resolution . . . . . . . . . . . . . . . . . . . . . . . . 470 HTVL

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.0 lux

Aperture / field of view . . . . . . . . . . . F2.5 / 75 deg

Image orientation . . . . . . . . . . . . . . . auto-leveling

Size . . . . . . . . . . . . . . . . . . . . . . . . . 1.61“ (41 mm) dia.

Illumination system . . . . . . . . . . . . . . . . . . . . 4 LED

Illumination intensity. . adjustable (up to 12.5K lux at 6”)

Construction . . . . . . . . . . . . . . . . . . stainless steel

Pipe compatibility . . . . . . . . . . . . 2” (50 mm) and up

Sonde . . . . . . . . 33 kHz, 512 Hz, 640 Hz (selectable)



Reel

Construction . . . . . . . . . . . . . . . . . . . welded steel

Finish . . . . . . . . . . . . . . . . . . . . . . . . . . powder coat

Distance counter units . . . . . . . . . . . . feet, meters

Controls . . . . . . . . . . . . . . . . . reel brake, reel lock

130’ (40 m) reel

Weight / height . . . . 33 lb. (15 kg) / 24.4” (620 mm)

200’ (60 m) reel with wheels

Weight / height . . . 44 lb. (20 kg) / 35.0” (890 mm)

330’ (100 m) reel with wheels

Weight / height . . . 66 lb. (30 kg) / 37.8” (960 mm)



System Components

• Push rod reel

• Illuminated, self-leveling color camera with sonde

• Control unit with internal battery

• Reel-to-controller cable

• Car power adapter

• Mains power adapter

• Pipe adapter kit

• 8 GB USB drive

• Components case



Options

• Observation entry module

• Reporting module

• Composite video input pigtail

• SD/SDHC card for data storage

• Replacement camera windows

• Roller skids (below)
