PTZ45XD Inspection System

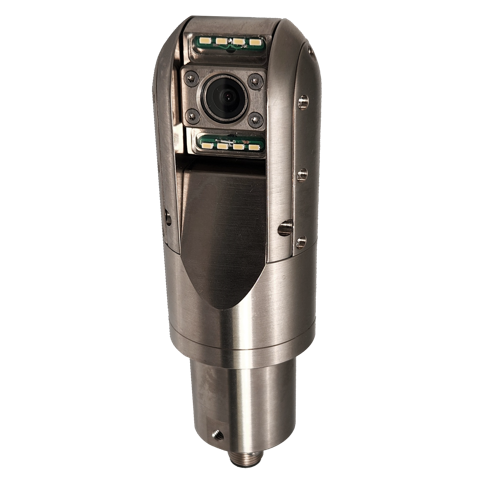

Camera Specifications:

• Image Sensor: 1/2.8 Color HD CMOS
• Effective Image Area: 12mm X 9.3mm
• Effective Pixel Array: 1945H X 1097V
• Pixel Size: 2.8µm X 2.8µm
• Signal/Noise Ratio: >30dB
• Back Light Compensation: Auto
• White Balance: Auto
• Min Illumination: 0.0001 Lux / F1.2
• Wide Dynamic Range: Auto WDR
• LED Illumination: Yes
• Operating Temperature: -30ºC to 85ºC
• Cable Length: Up to 60 meters (200')

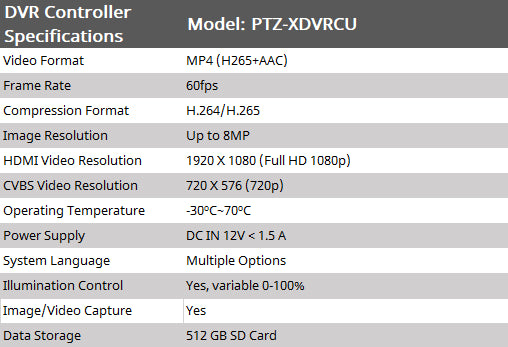

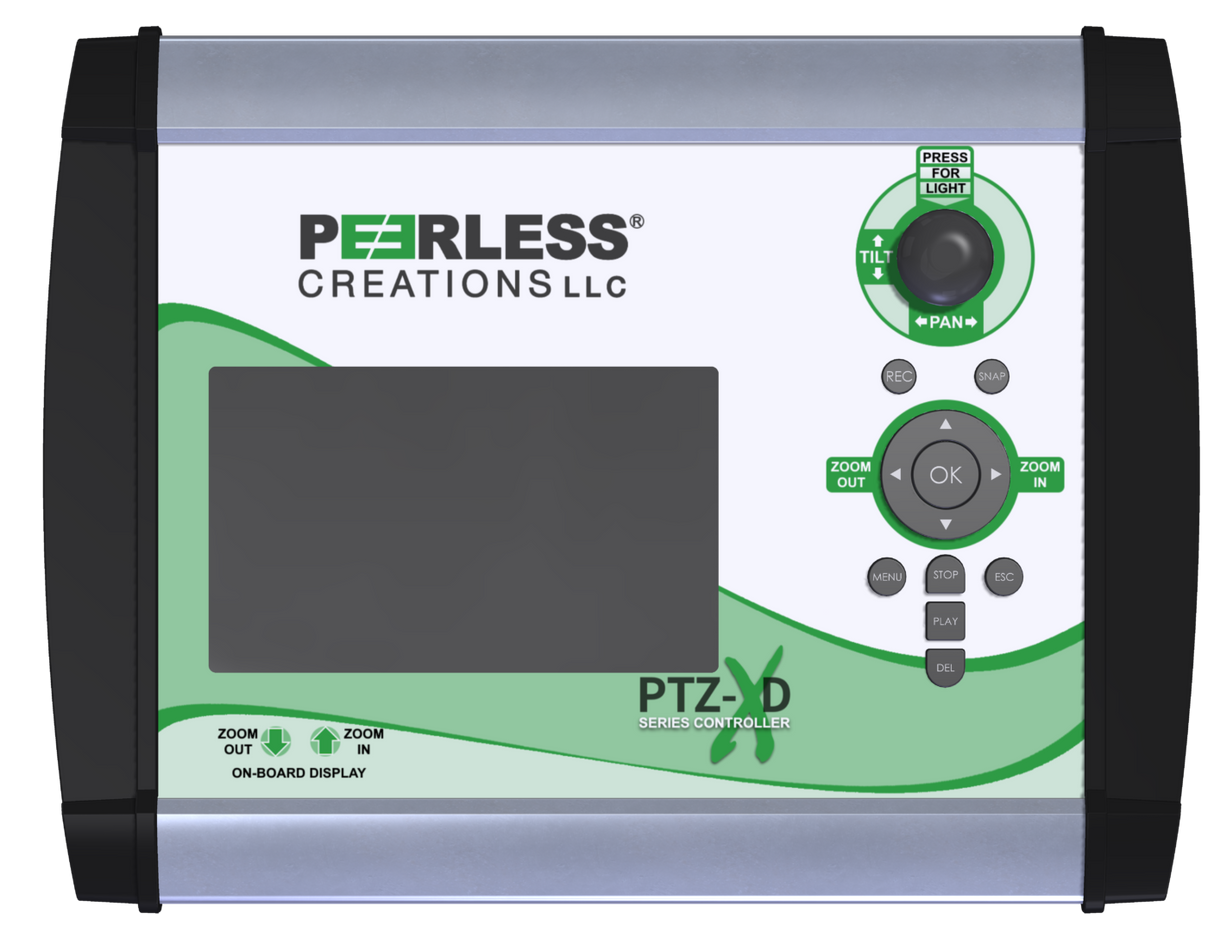

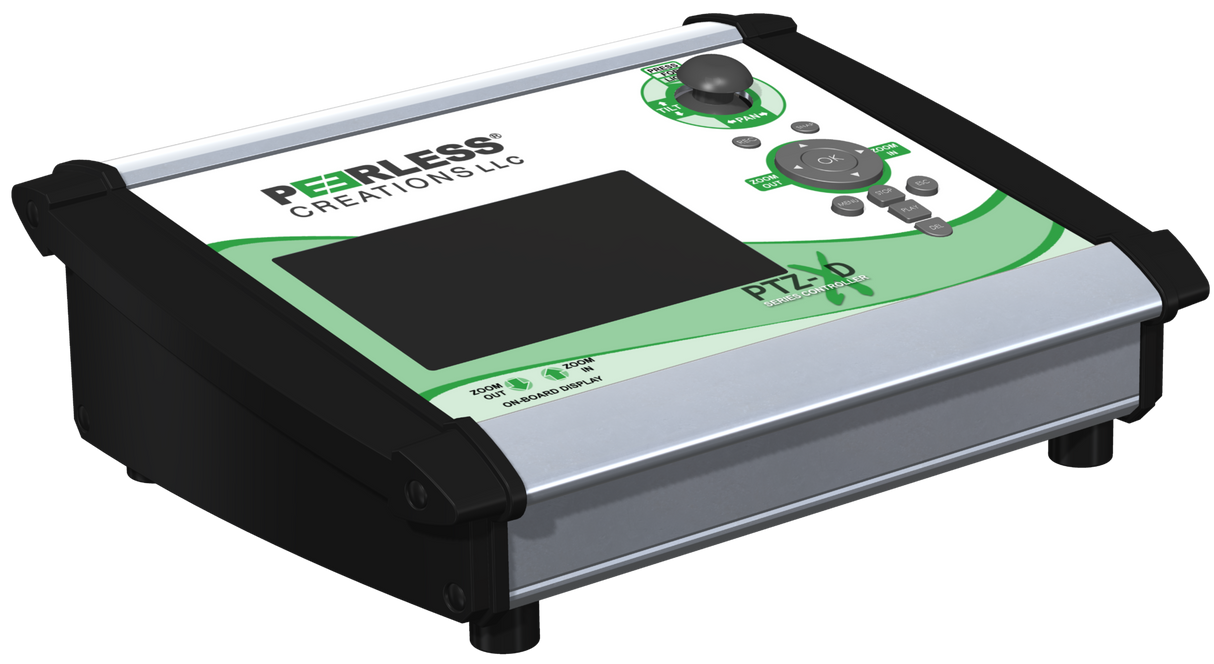

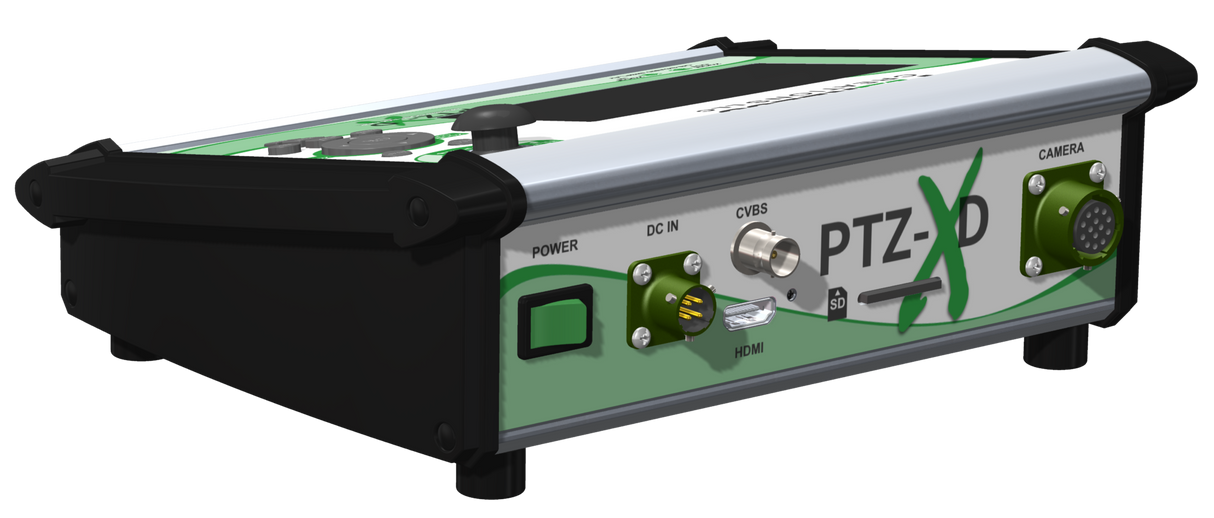

Controller Specifications:

• Video Format: MP4 (H265+AAC)
• Frame Rate: 60fps
• Compression Format: H.264/H.265
• Image Resolution: Up to 8MP
• HDMI Video Resolution: 1920 x 1080 (Full HD 1080p)
• CVBS Video Resolution: 720 x 576 (720p)
• Operating Temperature: -30ºC to 70ºC
• Power Supply: DC IN 12V < 1.5A
• System Language: Multiple Options
• Illumination Control: Yes, variable 0-100%
• Image/Video Capture: Yes
• Data Storage: 512 GB SD Card

Nuclear Power Plant Inspections

• Reactor pressure vessel and cooling pump inspection.
• Visual checks on fuel rods, spent fuel, and steam generators.
• Underwater inspections with submersible capabilities up to 100 meters, ideal for fuel pools and reactor cavities.
• IWE/IWL (Inservice Inspection of Containment Structures) exams for compliance and structural integrity.

Oil and Gas Facility Inspections

• Inspection of storage tanks, pipelines, valves, and reactors.
• Monitoring confined or hazardous spaces with limited personnel access.
• Underwater and explosion-proof inspections for offshore and onshore facilities.

Chemical and Process Industry Maintenance

• Visual inspection of process equipment, boilers, and pressure vessels.
• Reducing confined space entry (CSE) by using remote inspection tools.
• Suitable for areas with hazardous or corrosive environments.

Power Generation (Fossil and Nuclear)

• Inspecting high-pressure steam headers, baffle plates, and tank interiors.
• Monitoring for Flow-Accelerated Corrosion (FAC) and Microbiologically Influenced Corrosion (MIC).

Water and Wastewater Treatment

• Inspection of underground tanks, pipelines, and valves.
• Visual inspection of hard-to-access infrastructure to monitor cleanliness and structural integrity.

Mining and Exploration

• Inspecting remote, underground equipment and shaft structures.
• Monitoring safety and stability in high-risk, low-light environments.

Marine and Offshore Applications

• Inspection of ship hulls, ballast tanks, and offshore structures.
• Subsea inspections with corrosion-resistant, waterproof design.

Industrial Manufacturing Facilities

• Inspection of machinery, robotics, and assembly lines in manufacturing plants.
• Monitoring wear and tear in harsh environments to prevent costly breakdowns.

Refining and Petrochemical Plants

• Visual inspection of tray towers, refractory vessels, glass-lined tanks, and pipe racks.
• Ensuring cleanliness and mechanical integrity of pressure components.

Aerospace and Defense

• Inspection of aircraft fuselages, and structural components.
• Visual checks in confined areas to prevent foreign object debris (FOD).

Construction and Civil Infrastructure

• Monitoring of high-rise structures, bridges, and tunnels.
• Inspections for integrity checks in hard-to-reach or hazardous locations.

Food and Beverage Industry

• Inspection of tanks, piping, and manufacturing equipment for cleanliness and contamination prevention.
• Ensuring compliance with hygiene standards through remote inspections.

Utilities and Telecommunications

• Inspection of underground ducts, vaults, and electrical equipment.
• Monitoring overhead infrastructure and substations remotely.

Rail Car Inspections

• Visual inspection of rail car tanks and vessels to ensure cleanliness, structural integrity, and safety compliance.
• Remote monitoring of hard-to-access areas inside rail cars, especially for hazardous material transport.
