Advanced Remote Visual Inspection

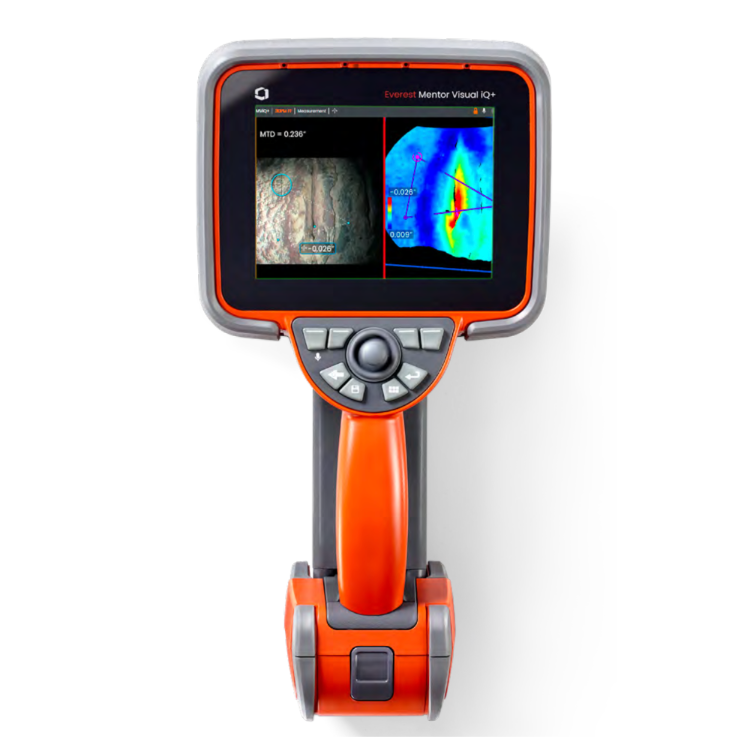

Advanced RVI Mentor Visual iQ+ HD VideoProbe
Mentor Visual iQ+ HD VideoProbe
The Mentor Visual iQ+ is a high-resolution industrial video borescope for inspections where dimensional accuracy matters. Its 3D Phase Measurement creates full-surface 3D data to size cracks, corrosion, erosion, blade damage, clearances, and indications, aiding critical maintenance decisions with stronger measurement confidence, advanced imaging, guided workflows, and connected reporting. Compare MVIQ+ Packages
Authorized Channel Partner: Advanced Inspection Technologies is an authorized channel partner for Waygate Technologies, a Baker Hughes business.
3D Phase Measurement
Full-surface 3D data for precise sizing.
Defensible Decisions
Measured evidence for maintenance decisions.
Inspect Without Teardown
Inspect internal parts without disassembly.
Complete Digital Records
Save images, measurements, notes, reports.
20+
Years in Business
8+
Equipment Types
7+
Industries Served
5/5
U.S. Military
Branches
49%
90-Day Reorder Rate
Lifetime
Tech Support
Why Mentor Visual iQ+
Get More From Every Inspection
Real3D Stereo
Dual-view optics use triangulation to calculate three-dimensional geometry and supported measurements.
Measure Critical Damage
Size cracks, corrosion, erosion, dents, missing material, gaps, areas, angles, and clearances.
Review The Point Cloud
Validate cursor placement, surface geometry, measurement planes, masks, and confidence indicators before accepting results.
Support Critical Decisions
Provide dimensional evidence for maintenance decisions involving aircraft engines, turbines, and other high-value assets.
Repeatable Inspection Records
Combine measurements with images, video, annotations, guided workflows, and structured reporting.
Complete Your MVIQ+ Setup
Get the Accessories Your Inspection Requires
Configure compatible optical tips, guide tubes, rigidizers, batteries, retrieval tools, cases, and field accessories around the selected probe and route.
Technical details
Everything You Need Before You Decide
Video Borescope With Advanced 3D Measurement
MVIQ+ is Waygate Technologies’ flagship video borescope for inspections where dimensional measurement matters as much as image quality.
Real3D Measurement includes 3D Phase and Real3D Stereo. 3D Phase projects structured light onto the target to create dense, full-surface 3D data. Real3D Stereo uses calibrated dual-view optics and triangulation.
Compatible configurations measure crack length, depth, area, profiles, angles, corrosion, erosion, blade damage, clearances, and missing material. Point-cloud review helps verify cursor placement, geometry, planes, masks, and confidence indicators.
Built for Critical Inspection
Use MVIQ+ when an inspection must size an indication, compare it with approved limits, document the evidence, and support a maintenance decision.
Configure the Measurement System
- Choose Start, Enhance, or Pro for the required platform capability.
- Match probe diameter and length to access and reach.
- Select articulation and optical view for the inspection route.
- Add specialty probes when the procedure requires them.
- Select 3D Phase or Real3D Stereo measurement.
- Add compatible tips, guides, tools, batteries, and cases.
Assisted Defect Review
Aero-Assist highlights supported indications in live or recalled images, helping inspectors focus review while retaining final judgment.

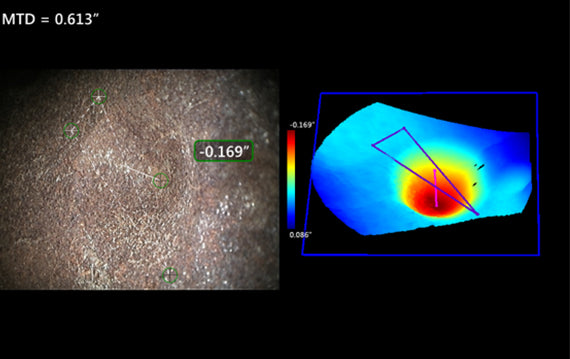

3D Phase Measurement
3D Phase projects structured light to create dense, full-surface 3D data for sizing critical indications. Real3D Stereo remains available for compatible measurement tasks.
Platform Snapshot
Key platform values for display, imaging, protection, and storage.
Display
Integrated 6.5-inch XGA color touchscreen
Imaging
Approx. 440,000-pixel standard or 1,228,800-pixel HD
Environmental Rating
IP65 when assembled
User Storage
40 GB, 80 GB, or 160 GB by package
AIT should confirm the package, probe, software, measurement bundle, optical tips, and accessories required by the governing inspection procedure.
MVIQ+ Technical Specifications
Review the system, imaging, measurement, software, connectivity, power, and probe configuration details below. Final system availability depends on the selected package, VideoProbe, measurement bundle, optical tips, software options, and accessories.
Probe and Inspection System
Core system construction, probe imaging, articulation, and physical dimensions.
| Probe diameters | 4.0 mm, 6.1 mm, 6.2 mm working channel, and 8.4 mm |
|---|---|
| Standard image sensor | 1/6-inch Color SUPER HAD CCD for 6.1 mm and 8.4 mm probes; 1/10-inch sensor for 4.0 mm probes |
| Standard pixel count | Approximately 440,000 pixels |
| HD pixel count | Approximately 1,228,800 pixels |
| Camera housing | Titanium |
| Articulation | Joystick-controlled 360-degree All-Way tip articulation |
| Articulation modes | Steer or Steer-and-Stay, with Home return |
| Specialty probe types | UV, LongSteer, working-channel, and compatible USB probe configurations |
| System construction | Magnesium and polycarbonate housing with elastomeric bumpers |
| System dimensions | 17.1 x 19.7 x 38.1 cm, or 6.75 x 7.75 x 15 in |
| Small case dimensions | 35.0 x 54.5 x 23.0 cm, or 13.78 x 21.46 x 9.05 in |
| Large optional case | 57.2 x 56.3 x 41.2 cm, or 22.52 x 22.16 x 16.22 in |
| Out-of-case weight |
6120 system: 3.0 kg or 6.7 lb 6110 system: 4.0 kg or 8.7 lb |
Imaging and Measurement
Display, illumination, image processing, file formats, and Real3D measurement capabilities.
| Display | Integrated 6.5-inch active-matrix XGA color LCD touchscreen |
|---|---|
| Display design | Daylight-readable and optically bonded |
| Illumination | White LED |
| Brightness | Automatic and variable control |
| Long exposure | Automatic, up to 16 seconds |
| White balance | Factory default or user-defined |
| Digital zoom | Continuous 5x |
| Image controls | Invert, Inverse+, Adaptive Noise Reduction, Distortion Correction, illumination, brightness, long exposure, zoom, capture, and recall |
| Image formats | BMP and JPG |
| Video format | MPEG4 AVC/H.264 MP4 |

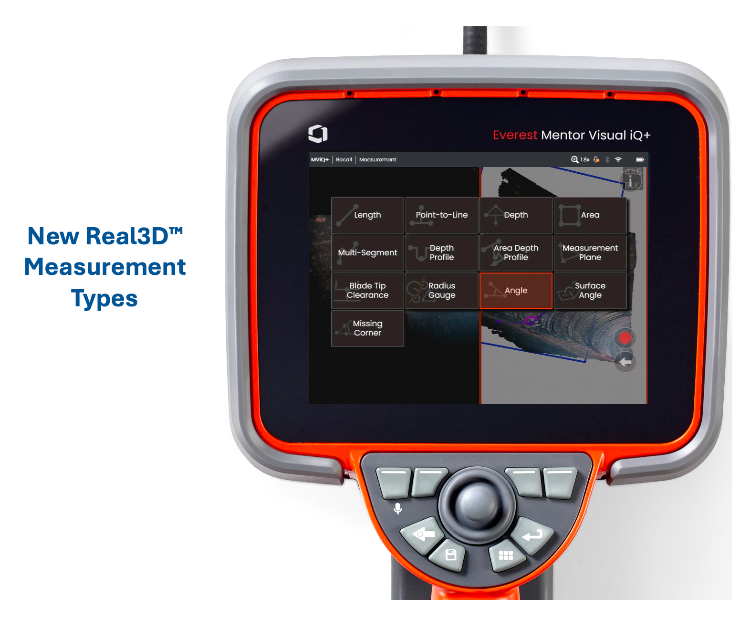

| Basic measurements | Length, point-to-line, depth, depth profile, area, angle, and multi-segment |

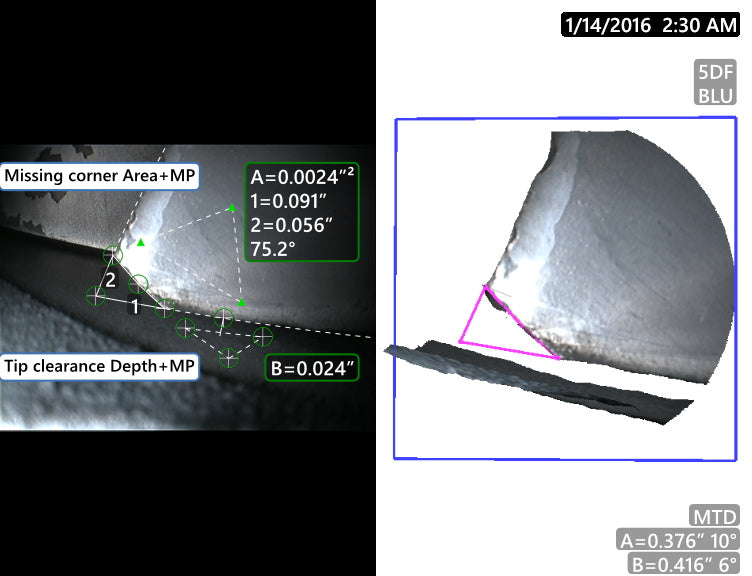

| Advanced measurements | Area depth profile, radius gauge, blade tip clearance, surface angle, measurement plane, and missing corner |
| Measurement technologies | Real3D Stereo and 3D Phase options |
| 3D visualization | Full-surface 3D point cloud with measurement overlays |
| Image transformations | Variable HDR, Adaptive Noise Reduction, Distortion Correction, DarkBoost, Inverse+, saturation, long exposure, and white balance |
AI and Detection Software
Onboard analytics, review workflows, package access, and inspector control.
| Processing | Supported analytics run onboard the MVIQ+ |
|---|---|
| Review modes | Live imagery and recalled images, depending on the installed analytic |
| Inspector interaction | Indications are presented for inspector review and approval |
| Internet dependency | Continuous internet access is not required for onboard analytics |
| Start package | 90-day analytics trial |

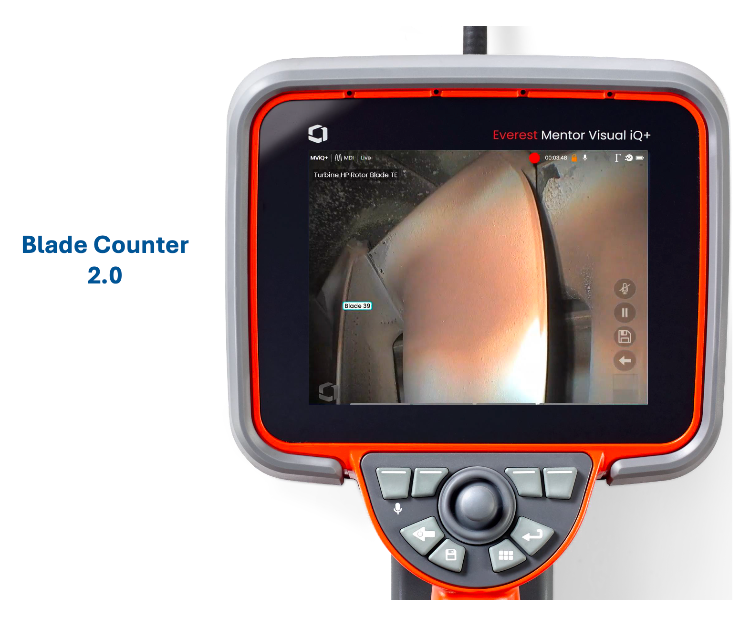

| Enhance package | One-year Blade Counter and Gas Power-assist package |
| Pro package | Two-year Blade Counter and Gas Power-assist package |
| Use limitation | Analytics assist inspection and do not replace inspector judgment or the governing inspection procedure |
Documentation and Connectivity
Storage, data transfer, reporting, audio, guided workflows, and software updates.
| User storage | 40 GB, 80 GB, or 160 GB SSD by package |
|---|---|
| USB ports | Two USB 3.0 host Type A ports and one USB 3.0 client micro Type B port |
| Video output | HDMI |
| Wi-Fi | 802.11a/b/g/n, 2x2 |
| Bluetooth | Bluetooth 4.0 |
| Audio | Integrated noise-cancelling microphone and speaker; compatible USB and Bluetooth audio supported |
| Audio format | AAC in M4A format |
| File management | Copy, cut, create, rename, delete, filter, and sort |
| Local sharing | InspectionWorks Connect Local for supported iOS and Android devices |
| Cloud workflow | InspectionWorks Insight over Wi-Fi |
| Guided workflow | Menu Directed Inspection supports guided steps, file naming, and report creation |
| Software updates | Field-upgradable by USB or Wi-Fi |

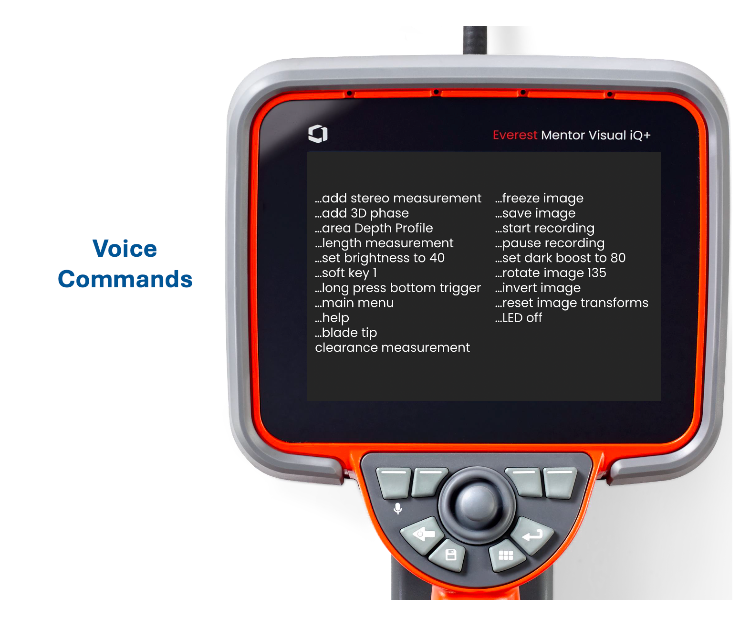

| Voice control | Local processing through internal, USB, or Bluetooth audio |
Power and Field Performance
Operating limits, environmental protection, power requirements, and applicable testing.
| Tip operating temperature | -25 C to 100 C, or -13 F to 212 F |
|---|---|
| Cold articulation note | Articulation is reduced below 0 C or 32 F |
| System operating temperature | -25 C to 46 C, or -13 F to 115 F |
| Cold display note | LCD may require warm-up below 0 C or 32 F |
| Storage temperature | -25 C to 60 C, or -13 F to 140 F |
| Relative humidity | 95 percent maximum, non-condensing |
| Probe waterproofing | Insertion tube and tip to 14.7 psi, 1 bar, or 10.2 m / 33.5 ft of water |
| Hazardous locations | Not rated for hazardous environments |
| Environmental rating | IP65 when assembled |
| Battery | 10.8 V lithium-ion, 74.52 Wh, 6.9 Ah |
| AC input | 100-240 VAC, 50-60 Hz, less than 1.5 A RMS |
| DC input | 18 V, 3.34 A |
| Environmental testing | Applicable MIL-STD-810H sections listed in the product brochure |
| EMI testing | MIL-STD-461G RS103 above deck and RE102 below deck |
Aircraft Engine Inspection
Measure cracks, blade damage, erosion, gaps, and clearances inside engines without unnecessary teardown.
Power Generation Turbines
Assess internal turbine damage and document dimensional findings for maintenance planning and technical review.
Oil And Gas Equipment
Measure corrosion, pitting, erosion, weld conditions, and material loss inside inaccessible equipment.
Industrial Rotating Machinery
Inspect compressors, pumps, gearboxes, and rotating components where dimensional evidence supports maintenance decisions.
Aerospace Component Inspection
Document and measure internal indications in complex components where access and measurement confidence are critical.
High-Value Asset Maintenance
Support inspection programs where measurement results influence repair, monitoring, or continued-service decisions.
| Feature | Start Core inspections | Expanded Capability Enhance HD and analytics | Pro Complex programs |
|---|---|---|---|
| Core Platform | |||
| Touchscreen | |||
| Menu Directed Inspection | |||
| Comparison measurement | |||
| InspectionWorks Basic | |||
| Far Field Audio | |||
| Software updates | |||
| Imaging and Probe Flexibility | |||
| Interchangeable probes | - | ||
| HD imaging | - | ||
| Turning Tool 2.0 | - | ||
| Storage and Analytics | |||
| User storage | 40 GB | 80 GB | 160 GB |
| Analytics access | 90-day trial | 1 year | 2 years |
| Blade Counter / Gas Power-assist | Trial access | 1 year | 2 years |
| Measurement and Expansion | |||
| All POD bundle options | - | - | |
| Applicable future features | - | - | |
Measurement configuration:
Package selection does not replace measurement selection. Confirm Real3D
Stereo or 3D Phase compatibility and select the POD bundle required by
the inspection procedure.
MVIQ+ Probe and Measurement Matrix
Compare probe diameters, available lengths, viewing configurations, and compatible Real3D measurement methods.
Visual inspection
Real3D Stereo
3D Phase
| Probe Diameter | Available Lengths | Viewing Configuration | Visual Inspection | Real3D Stereo | 3D Phase | Application Notes |
|---|---|---|---|---|---|---|
| 2.2 mm USB Small-diameter probe USB probe | 1.0 m, 1.5 m, 2.0 m |
Forward view
Side view
|
✓ | - | - | For restricted access openings and narrow internal passages where standard probes may not fit. |
| 3.0 mm USB Small-diameter probe USB probe | 1.0 m, 1.5 m, 2.0 m |
Forward view
|
✓ | - | - | For confined access points, aircraft components, and compact inspection routes. |
| 4.0 mm Interchangeable VideoProbe Standard probe | 2.0 m, 3.0 m |
Tip-adapter based
|
✓ | ✓ | - | Compact interchangeable probe for restricted access and compatible Real3D Stereo measurement. |
| 6.1 mm Advanced measurement probe Standard probe | 2.0 m, 3.0 m, 3.5 m, 4.5 m, 6.0 m, 10.0 m |
Tip-adapter based
|
✓ | ✓ | ✓ | Supports compatible Real3D Stereo and 3D Phase configurations for advanced dimensional inspection. |
| 6.2 mm Working Channel Probe with working channel Working-channel probe | 3.5 m |
Tip-adapter based
|
✓ | ✓ | - | Supports compatible retrieval tools, visual inspection, and Real3D Stereo measurement. |
| 8.4 mm Large-diameter VideoProbe Standard probe | 2.0 m, 3.0 m, 4.5 m, 6.0 m, 10.0 m |
Tip-adapter based
|
✓ | ✓ | - | For larger access openings, longer inspection routes, and compatible Real3D Stereo measurement. |
Small-diameter USB probe options
The 2.2 mm and 3.0 mm USB probes extend MVIQ+ access into narrow openings and compact internal passages. These configurations are intended for visual inspection and do not support Real3D Stereo or 3D Phase measurement.
Longer lengths up to 30.0 m may be available. Review the downloadable MVIQ+ brochure and the latest VideoProbe Accessories Guide, or contact Advanced Inspection Technologies to confirm part numbers, optical-tip compatibility, specialty probes, and final system configuration.
Got questions?
Mentor Visual iQ+ Buying Questions
What is the main reason to choose MVIQ+?
MVIQ+ is built for inspection programs where dimensional measurement is critical. Its key differentiator is configurable 3D Phase Measurement, which creates dense, full-surface 3D data for sizing defects and component features inside inaccessible equipment.
What is 3D Phase Measurement?
3D Phase uses a compatible optical tip to project structured light onto the target. MVIQ+ analyzes the reflected pattern to create full-surface 3D data for supported length, depth, area, profile, angle, clearance, and other measurements.
How is 3D Phase different from Real3D Stereo?
Real3D Stereo uses calibrated dual-view optics and triangulation. 3D Phase projects structured light and analyzes the reflected pattern to build dense surface data. The best choice depends on the component, surface condition, access, field of view, and inspection procedure.
Can one MVIQ+ support multiple inspection programs?
Yes, when configured with suitable probes, optical tips, software, accessories, and workflows. Each application should still be checked for access, environment, viewing direction, measurement requirements, and reporting needs.
Does MVIQ+ include Real3D measurement by default?
No. The MVIQ+ system and its measurement configuration are selected separately. 3D Phase requires compatible software, probes, optical tips, and the appropriate measurement package. AIT should confirm the complete configuration before quoting.
Does Aero-Assist require an internet connection during inspection?
No. Supported Aero-Assist analytics run onboard the MVIQ+ and do not require a continuous internet connection during inspection or recalled-image analysis. Connectivity may still be required for software installation, licensing, updates, data transfer, or InspectionWorks workflows.
Can AIT develop analytics for other inspection applications?
Application-specific analytics may be available or developed for additional components, engine families, and defect categories. Feasibility depends on the inspection target, available image data, defect definitions. Advanced Inspection Technologies can help route qualified requirements to the appropriate Waygate Technologies team.
Can an existing Mentor Visual iQ probe work with MVIQ+?
Some probes may be compatible, but compatibility should be confirmed before use. AIT should verify the probe part number, diameter, length, connector, system generation, imaging type, and required measurement capability.
Can MVIQ+ capabilities be upgraded after purchase?
Some compatible systems may support software, workflow, imaging, or measurement upgrades. Certain upgrades are field-installable, while others may require factory service, calibration, or additional hardware. Provide the handset serial number and current configuration for confirmation.
Can the same MVIQ+ system be used across multiple inspection programs?
Yes, when configured with the appropriate interchangeable probes, optical tips, measurement tools, software, and accessories. Menu Directed Inspection, file management, user workflows, and connected reporting can also support repeatable procedures across different assets and inspection programs. Compatibility must still be confirmed for each application.
Can MVIQ+ be rented or demonstrated before purchase?
Yes. AIT can help arrange rental or demonstration options based on availability and the required probe, package, measurement capability, and accessories. Share the inspection application and configuration needs before scheduling.
FIND THE RIGHT INSPECTION TOOL
Explore More Videoscope Solutions From AIT
Trusted by Industry Leaders
AIT Supplies to the Best in the Industry
Not Sure Which Camera, Probe, or Cable Length You Need?
✓
Access opening and probe diameter
✓
Required reach and inspection route
✓
Defect type and measurement objective
✓
3D Phase or Stereo configuration
✓
Asset, component, and inspection environment
✓
Purchase, rental, demo, or upgrade need
