minCord 5 Compact Pipe Inspection Camera

SKU: MinCord 5
All-in-one small pipe inspection camera with a 13 mm KK13 head, 50 ft (15 m) of flexible push cable, and a 5 in. sunlight-readable screen in one hand-carried unit. Enters 0.6 in. (15 mm) bore and turns 90° bends from 1 in., for heat exchanger tubes, boiler tubes, P-traps, and small drains. Three-frequency sonde, SD recording, and 5 to 7 hours per charge.
Compare pipe inspection cameras
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

minCord 5 overview

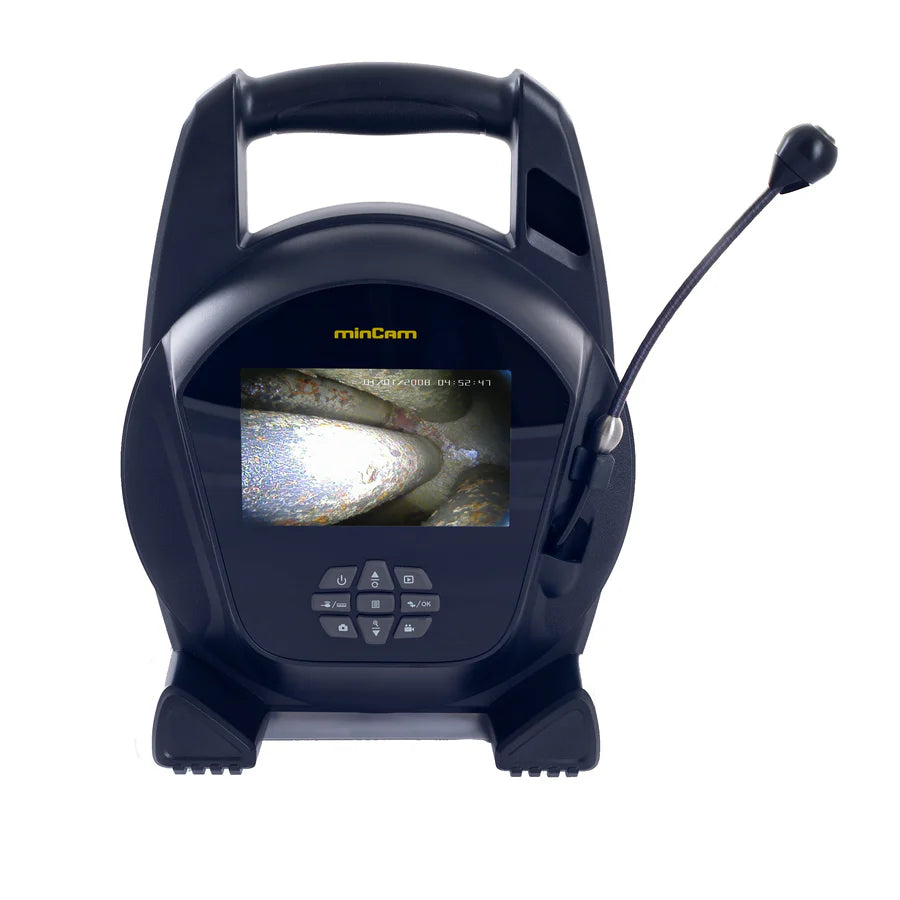

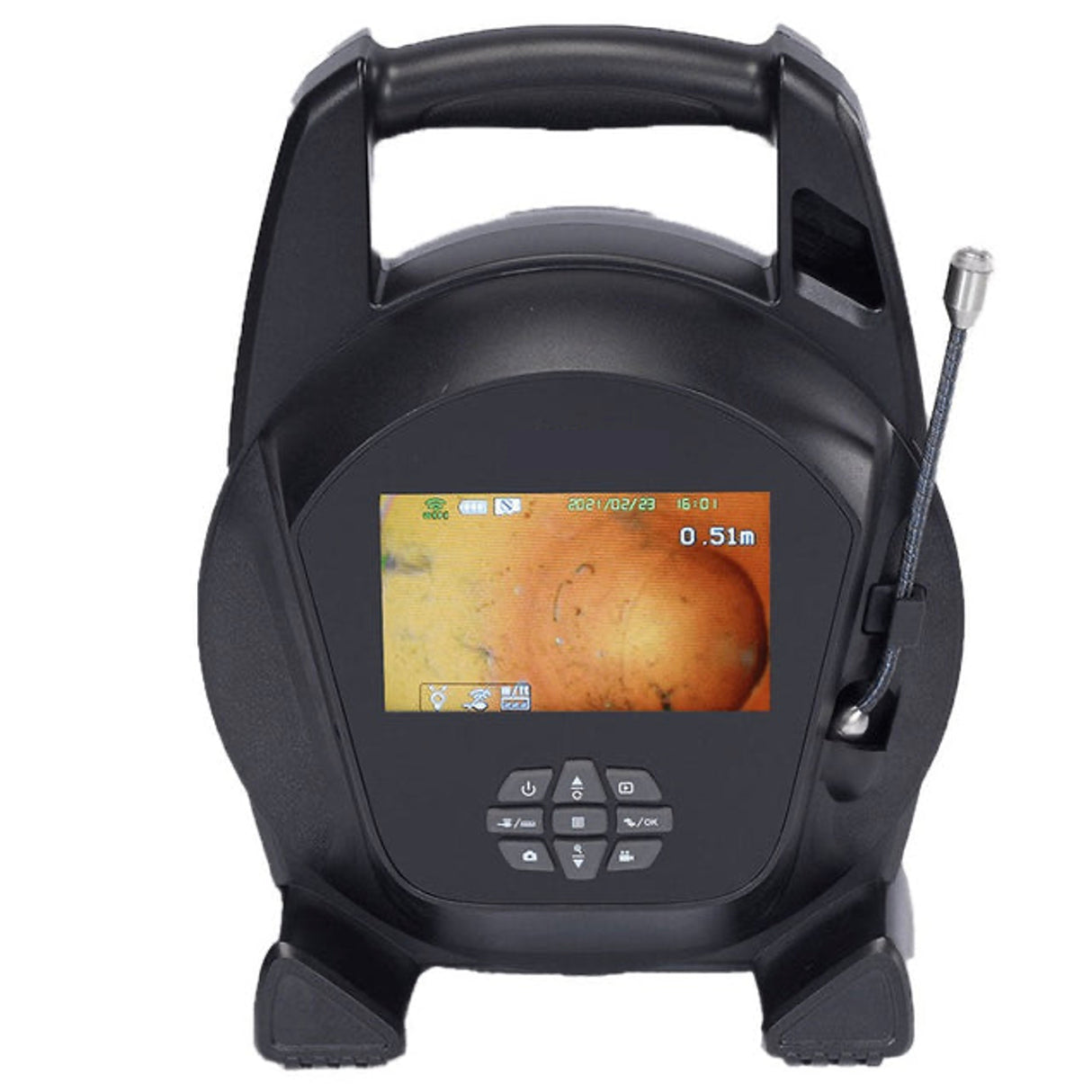

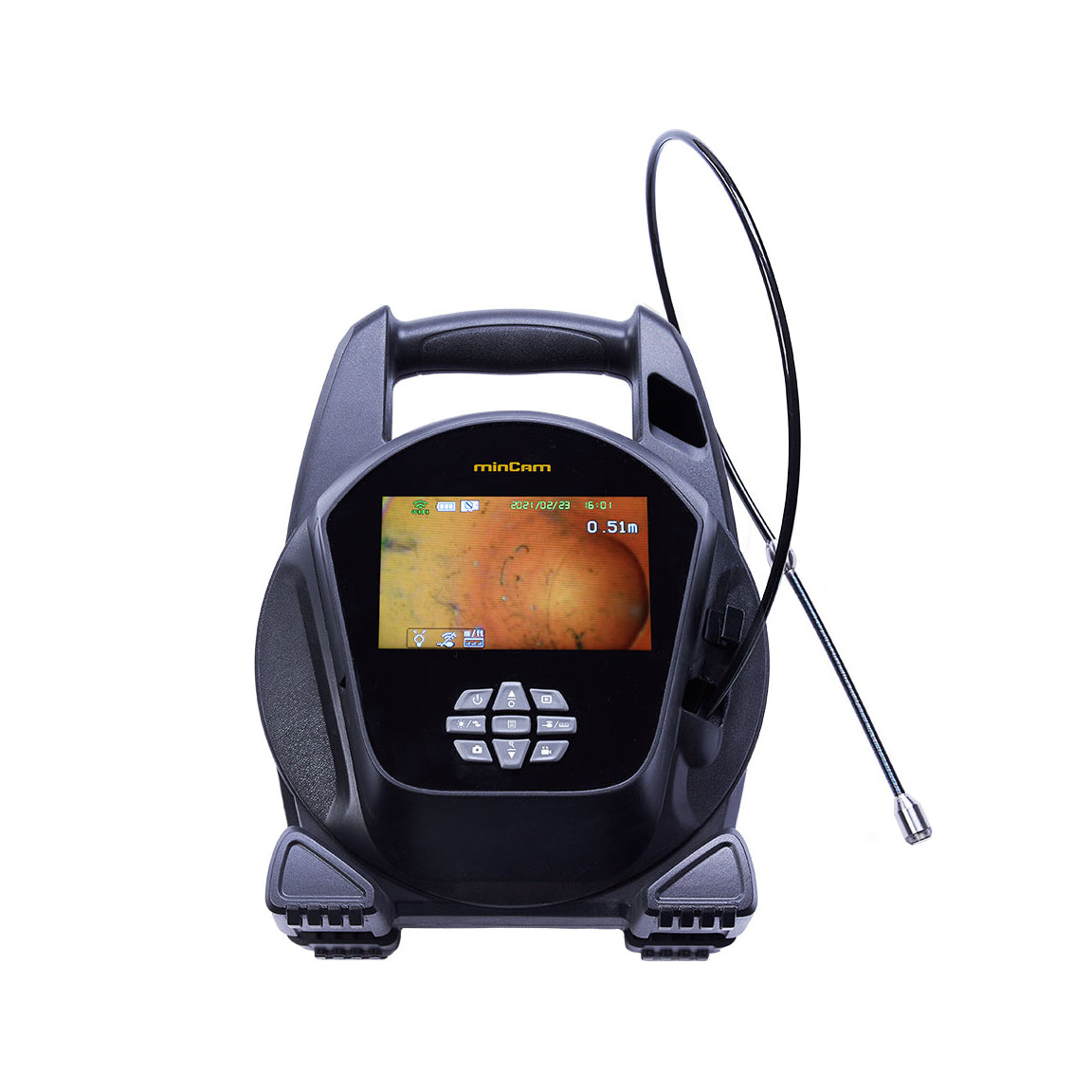

The minCord 5 is the smallest system in the Rausch minCam family: a 13 mm KK13 camera head on 50 ft (15 m) of flexible push cable, with the 5 in. sunlight-readable screen, recorder, and battery built into one hand-carried unit. It enters 0.6 in. (15 mm) bore and turns 90° bends from 1 in. (25 mm), which puts heat exchanger tubes, boiler tubes, P-traps, and small drains within reach of a single technician without a reel system.

Why the minCord 5

  • 13 mm head, 0.6 in. (15 mm) minimum bore. Fits the 3/4 in. and 1 in. tubes in shell-and-tube exchangers, chillers, and boilers that no reel camera can enter.
  • 90° bends from 1 in. (25 mm). Pushes through P-traps and elbows in small drains and process lines.
  • Three-frequency sonde (33 kHz, 512 Hz, 640 Hz). Works with the locators crews already own so the head can be found under a floor or slab.
  • 5 in. sunlight-readable screen, recorder, and battery in one housing. Records video and still images to SD card with a distance counter; USB and BNC outputs for transfer or an external monitor.
  • 5 to 7 hours per charge. A full shift of tube checks on one battery.
  • Pressure-tight to 1 bar (14.5 psi), so the head can go into wet lines and standing water.
  • German-engineered Rausch build with a fiberglass push cable that holds up to repeated bends.

Choose the minCord 5 if

You need to see inside tubes and drains under 1.5 in. and 50 ft of reach is enough. For 100 ft of cable, a 7 in. screen, and a choice of 13 mm or 18 mm heads, see the minCord XL. For 1.5 in. to 6 in. lines with a self-leveling head, see the minCam MC30. Browse all pipe inspection cameras and heat exchanger and condenser inspection equipment AIT supplies.

What is included

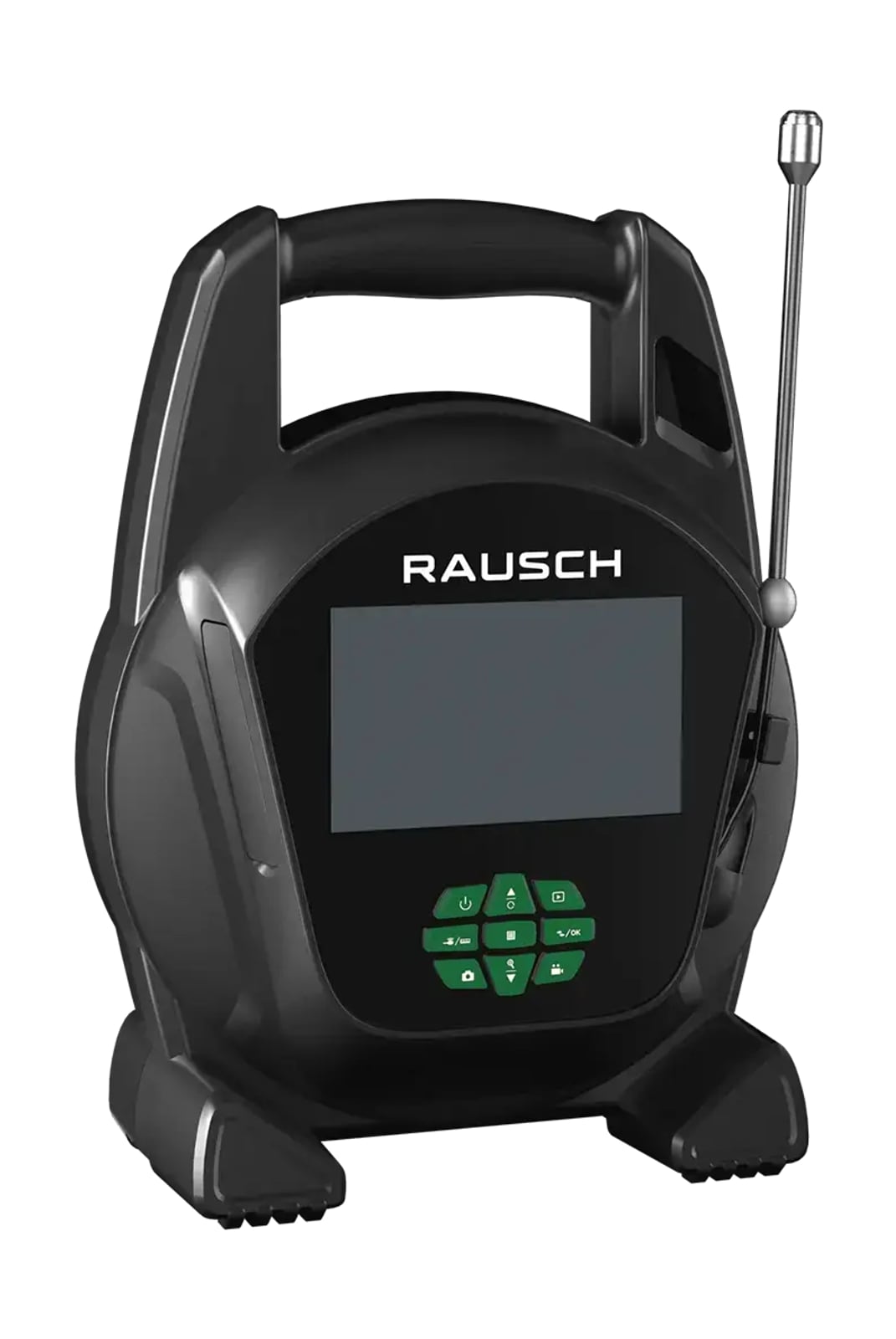

  • minCord 5 unit with 5 in. sunlight-readable screen and 50 ft (15 m) of push cable

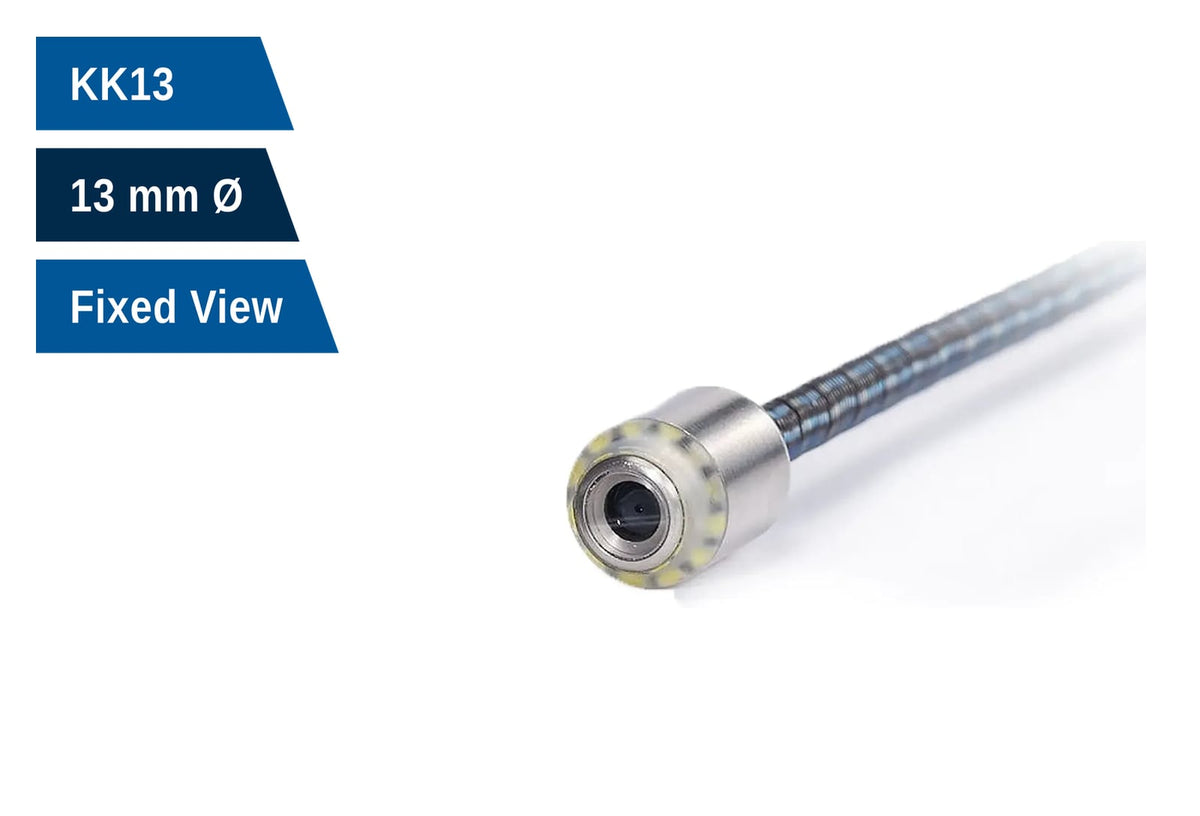

  • KK13 camera head, 13 mm, with three-frequency sonde
  • 24 mm centering skid
  • Battery charger and AC adapter
  • SD card and operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977. AIT supports the system after the sale and can quote a tube-size-specific skid set. Ask about push camera rentals for a one-off outage.

Related models: minCord XL · minCam MC30 · heat exchanger and condenser inspection

Specifications

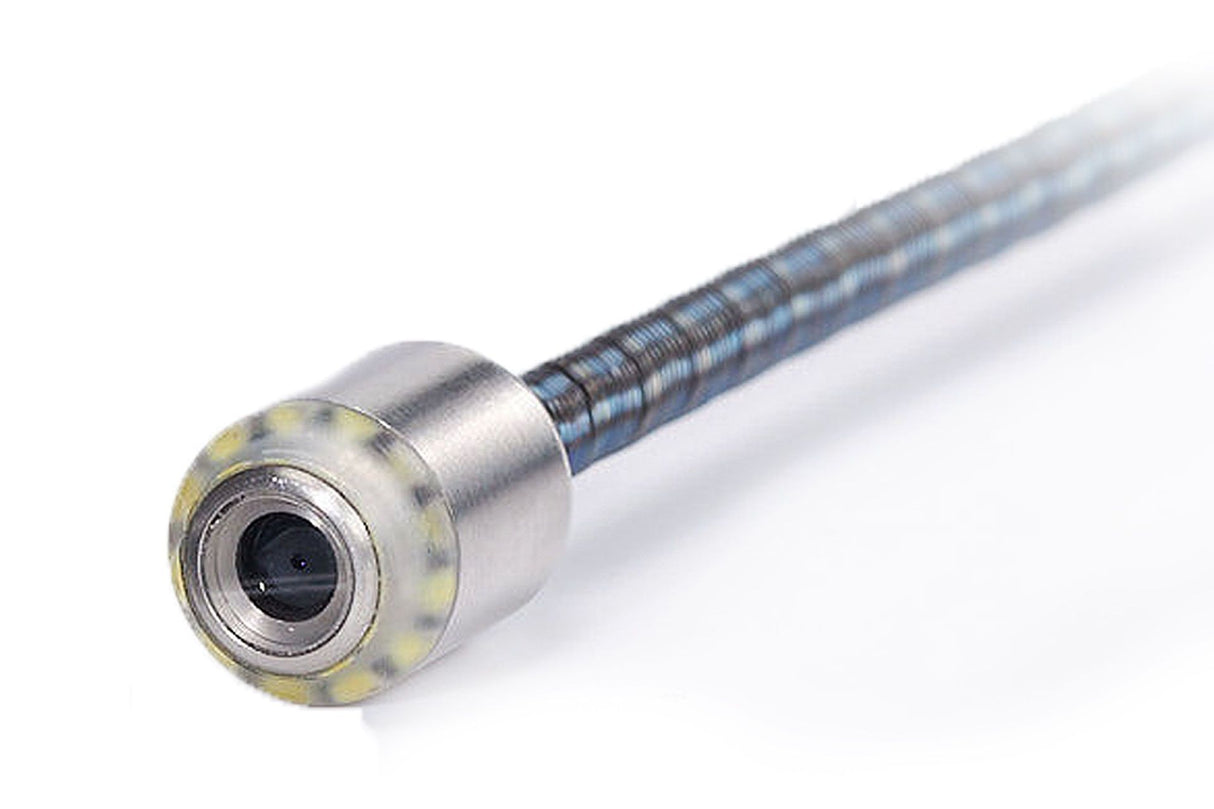

  • Camera head: KK13 axial, color
  • Head diameter: 13 mm (0.51 in.)
  • Pipe diameter range: 0.6 in. to 3 in. (15 mm to 80 mm)
  • 90° bends from: 1 in. (25 mm)
  • Field of view: 84° diagonal
  • Pressure rating: 1 bar (14.5 psi)
  • Push cable: 50 ft (15 m), flexible fiberglass
  • Screen: 5 in. sunlight-readable, built in
  • Recording: Video (.avi) and still images (.jpg) to SD card
  • Distance counter: Integrated
  • Sonde: 33 kHz, 512 Hz, 640 Hz
  • Outputs: USB, BNC video
  • Power: Internal Li-ion battery or AC adapter
  • Battery runtime: 5 to 7 hours per charge
  • Included accessory: 24 mm centering skid
  • Origin: German-engineered, Rausch

Applications

  • Shell-and-tube heat exchanger and chiller tubes from 0.6 in. (15 mm) ID, checking for fouling, pitting, and blockage
  • Boiler tubes and small headers
  • Floor drains, P-traps, and sink lines in commercial kitchens, labs, and hospitals
  • Small process, sample, and instrument lines
  • Weld seams, castings, and hollow parts where a rigid borescope cannot follow the bore
  • Cleaning verification in pharmaceutical and food process piping


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

Will the minCord 5 fit heat exchanger tubes?

Yes, any tube with an inside diameter of 0.6 in. (15 mm) or more, which covers most 3/4 in. and 1 in. exchanger and chiller tubes. Check the tube ID against 15 mm before ordering; AIT can confirm fit from your tube sheet drawing.

How is it different from the minCord XL?

The minCord 5 carries 50 ft of cable with the 13 mm head and a 5 in. screen. The minCord XL carries 100 ft, uses a 7 in. screen, and offers an 18 mm head option and WiFi.

Is this a borescope or a pipe inspection camera?

Both, in practice. A rigid or articulating borescope reaches a few feet into an opening; the minCord 5 pushes 50 ft of cable through bends, records with a distance counter, and carries a three-frequency locator sonde (33 kHz, 512 Hz, 640 Hz) so the head can be found from outside the pipe.
