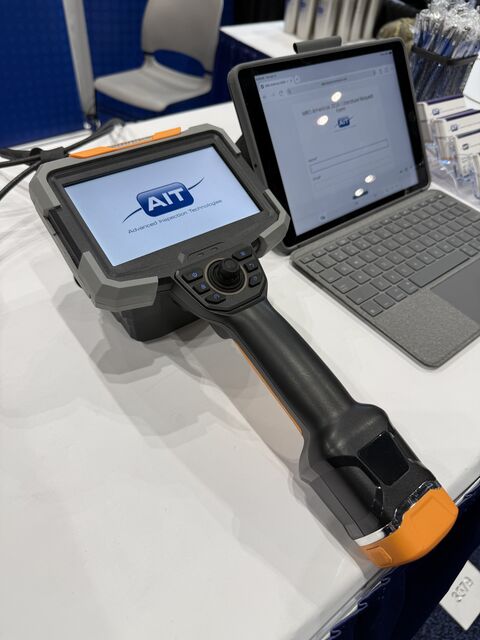

Meet AIT at ASNT 2026, Visit Booth 803 | Columbus, Ohio | October 12-15, 2026

MVIQ+, MENTOR FLEX+ & XL SERIES ACCESSORIES

Build the Right VideoProbe Setup

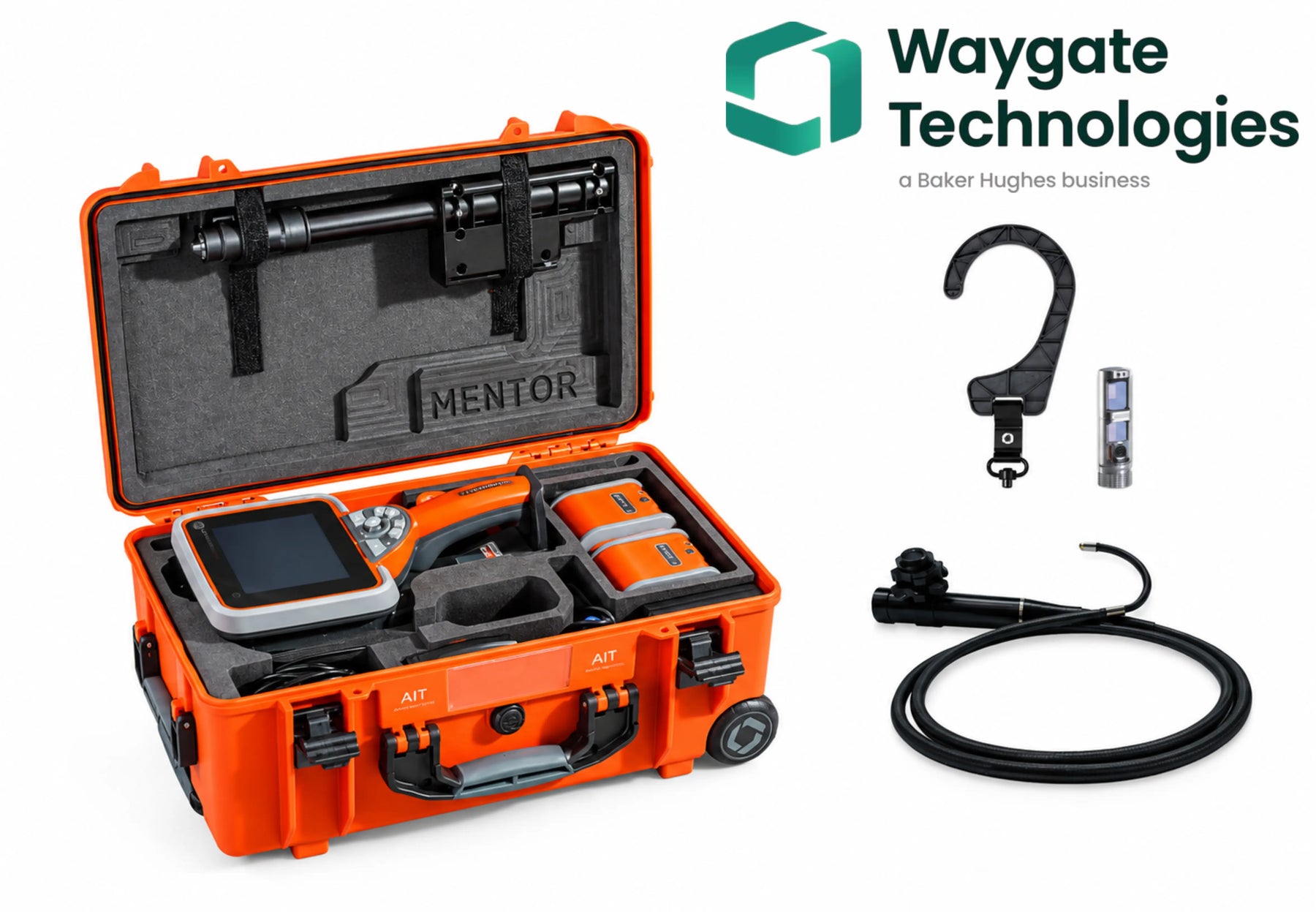

Remote Visual Inspection Videoprobe accessories are a comprehensive line of purpose-built add-ons from Waygate Technologies designed to extend the capabilities of their VideoProbe family of video borescopes, including the Mentor Visual iQ, XL Detect, XL Go, and XL Vu systems.

Choose your VideoProbe
Mentor Visual iQ Mentor Flex+ XL Inspect+

Search Accessories

Contents

Part Number
Description

Tip Optics

There are several features and accessories that make Waygate Technologies VideoProbes versatile inspection devices, but none may be more critical than the wide selection of optical tip adapters.

3.9 mm Tips

PXT480FG
NoneFOV: 80 degreeDOF: 6-80 mmDOF: 0.24-3.15 inDOV: 0 degree
PXT490FN
OrangeFOV: 90 degreeDOF: 3-40 mmDOF: 0.12-1.57 inDOV: 0 degree
PXT490SN
RedFOV: 90 degreeDOF: 2-16 mmDOF: 0.08-0.63 inDOV: 90 degree
PXT480SG
BrownFOV: 80 degreeDOF: 4-80 mmDOF: 0.16-3.15 inDOV: 90 degree
Kit Part NumberPXT4SET

Part Number: PXT490FN

OrangeFOV: 90 degreeDOF: 3-40 mmDOF: 0.12-1.57 inDOV: 0 degree

Part Number: PXT480SG

BrownFOV: 80 degreeDOF: 4-80 mmDOF: 0.16-3.15 inDOV: 90 degree

Part Number: PXT490SN

RedFOV: 90 degreeDOF: 2-16 mmDOF: 0.08-0.63 inDOV: 90 degree
Kit Part NumberPXTM4SET ST

Part Number: PXTM45050FG

BlackFOV: 50/50 degreeDOF: 5-45 mmDOF: 0.20-1.77 inDOV: 0 degree

Part Number: PXTM45050SG

BlueFOV: 50/50 degreeDOF: 4-45 mmDOF: 0.16-1.77 inDOV: 90 degree

3.9 mm StereoProbe Measurement Tips

PXTM45050FG
BlackFOV: 50/50 degreeDOF: 5-45 mmDOF: 0.20-1.77 inDOV: 0 degree
PXTM45050SG
BlueFOV: 50/50 degreeDOF: 4-45 mmDOF: 0.16-1.77 inDOV: 90 degree

4.0 mm Tips

T4080FF
NoneFOV: 80 degreeDOF: 35 mm to infDOF: 1.38 in to infDOV: 0 degree
T40120SF
BlueFOV: 120 degreeDOF: 6 mm to infDOF: 0.24 in to infDOV: 90 degree
T40115FN
BlackFOV: 115 degreeDOF: 4 mm to infDOF: 0.16 in to infDOV: 0 degree
T40115SN
RedFOV: 115 degreeDOF: 1-30 mmDOF: 0.04-1.18 inDOV: 90 degree
Kit Part NumberMVIQAT4SET

Part Number: T40115FN

BlackFOV: 115 degreeDOF: 4 mm to infDOF: 0.16 in to infDOV: 0 degree

Part Number: T40115SN

RedFOV: 115 degreeDOF: 1-30 mmDOF: 0.04-1.18 inDOV: 90 degree

Part Number: T40120SF

BlueFOV: 120 degreeDOF: 6 mm to infDOF: 0.24 in to infDOV: 90 degree
Kit Part NumberMVIQAT4SET ST

Part Number: TM405555FG

BlackFOV: 55/55 degreeDOF: 5 mm to infDOF: 0.20 in to infDOV: 0 degree

Part Number: TM405555SG

BlueFOV: 55/55 degreeDOF: 4 mm to infDOF: 0.16 in to infDOV: 90 degree

4.0 mm StereoProbe Measurement Tips

TM405555FG
BlackFOV: 55/55 degreeDOF: 5 mm to infDOF: 0.20 in to infDOV: 0 degree
TM405555SG
BlueFOV: 55/55 degreeDOF: 4 mm to infDOF: 0.16 in to infDOV: 90 degree

6.1 mm Tips

XLG3T6150FG
WhiteFOV: 50 degreeDOF: 12-200 mmDOF: 0.47-7.87 inDOV: 0 degree
XLG3T6180FN
OrangeFOV: 80 degreeDOF: 3-20 mmDOF: 0.12-0.79 inDOV: 0 degree
XLG3T6190FF
YellowFOV: 90 degreeDOF: 20 mm to infDOF: 0.79 in to infDOV: 0 degree
T6165FF
Orange and BlueFOV: 65 degreeDOF: 65 mm to infDOF: 2.56 in to infDOV: 0 degree
XLG3T6150FF
NoneFOV: 50 degreeDOF: 50 mm to infDOF: 2.36 in to infDOV: 0 degree
T6150FF-1
None (Sealed Window)FOV: 50 degreeDOF: 50 mm to infDOF: 2.36 in to infDOV: 0 degree
T6150FF
NoneFOV: 50 degreeDOF: 50 mm to infDOF: 2.36 in to infDOV: 0 degree
T6150HP
NoneFOV: 50 degreeDOF: 50 mm to infDOF: 2.36 in to infDOV: 0 degree
XLG3T61120FG
BlackFOV: 120 degreeDOF: 5-120 mmDOF: 0.20-4.72 inDOV: 0 degree
T61120FF
GreyFOV: 120 degreeDOF: 20 mm to infDOF: 0.79 in to infDOV: 0 degree
XLG3T6150FB
PurpleFOV: 50 degreeDOF: 12-80 mmDOF: 0.47-3.15 inDOV: 0 degree
XLG3T6150SF
BrownFOV: 50 degreeDOF: 45 mm to infDOF: 1.77 in to infDOV: 90 degree
XLG3T6150SG
GreenFOV: 50 degreeDOF: 9-160 mmDOF: 0.35-6.30 inDOV: 90 degree
XLG3T61120SG
BlueFOV: 120 degreeDOF: 4-100 mmDOF: 0.16-3.94 inDOV: 90 degree
XLG3T6180SN
RedFOV: 80 degreeDOF: 1-20 mmDOF: 0.04-0.79 inDOV: 90 degree
Kit Part NumberXLG3T61SET

Part Number: XLG3T61120FG

BlackFOV: 120 degreeDOF: 5-120 mmDOF: 0.20-4.72 inDOV: 0 degree

Part Number: XLG3T6180FN

OrangeFOV: 80 degreeDOF: 12-80 mmDOF: 0.47-3.15 inDOV: 0 degree

Part Number: XLG3T6150SF

BrownFOV: 50 degreeDOF: 45 mm to infDOF: 1.77 in to infDOV: 90 degree

Part Number: XLG3T61120SG

BlueFOV: 120 degreeDOF: 4-100 mmDOF: 0.16-3.94 inDOV: 90 degree

Part Number: XLG3T6180SN

RedFOV: 80 degreeDOF: 1-20 mmDOF: 0.04-0.79 inDOV: 90 degree

Part Number: XLG3T6150FG

WhiteFOV: 50 degreeDOF: 12-200 mmDOF: 0.47-7.87 inDOV: 0 degree

Part Number: XLG3T6190FF

YellowFOV: 90 degreeDOF: 20 mm to infDOF: 0.79 in to infDOV: 0 degree

Part Number: XLG3T6150FB

PurpleFOV: 50 degreeDOF: 12-80 mmDOF: 0.47-3.15 inDOV: 0 degree

Part Number: XLG3T6150SG

GreenFOV: 50 degreeDOF: 9-160 mmDOF: 0.35-6.30 inDOV: 90 degree

6.1 mm StereoProbe Measurement Tips

XLG3TM616060FG
BlackFOV: 60/60 degreeDOF: 4-80 mmDOF: 0.16-3.15 inDOV: 0 degree
XLG3TM615050SG
BlueFOV: 50/50 degreeDOF: 2-50 mmDOF: 0.08-1.97 inDOV: 90 degree

6.1 mm 3D Phase Measurement Tips

XL4TM61105FG
BlackFOV: 105 degreeDOF: 8-250 mmDOF: 0.31-9.84 inDOV: 0 degree
XL4TM61105SG
BlueFOV: 105 degreeDOF: 7-250 mmDOF: 0.27-9.84 inDOV: 90 degree
XL4TM61105SF
GreenFOV: 105 degreeDOF: 15 mm to infDOF: 0.59 in to infDOV: 90 degree
XL4TM61105FN
OrangeFOV: 105 degreeDOF: 3-120 mmDOF: 0.12-4.72 inDOV: 0 degree
XL4TM61105SN
RedFOV: 105 degreeDOF: 2-20 mmDOF: 0.08-0.79 inDOV: 90 degree
XL4TM61105FF
YellowFOV: 105 degreeDOF: 15 mm to infDOF: 0.59 in to infDOV: 0 degree

6.2 mm Tips

PXT62120FF
YellowFOV: 120 degreeDOF: 25 mm to infDOF: 0.98 in to infDOV: 0 degree
PXT62120SN
BlueFOV: 120 degreeDOF: 5 mm to infDOF: 0.20 in to infDOV: 90 degree
PXT6240FF
NoneFOV: 40 degreeDOF: 100 mm to infDOF: 3.94 in to infDOV: 0 degree
PXT62120FN
BlackFOV: 120 degreeDOF: 4-190 mmDOF: 0.16-3.15 inDOV: 0 degree
T62120FN*

* Available for MVIQJP6235 only

BlackFOV: 120 degreeDOF: 2-200 mmDOF: 0.08-7.87 inDOV: 0 degree
T62120FF*

* Available for MVIQJP6235 only

YellowFOV: 120 degreeDOF: 15 mm to infDOF: 0.59 in to infDOV: 0 degree
T6280SF*

* Available for MVIQJP6235 only

GreenFOV: 80 degreeDOF: 15 mm to infDOF: 0.59 in to infDOV: 90 degree
T62120SN*

* Available for MVIQJP6235 only

BlueFOV: 120 degreeDOF: 6 mm to infDOF: 0.24 in to infDOV: 90 degree

6.2 mm StereoProbe Measurement Tips

PXTM626060FG
BlackFOV: 60 degreeDOF: 4-80 mmDOF: 0.16-3.15 inDOV: 0 degree
PXTM626060SG
BlueFOV: 60 degreeDOF: 4-80 mmDOF: 0.16-3.15 inDOV: 90 degree
TM626060FN*

* Available for MVIQJP6235 only

BlackFOV: 60/60 degree FWDDOF: 2-200 mmDOF: 0.08-7.87 inDOV: 0 degree
TM626060SN*

* Available for MVIQJP6235 only

BlueFOV: 60/60 degree SIDEDOF: 2-200 mmDOF: 0.08-7.87 inDOV: 90 degree

8.4 mm Tips

XLG3T8440FF
NoneFOV: 40 degreeDOF: 250 mm to infDOF: 9.84 in to infDOV: 0 degree
XLG3T84120FN
BlackFOV: 120 degreeDOF: 5-200 mmDOF: 0.20-7.87 inDOV: 0 degree
XLG3T84120SN
BlueFOV: 120 degreeDOF: 4-200 mmDOF: 0.16-7.87 inDOV: 90 degree
XLG3T8440FG
WhiteFOV: 40 degreeDOF: 80-500 mmDOF: 3.15-19.68 inDOV: 0 degree
XLG3T8440SF
BrownFOV: 40 degreeDOF: 250 mm to infDOF: 9.84 in to infDOV: 90 degree
XLG3T8480FG
YellowFOV: 80 degreeDOF: 25-500 mmDOF: 0.98-19.68 inDOV: 0 degree
XLG3T8480SG
GreenFOV: 80 degreeDOF: 25-500 mmDOF: 0.98-19.68 inDOV: 90 degree
T84120FF
Orange and BlueFOV: 120 degreeDOF: 20 mm to infDOF: 0.79 in to infDOV: 0 degree
Kit Part NumberXLG3T84SET

Part Number: XLG3T8480FG

YellowFOV: 80 degreeDOF: 25-500 mmDOF: 0.98-19.68 inDOV: 0 degree

Part Number: XLG3T84120FN

BlackFOV: 120 degreeDOF: 5-200 mmDOF: 0.20-7.87 inDOV: 0 degree

Part Number: XLG3T8440SF

BrownFOV: 40 degreeDOF: 250 mm to infDOF: 9.84 in to infDOV: 90 degree

Part Number: XLG3T8480SG

GreenFOV: 80 degreeDOF: 25-500 mmDOF: 0.98-19.68 inDOV: 90 degree

Part Number: XLG3T84120SN

BlueFOV: 120 degreeDOF: 4-200 mmDOF: 0.16-7.87 inDOV: 90 degree

8.4 mm StereoProbe Measurement Tips

XLG3TM846060FG
BlackFOV: 60/60 degreeDOF: 4-50 mmDOF: 0.16-1.97 inDOV: 0 degree
XLG3TM846060SG
BlueFOV: 60/60 degreeDOF: 4-50 mmDOF: 0.16-1.97 inDOV: 90 degree

Tip Tools

Optical tip tools are designed to make it easy to attach and remove 3.9mm or 4.0mm optical tips. Each 3.9mm and 4.0mm tip is sold standard with a dedicated tip tool which also serves to store and protect the tip.

PXT480FG-T

Used for installation and removal of head guard for 3.9 mm VideoProbe

None
PXT480SG-T

Used for installation and removal of PXT480SG for 3.9 mm VideoProbe

Brown
PXT490FN-T

Used for installation and removal of PXT490FN for 3.9 mm VideoProbe

Orange
PXT490SN-T

Used for installation and removal of PXT490SN for 3.9 mm VideoProbe

Red
PXTM45050FG-T

Used for installation and removal of PXTM45050FG for 3.9 mm VideoProbe

Black
PXTM45050SG-T

Used for installation and removal of PXTM45050SG for 3.9 mm VideoProbe

Blue
T4080FF-T

Used for installation and removal of 4.0 mm head guard

None
T40115FN-T

Used for installation and removal of T40115FN, 4.0 mm forward viewing optical tip

Black
T40115SN-T

Used for installation and removal of T40115SN, 4.0 mm side viewing optical tip

Red

Guide Tubes

Guide tubes make it easier to navigate challenging inspection paths such as complex bends or gaps while providing an added layer of protection for the insertion tube.

Protective Guide Tubes

Frequent inspections of static engine components such as high pressure nozzles, stator vanes, and combustion chambers can lead to accelerated wear on videoprobes. To address this challenge, Waygate Technologies offers a range of Protective Guide Tubes designed to reduce the cost of ownership by extending the operational life of 6.1mm videoprobes.

GTN-NM84033-9593
  • Outer Diameter*: 8.4mm / 0.33in
  • Working Length: 0.33m / 12.99in
  • Inner Diameter: All guide tubes will accept 6.1mm probe
GTN-NM84075-9594
  • Outer Diameter*: 8.4mm / 0.33in
  • Working Length: 0.75m / 29.53in
  • Inner Diameter: All guide tubes will accept 6.1mm probe
GTN-NM84270-9595
  • Outer Diameter*: 8.4mm / 0.33in
  • Working Length: 2.70m / 106.30in
  • Inner Diameter: All guide tubes will accept 6.1mm probe
*
  • Resin terminus diameter 9.0mm +/- 0.5mm
  • Gripper sold separately (Part Number XA-GRIP6, 6.1mm/6.2mm Gripper with 1/4-20 insert)

Mechanical Guide Tubes

Mechanical guide tubes articulate 2-way or 4-way and use a durable polyurethane-impregnated outer tungsten braid with a steel internal monocoil for crush resistance

MECHGTUBE-8536
  • Length: 13.7 mm (0.539 in) x 8 ft (96 in)
MECHGTUBE-8537
  • Length: 13.7 mm (0.539 in) x 19 ft (228 in)
MECHGTUBE-8538
  • Length: 10.7 mm (0.421 in) x 2 m (78.74 in)
MECHGTUBE-8539
  • Length: 10.7 mm (0.421 in) x 3 m (118.11 in)
MECHGTUBE-8559
  • Length: 13.7 mm (0.539 in) x 2.75 m (108.27 in)
MECHGTUBE-8560
  • Length: 13.7 mm (0.539 in) x 2.0 m (78.74 in)
MECHGTUBE-8649
  • Length: 10.7 mm (0.421 in) x 3.0 m (118.11 in)
  • R&P
MECHGTUBE-8662
  • Length: 10.7 mm (0.421 in) x 0.8 m (31.5 in)
MECHGTUBE-8686
  • Length: 10.7 mm (0.421 in) x 2.4 m (94.49 in)
MECHGTUBE-8742
  • Length: 10.7 mm (0.421 in) x 3.35 m (131.89 in)
MECHGTUBE-8802
  • Length: 9.4 mm (0.370 in) x 2.8 m (110.24 in)
MECHGTUBE-8832
  • Length: 6 mm (0.236 in) x 12 m (472.44 in)
  • W/WC

Non-Articulating Guide Tubes

Strong, flexible guide tubes made from the same materials as Waygate Technologies VideoProbe insertion tubes

GTN-415
  • Outer Diameter: 8.4mm
  • Length: 0.33m
  • Probe Compatibility: 4mm x 1.5m
GTN-415-8976
  • Outer Diameter: 8.4mm
  • Length: 0.75m
  • Probe Compatibility: 6.1mm x 1.5m
GTN-415-55D-8977
  • Outer Diameter: 8.4mm
  • Length: 2.70m
  • Probe Compatibility: 6.1mm x 1.5m*
GTN-420
  • Outer Diameter: 6.1mm
  • Length: 2.0m
  • Probe Compatibility: 4mm x 2.0m
GTN-425
  • Outer Diameter: 6.1mm
  • Length: 2.5m
  • Probe Compatibility: 4mm x 2.5m
GTN-430
  • Outer Diameter: 6.1mm
  • Length: 3.0m
  • Probe Compatibility: 4mm x 3.0m
GTN4-8933
  • Outer Diameter: 4mm
  • Length: 10.6m
  • Probe Compatibility: 4mm x 10.6m
GTN-515
  • Outer Diameter: 8.4mm
  • Length: 1.5m
  • Probe Compatibility: 5mm x 1.5m
GTN-520
  • Outer Diameter: 8.4mm
  • Length: 2.0m
  • Probe Compatibility: 5mm x 2.0m
GTN-530
  • Outer Diameter: 8.4mm
  • Length: 3.0m
  • Probe Compatibility: 5mm x 3.0m
GTN-615
  • Outer Diameter: 10mm
  • Length: 1.5m
  • Probe Compatibility: 6.1mm x 1.5m
GTN-620
  • Outer Diameter: 10mm
  • Length: 2.0m
  • Probe Compatibility: 6.1mm x 2.0m
GTN-625
  • Outer Diameter: 10mm
  • Length: 2.5m
  • Probe Compatibility: 6.1mm x 2.5m
GTN-630
  • Outer Diameter: 10mm
  • Length: 3.0m
  • Probe Compatibility: 6.1mm x 3.0m
GTN-645
  • Outer Diameter: 10mm
  • Length: 4.5m
  • Probe Compatibility: 6.1mm x 4.5m
GTN-660
  • Outer Diameter: 10mm
  • Length: 6.0m
  • Probe Compatibility: 6.1mm x 6.0m
GTN-675
  • Outer Diameter: 10mm
  • Length: 7.5m
  • Probe Compatibility: 6.1mm x 7.5m
GTN6-8934
  • Outer Diameter: 6.1mm
  • Length: 6mm
  • Probe Compatibility: 6.1mm x 6m**
GTN-815
  • Outer Diameter: 12.7mm
  • Length: 1.5m
  • Probe Compatibility: 8.4mm x 1.5m
GTN-820
  • Outer Diameter: 12.7mm
  • Length: 2.0m
  • Probe Compatibility: 8.4mm x 2.0m
GTN-825
  • Outer Diameter: 12.7mm
  • Length: 2.5m
  • Probe Compatibility: 8.4mm x 2.5m
GTN-845
  • Outer Diameter: 12.7mm
  • Length: 4.5m
  • Probe Compatibility: 8.4mm x 4.5m
GTN-860
  • Outer Diameter: 12.7mm
  • Length: 6.0m
  • Probe Compatibility: 8.4mm x 6.0m
GTN-875
  • Outer Diameter: 12.7mm
  • Length: 7.5m
  • Probe Compatibility: 8.4mm x 7.5m
GTN-6100-8923
  • Outer Diameter: 6.1mm
  • Length: 10m
  • Probe Compatibility: 6.1mm x 10m
GTN-61120-8924
  • Outer Diameter: 6.1mm
  • Length: 12m
  • Probe Compatibility: 6.1mm x 12m
* / **
  • * More rigid
  • ** Pushable

Dekoron Bendable Guide Tubes

Bendable guide tubes that combine rigidity, flexibility, insertion-tube control and protection

GTD-400S
  • Dekoron guide tube attached to 3.9 mm tube gripper
  • Includes GTD-600 tubing
  • Supports 3.9 mm and 4.0 mm VideoProbes
  • Length: 3.0 m (9.75 ft)
  • Gripper: XA131
GTD-600
  • Dekoron bendable tubing sold per foot
  • Outer diameter: 9.5 mm (0.375 in)
  • Supports 3.9 mm and 5.0 mm VideoProbes
GTD-600S
  • Dekoron guide tube attached to 6.1 mm tube gripper
  • Includes GTD-800 tubing
  • Outer diameter: approximately 12.7 mm (0.512 in)
  • Supports 6.1 mm, 6.2 mm and 8.4 mm VideoProbes
  • Length: 6.6 m (21.7 ft)
  • Gripper: XA118
GTD-800
  • Dekoron bendable tubing sold per foot
  • Outer diameter: 12.7 mm (0.500 in)
  • Supports 6.1 mm, 6.2 mm and 8.4 mm VideoProbes
GTD-800S
  • Dekoron guide tube attached to 8.4 mm tube gripper
  • Includes GTD-800 tubing
  • Outer diameter: approximately 12.7 mm (0.512 in)
  • Supports 6.1 mm, 6.2 mm and 8.4 mm VideoProbes
  • Length: 6.6 m (21.7 ft)
  • Gripper: XA125
856A1310G01
  • Custom guide tube kit with blue molded plastic guide tube and steel straightening rod for CFM56 HPT inspections
856A1351P01
  • Red molded plastic custom guide tube for CFM56 HPT inspections

Cooling Sleeves

Tungsten-braided insertion-tube sleeves for active air cooling during high-temperature inspections. Supports temperatures up to 300 degree F (149 degree C) and requires 80-120 psi shop air.

Cooling Sleeves

XLCOOLTUBE-8506
  • Length: 3 m (118.11 in)
  • Diameter: 6.1 mm (0.240 in)
XLCOOLTUBE-8668
  • Length: 2 m (78.74 in)
  • Diameter: 10.7 mm (0.421 in)
XLCOOLTUBE-8789
  • Length: 4.5 m (177.17 in)
  • Diameter: 12.7 mm (0.5 in)
XLCOOLTUBE-8792
  • Length: 2 m (78.74 in)
  • Diameter: 12.7 mm (0.5 in)

Rigidizers

Stainless-steel rigid guide tubes that convert a flexible VideoProbe into a rigid scope for insertion-tube control and protection

Rigidizers

GTR-411
  • Length: 6 in (152 mm)
  • Diameter: 4 mm
GTR-413
  • Length: 12 in (305 mm)
  • Diameter: 4 mm
GTR-415
  • Length: 16.75 in (425 mm)
  • Diameter: 4 mm
GTR-416
  • Length: 18 in (457 mm)
  • Diameter: 4 mm
GTR-601
  • Length: 6 in (152 mm)
  • Diameter: 6 mm
GTR-603
  • Length: 12 in (305 mm)
  • Diameter: 6 mm
GTR-605
  • Length: 16.75 in (425 mm)
  • Diameter: 6 mm
GTR-606
  • Length: 24 in (610 mm)
  • Diameter: 6 mm
GTR-612
  • Length: 48 in (1219 mm)
  • Diameter: 6 mm
GTR-801
  • Length: 6 in (152 mm)
  • Diameter: 8 mm
GTR-803
  • Length: 12 in (305 mm)
  • Diameter: 8 mm
GTR-805
  • Length: 16.75 in (425 mm)
  • Diameter: 8 mm
GTR-806
  • Length: 24 in (610 mm)
  • Diameter: 8 mm
GTR-812
  • Length: 48 in (1219 mm)
  • Diameter: 8 mm

Rigidizers - Gripper Included

Rigidizers supplied with a compatible tube gripper

GTR-411S
  • Length: 6 in (152 mm)
  • Diameter: 4 mm
  • Gripper: XA-GRIP4
GTR-413S
  • Length: 12 in (305 mm)
  • Diameter: 4 mm
  • Gripper: XA-GRIP4
GTR-415S
  • Length: 16.75 in (425 mm)
  • Diameter: 4 mm
  • Gripper: XA-GRIP4
GTR-416S
  • Length: 18 in (457 mm)
  • Diameter: 4 mm
  • Gripper: XA-GRIP4
GTR-601S
  • Length: 6 in (152 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR-603S
  • Length: 12 in (305 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR-605S
  • Length: 16.75 in (425 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR-606S
  • Length: 24 in (610 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR-612S
  • Length: 48 in (1219 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR-801S
  • Length: 6 in (152 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8
GTR-803S
  • Length: 12 in (305 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8
GTR-805S
  • Length: 16.75 in (425 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8
GTR-806S
  • Length: 24 in (610 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8
GTR-812S
  • Length: 48 in (1219 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8

Rigidizer Kits

Rigidizer kits containing multiple lengths and a compatible gripper

GTR4-KIT
  • Lengths: 6 in (152 mm), 12 in (305 mm), 18 in (457 mm)
  • Diameter: 4 mm
  • Gripper: XA-GRIP4
GTR6-KIT
  • Lengths: 6 in (152 mm), 12 in (305 mm), 18 in (457 mm)
  • Diameter: 6 mm
  • Gripper: XA-GRIP6
GTR8-KIT
  • Lengths: 6 in (152 mm), 12 in (305 mm), 18 in (457 mm)
  • Diameter: 8 mm
  • Gripper: XA-GRIP8

Grippers & Hands-Free Mounting

Tube grippers lock onto the insertion tube for precise control and hands-free mounting compatibility

Tube Grippers

Cross-platform grippers with an embedded 1/4-20 threaded stud

XA-GRIP4
  • 3.9 mm/4.0 mm gripper with 1/4-20 insert
XA-GRIP6
  • 6.1 mm/6.2 mm gripper with 1/4-20 insert
XA-GRIP8
  • 8.4 mm gripper with 1/4-20 insert

Hands-Free Mounting

A wide range of accessories designed for hands-free use of Waygate Technologies video borescopes, improving efficiency and ergonomics across different applications and environments.

SA-C
  • Service parts for magic-arm assemblies.
  • Clamp portion of magic arm kit (XA119S) includes gold quarter-twenty stud.
XA-HOOK
  • Rigid handset hanging hook with integrated quick disconnect (QD) to interface directly with Everest Mentor Flex or Mentor Visual iQ handset (also connects to Mentor Flex holder).
  • Allows for easy hanging of the handset with 360° swivel to optimize display viewing angle.
XA BALL
  • Swivel ball mount with 1/4 x 20 adapter.
XA203
  • Brass male fitting for XA BALL.
XLGOABRO
  • XL Go handset holder with 1/4 x 20 female mount.
XLGOALANYARD
  • Neck or shoulder strap with attached handset holder (XLGOABRO) for use with the XL family of products.
XLGOAMAGARMKIT
  • Full-size Magic Arm mounting kit for XL family of products.
  • Includes: XLGOABRO handset holder, SA-A Variable friction Magic Arm and SA-C Super Clamp.
XLGOAMOUNTKIT
  • Mini magic arm hands free mount kit for use with the XL family of products.
  • Kit containing SA-C, XA BALL, XA203 and XLGOABRO.
MVIQALANYARD
  • Shoulder strap with attached handset holder (MVIQBHOLDER) for a Mentor Visual iQ system.
MFLALANYARD
  • Neck or shoulder strap with attached handset holder (MFLAHOLDER) for the Everest Mentor Flex.
XA-STRAP
  • Handset hanging strap with integrated quick disconnect (QD) to interface directly with Everest Mentor Flex or Mentor Visual iQ handset (also connects to Mentor Flex cradle).
  • Allows for easy hanging of the handset with secure clips and effortless adjustment using cam buckle.
XLGOABELTCLIP
  • Durable belt clip with attached handset holder (XLGOABRO) for an XL family of products.
MVIQAMOUNTKIT
  • Small hands free mount kit with swivel for Mentor Visual iQ VideoProbes that supports the equipment during inspection operations.
MFLAMOUNTKIT
  • Small hands free mount kit with moveable swivel for Everest Mentor Flex VideoProbes that supports the equipment during inspection operations.
  • Includes c-clamp, swivel ball, and handset cradle with integrated kickstand.
MVIQAMAGICARM
  • Full size hands free mount kit with moveable arm for Mentor Visual iQ VideoProbes that supports the equipment during inspection operations.
MFLAMAGICARM
  • Full size hands free mount kit with moveable arm for Everest Mentor Flex VideoProbes that supports the equipment during inspection operations.
  • Includes c-clamp, full magic arm, and handset cradle with integrated kickstand.
MVIQBHOLDER
  • Spare handset holder, used to hold handset when attached to hands free devices.
MFLAHOLDER
  • Everest Mentor Flex handset cradle. Includes integrated kickstand to provide optimal display viewing angle.
  • Includes integrated 1/4”-20 mount screw and Quick Disconnect (QD) port for compatibility with Waygate Technologies hands free mounting accessories.
MVIQCHOLDER
  • Mentor Visual iQ+ handset holder. Includes integrated kickstand to provide optimal display viewing angle.
  • Includes integrated 1/4”-20 mount screw for compatibility with Waygate Technologies hands free mounting accessories.
UG-MVIQA-QD
  • Quick disconnect mounting kit for MViQ enables use with hands free accessories utilizing QD connection point.
MFLACASE-POLEKIT
  • Telescoping handset mounting pole kit for Everest Mentor Flex. Designed to securely slide into place at the base of the carry-on case to allow for hands free use of the Mentor Flex.
  • Includes telescoping pole, swivel ball, and Mentor Flex handset cradle (MFLAHOLDER).
  • All items can be stored in the carry-on case.
MVIQACASE-POLEKIT
  • Telescoping handset mounting pole kit for Everest Mentor Visual iQ+. Designed to securely slide into place at the base of the carry-on case to allow for hands free use of the Mentor Visual iQ+.
  • Includes telescoping pole, swivel ball, and MViQ handset cradle (MVIQBHOLDER).
  • All items can be stored in the carry-on case.
MENTORCOCASE-POLE
  • Telescoping handset mounting pole (only) for Everest Mentor Flex or Mentor Visual iQ+.
  • Designed to securely slide into place at the base of the carry-on case to allow for hands free use of the VideoProbe.
MVIQA2.2HANDSFREE
  • 1/4-20 Hands free adapter for use with MVIQ handset and 2.2mm USB probe.
MVIQA-IDICOV
  • IDI Pin cover kit for use with Handset and 2.2mm USB probe.

Working Tools

Retrieval tools for removing loose parts and foreign objects from hard-to-reach areas without requiring system disassembly.

Internal Working Tools

Special retrieval tools for the internal working channel of compatible 6.2 mm VideoProbe insertion tubes. Selected tools can also be used externally with the WT-1.4MMEXT KIT.

WT-141432S
  • Diameter: 1.4mm (0.055”)
  • Snare tool 2.6m (102.4”) working length
WT-141432K
  • Diameter: 1.4mm (0.055”)
  • Snare tool 3.9m (121.6”) working length
WT-141432A
  • Diameter: 1.4mm (0.055”)
  • Alligator tool 3.2m (126.1”) working length
WT-141432HC
  • Diameter: 1.4mm (0.055”)
  • 3.2m (126.1”) working length
WT-141432P
  • Diameter: 1.4mm (0.055”)
  • Three-pronged gripper tool 3.2m (126.1”) working length
WT-141475A
  • Diameter: 1.4mm (0.055”)
  • Alligator tool 7.5m (295.3”) working length
WT-141432S
  • Diameter: 1.4mm (0.055”)
  • Snare tool 3.2m (126.1”) working length
WT-143026A
  • Diameter: 3.0mm (0.118”)
  • Alligator tool 2.6m (102.4”) working length
WT-143032A
  • Diameter: 3.0mm (0.118”)
  • Alligator tool 3.2m (126.1”) working length
WT-143526B
  • Diameter: 3.5mm (0.138”)
  • Brush tool 2.6m (102.4”) working length
WT-143532B
  • Diameter: 3.5mm (0.138”)
  • Brush tool 3.2m (126.1”) working length
WT-144026M
  • Diameter: 4.0mm (0.158”)
  • Magnet tool 2.6m (102.4”) working length
WT-144032M
  • Diameter: 4.0mm (0.158”)
  • Magnet tool 3.2m (126.1”) working length
WT141435P
  • Diameter: 1.4mm (0.055”)
  • Three pronged gripper tool 4.4m (173.2”) working length
WT-148026M
  • Diameter: 8.0mm (0.315”)
  • Magnet tool 2.6m (102.4”) working length
WT-148032M
  • Diameter: 8.0mm (0.315”)
  • Magnet tool 3.2m (126.1”) working length
WT-141435A
  • Diameter: 1.4mm (0.055”)
  • Alligator tool 3.5m (137.8”) working length
WT-143535B
  • Diameter: 1.4mm (0.055”)
  • Brush tool 3.5m (137.8”) working length
WT-144035M
  • Diameter: 1.4mm (0.055”)
  • Magnet tool 4m (157.5”) working length
WT-143035A
  • Diameter: 3.0mm (0.118”)
  • Alligator tool 3.5m (137.8”) working length
WT-148035M
  • Diameter: 3.0mm (0.118”)
  • Magnet tool 3.5m (137.8”) working length
WT-141435HC
  • Diameter: 1.4mm (0.055”)
  • Hook Comparator Cable, 3.5m (137.8”) working length
WT-C50
  • Diameter: 1.27mm (0.05”)
  • Quantity 5
WT-H
  • Diameter: 1.4mm (0.055”)
  • Quantity 5
WTH6
  • Working Tool Holder, 6.1mm Probe
  • H x W equals 15.5mm x 11.5mm (0.609” x 0.455”)
  • Length equals approximately 32mm–36mm (1.250”–1.420”)
  • Used for attaching any external retrieval tool to 6.1mm VideoProbe
WT-1.4MMEXT KIT
  • External attachment kit to allow use of 1.4mm (0.055”) working tools with any diameter VideoProbe.
  • Working tool slides through the attached tube allowing free movement and articulation.
  • Tubing outside diameter is 2.3mm and 3.8m in length.
  • Application: Kit to allow attachments of internal working tools with any diameter VideoProbe.
  • Benefit: Allows user to utilize internal retrieval tools line with multiple VideoProbe diameters.

External Working Tools

Clip-on external retrieval tools for compatible Waygate Technologies 6.1 mm and 8.4 mm VideoProbes.

WT-304020B
  • Diameter: 4.0mm (0.157”)
  • Wire basket tool 2.4m (94.5”) working length
WT-304020P
  • Diameter: 4.0mm (0.157”)
  • Three-pronged gripper 2.4m (94.5”) working length
WT-304020S
  • Diameter: 4.0mm (0.157”)
  • Snare tool 2.4m (94.5”) working length
WT-304030B
  • Diameter: 4.0mm (0.157”)
  • Wire basket tool 3.3m (129.9”) working length
WT-304030P
  • Diameter: 4.0mm (0.157”)
  • Three-pronged gripper 3.3m (129.9”) working length
WT-304030S
  • Diameter: 4.0mm (0.157”)
  • Snare tool 3.3m (129.9”) working length
WT-304075B
  • Diameter: 4.0mm (0.157”)
  • Wire basket tool 7.8m (307.1”) working length
WT-304075P
  • Diameter: 4.0mm (0.157”)
  • Three-pronged tool 7.8m (307.1”) working length
WT-306075S
  • Diameter: 4.0mm (0.157”)
  • Snare tool 7.8m (307.1”) working length
WT-306020F
  • Diameter: 6.0mm (0.236”)
  • Fork and tine tool 2.4m (94.5”) working length
WT-306030F
  • Diameter: 6.0mm (0.236”)
  • Fork and tine tool 3.3m (129.9”) working length
WT-306075F
  • Diameter: 6.0mm (0.236”)
  • Fork and tine tool 7.8m (307.1”) working length
WT-308020A
  • Diameter: 8.0mm (0.315”)
  • Alligator tool 2.4m (94.5”) working length
WT-308020M
  • Diameter: 8.0mm (0.315”)
  • Magnet tool 2.4m (94.5”) working length
WT-308030A
  • Diameter: 8.0mm (0.315”)
  • Alligator tool 3.3m (129.9”) working length
WT-308030M
  • Diameter: 8.0mm (0.315”)
  • Magnet tool 3.3m (129.9”) working length
WT-308020C22
  • Diameter: 8.0mm (0.315”)
  • Wire cutting tool 2.4m (94.5”) working length
  • Cuts up to 22 gage wire

Working Tool Pouch

WT-POUCH32
  • Diameter: 7mm (0.276”)
  • Length: 3.2m (126”)
WT-TOOLPOUCH35
  • Diameter: 7mm (0.276”)
  • Length: 3.2m (126”)
WT-POUCH620
  • Diameter: 6mm (0.236”)
  • Length: 2.4m (102.4”)
WT-POUCH630
  • Diameter: 6mm (0.236”)
  • Length: 3m (118.1”)
WT-POUCH675
  • Diameter: 6mm (0.236”)
  • Length: 7.5m (295.3”)
WT-POUCH820
  • Diameter: 8mm (0.315”)
  • Length: 2.0m (78.7”)
WT-POUCH830
  • Diameter: 8mm (0.314961”)
  • Length: 3.0m (118.11”)
WT-POUCH875
  • Diameter: 8mm (0.315”)
  • Length: 7.5m (295.3”)

Working Tool Kits

WT-620KIT
  • Includes one each of the following:
  • All tools listed below are 2.4m working length and come in a labeled pouch.
  • WT-308020A — 8.0mm (0.315”) alligator tool
  • WT-306020F — 6.0mm (0.236”) fork and tine tool
  • WT-308020M — 8.0mm (0.315”) magnet tool
  • WT-304020P — 4.0mm (0.157”) three-pronged gripper tool
  • WT-304020S — 4.0mm (0.157”) snare tool
  • WT-304020B — 4.0mm (0.157”) four wire basket tool
  • WT-POUCH620 — pouch to hold 2.4m (102.4”) working tools (quantity 6)
  • WTH6 — working tool holder, 6mm (0.236”) probe
WT-630KIT
  • Includes one each of the following:
  • All tools listed below have a working length of 3.3 meters and come in a labeled pouch.
  • WT-308030A — 8.0mm (0.315”) alligator tool
  • WT-304030S — 4.0mm (0.157”) snare tool
  • WT-304030P — 4.0mm (0.157”) three-pronged gripper
  • WT-304030B — 4.0mm (0.157”) four wire basket tool
  • WT-308030M — 8.0mm (0.315”) magnet tool
  • WT-306030F — 6.0mm (0.236”) fork and tine tool
  • WTH6 (quantity 6) — working tool holder
  • WT-POUCH630 — pouch to hold 3.3m (129.9”) working tools for 6mm (0.236”) x 3.0m (118.11”) probes
WT-632KIT
  • Includes one each of the following:
  • All tools listed below have a working length of 3.3 meters and come in a labeled pouch.
  • WT-C50 — Assy comparator vial .050
  • WT-141432A — 1.4mm (0.055”) alligator tool 3.2m
  • WT-141432S — 1.4mm (0.055”) snare tool 3.2m
  • WT-141432P — 1.4mm (0.055”) gripper tool 3.2m
  • WT-143532B — 3.5mm (0.138”) brush tool 3.2m
  • WT-144032M — 4.0mm (0.157”) magnet tool 3.2m
  • WT-148032M — 8.0mm (0.315”) magnet tool 3.2m
  • WT-143032A — 3.0mm (0.118”) alligator tool 3.2m
  • WT-141432HC — Hook comparator cable 3.2m
  • WT-H — Assy, hook vial
WT-675KIT
  • Includes one each of the following:
  • All tools are 7.8 meters in length and come in a labeled pouch.
  • WT-308075A — 8.0mm (0.315”) alligator tool
  • WT-304075S — 8.0mm (0.315”) snare tool
  • WT-304075P — 4.0mm (0.157”) three-pronged gripper tool
  • WT-304075B — 4.0mm (0.157”) four wire basket tool
  • WT-308075M — 8.0mm (0.315”) magnet tool
  • WT-306075F — 6.0mm (0.236”) fork and tine tool
  • WTH6 (quantity 6) — working tool holder
  • WT-POUCH675 — pouch to hold 7.8 meter working tools
WT-820KIT
  • Includes one each of the following:
  • All tools are 2.4 meters in length and come in a labeled storage pouch.
  • WT-308020A — 8.0mm (0.315”) alligator tool 2.4m (94.49”) working length
  • WT-304020S — 4.0mm (0.157”) snare tool 2.4m working length
  • WT-304020P — 4.0mm (0.157”) three-pronged gripper tool 2.4m working length
  • WT-POUCH820 — pouch to hold 2.4 meter (94.49”) working tools for 8mm x 2.0 meter (78.74”) probes
  • WT-308020M — 8.0mm (0.315”) magnet tool 2.4m (94.49”) working length
  • WT-306020F — 6.0mm (0.236”) fork and tine tool 2.4m (94.49”) working length
  • WT-304020B (quantity 6) — 4.0mm (0.157”) four wire basket tool 2.4m (94.49”) working length
  • WTH8 — working tool holder, 8mm (0.315”) probe
WT-830KIT
  • Includes one each of the following:
  • All tools are 3.3 meters in length and come in a labeled storage pouch.
  • WT-308030A — 8.0mm (0.315”) alligator tool 3.3m (129.921”) working length
  • WT-304030S — 4.0mm (0.157”) snare tool 3.3m (129.921”) working length
  • WT-304030P — 4.0mm (0.157”) three-pronged gripper tool 3.3m (129.921”) working length
  • WT-304030B — 4.0mm (0.157”) four wire basket tool 3.3m working length
  • WT-308030M — 8.0mm magnet tool 3.3m (129.921”) working length
  • WT-306030F — 6.0mm (0.236”) fork and tine tool 3.3m (129.921”) working length
  • WTH8 (quantity 6) — working tool holder, 8mm (0.315”) probe
  • WT-POUCH830 — pouch to hold 3.3 meter (129.921”) working tools for 8mm (0.315”) x 3.0 meter (129.921”) probes
WT-875KIT
  • Includes one each of the following:
  • All tools are 7.8 meters in length and come in a labeled storage pouch.
  • WT-308075A — 8.0mm (0.315”) alligator tool
  • WT-304075S — 4.0mm (0.157”) snare tool
  • WT-304075P — 4.0mm (0.157”) three-pronged gripper
  • WT-308075M — 8.0mm (0.315”) magnet tool
  • WT-306075F — 6.0mm (0.236”) fork and tine tool
  • WT-304075B (quantity 6) — 4.0mm (0.157”) four wire basket tool
  • WTH8 — working tool holder, 8mm (0.315”) probe
  • WT-POUCH875 — pouch to hold 7.8 meter (307.09”) working tools
WTH6
  • WT-H (quantity 5)
  • Hook piece, 1.4mm (0.055”)
  • Length equals approximately 32mm–36mm (1.250”–1.420”)

Working Tool Pouch & Kits

Storage pouches and complete working-tool kits for supported Waygate Technologies VideoProbe retrieval tools.

Working Tool Pouch

Dedicated pouches sized for different tool diameters and working lengths.

WT-POUCH32
  • Diameter: 7mm (0.276 in)
  • Length: 3.2m (126 in)
WT-TOOLPOUCH35
  • Diameter: 7mm (0.276 in)
  • Length: 3.2m (126 in)
WT-POUCH620
  • Diameter: 6mm (0.236 in)
  • Length: 2.4m (102.4 in)
WT-POUCH630
  • Diameter: 6mm (0.236 in)
  • Length: 3m (118.1 in)
WT-POUCH675
  • Diameter: 6mm (0.236 in)
  • Length: 7.5m (295.3 in)
WT-POUCH820
  • Diameter: 8mm (0.315 in)
  • Length: 2.0m (78.7 in)
WT-POUCH830
  • Diameter: 8mm (0.314961 in)
  • Length: 3.0m (118.11 in)
WT-POUCH875
  • Diameter: 8mm (0.315 in)
  • Length: 7.5m (295.3 in)

Working Tool Kits

Each kit is displayed as one row. The kit part number appears in the left column, while every included component and its description appear together in the right column.

Kit Part NumberWT-620KIT
All tools listed below are 2.4m working length and come in a labeled pouch
WT-308020A8.0mm (0.315 in) alligator tool
WT-306020F6.0mm (0.236 in) fork and tine tool
WT-308020M8.0mm (0.315 in) magnet tool
WT-304020P4.0mm (0.157 in) three-pronged gripper tool
WT-304020S4.0mm (0.157 in) snare tool
WT-304020B4.0mm (0.157 in) four-wire basket tool
WT-POUCH620 (quantity 6)Pouch to hold 2.4m (102.4 in) working tools
WTH6Working tool holder, 6mm (0.236 in) probe
Kit Part NumberWT-630KIT
All tools listed below have a working length of 3.3m and come in a labeled pouch
WT-308030A8.0mm (0.315 in) alligator tool
WT-304030S4.0mm (0.157 in) snare tool
WT-304030P4.0mm (0.157 in) three-pronged gripper
WT-304030B4.0mm (0.157 in) four-wire basket tool
WT-308030M8.0mm (0.315 in) magnet tool
WT-306030F6.0mm (0.236 in) fork and tine tool
WTH6 (quantity 6)Working tool holder
WT-POUCH630Pouch to hold 3.3m (129.9 in) working tools for 6mm (0.236 in) x 3.0m (118.11 in) probes
Kit Part NumberWT-632KIT
All tools listed below have a working length of 3.3m and come in a labeled pouch
WT-C50Assembly comparator vial, 0.050
WT-141432A1.4mm (0.055 in) alligator tool, 3.2m
WT-141432S1.4mm (0.055 in) snare tool, 3.2m
WT-141432P1.4mm (0.055 in) gripper tool, 3.2m
WT-143532B3.5mm (0.138 in) brush tool, 3.2m
WT-144032M4.0mm (0.157 in) magnet tool, 3.2m
WT-148032M8.0mm (0.315 in) magnet tool, 3.2m
WT-143032A3.0mm (0.118 in) alligator tool, 3.2m
WT-141432HCHook comparator cable, 3.2m
WT-HAssembly hook vial
Kit Part NumberWT-675KIT
All tools are 7.8m in length and come in a labeled pouch
WT-308075A8.0mm (0.315 in) alligator tool
WT-304075S8.0mm (0.315 in) snare tool
WT-304075P4.0mm (0.157 in) three-pronged gripper tool
WT-304075B4.0mm (0.157 in) four-wire basket tool
WT-308075M8.0mm (0.315 in) magnet tool
WT-306075F6.0mm (0.236 in) fork and tine tool
WTH6 (quantity 6)Working tool holder
WT-POUCH675Pouch to hold 7.8m working tools
Kit Part NumberWT-820KIT
All tools are 2.4m in length and come in a labeled storage pouch
WT-308020A8.0mm (0.315 in) alligator tool, 2.4m (94.49 in) working length
WT-304020S4.0mm (0.157 in) snare tool, 2.4m working length
WT-304020P4.0mm (0.157 in) three-pronged gripper tool, 2.4m working length
WT-POUCH820Pouch to hold 2.4m (94.49 in) working tools for 8mm x 2.0m (78.74 in) probes
WT-308020M8.0mm (0.315 in) magnet tool, 2.4m (94.49 in) working length
WT-306020F6.0mm (0.236 in) fork and tine tool, 2.4m (94.49 in) working length
WT-304020B (quantity 6)4.0mm (0.157 in) four-wire basket tool, 2.4m (94.49 in) working length
WTH8Working tool holder, 8mm (0.315 in) probe
Kit Part NumberWT-830KIT
All tools are 3.3m in length and come in a labeled storage pouch
WT-308030A8.0mm (0.315 in) alligator tool, 3.3m (129.921 in) working length
WT-304030S4.0mm (0.157 in) snare tool, 3.3m (129.921 in) working length
WT-304030P4.0mm (0.157 in) three-pronged gripper tool, 3.3m (129.921 in) working length
WT-304030B4.0mm (0.157 in) four-wire basket tool, 3.3m working length
WT-308030M8.0mm magnet tool, 3.3m (129.921 in) working length
WT-306030F6.0mm (0.236 in) fork and tine tool, 3.3m (129.921 in) working length
WTH8 (quantity 6)Working tool holder, 8mm (0.315 in) probe
WT-POUCH830Pouch to hold 3.3m (129.921 in) working tools for 8mm (0.315 in) x 3.0m (129.921 in) probes
Kit Part NumberWT-875KIT
All tools are 7.8m in length and come in a labeled storage pouch
WT-308075A8.0mm (0.315 in) alligator tool
WT-304075S8.0mm (0.315 in) snare tool
WT-304075P4.0mm (0.157 in) three-pronged gripper
WT-308075M8.0mm (0.315 in) magnet tool
WT-306075F6.0mm (0.236 in) fork and tine tool
WT-304075B (quantity 6)4.0mm (0.157 in) four-wire basket tool
WTH8Working tool holder, 8mm (0.315 in) probe
WT-POUCH875Pouch to hold 7.8m (307.09 in) working tools
Kit Part NumberWTH6
WT-H (quantity 5)Hook piece, 1.4mm (0.055 in)
Length approximately 32mm-36mm (1.250-1.420 in)

Centering Devices

Centering devices hold the insertion tube in the centre of a pipe for efficient wide-angle forward-view inspections and 90 degree viewing of orbital welds. They are cross-platform accessories compatible with Waygate Technologies VideoProbes.

Centering Devices

CD6-060
  • Diameter: 0.6 in (15.2 mm)
  • For 6.1 mm diameter VideoProbes
  • 0.6 in diameter
  • Holds the VideoProbe up off the surface being inspected to provide better view
CD6-150
  • Diameter: 1.5 in (38.1 mm)
  • For 6.1 mm diameter VideoProbes
  • 1.5 in diameter
  • Holds the VideoProbe up off the surface being inspected to provide better view
CD8-150
  • Diameter: 1.5 in (38.1 mm)
  • For 8.4 mm diameter VideoProbes
  • 1.5 in diameter
  • Holds the VideoProbe up off the surface being inspected to provide better view
CD8-300
  • Diameter: 3.0 in (76.2 mm)
  • For 8.4 mm diameter VideoProbes
  • 3 in diameter
  • Holds the VideoProbe up off the surface being inspected to provide better view

Measurement Verification Blocks

Use Waygate Technologies-supplied NIST-traceable verification blocks before and after measurements to confirm system accuracy. Compatibility is determined by tip diameter, and blocks are cross-platform once the correct diameter is selected.

Measurement Verification Blocks

3D-MEASBLOCK
  • 3D measurement training block
  • For use with 3D Phase Measurement, 3D stereo, traditional stereo, or comparison measurement
UG-VER2400B
  • Diameter: 3.9 mm (0.154 in)
UG-VER2500B
  • Diameter: 5.0 mm (0.196 in)
UG-VER2600C
  • Diameter: 6.0 mm (0.236 in)
UG-VER2620B
  • Diameter: 6.2 mm (0.244 in)
UG-XLG3TM84VER
  • Diameter: 8.4 mm (0.331 in)
VER2400B
  • Diameter: 3.9 mm (0.154 in)
VER2400C
  • Diameter: 4.0 mm (0.157 in)
VER2500B
  • Diameter: 5.0 mm (0.197 in)
VER2600D
  • Diameter: 6.1 mm (0.240 in)
VER2600E
  • Diameter: 6.1 mm (0.240 in)
VER2620B
  • Diameter: 6.2 mm (0.244 in)
VER2300UV-9258
  • UV verification block for 3.9 mm UV probes
VER2400UV-9196
  • UV verification block for 4.0 mm UV probes
VER2600UV-9197
  • UV verification block for 6.1 mm UV probes
VER2620UV-9198
  • UV verification block for 6.2 mm UV probes
VER8400UV-9199
  • UV verification block for 8.4 mm UV probes
XLG3TM84VER
  • Diameter: 8.4 mm (0.331 in)

Software and Upgrades

Scalable software packages and upgrades let inspection teams expand measurement, image-processing, reporting, storage and workflow capabilities as their requirements grow.

MVIQ-PODBASE3DPM
  • Basic measurement package including comparison measurement, Real 3D phase measurement and measurement types length, depth, area, point to line and angle
  • TrueSight Imaging POD package including Brightness, Adaptive Noise Reduction (ANR), Distortion Correction, Long Exposure, Invert, Inverse+, Single View, Color Saturation, Darkboost, and Image Overlay
  • Also includes Image Rotation and Image Stitching
MVIQ-PODBASE3DST
  • Basic measurement package including comparison measurement, traditional stereo measurement, Real 3D stereo measurement and measurement types length, depth, area, point to line and angle
  • TrueSight Imaging POD package including Brightness, Adaptive Noise Reduction (ANR), Distortion Correction, Long Exposure, Invert, Inverse+, Single View, Color Saturation, Darkboost, and Image Overlay
  • Also includes Image Rotation and Image Stitching
MVIQ-PODADV3DPM
  • Advanced measurement package including comparison measurement, Real 3D phase measurement and measurement types length, depth, area, point to line, angle, Area Depth Profile (ADP), Radius Gauge, Projected Plane (PPM), Blade Tip Clearance (BTC), missing corner and surface angle
  • TrueSight Imaging POD package including Brightness, Adaptive Noise Reduction (ANR), Distortion Correction, Long Exposure, Invert, Inverse+, Single View, Color Saturation, Darkboost, and Image Overlay
  • Also includes Image Rotation and Image Stitching
MVIQ-PODADV3DST
  • Advanced measurement package including comparison measurement, traditional stereo measurement, Real 3D stereo measurement and measurement types length, depth, area, point to line, angle, Area Depth Profile (ADP), Radius Gauge, Projected Plane (PPM), Blade Tip Clearance (BTC), missing corner and surface angle
  • TrueSight Imaging POD package including Brightness, Adaptive Noise Reduction (ANR), Distortion Correction, Long Exposure, Invert, Inverse+, Single View, Color Saturation, Darkboost, and Image Overlay
  • Also includes Image Rotation and Image Stitching
INSPMGR-CD
  • Inspection Manager software for viewing and re-measurement of 3D phase measurement, StereoProbe measurement, ShadowProbe measurement, and comparison measurement images
  • Inspection Manager also provides a menu directed inspection (MDI) viewer for easy image viewing
MVIQ-3DST
  • Provides 3D stereo measurement software including point cloud visualization
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
  • Includes 3D point cloud visualization
UG-MVIQ-3DST
  • Available for fielded units, requires factory install
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
  • Must come in on RMA (returned materials authorization)
MVIQ-MDI
  • MDI (menu directed inspection) helps guide an inspector through the inspection process and intelligently auto-generates a report
  • MDI Builder software for the PC also included
UG-MVIQ-MDI
  • Mentor Visual iQ Menu Directed Inspection upgrade
MVIQ-POD
  • Mentor Visual iQ probability of detection enhancement
  • Includes high-dynamic range (HDR), adaptive noise reduction (ANR), distortion correction, and image presets
  • Factory install
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
UG-MVIQ-POD
  • Mentor Visual iQ probability of detection enhancement
  • Includes high-dynamic range (HDR), adaptive noise reduction (ANR), distortion correction, and image presets
  • Field upgrade
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
MVIQ-ST
  • Mentor Visual iQ stereo measurement enhancement
  • Factory install
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
UG-MVIQ-ST
  • Mentor Visual iQ stereo measurement enhancement
  • Available for fielded units, requires factory install
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
  • Must come in on RMA (returned materials authorization)
MVIQ-3DPM
  • Provides 3D phase measurement software including point cloud visualization
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
  • Includes 3D point cloud visualization
UG-MVIQ-3DPM
  • Available for fielded units, requires factory install
  • Available on Inspect and Touch versions of the Mentor Visual iQ platform
  • Must come in on RMA (returned materials authorization)
MVIQ-NOIM
  • Mentor Visual iQ internal memory disable – factory install
  • Disables the ability to store data to the internal drive
UG-MVIQ-NOIM
  • Mentor Visual iQ internal memory disable – field upgrade
  • Disables the ability to store data to the internal drive
MVIQ-NOUSB
  • Mentor Visual iQ USB memory disable – factory install
  • Disables the ability to store data to the USB drives
UG-MVIQ-NOUSB
  • Mentor Visual iQ USB memory disable – factory install
  • Disables the ability to store data to the USB drives
UG-XLLV-MDI-11
  • MDI 1.1 helps guide an inspector through the inspection process and intelligently auto-generates a report
  • MDI (menu directed inspection) Builder software for the PC also included
MVIQ-PPM
  • Mentor Visual iQ Software for projected plane measurement
  • Requires 3D phase measurement (MVIQ-3DPM) or 3D stereo measurement (MVIQ-3DST) capable handset
UG-MVIQ-PPM
  • Mentor Visual iQ Software for projected plane measurement
  • Requires 3D phase measurement (MVIQ-3DPM) or 3D stereo measurement (MVIQ-3DST) capable handset
  • Requires handset serial number upon order entry
UG-MVIQ-ADP
  • Mentor Visual iQ Software for area depth profile measurement
  • Requires 3D phase measurement (MVIQ-3DPM) or 3D stereo measurement (MVIQ-3DST) capable handset
  • Requires handset serial number upon order entry
UG-XLVUD-ST
  • XL Vu DStereo measurement enhancement
  • Available for fielded units, requires factory install
  • Must come in on RMA (returned materials authorization) for stereo measurement tip calibration
  • Comes standard with a licensed copy of Inspection Manager version 1.5 remeasurement software
  • Inspection Manager software for viewing and re-measurement of 3D phase measurement, StereoProbe measurement, ShadowProbe measurement, and comparison measurement images
  • Inspection Manager also provides a menu directed inspection (MDI) viewer for easy image viewing
UG-XLVU-MDI-20
  • MDI 2.0 helps guide an inspector through the inspection process and intelligently auto-generates a report
  • MDI (menu directed inspection) Builder software for the PC also included
UG-XLFL-ST
  • XL Flex stereo measurement enhancement
  • Available for fielded units, requires factory install
  • Must come in on RMA for stereo measurement tip calibration
UG-XLFL-MDI-20
  • Menu Directed Inspection version 2.0 guides an inspector through the inspection process and intelligently auto-generates a report
  • MDI Builder software for the PC also included
  • Comes with a software upgrade thumbdrive
  • Requires handset serial number upon order
XLDE-MDI-11
  • MDI 1.1 helps guide an inspector through the inspection process and intelligently auto-generates a report
  • MDI Builder software for the PC also included
UG-XLDE-MDI-11
  • MDI 1.1 guides an inspector through the inspection process and intelligently auto-generates a report
  • MDI Builder software for the PC also included
  • Comes with a software upgrade thumbdrive
  • Requires handset serial number upon order
MVIQ-OVERLAY
  • Overlay feature for comparing a known image to a live inspection image
UG-MVIQ-OVERLAY
  • Field upgrade for overlay feature for comparing a known image to a live inspection image
UG-MVIQ-IMINSP
  • Mentor Visual iQ internal memory enablement for Inspect model – field upgrade
  • Enables 16 GB internal memory for MViQ Inspect model
  • Requires device serial number upon order
MVIQ-TOUCHSCRN
  • Adds optically bonded, multipoint capacitive Dragontrail touchscreen feature to the Inspect model
MVIQ-32GB
  • 32GB internal memory feature addition
MVIQ-DARKBOOST
  • Mentor Visual iQ software enhancement – factory install
  • Dark Boost is a live video processing function that digitally brightens darker areas in scenes with bright foreground surfaces or glare without overexposing or degrading the contrast of more uniform scenes
UG-MVIQ-DARKBOOST
  • Mentor Visual iQ software enhancement – field upgrade
  • Dark Boost is a live video processing function that digitally brightens darker areas in scenes with bright foreground surfaces or glare without overexposing or degrading the contrast of more uniform scenes
  • Requires handset serial number upon order entry
MVIQ-TIPCLEARNC
  • Mentor Visual iQ software enhancement – factory install
  • Blade Tip Clearance is a measurement type available with Real3D Stereo and/or Real3D Phase measurement technologies
  • BTC automatically identifies the minimum, maximum and average clearance measurements for tip-to-shroud inspections
UG-MVIQ-TIPCLEARNC
  • Mentor Visual iQ software enhancement – field upgrade
  • Blade Tip Clearance is a measurement type available with Real3D Stereo and/or Real3D Phase measurement technologies
  • BTC automatically identifies the minimum, maximum and average clearance measurements for tip-to-shroud inspections
  • Requires handset serial number upon order entry
MFL-3DST
  • Everest Mentor Flex Real3D Stereo Measurement including point cloud visualization
  • Measurement types included: Length, Point To Line, Depth, Area, Multi-Segment
  • Factory install
UG-MFL-3DST
  • Everest Mentor Flex Real3D Stereo Measurement including point cloud visualization
  • Measurement types included: Length, Point To Line, Depth, Area, Multi-Segment
  • Field upgrade
  • Requires handset serial number upon order
MFL-ST
  • Everest Mentor Flex Stereo Measurement enhancement
  • Factory install
UG-MFL-ST
  • Everest Mentor Flex Stereo Measurement enhancement
  • Field upgrade
  • Requires handset serial number upon order
UG-MFL-POD
  • Everest Mentor Flex Probability of Detection enhancement software
  • Includes distortion correction for wide-angle tip adapters, Dark Boost for dark scene optimization, and Color Saturation for precise image color adjustment
  • Factory install
MFL-POD
  • Everest Mentor Flex Probability of Detection enhancement software
  • Includes distortion correction for wide-angle tip adapters, Dark Boost for dark scene optimization, and Color Saturation for precise image color adjustment
  • Field upgrade
  • Requires handset serial number upon order

Cross-Platform Accessories

Purpose-built accessories that add connectivity, storage, cleaning, mounting and inspection versatility across compatible Waygate Technologies VideoProbe platforms.

XLGOA8GBTD
  • USB 2.0 thumb drive
  • 8 GB external memory device
  • Not compatible with the XLG3
XLGOAAUTOC
  • 12 V DC auto adapter for XL Go operation and battery charging
XLGOADOORKIT
  • Replacement door kit
  • Includes 815589 right USB door and 815590 left microphone-speaker door
XLGOAVISOR
  • Sun shield for XL Go when inspecting in sunlight
XLGOC8GBHD
  • 8 GB external hard drive for use with XL Go and XL Go+ VideoProbe systems
MVIQADP-VGA
  • DisplayPort-to-VGA cable
XA-VGA30
  • VGA cable for use with an external monitor
  • Length: 30 ft (9.1 m)
  • Connects to Mentor Visual iQ using MVIQADP-VGA, sold separately
XA-HDMI
  • HDMI cable
  • Length: 6 ft (1.8 m)
XA-CLEANKIT
  • Lens-cleaning kit for VideoProbe tip optics
  • Includes five packages of alcohol wipes and one package of cotton swabs
  • Packaged in a small case with cleaning instructions inside the lid
114M2569
  • XA-CLEANKIT replacement pack
  • Includes five packages of alcohol wipes and one package of cotton swabs
XA-KEYBOARD
  • Mini keyboard with USB connector and PS2 adapter
  • Compatible with Mentor Visual iQ, XL Flex, XL Flex+, XL Detect, XL Detect+, XL Vu, XL Lv and Ca-Zoom PTZ
MVIQATD-2
  • Thumb drive with translated User Manuals and Quick Start Guides
  • Includes Inspection Manager 2.0 for viewing and re-measurement of 3D Phase, 3D Stereo, StereoProbe and comparison-measurement images
MVIQAUSB A-B
  • USB 3.0 A-to-B cable
MVIQAUSB-ETHNET
  • USB-to-Ethernet adapter cable
MVIQAPOLE
  • Spare handset pole
MVIQABSA
  • Borescope adapter for the MViQ VideoProbe system
  • Full-VGA camera and light source for rigid borescopes and fiberscopes
  • Includes borescope adapter, storage case and setup guide
  • A borescope coupler is required and sold separately: CCF28 for rigid borescopes over 4 mm, CCF35 for fiberscopes and 2.7 mm mini-rigid borescopes, or CCF45 for mini-rigid borescopes and mini-semi-flexible fiberscopes under 2 mm
PROBE-HOLDER
  • VideoProbe accessory tool for supporting and locking a 6.1 mm or 6.2 mm insertion tube into an access port
  • Compliant urethane holder fits access ports from 10 mm to 25 mm in diameter
  • Colour: Red
MViQAPC100S
  • Access port adapter kit
  • Includes nylon pouch made to fit into the bottom of the Mentor Visual iQ workstation case
  • Includes A100016S150 – CP 1-16UNF 1.5 in
  • Includes A112512S150 – CP 1 1/8-12UNF 1.5 in
  • Includes A37524C150 – CP 3/8-24UNF3A 1.5 in
  • Includes A43820C150 – CP 7/16-20UNF3A 1.5 in
  • Includes A50020S150 – 1.500 x 1/2-20 x 1/2-13 adapter
  • Includes A50020S275 – CP 1/2-20UNF 2.75 in
  • Includes A56318C150 – CP 9/16-18UNF3A 1.5 in
  • Includes A56318S150 – CP 9/16-18UNF 1.5 in
  • Includes A62518S150 – CP 5/8-18UNF 1.5 in
  • Includes A62518S300 – CP 5/8-18UNF 3.0 in
  • Includes A75016S150 – CP 3/4-16UNF 1.5 in
  • Includes A87514S150 – CP 7/8-14UNF 1.5 in
  • Includes XA125 – Gripper, 8 mm

Batteries and Power Supplies

Boost portability with lightweight lithium-ion batteries, chargers and power accessories for supported Waygate Technologies VideoProbe systems.

XLGOABATTA
  • 2 hr run time
  • Compatible with XL Flex, XL Flex+, XL Detect, XL Detect+, XL Vu, XL Vu+, XL Lv, XL Go and XL Go+
XLGOABATTB
  • 4 hr run time
  • Compatible with XL Flex, XL Flex+, XL Detect, XL Detect+, XL Vu, XL Vu+, XL Lv, XL Go and XL Go+
MVIQBBATT
  • Interchangeable lithium-ion battery for Mentor Visual iQ+ or Everest Mentor Flex
  • 2-hour run time for Mentor Visual iQ+; 3-hour run time for Everest Mentor Flex
  • Charges from the battery DC port or the secondary handset DC port for MViQ+
XLVUPWRBRK
  • AC power supply for the corded version of the XL Vu VideoProbe system
XLGOACHGR
  • Battery charger for XLGOABATTA and XLGOABATTB
  • Also provides AC power to operate XL Go
  • Compatible with XL Flex, XL Flex+, XL Detect, XL Detect+, XL Vu, XL Vu+, XL Lv, XL Go and XL Go+
MVIQBCHARGER
  • Spare battery charger and AC power supply for Mentor Visual iQ or Everest Mentor Flex
MVIQAPWRSTRAP
  • Nylon strain-relief strap for Mentor Visual iQ or Everest Mentor Flex AC power cord
  • Includes attachment instructions
MVIQABATT-NOCELLS
  • Empty battery shell for Mentor Visual iQ VideoProbes
  • Contains no lithium-ion cells
  • Acts as a pass-through for the AC power supply

Shipping and Storage

Shipping and storage options ranging from durable system cases to protective optical-tip cases with dedicated storage.

MVIQACASE-WS
  • Spare workstation shipping/storage case for use with Mentor Visual iQ VideoProbes
MVIQAPRBCASE
  • Mentor Visual iQ QuickChange VideoProbe soft storage case
  • Fits probe lengths from 2 m to 10 m
MVIQAACCPOUCH
  • Accessory storage pouch
  • Fits in the workstation shipping and storage case
XLDETECTCASE
  • Storage for one XL Detect or XL Detect+ system, tip case, AC transformer, 2- or 4-hour spare battery, XL Detect handset holder, magic clamp, swivel ball, gripper, 12 in rigidizer and owner’s manual
  • Comes standard with all XL Detect and XL Detect+ systems
  • Compatible with all XL Detect and XL Detect+ VideoProbes
MVIQATIPCASE-40
  • 4.0 mm spare interchangeable optical-tip storage case
  • Compatible with all XL 4.0 mm diameter optical-tip adapters
MVIQATIPCASE-61
  • 6.1 mm spare interchangeable tip-optics storage case
  • Compatible with all 6.1 mm diameter optical-tip adapters
XLVUBCASE
  • Shipping and storage case for XL Vu
  • Sturdy hard case protects against shock, moisture and dust
  • Stores one XL Vu system, tip case, AC transformer, 2- or 4-hour spare battery, XL Vu handset holder, magic clamp, swivel ball, gripper, 12 in rigidizer and owner’s manual
  • Compatible with all XL Vu VideoProbes
XLLVBCASE
  • Shipping and storage case for XL Lv
  • Sturdy hard case protects against shock, moisture and dust
  • Stores one XL Lv system, tip case, 2- or 4-hour spare battery, XL Lv handset holder, magic clamp, swivel ball, gripper, 12 in rigidizer and owner’s manual
  • Compatible with all XL Lv VideoProbes
MVIQBCASE-CO
  • Spare carry-on shipping/storage case for use with Mentor Visual iQ and Mentor Visual iQ+ VideoProbes
XLFCASE-CO
  • Carry-on case with wheels
  • Comes standard with all XL Flex and XL Flex+ systems
  • Optional upgrade for XL Detect and XL Detect+
MVIQACASE-CD
  • MViQ dual-probe case kit
MFLACASE-CO
  • Sturdy hard case protects against shock, moisture and dust
  • Stores one Everest Mentor Flex system, tip case, AC power supply, two spare 3-hour batteries, Mentor Flex handset cradle, magic clamp, swivel ball, gripper, 12 in rigidizer, telescoping handset pole kit, rigid hook (XA-HOOK), and handset hanging strap (XA-STRAP)
MFLACASE-BP
  • Hard-shell backpack case for Everest Mentor Flex for easy hands-free storage and transportation
  • Stores the VideoProbe handset and probe, 3-hour battery, AC power supply, rigidizer, gripper and optical-tip case
  • Four latches for secure storage
  • ATA 300 rated
  • IP67 military specification for protection against dust and the effects of immersion between 15 cm and 1.0 m
XLCASE-BP
  • Hard-shell backpack case for the XL family of VideoProbes for easy hands-free storage and transportation
  • Includes an integrated insertion-tube storage reel
  • Stores the VideoProbe handset with 2-hour battery, spare 4-hour battery, AC power pack, rigidizer, gripper and optical-tip case
  • Four latches for secure storage
  • ATA 300 rated
  • IP67 military specification for protection against dust and the effects of immersion between 15 cm and 1.0 m
MVIQACASE-BP
  • Hard-shell backpack case for Mentor Visual iQ for easy hands-free storage and transportation
  • Includes an integrated insertion-tube storage reel
  • Stores the VideoProbe handset and probe, 2-hour battery, AC power pack, rigidizer, gripper and optical-tip case
  • Four latches for secure storage
  • ATA 300 rated
  • IP67 military specification for protection against dust and the effects of immersion between 15 cm and 1.0 m
