Modular By Design
Match probe diameter, length, and viewing direction to different access points and inspection requirements.
AIT T Series
Open the product video in a full-screen popup without leaving the page.
Technical Specs
Add rich text or HTML/custom code from this section settings.

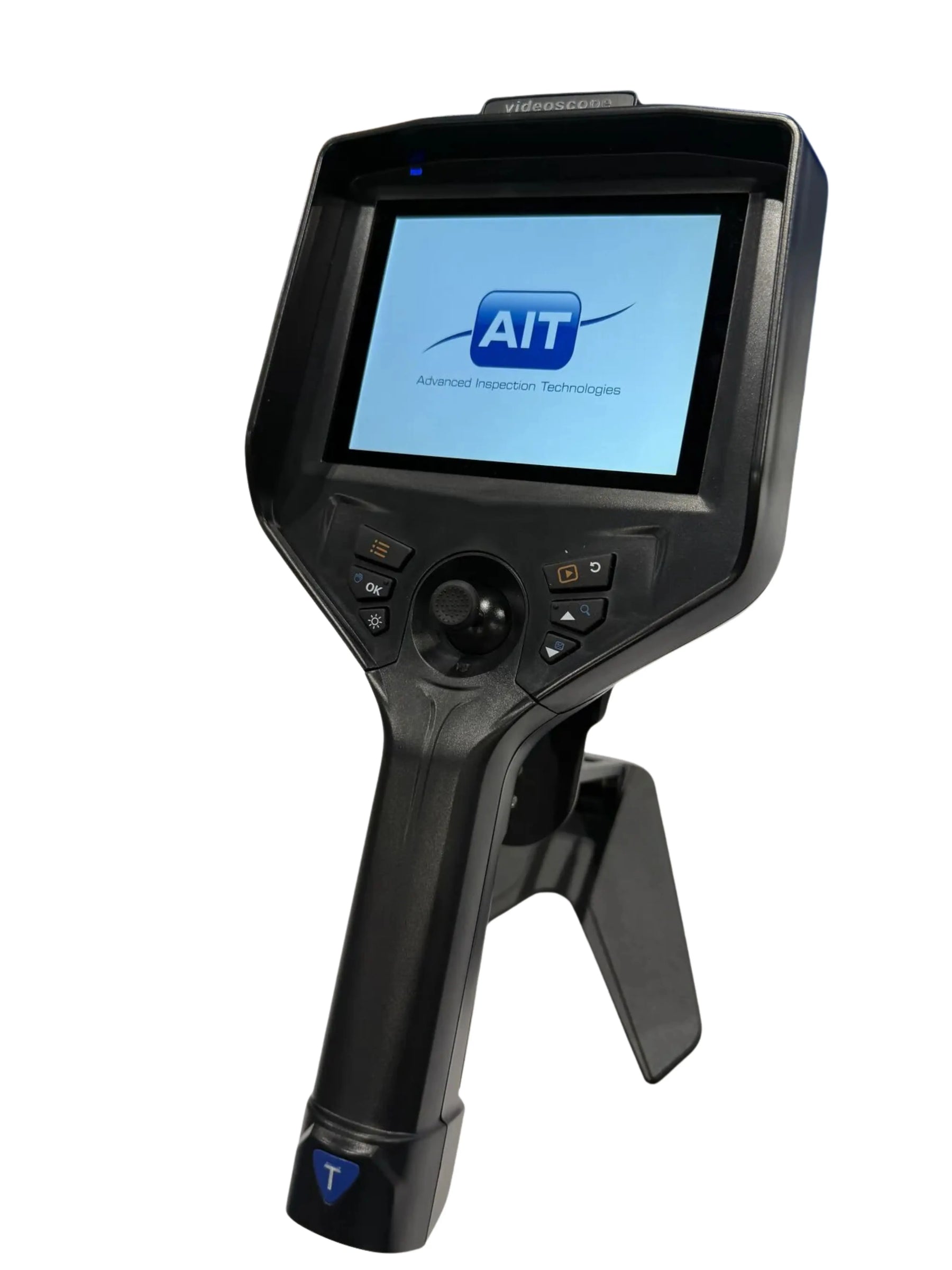

HD Videoscope for Industrial & UV Visual Inspection

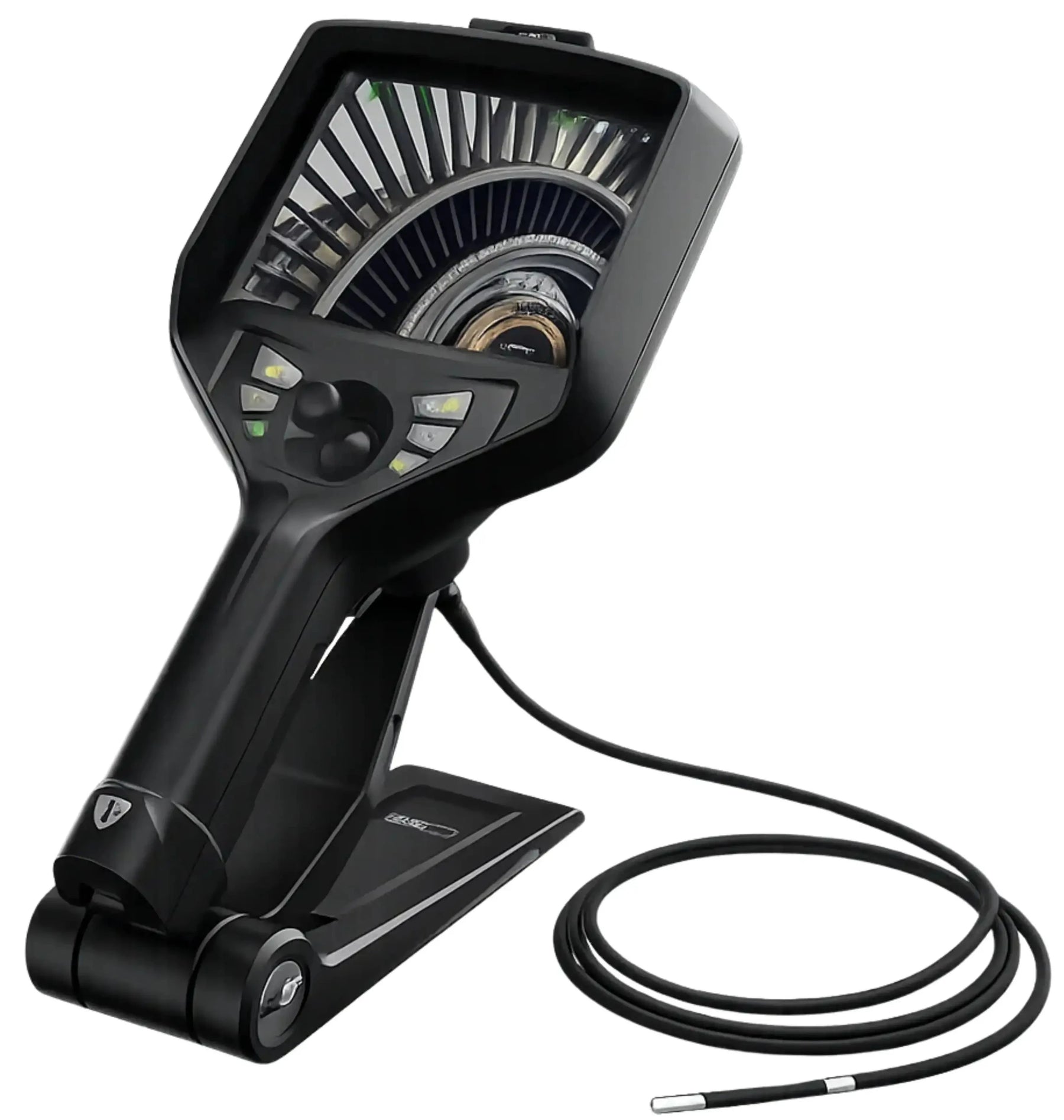

AIT T Series HD Videoscope with Articulation
AIT T-Series
Inspect critical components with a configurable HD videoscope built for demanding maintenance environments. The AIT T Series combines modular probe options, responsive articulation, and high-definition imaging to support accurate remote visual inspections across aviation, manufacturing, power generation, and industrial facilities. Configure probe diameter, insertion length, camera view, and inspection mode to match your application. For fluorescent inspection workflows, select the integrated UV configuration to switch between white and ultraviolet illumination using a dedicated probe. Capture clear images and video, document findings, and request a tailored solution configured for your inspection requirements, equipment, and operating environment.
Precision Control
Navigate confined spaces
Modular Probe System
Fits varied applications
Full-HD Imaging
Clear inspection records
UV Inspection
White or UV modes
20+
Years in Business
8+
Equipment Types
7+
Industries Served
5/5
U.S. Military Branches
49%
90-Day Reorder Rate
Lifetime
Tech Support
WHY T-SERIES
Why Teams Upgrade to the T Series
Configurable Inspection Modes
Choose standard white-light inspection or a dedicated UV and white-light configuration for fluorescence-based workflows.
HD Inspection Imaging
Capture 1280 × 720 images and video with adjustable exposure, white balance, image effects, and digital zoom.
Controlled Probe Navigation
Use joystick articulation, damping positioning, and probe locking to maintain control inside complex internal areas.
Extended Field Runtime
Dual rechargeable batteries provide at least eight hours of operating time with real-time battery indication.
Connected Image Output
Transfer inspection images through optional Wi-Fi or connect an external display using the integrated HDMI output.
Technical details
Everything You Need Before You Decide
The AIT T Series is an HD video scope for remote visual checks in aircraft, plants, shops, power sites, and field service. Teams can set probe size, tube length, camera view, and light mode to suit each port, path, and part.
A hand joystick moves the probe tip. Damping control and a probe lock help the user steer through bends, tight gaps, and hard to reach areas, then hold the view in place.
Choose the Setup That Fits the Job
- Probe sizes for small or wide access ports
- Front, side, or dual views on select probes
- Tube lengths for short or deep reach
- White light for routine visual checks
- A 6 mm UV and white light option
- Monitor and probe modules that detach
T Series
Standard Visual Inspection
Configure white-light probes by diameter, length, and viewing direction for routine remote visual inspection.
TU Configuration
UV Fluorescence Inspection
Select the dedicated 6 mm probe to switch between white and UV light during compatible fluorescence checks.
The 5.1 inch IPS screen gives a clear live view at 1280 × 960. Select probe sets record 1280 × 720 photos and video. Tools for zoom, exposure, white balance, image turn, playback, and simple comparison help teams review and save key findings.
Optional Wi-Fi can send images to a phone or PC. HDMI can show the live feed on a larger screen. Two chargeable batteries give at least eight hours of use. An optional heat alert warns the user above 65°C and shuts the unit down above 80°C.
5.1"
IPS display
8X
Digital zoom
8+ Hours
Battery runtime
IP67
Probe and tube
One core system can serve many assets, access points, view needs, and light based inspection tasks. This helps crews standardize training, capture records, and change approved setups as work demands evolve.
Review the specifications most buyers compare when selecting an industrial videoscope. Available probe dimensions, image resolution, depth of field, and viewing direction depend on the selected configuration.

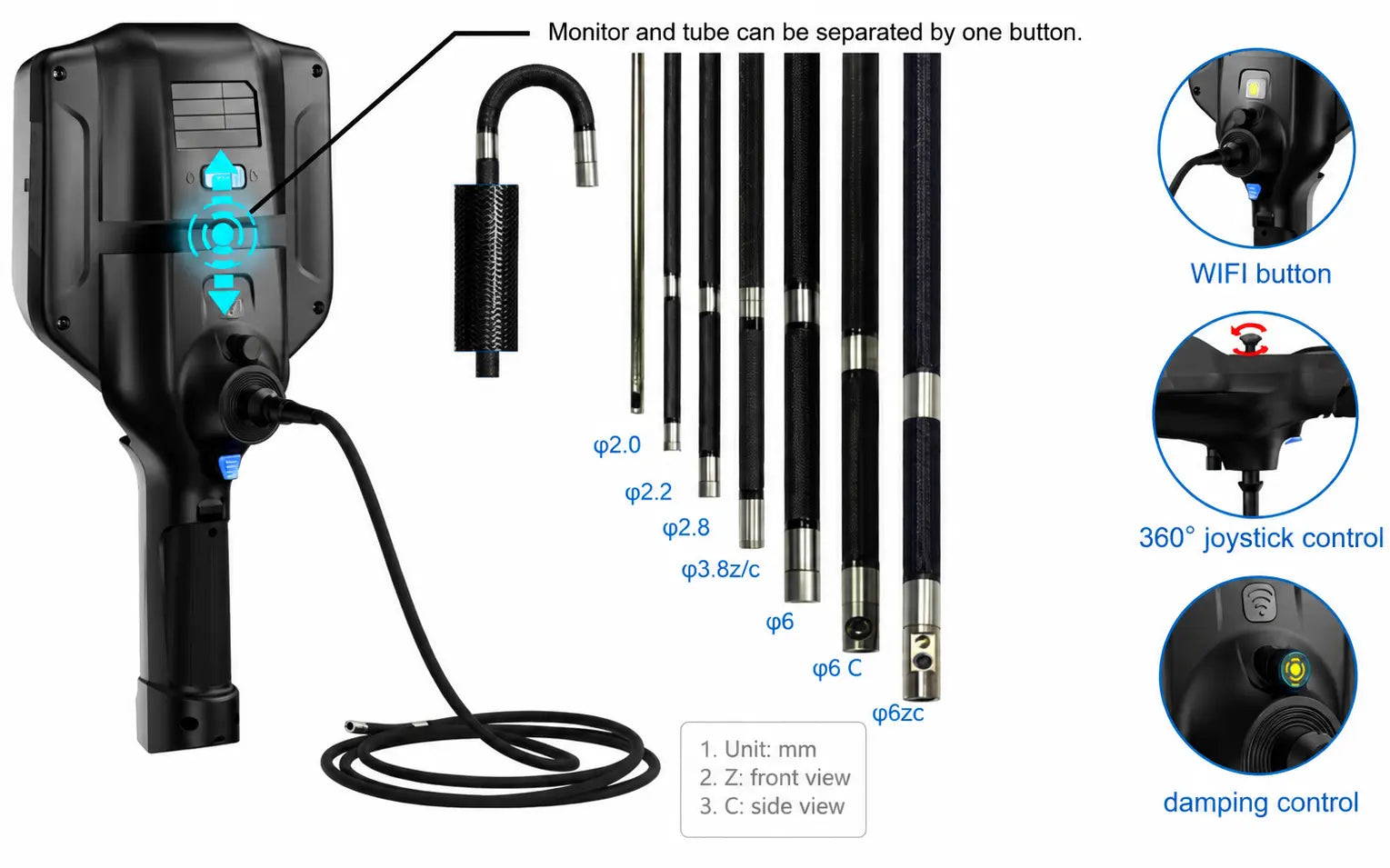

Probe and Inspection System
Probe Diameters
2.2, 2.4, 2.8, 3.8 and 6 mm
Standard Lengths
1.5, 3 and 5 m
Custom Lengths
Available by configuration
Viewing Direction
Front, side or front-and-side dual lens
Articulation
Two-way or 360° joystick control
Maximum Bend
Up to 190°, configuration dependent
Probe Positioning
Damping positioning and articulation lock
Field of View
90° or 120°, configuration dependent
Probe Protection
IP67
Imaging and Display
Display
5.1-inch color IPS display
Display Resolution
1280 × 960
Camera Resolution
Up to 1,000,000 pixels
Image Resolution
Up to 1280 × 720
Video Resolution
Up to 1280 × 720
Digital Zoom
Up to 8×
Image Controls
Exposure, white balance, rotation and image effects
Media Format
JPEG images and MOV video
Documentation and Connectivity
Image Capture
Supported
Video Recording
Supported
Playback
On-device image and video playback
Measurement
Comparative measurement
HDMI Output
External display connection
Wi-Fi Transfer
Optional phone or computer image transfer
USB Port
Micro USB with protective cover
Storage
Removable TF card
Power and Field Performance
Working Time
At least 8 hours
Battery System
Dual 3.7 V, 3200 mAh batteries
Power Input
DC 5 V, 1 A
System Weight
0.8 kg or less
Temperature Alert
Optional high-temperature warning
Modular Design
Monitor and probe detach with one button
Need UV Inspection?
AIT TU Series Configuration
The TU Series uses a dedicated probe configuration for compatible ultraviolet fluorescence inspection procedures.
Probe Diameter
6 mm
Camera View
Front View
Light Source
UV + White Light
Available Insertion Lengths
- 1.5 m
- 3.0 m
- 5.0 m
Diameter, viewing direction, and illumination remain fixed across all three available insertion lengths.
Configuration note:
Probe resolution, depth of field, field of view, viewing direction, articulation, illumination, and available insertion lengths vary by selected probe.
Aircraft Engine Inspection
Inspect internal engine areas through limited access points while documenting visible conditions for maintenance review.
Turbine Component Inspection
Navigate blades, vanes, and internal passages to examine wear, deposits, damage, and surface condition.
Industrial Equipment Maintenance
Check enclosed machinery, gearboxes, pumps, and assemblies without unnecessary disassembly or extended equipment downtime.
Manufacturing Quality Control
Inspect castings, machined parts, weld areas, and internal cavities during production or final quality checks.
Power Generation Inspection
Examine turbines, generators, heat exchangers, and plant equipment during planned maintenance and condition assessments.
UV Fluorescence Inspection
Use the TU configuration for compatible fluorescence procedures requiring integrated ultraviolet and white-light viewing.
Got questions?
Frequently Asked Questions
Can the T Series be customized for unique inspection requirements?
Yes. The T Series is available with multiple probe diameters, insertion lengths, viewing directions, and inspection modes, allowing configurations to match different inspection tasks, access restrictions, and equipment requirements.
What is the difference between the T Series and TU configuration?
The T Series is designed for standard white-light remote visual inspection. The TU configuration adds a dedicated 6 mm probe with integrated white and ultraviolet illumination for compatible fluorescence inspection procedures.
Do I need UV inspection for my application?
Not every inspection requires ultraviolet illumination. If your inspection procedure calls for fluorescence-based inspection, the TU configuration may be appropriate. For routine visual inspections, the standard T Series is typically the recommended choice.
Can AIT help me choose the right configuration?
Absolutely. If you can provide the equipment model, inspection area, access-port size, or even a photo of the application, our inspection specialists will recommend the most suitable T Series configuration for your inspection requirements.
What information should I have before requesting a quote?
Knowing your access-port diameter, required inspection depth, target component, and whether you need front, side, dual-view, or UV inspection helps us recommend the right configuration. If you're unsure, simply tell us what you're inspecting, and we'll guide you.
How long does it take to configure the right system?
Most recommendations can be made quickly once we understand your application. Our specialists review your inspection requirements and recommend the appropriate probe diameter, insertion length, viewing direction, and inspection mode before preparing your quote.
FIND THE RIGHT INSPECTION TOOL
Explore More Videoscope Solutions From AIT
Trusted by Industry Leaders
AIT Supplies to the Best in the Industry
Not Sure Which Camera, Probe, or Cable Length You Need?
✓
Access opening size or probe entry diameter
✓
Inspection distance or working length required
✓
Pipe, tank, or component dimensions
✓
Environment: wet, hot, hazardous, explosive, confined space
✓
Target defect: crack, corrosion, blockage, weld, FOD, leak
✓
Purchase, rental, repair, or demo need
