True Tube Inspection Focus
Designed around boiler and heat exchanger ID inspection instead of general drain camera work.
New Arrival
Technical Specs
Add rich text or HTML/custom code from this section settings.
Boiler & Heat Exchanger Tube Inspection

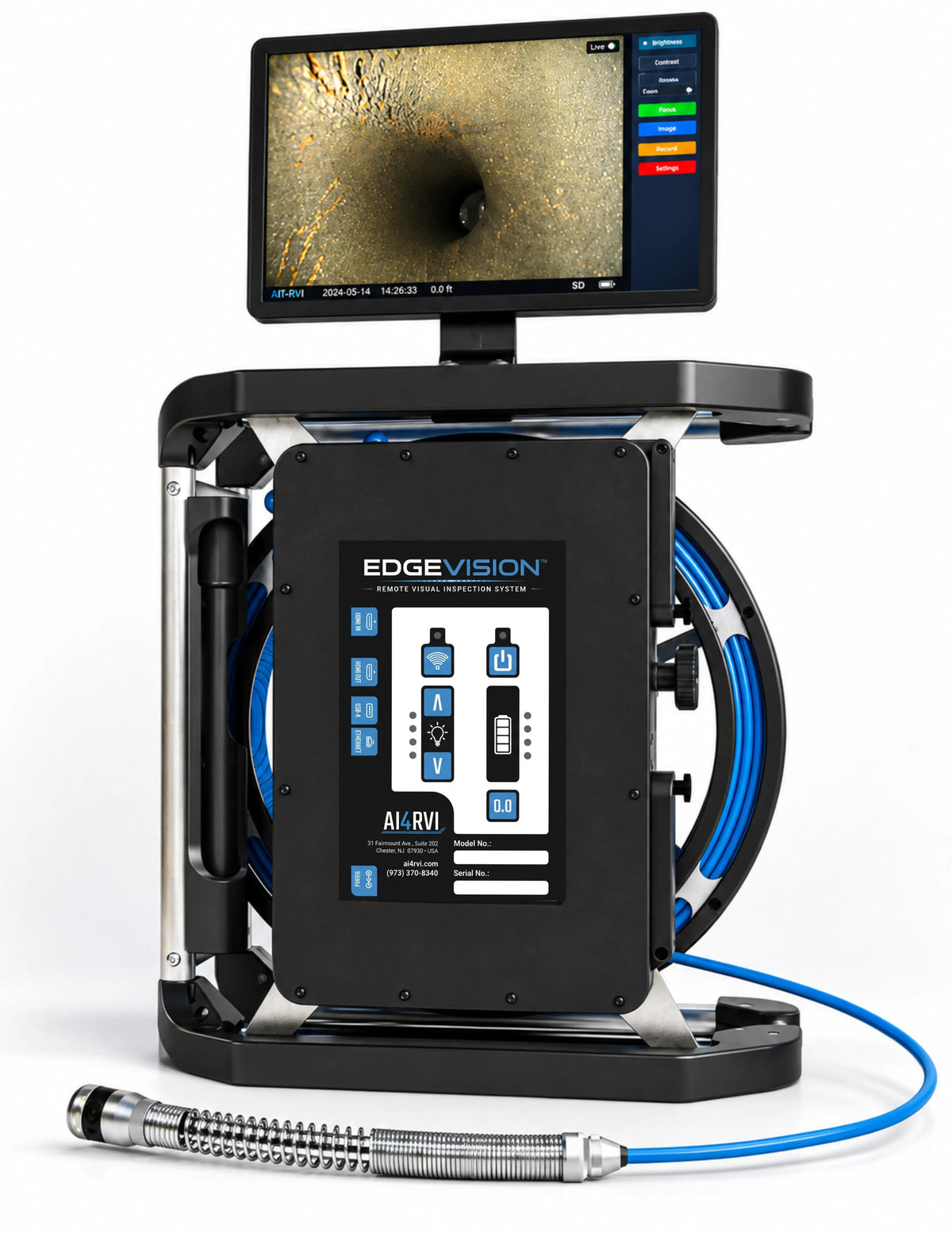

Edgevision™ AI Push Camera for Boiler and Heat Exchanger Tube Inspection
Edgevision™ AI Push Camera
Edgevision™ is a compact RVI system for internal tube inspections where image quality, speed, and documentation matter. It is built for boiler tubes, heat exchanger tubes, and small-diameter industrial piping, combining a push-camera platform with onboard software that helps inspectors capture, review, organize, and report inspection findings.
1080p HDTV Video
Capture clearer tube ID footage for review and documentation.
Hot-Swappable Batteries
Two hot-swappable batteries for continuous cordless use.
Wide Internal Coverage
176° wide-angle view helps inspect more tube wall per pass.
Offline Edge Software
Record, review, and report without constant internet access.
20+
Years in Inspection
One source
Sales, Rentals & Repairs
7+
Industries Served
1 business day
Quote Response
Lifetime
Tech Support
Located In
The USA
Why Edgevision™
Built for Tube ID Inspection Workflows
On-Device Report Generation
Generate a standardized report as soon as the inspection is finished, helping inspectors reduce manual reporting time and move on to the next job faster.
AI-Assisted Defect Recognition
Supports faster inspection review by helping inspectors identify potential defects for decision support.
Jetson Edge Processing
The onboard NVIDIA Jetson computer powers recording, image capture, and software functions.
Flexible Video Viewing
View inspection video on a 3.2k tablet display via Wi-Fi or Ethernet, with HDMI live video and USB data export.
Compact Jobsite Setup
The system weighs under 20 lb and fits through steam or mud-drum manways.
Technical details
Everything You Need Before You Decide
Remote Visual Inspection System for Boiler and HX Tubes
Edgevision™ is a push camera based RVI system for inspecting boiler tube and heat exchanger tube ID surfaces.
It is built for inspection teams that need HD footage, portable field operation, and a faster way to move from captured media to usable inspection records.
The system works 100% offline and uses an onboard NVIDIA Jetson Edge computer to support video recording, image capture, camera functions, and optional AI features.
Built Around the Inspection Workflow
Edgevision™ combines camera hardware, tablet viewing, recording, reporting tools, and AI-assisted review options in one compact field system for tube inspection work.
Offline Operation
Work without relying on jobsite internet access.
Tube ID Focus
Built for boiler and heat exchanger internal tube inspection.
AI Options
Add report generation or anomaly review support when needed.
Field System Overview
- HDTV video capture for boiler and heat exchanger tube inspection.
- 3.2k tablet display with Wi-Fi or Ethernet video viewing.
- HDMI live video output for supervisory viewing.
- USB data export for moving inspection files after the job.
- Two hot-swappable batteries for cordless field operation.
- Optional AI-assisted reporting and anomaly detection features.
Video Viewing
View inspection video through a 3.2k tablet display via Wi-Fi or Ethernet, with HDMI live video and USB data export.
AI-Assisted Review
Optional AI features support report generation, auto-anomaly detection, and standardized anomaly coding.
Cordless Power
Two hot-swappable batteries help inspection teams keep working during field use without staying tied to outlet power.
Platform Snapshot
Key system values for camera access, cable reach, computing, and field portability.
Camera Head
Under 1 in / 25 mm detachable head
Cable Reach
98.4 ft / 30 m push cable
Edge Computer
NVIDIA Jetson onboard processing
System Weight
Under 20 lb / 9 kg compact setup
Contact AIT to confirm tube access, inspection application, cable reach, reporting needs, and AI feature requirements.
Edgevision™ Technical Specifications
Review the camera head, video chain, tablet, system power, cable, and included accessories for the Edgevision™ RVI system.

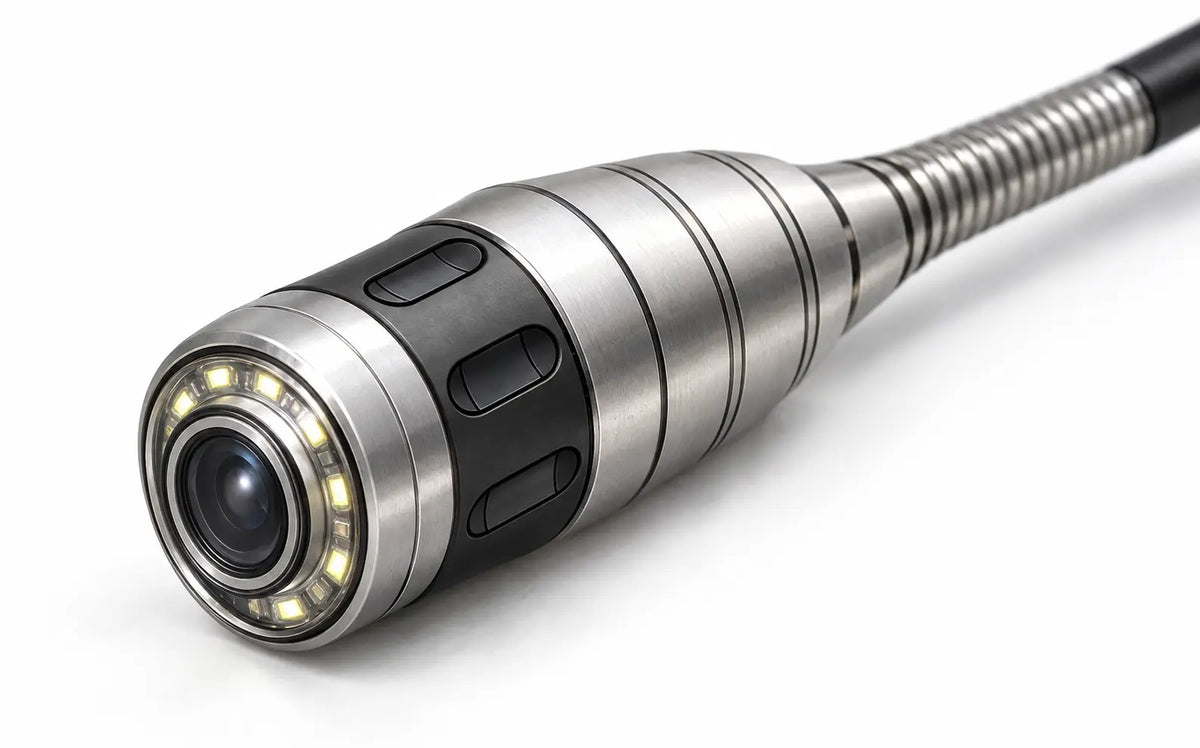

Camera Head
Camera, lens, lighting, and construction details for tube ID inspection.
| Imager | HDR CMOS 1/2.8 in |
|---|---|
| Effective pixels | 1920 x 1080 |
| Lens | Sealed 176° wide-angle megapixel lens |
| Lighting | 10 white LEDs |
| Construction | Stainless steel and aluminum |
| Camera head diameter | Under 1 in / 25 mm |
| Camera head style | Detachable and submersible camera head |
Video Chain
Edgevision™ is built around a complete HDTV video chain, not just an HD-labeled camera head. Its optics, lighting, imager, cable transmission, system board, and viewing output work together to support measurable image clarity through test-chart based HDTV performance.
| Video pipeline | HDTV 1920 x 1080p |
|---|---|
| Lens function | High-resolution wide-angle optics |
| Lighting function | Directed high-intensity white LED illumination |
| Imager function | CMOS of more than 2.0 megapixels with wide dynamic range |
| Video signal | Amplified long-cable transmission provides digital control of all camera features |
| System board | High fidelity conversion of camera signals for JPEG, MPEG, and H.265 streaming video |
| Video performance note | AI4RVI system can resolve and capture more than 800 HTV lines with vivid color fidelity |
Tablet and Viewing
Display, control, live viewing, and inspection file export options.
| Tablet display | 11.1 in / 281 mm diagonal |
|---|---|
| Tablet resolution | 3.2k / 3200 x 2000 pixels |
| Memory | 12 GB RAM, 256 GB storage |
| Control interface | Wi-Fi control by Lenovo Yoga Tab 11 hosting Edgevision software |
| Viewing options | 3.2k tablet display via Wi-Fi or Ethernet, HDMI live video, and USB data export |
| Supervisory viewing | Wi-Fi and HDMI video output |
| External video input | USB port for alternate video sources |
System and Power
Computer platform, power input, battery setup, size, and portability.
| Edge computer | NVIDIA Jetson Edge computer |
|---|---|
| Supported functions | Integrated video recorder, image capture, camera functions, and AI-assisted report generation |
| Power | 20 to 24 VDC |
| Charger | 100 to 240 VAC, 50/60 Hz |
| Battery setup | Two hot-swappable batteries for continuous cordless use |
| Compact size | 16.5 x 15.0 x 7.5 in / 42 x 38 x 19 cm |
| Weight | 20 lb / 9.0 kg |
| Jobsite access | Compact lightweight design fits through round and oval manways |
Cable and Accessories
Cable construction, cable reach, included items, and optional items.
| Cable size and length | 0.25 in x 98.4 ft / 6.4 mm x 30 m |
|---|---|
| Cable construction | Rigid basalt fiber rod extruded with six copper conductors and protective jacket |
| Included items | Shipping case, AC system charger, two removable batteries, and three centering devices |
| Optional items | Secondary tablet, spare batteries, and external battery charger |
| External video support | USB input for alternate video sources with footage counter display |
Boiler Tube Inspection
Review internal boiler tube surfaces during outage, maintenance, or troubleshooting work.
Heat Exchanger Tube Inspection
Inspect heat exchanger ID surfaces with a camera system built for tube access.
Steam and Mud Drum Access
Use a compact system designed to fit through round, oval, and drum manways.
Power Plant Maintenance
Support inspection programs that need repeatable visual records during planned maintenance windows.
Refinery and Chemical Tubing
Inspect small-diameter industrial piping where internal visual condition matters.
Inspection Reporting Workflows
Use software packages that help convert captured media into structured inspection records.
Edgevision™ Model Comparison
Edgevision™ is available in three model levels: Basic, Report Generator, and Image Analysis. Each model includes the core camera system, tablet interface, and standard accessories, with higher levels adding reporting and AI-assisted review tools.
| Feature | Basic Video capture | Report Generator Consolidated reports | Image Analysis AI-assisted review |
|---|---|---|---|
| Core System | |||
| HDTV camera system | |||
| Wi-Fi Edgevision™ tablet | |||
| Standard accessories | |||
| Capture and Output | |||
| Video recording | |||
| Still image capture | |||
| Flash drive output | |||
| Reporting and AI Review | |||
| Report generation | - | ||
| Harmonized coding | - | ||
| Anomaly coding | - | - | |
| AI anomaly detection | - | - | |
Model selection:
Basic includes the HDTV camera system, Wi-Fi Edgevision™ tablet, video recording, still image capture, and standard accessories. Report Generator adds AI-powered consolidated job reporting with harmonized coding. Image Analysis adds AI-powered anomaly flagging and tagging.
Got questions?
Frequently Asked Questions
What makes Edgevision™ different from a standard pipe camera?
Edgevision™ is focused on tube ID inspection, offline operation, HD video-chain performance, and inspection documentation workflows rather than general pipe viewing alone.
Is Edgevision™ meant for boiler tubes only?
No. Edgevision™ is built around boiler and heat exchanger tube ID inspection, but it may also fit other small-diameter industrial tube or piping inspection work where the camera head, cable length, and access path match the job.
Can Edgevision™ be used during outage inspections?obe configuration should I choose?
Yes. Edgevision™ is a strong fit for planned outage work because it combines tube inspection video, still image capture, portable field operation, and reporting support in one system.
What should I confirm before requesting a quote?
Confirm the tube type, access opening, tube ID, inspection distance, reporting requirement, and whether your team needs only capture, report generation, or AI-assisted review.
Can Edgevision™ help reduce post-inspection reporting time?
Yes, depending on the selected model. The reporting and image-analysis options are designed to help organize findings and reduce manual report-building work after inspection.
Is the system practical for field crews moving between jobsites?
Yes. The system is compact, under 20 lb, and supplied with field-use accessories, making it easier to move into plants, outage areas, and confined-access locations.
Can Edgevision™ be used when internet access is limited?
Yes. Edgevision™ is designed to work offline, which is useful in plants, boiler areas, and outage environments where reliable internet access may not be available.
