Advanced Remote Visual Inspection

Mentor Flex+ VideoProbe Advanced Remote Visual Inspection

Name: AIT K Series
Uploaded: 2026-06-23T00:00:00Z
Duration: 56 s
Description: Open the product video in a full-screen popup without leaving the page.

Mentor Flex+ VideoProbe

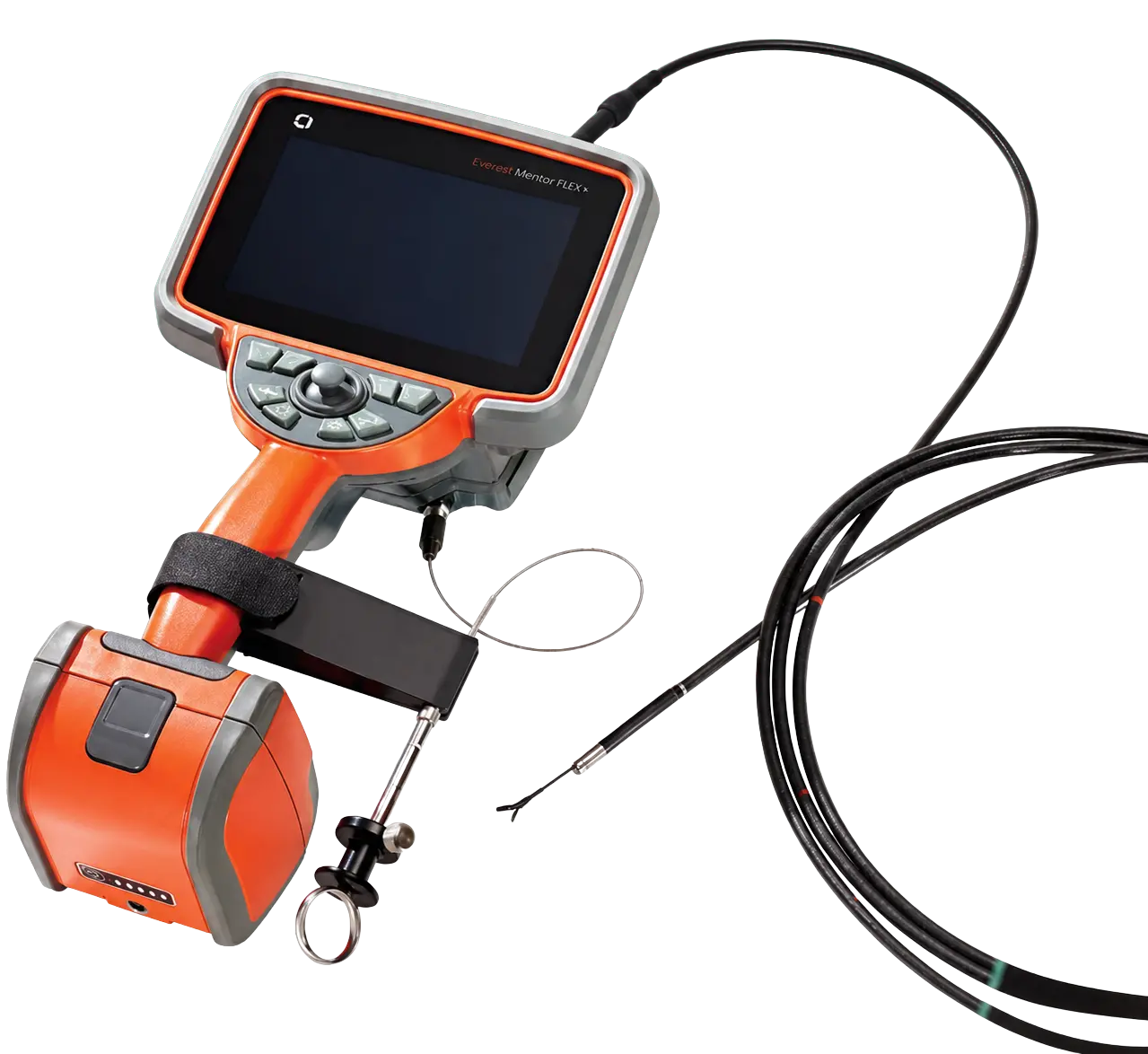

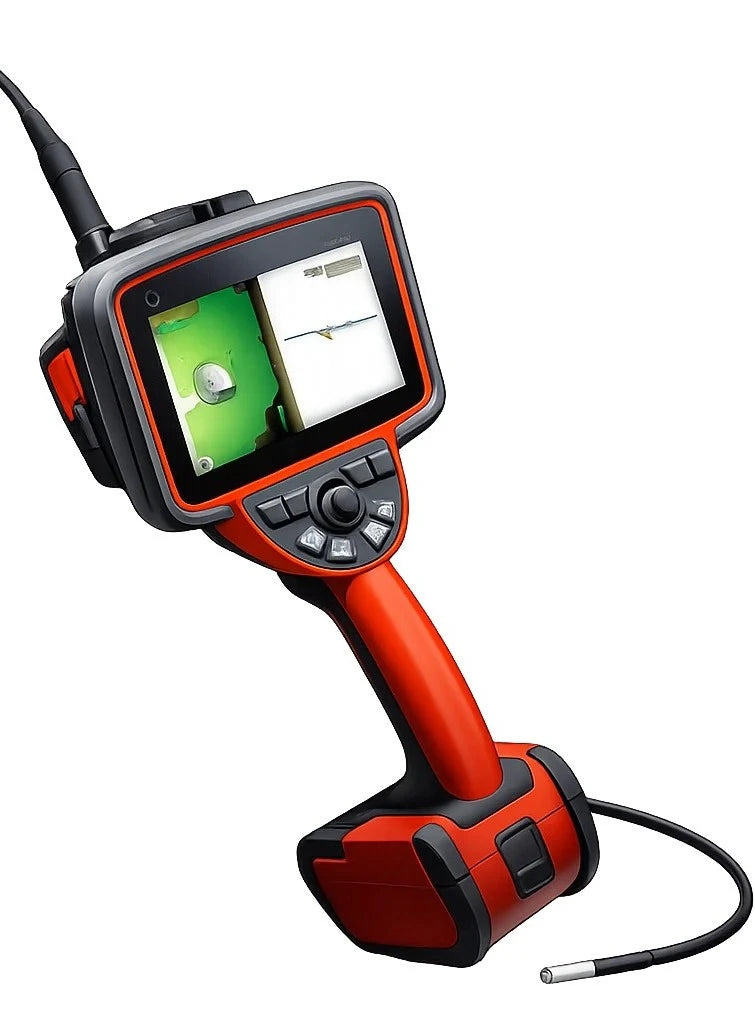

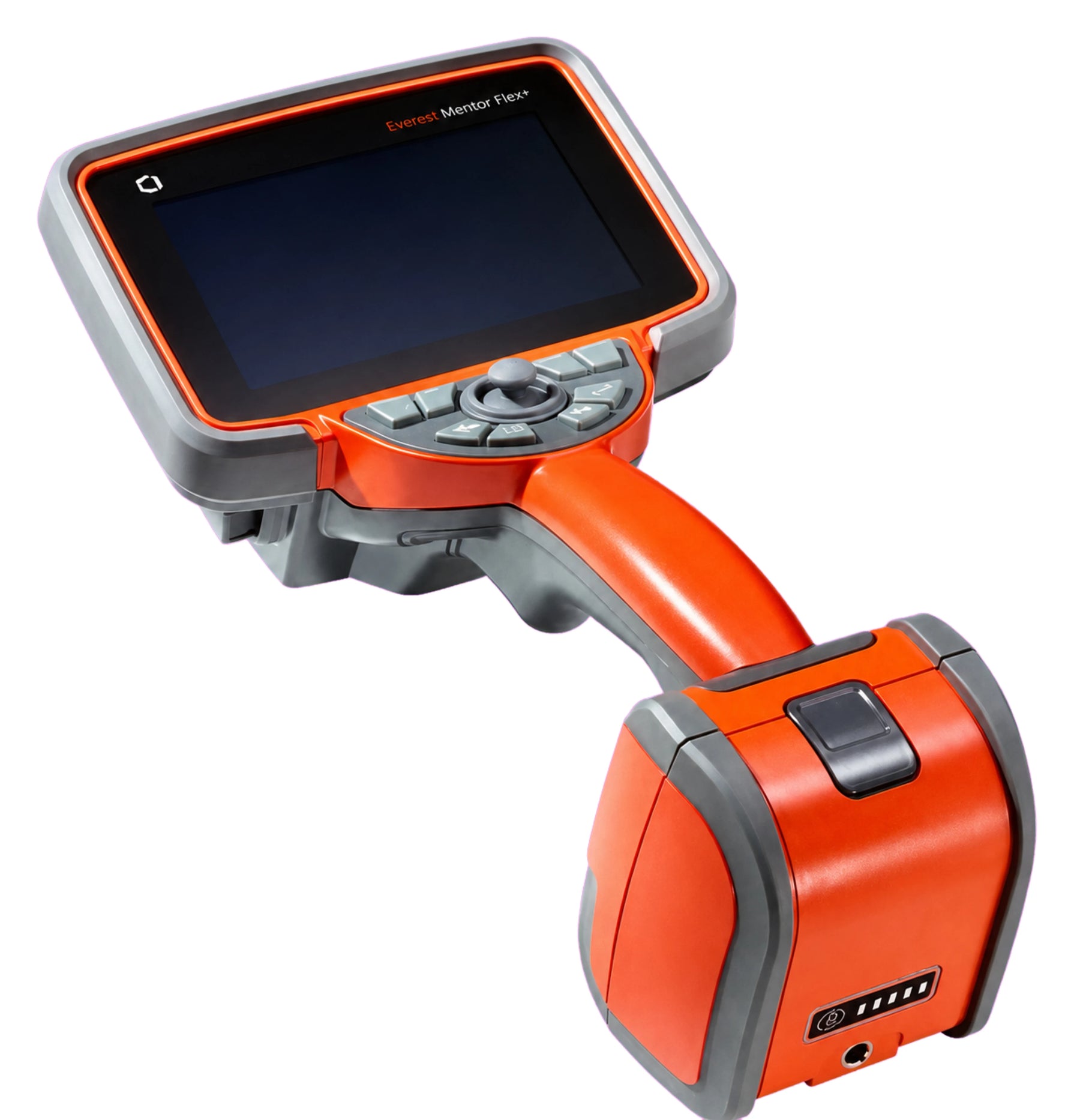

The Everest Mentor Flex+ is a configurable industrial video borescope for teams inspecting turbines, engines, machinery and other difficult internal areas. QuickChange probes let inspectors adapt one system to different access requirements, while TrueSight imaging provides the clarity needed to identify surface conditions. Real3D measurement supports dimensional defect evaluation directly from inspection data. With gravity-assisted navigation, guided workflows and InspectionWorks connectivity, Mentor Flex+ helps inspection teams capture, organize and report reliable findings without adding unnecessary equipment or steps.

One System, More Access Switch probes for each route.

Measure Defects Size flaws on surfaced 3D data.

Inspect At High Heat Clear images up to 100°C.

Keep Data Organized Guide capture and reports.

Configure your probe

Need help?

Diameter

Length

Camera View

Select available options to create a quote-ready configuration.

✓ Rental Available ✓ Demo Support ✓ Response under 1 business day

20+

Years in Business

Equipment Types

Industries Served

5/5

U.S. Military Branches

49%

90-Day Reorder Rate

Lifetime

Tech Support

WHY MENTOR FLEX+

Get More From Every Inspection System

Avoid Fixed-Probe Limitations

Quick change probes let one handset support multiple diameters and lengths without carrying separate inspection systems.

Measure Instead Of Estimate

Real3D turns visible indications into surfaced point-cloud data for more informed defect evaluation and disposition.

Inspect Before Equipment Fully Cools

Optimized imaging up to 100°C can reduce waiting time before inspecting recently operated engines and equipment.

Handle Difficult Imaging Conditions

HDR, Dark Boost and Adaptive Noise Reduction improve visibility across reflective, dark and noisy inspection scenes.

Keep Every Finding Connected

Guided capture, automatic tagging and Inspection Works integration prevent valuable inspection data from becoming scattered or incomplete.

Reach Tighter Inspection Paths

The shortened 6.1 mm camera head navigates tight bends where longer probe heads may restrict access.

Technical details

Built Around the Inspection, Not One Configuration

The Everest Mentor Flex+ is an industrial video borescope built around interchangeable QuickChange probes. Teams can use 4.0 mm, 6.1 mm, or 6.2 mm probe configurations with one handset, then select forward-view, side-view, or measurement tips based on the access path and inspection requirement.

TrueSight image processing supports inspection in reflective, dark, and difficult scenes. Available controls include High Dynamic Range, Dark Boost, Adaptive Noise Reduction, distortion correction, color saturation, and Auto-Rotate. Image quality remains optimized at temperatures up to 100°C.

Choose the Setup That Fits the Inspection

4.0 mm probes in 2.0 m and 3.0 m lengths
6.1 mm probes from 2.0 m to 8.0 m
6.2 mm working channel probe for compatible retrieval tools
Forward-view, side-view, and stereo measurement tips
Always-Up direction indicator and automatic image rotation
Guided inspection capture through Menu Directed Inspection

Defect Evaluation

Real3D Measurement

Creates a fully surfaced point cloud for sizing cracks, corrosion, wear, and other visible indications.

Inspection Records

InspectionWorks Ready

Push2IW transfers inspection files for centralized storage, collaboration, inspection history, and reporting.

The assembled system is rated IP65 and tested to MIL-STD-810H environmental requirements. Integrated Wi-Fi, HDMI, USB-C, and USB-A connections support file transfer, external displays, and connected inspection workflows.

60 fpsFrame rate

Up to 100°COptimized imaging

IP65Assembled rating

Approx. 3 hrsBattery runtime

One configurable platform can support varied access points, measurement needs, and inspection workflows without requiring a separate videoscope for every probe diameter or length.

Review the key specifications for configuring the Everest Mentor Flex+. Probe length, optical tip, field of view, depth of field, and measurement capability depend on the selected probe.

Probe and Inspection System

Probe Diameters

4.0, 6.1 and 6.2 mm

Available Lengths

2.0 to 8.0 m, configuration dependent

4.0 mm Lengths

2.0 and 3.0 m

6.1 mm Lengths

2.0, 3.0, 3.5, 4.5, 6.0 and 8.0 m

6.2 mm Length

3.5 m working channel probe

Optical Tip Options

Forward view, side view and stereo measurement

Camera Housing

Titanium

Gravity Detection

Tri-axial accelerometer

2.0 to 4.5 m Articulation

160° minimum up/down and left/right

6.0 to 8.0 m Articulation

140° minimum up/down and left/right

Imaging and Measurement

Frame Rate

60 fps

Digital Zoom

Up to 5×

High-Temperature Imaging

Optimized image quality up to 100°C

Measurement

Real3D and stereo measurement

Real3D Output

Fully surfaced point-cloud visualization

High Dynamic Range

Supported

Adaptive Noise Reduction

Available for freeze-frame images

Long Exposure

Automatic, up to 1.5 seconds

Orientation Tools

Always-Up indicator and Auto-Rotate

Image Controls

Dark Boost, distortion correction, color saturation, brightness and white balance

Documentation and Connectivity

File Manager

Create, copy and delete files and folders

Storage Support

Internal flash storage and USB storage

Menu Directed Inspection

Guided workflows and structured data tagging

Push2IW

Automatic transfer to InspectionWorks

InspectionWorks Connect Local

Wired or wireless streaming and file transfer

Wi-Fi

Integrated 2.4 GHz and 5 GHz support

Data Ports

Two USB 2.0 Type-A ports and one USB-C port

Video Output

HDMI and USB-C DisplayPort Alt Mode

External Video

1080p at 60 Hz

Software Updates

Wireless over the air or USB field update

Power and Field Performance

System Dimensions

31.75 × 18.29 × 9.91 cm

Handset Weight

1.63 kg (3.5 lb)

Configured System Weight

3.2 kg with 6.1 mm × 2.0 m probe and battery

Construction

Magnesium, aluminum and polycarbonate with elastomeric bumpers

Battery Runtime

Approximately 3 hours

Battery Rating

10.8 V nominal, 74.5 Wh, 6.9 Ah

Storage Temperature

-25°C to 63°C (-13°F to 145°F)

IP Rating

IP65 when assembled

Environmental Testing

MIL-STD-810H

EMI Testing

MIL-STD-461G RE102, Above Deck

QuickChange Probe System

Mentor Flex+ Probe Configurations

Select the probe diameter and insertion length around the access opening, inspection route and required working capability.

4.0 mm Probe2.0 and 3.0 m

6.1 mm Probe2.0 to 8.0 m

6.2 mm Probe3.5 m Working Channel

Available Insertion Lengths

2.0 m
3.0 m
3.5 m
4.5 m
6.0 m
8.0 m

Available insertion lengths, optical tips and measurement options vary by selected probe diameter.

Configuration note: The downloadable Mentor Flex+ brochure contains the complete optical-tip part numbers, field-of-view values and depth-of-field ranges for each probe diameter.

Aircraft Engine Inspection

Inspect compressors, combustion areas and turbine sections through existing engine access ports.

Power Generation Equipment

Examine turbines, generators and internal power plant components without full equipment disassembly.

Piping And Process Equipment

View internal conditions within pipes, vessels and heat exchangers where direct access is limited.

Industrial Machinery Inspection

Check gearboxes, rotating equipment and internal assemblies for visible wear, damage or debris.

Manufacturing Quality Control

Inspect castings, welds and complex parts during production, maintenance or final quality review.

Foreign Object Retrieval

Locate and retrieve accessible debris with the 6.2 mm working channel probe and compatible tools.

Got questions?

Frequently Asked Questions

Why was the Mentor Flex VideoProbe discontinued?

The Mentor Flex VideoProbe was discontinued for new sales after the updated Mentor Flex+ became available. Flex+ builds on the previous-generation system with QuickChange probes, Real3D measurement, a 6.2 mm working channel and improved orientation tools. Existing Mentor Flex units may still remain suitable for their current inspection tasks.

Will my Mentor Flex probes and optical tips work with Flex+?

Do not assume every probe, optical tip or accessory from the previous Mentor Flex is compatible with Flex+. Compatibility may vary by diameter, connection and component generation. Share your existing part numbers with AIT before ordering so the team can confirm what can be reused and what needs to be replaced.

My current Mentor Flex still works. Why should I upgrade?

An upgrade makes sense when the previous model limits probe choice, defect measurement or retrieval work. Mentor Flex+ accepts different QuickChange probes, adds surfaced Real3D measurement and supports a 6.2 mm working channel. If your current system still covers every application, AIT can help determine whether upgrading provides enough practical value.

Is Mentor Flex+ excessive for routine visual inspections?

Not necessarily. The benefit is that you can configure the system around current work without closing off future needs. A basic probe can handle routine viewing, while Real3D tips, alternate probe sizes or the working channel can be added when an inspection requires measurement, tighter access or retrieval.

What am I giving up with a fixed-probe videoscope?

A fixed-probe system ties the handset to one diameter and length. When access conditions change, you may need another system or must stop the inspection. QuickChange probes let Mentor Flex+ adapt to different routes while keeping the same handset, interface and data workflow.

Can Mentor Flex+ reduce downtime after equipment shutdown?

It can reduce one source of delay. The system maintains optimized imaging at temperatures up to 100°C, allowing some inspections to begin sooner than equipment with lower temperature limits. Cooling requirements still depend on the asset, inspection procedure, probe limits and site safety rules.

What happens if a probe is damaged during a critical inspection?

With a fixed-probe system, probe damage may remove the entire unit from service. Mentor Flex+ uses interchangeable QuickChange probes, so a compatible backup probe can be attached and the inspection can continue. Keeping a backup is an operational choice, but the modular design gives teams that option.
