When Visual Inspection Isn’t Enough: Using 3D Borescope Measurement

By Vivek Rohra 9 minute read

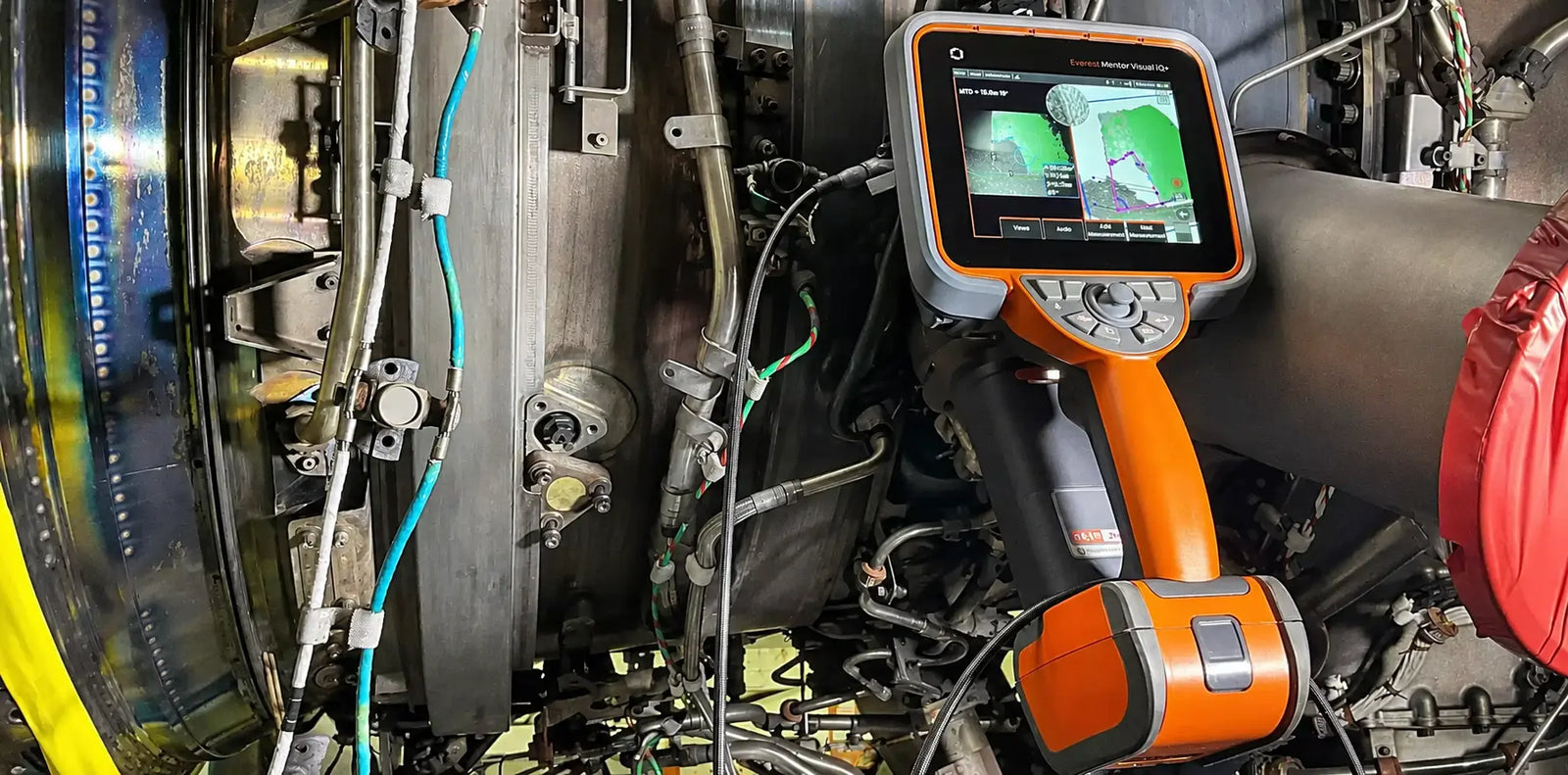

MViQ+ VideoProbe 3D Sterio Image

When Do You Need 3D Borescope Measurement?

When a videoscope image can show the indication but cannot size it. 3D borescope measurement uses a videoscope's measurement tip and on-board processing to calculate real dimensions from the inspected surface: length, depth, area, and profile, not just a picture of the indication. You need it when an indication cannot be accepted or rejected by appearance alone and its size must be compared to a limit before a maintenance decision.

Most inspectors do not need 3D measurement on every view. They need it when the consequence of guessing is too high, the feature must be compared against a limit, or the report needs defensible measurement evidence.

3D
Quick answer

Use 3D borescope measurement when the inspection question is "how large is it?" instead of only "what does it look like?" It is most useful for critical damage sizing, repeatable reporting, and maintenance decisions where a simple image, comparison estimate, or visual judgment is not enough.

3DPM Point-to-Line Measurement

Use 3D Measurement When the Defect Must Be Sized

A standard videoscope image can show a crack, pit, dent, or edge break. It may not tell the team whether the feature is within tolerance, close to a limit, or already a removal condition.

That is the gap 3D measurement closes. The operator sizes the indication on the instrument and saves the dimensions, cursor placement, and 3D surface data to the same image record.

Depth Pits, cracks, erosion, dents
Area Missing material and surface damage
Profile Contour, wear, and deformation
Gap Clearance and spacing checks

2D Viewing vs 3D Measurement: The Real Decision

The wrong question is whether 3D is "better" than regular borescope viewing. The better question is what the inspection record must prove.

Inspection situation
2D viewing may be enough
3D measurement is better when
General condition check
The goal is to confirm cleanliness, presence, alignment, or obvious damage.
The result must include exact size, depth, area, or clearance.
Damage assessment
The finding is obviously within limits or obviously a reject, so measuring it would not change the disposition.
The finding sits near a maintenance limit or requires engineering review.
Repeat inspection
The team only needs a current visual record.
The team needs to compare feature size across multiple inspections.
Customer or compliance record
A photograph and notes meet the reporting requirement.
The record must support a repair, continue-to-run, or removal decision.

When 3D Phase or Real3D Stereo Makes Sense

Waygate Technologies offers two 3D measurement methods on the Mentor Visual iQ+ VideoProbe, and the difference matters when you specify the system.

Real3D Phase Measurement (3DPM) uses a dedicated tip to project a structured-light pattern onto the target and build a full-screen 3D surface map. Choose it when you want measurement on demand without changing the inspection tip, when the feature is large or irregular, or when a wide field of view and longer measurement range are important.

Real3D Stereo Measurement (3DST) uses a calibrated two-lens stereo tip to capture two views and match surface points. Choose it when access requires a 4.0 mm, 6.2 mm, or 8.4 mm probe, when the target is a discrete feature such as a crack, edge, or gap, or when the surface is reflective but still has enough visual detail for matching.

Both methods create a point cloud that the inspector should review before accepting the result.

Practical conclusion: Do not select 3DPM or 3DST from a blanket accuracy claim. The handbook's controlled tests show that the lower-error method changes with feature type and measurement distance. Use 3DST as a strong first choice for discrete features at close-to-moderate distance; favor 3DPM for measurement on demand, wider scenes, larger irregular areas, and applications where 3DST error rises sharply at longer stand-off. In every case, get the tip as close as the application safely permits.
Decision factor
Favor 3D Phase (3DPM)
Favor Real3D Stereo (3DST)
Probe access
Use when the route accepts a compatible 6.1 mm 3DPM probe and tip.
Use when the route requires compatible 4.0, 6.1, 6.2, or 8.4 mm configurations.
Inspection workflow
Inspect, find, and measure with the same 3DPM tip; wide 105-degree field of view supports larger scenes.
Use the stereo tip for measurement and discrete-feature analysis with side-by-side optical views.
Surface and motion
Best on stable, matte surfaces; structured-light reflections and shadowing can create low-quality data.
Often the better option on detailed reflective, oily, or wet surfaces and where minor movement is present.
Accuracy data conclusion
More stable at longer tested distances in the tip-to-shroud and high-weld profile examples; competitive when the setup is close and controlled.
Lower average error across much of the tested range for length, edge point-to-line, missing-corner point-to-line, and close-range depth/profile examples.
Bottom line
Choose for on-demand measurement, wide coverage, irregular damage, and some longer-range applications.
Choose for tighter access, discrete targets, and strong close-to-moderate-distance performance.

Choose the Measurement Type Before You Choose the Tool

A crack, pit, missing corner, or clearance issue should each drive a different cursor strategy.

Choose the right measurement for the application. Click any method to watch it in an official Waygate Technologies video. Longer webinars open at the relevant demonstration.

Quick selection table

Measurement type
Best-fit inspection question
Typical use case
Length
How long is the indication or feature?
Crack length, feature size, wear indicator size, or location zone.
Point to Line
How far is a point from a reference edge?
Turbine blade edge damage, gap width, groove width, or weld width.
Depth
How deep or high is the feature?
Pits, dents, corrosion, erosion, FOD impact, weld height, or pipe inside diameter.
Area / Auto Area
How much surface is affected?
Coating loss, oxidation, surface area of pitting, or repetitive complex area measurements.
Area Depth Profile
Where is the maximum depth across a damaged area?
Corrosion fields, erosion, pitting, maximum weld height, or maximum wear groove depth.
Missing Corner
How much corner material is gone?
Missing blade corners and edge-loss assessments.
Measurement Plane
Do you need a cleaner reference surface?
Blade edge damage, blade tip to shroud gaps, small features, missing corners, or fields of pits.

Best-Fit Applications for 3D Borescope Measurement

1

Aircraft and turbine blades

Use 3D measurement when blade damage, impact marks, tip rubs, or edge indications must be sized against a defined maintenance criterion.

2

Corrosion and erosion

Depth and area measurements help separate cosmetic surface change from material loss that may affect service decisions.

3

Welds and fabricated parts

Internal weld features, undercut, lack of material, or profile concerns may need dimensional evidence when direct access is not practical.

A Practical Selection Framework

Many teams overbuy or underbuy because they start with the instrument instead of the decision. Start with the inspection consequence, then match the borescope capability.

1

Define the decision

Identify whether the result will support acceptance, repair planning, continued operation, teardown, or repeat monitoring.

2

Match the measurement type

Choose length, depth, area, profile, angle, point-to-line, or clearance based on what must be proven.

3

Confirm access and optics

Check probe diameter, length, articulation, view direction, tip compatibility, surface condition, and target distance.

The Setup Details That Change Measurement Confidence

The measurement result is not only about the borescope model. It is also affected by the operator, optics, target distance, surface finish, focus, glare, cursor placement, and point-cloud review.

From visual finding to measurement-backed decision

01 Find indication
02 Choose method
03 Capture data
04 Review surface
05 Document result
01 Visual finding appears The team sees a crack, pit, missing material, rub, dent, gap, or profile concern that cannot be judged by image alone.
02 Measurement type is selected Length, depth, area, area depth profile, missing corner, or measurement plane is chosen based on the inspection question.
03 Tip, focus, and angle are controlled The operator verifies access, optics, target distance, lighting, focus, and image quality before sizing the feature.
04 Surface data is checked The 3D view or point cloud is reviewed so the cursor placement is based on usable surface information.
05 Decision evidence is saved The final record includes image context, measurement type, cursor logic, location, notes, and next-step decision support.

Tip optics are part of the measurement decision

Forward-view and side-view tips change how the feature is seen, how close the probe can work, and what measurement depth of field applies. For measurement-heavy inspections, the accessory decision is not secondary. It can determine whether the operator can reach the right angle, maintain focus, and place measurement cursors with confidence. Review VideoProbe accessories and measurement tips before finalizing the inspection setup.

Common Mistakes That Make Measurements Less Defensible

Measuring a weak image

Blur, glare, poor angle, or weak lighting can reduce confidence before the measurement process even begins.

Using the wrong cursor logic

Depth, area, profile, and length measurements answer different questions. The cursor method must match the inspection question.

Skipping point-cloud review

Operators should verify surface data, masks, cursor placement, planes, and geometry before accepting a measurement result.

!
Expert tip

Do not treat 3D measurement as a button press. Treat it as a measurement workflow: capture a usable image, select the correct measurement type, validate the surface data, and document why the result supports the decision.

When Rental or Consultation Is the Smarter Next Step

Some teams only need 3D measurement during outages, failure investigations, acceptance checks, or a short-term inspection campaign. In those cases, borescope rental options can make more sense than purchasing immediately.

AIT rents the Mentor Visual iQ with compatible 3D measurement tips by the week or the month, giving teams access to one of the world's leading 3D measurement video borescopes for an outage or project without buying a system they may use only a few times a year. The same rental option can cover the gap while a purchased unit is out for repair.

Consultation is also useful when the inspection route is difficult. Probe diameter, working length, articulation, optical tip, measurement type, rental duration, and reporting needs can change the best recommendation.

Feature size

Estimate whether the indication is large enough and visible enough for the selected measurement method.

Access path

Confirm diameter, length, bends, articulation needs, view direction, and whether VideoProbe accessories are needed before choosing the system.

Decision threshold

Know whether the measurement will compare to a repair limit, clearance requirement, or trend record.

Documentation level

Decide whether the final report needs images, annotations, measurement files, notes, and reviewer context.

Key Takeaways

  • Use 3D borescope measurement when visual appearance alone cannot support the inspection decision.
  • It is strongest for sizing cracks, corrosion, erosion, missing material, clearances, gaps, areas, and profiles.
  • Real3D Stereo is a strong first choice for discrete features at close-to-moderate distance; 3D Phase is often the better workflow for on-demand measurement, wider scenes, irregular damage, and some longer-range setups.
  • Good measurement depends on capture quality, correct method selection, and point-cloud review.
  • AIT can help compare purchase, rental, and configuration options for measurement-focused RVI work.

Not sure whether your inspection needs 3D measurement, or which tip and probe diameter will reach the feature? Tell us the access path and the limit you're measuring against.



Frequently Asked Questions

When do you need 3D borescope measurement?

You need 3D borescope measurement when the inspection result depends on the size, depth, area, profile, or clearance of an internal feature. It is most useful when the finding must support a maintenance, repair, or continue-to-run decision.

Is 3D measurement needed for every borescope inspection?

No. Many inspections only need visual confirmation, image capture, or video documentation. 3D measurement becomes valuable when an indication must be sized and compared to a defined limit or trend.

What defects are commonly measured with a 3D borescope?

Common examples include cracks, pits, dents, erosion, corrosion, missing material, blade damage, edge wear, gaps, clearances, and profile changes. The correct measurement type depends on the shape of the feature and the inspection question.

What is the difference between 3D Phase and Real3D Stereo?

3D Phase uses structured light to generate surface data from the inspected target. Real3D Stereo uses calibrated dual-view optics and processing to calculate three-dimensional geometry. The best method depends on the application, tip, surface, and required measurement.

Should I rent or buy a 3D measurement borescope?

Rental can make sense for outages, one-time investigations, or short-term inspection programs. Purchase is usually better when the team performs frequent measurement inspections and needs repeatable internal capability.

What should I confirm before choosing a 3D measurement videoscope?

Confirm the measurement type, required accuracy confidence, probe diameter, working length, articulation, optical tip, target distance, surface condition, documentation requirements, and operator training needs before selecting a system.

Recommended Products

Mentor Visual iQ+ Borescope

Mentor Visual iQ+ HD VideoProbe

View Product

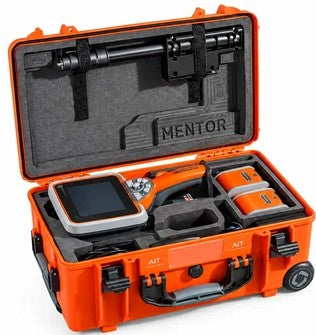

VideoProbe Accessories & Replacement Parts
