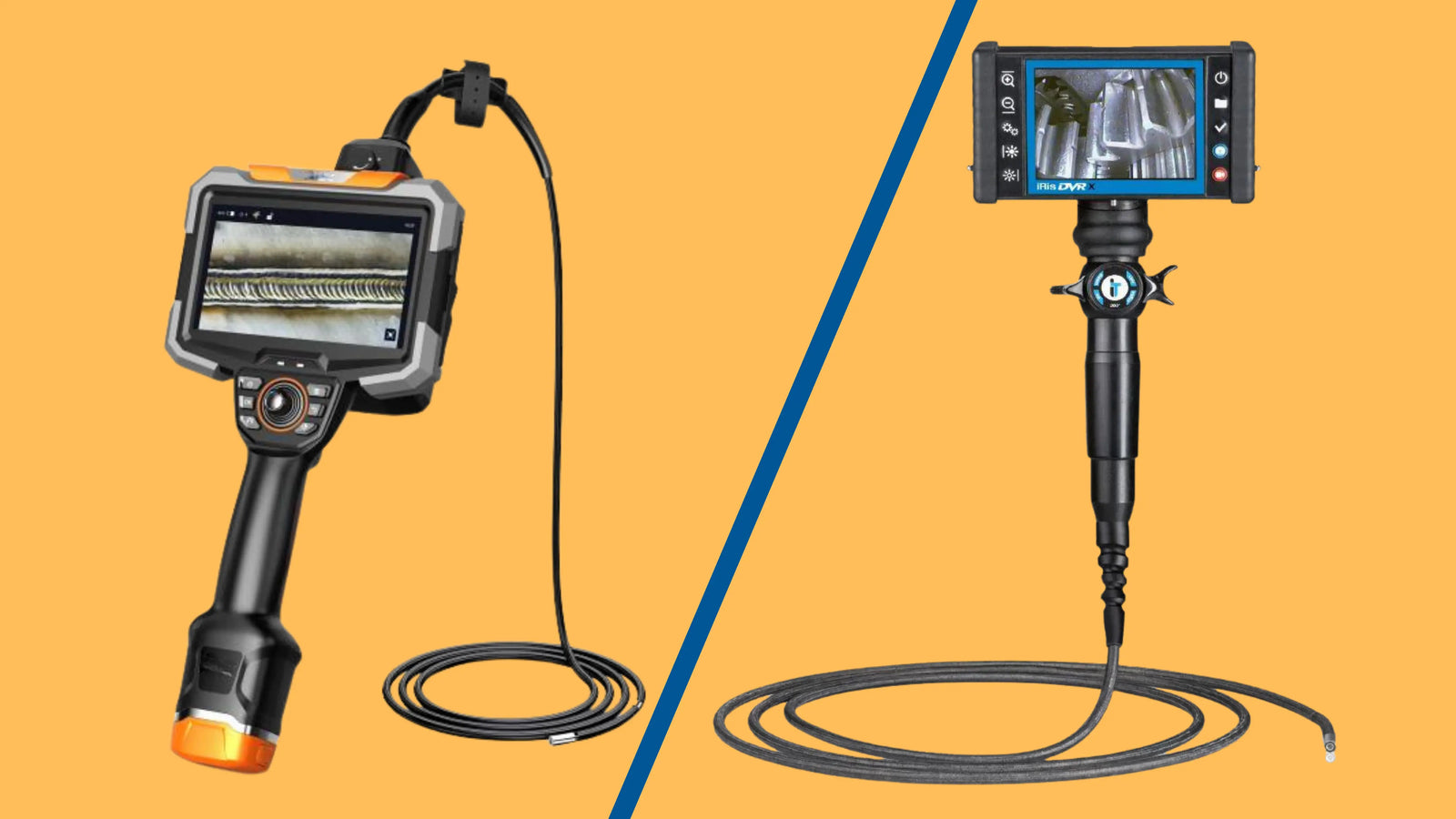

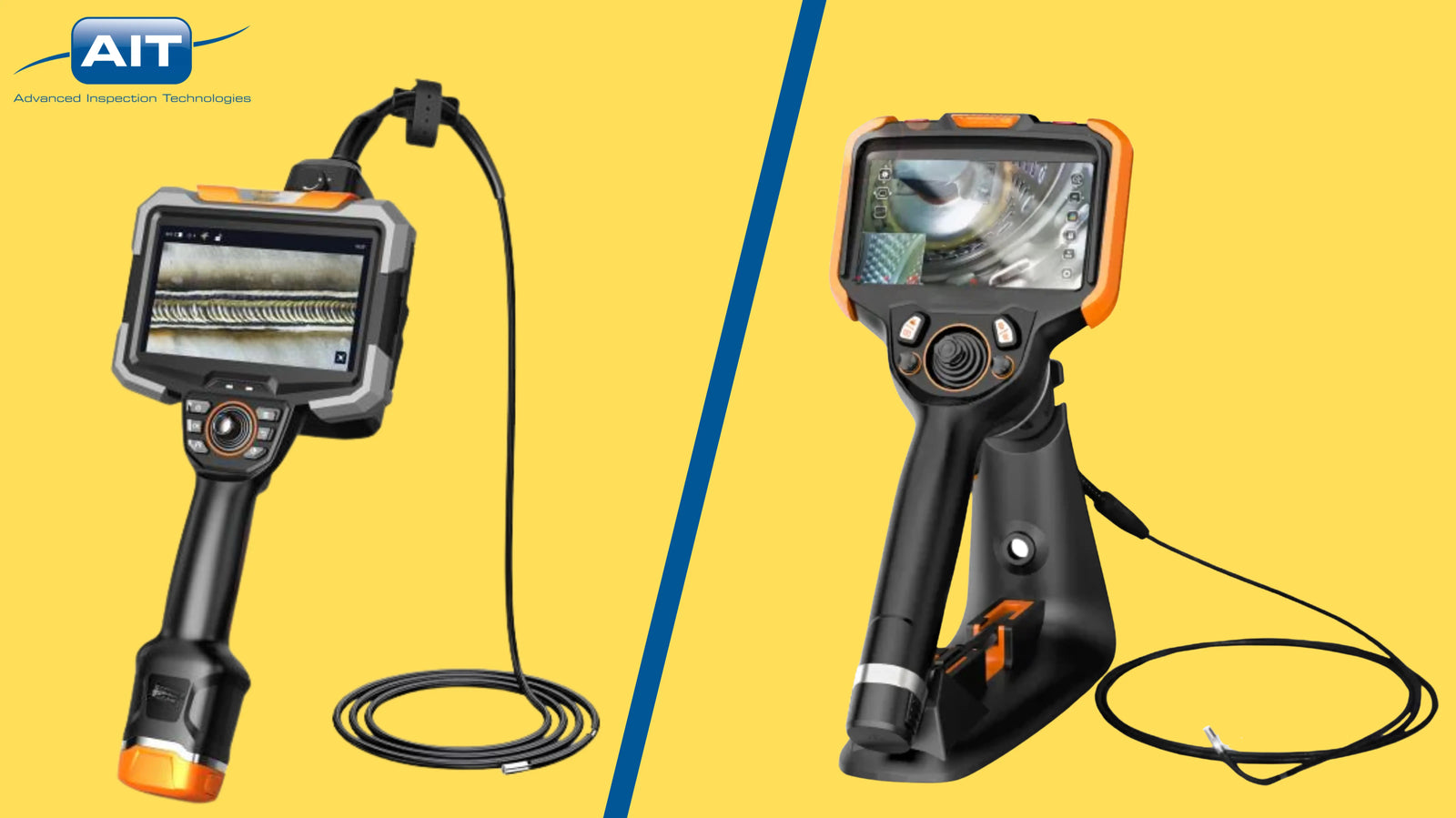

When choosing a video borescope or videoscope for critical NDT and MRO inspections, the articulation system is one of the most important specification decisions. Motorized articulation and mechanical articulation both steer the probe tip, but they behave very differently in precision inspection work, 3D measurement, automated workflows, and long inspection sessions.
Motorized articulation, also called servo articulation, uses electric motors and electronic control to steer and hold the probe tip. Mechanical articulation uses direct cable tension controlled by a joystick or knob. Both can be useful, but they are not equal for every inspection environment.
Motorized articulation is usually the stronger choice for critical inspections that require stable tip positioning, 3D measurement, inspection repeatability, AI-assisted workflows, or long inspection sessions. Mechanical articulation can still be the right choice for simple visual checks, budget-limited work, or operators who prefer direct tactile feedback.
Motorized vs. Mechanical Articulation: Quick Comparison
5 Reasons Motorized Articulation Wins for Critical Inspection
Software-controlled precision helps hold exact tip positions
Mechanical articulation moves the probe tip by physically tensioning cables. The tip moves where the cable tension takes it and holds only as long as pressure is maintained. Motorized articulation uses steering motors and electronic position feedback to drive the tip to a commanded angle and hold it there more consistently.

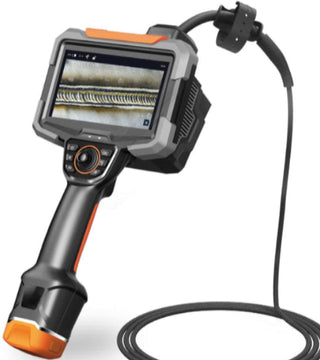

Motorized articulation
Motorized control helps the probe tip stay stable during image capture, measurement, and documentation.
Mechanical articulation
Tip position depends on sustained cable tension and may drift when pressure changes.
Motorized systems are better suited for AI and automation workflows
Motorized articulation can be programmed, controlled by software, and integrated into more advanced inspection workflows. This matters when inspection teams want assisted defect recognition, automated blade counting, turning tool integration, or repeatable image capture steps.
Motorized articulation
Supports software-connected workflows, guided inspections, automated positioning, and AI-assisted inspection processes.
Mechanical articulation
Requires manual inspector input for each tip movement and does not provide the same automation path.
3D measurement depends on stable probe-tip positioning
Stereo and phased 3D measurement workflows rely on a stable camera position during image capture. If the tip moves while the inspector is trying to size a crack, erosion area, or surface indication, measurement confidence can suffer. Motorized articulation gives the inspector a stronger foundation for these measurement-focused inspections.
Motorized articulation
Electronic control supports stable positioning during measurement capture.
Mechanical articulation
Cable tension variation can introduce additional movement that the inspector must compensate for.
Reduced hand fatigue improves long inspection sessions
Mechanical articulation often requires the inspector to maintain physical thumb pressure to hold the tip at an off-center angle. Over a long turbine, engine, or industrial inspection, that can create hand fatigue and reduce focus. Motorized articulation helps the tip hold position electronically, allowing the inspector to focus more on image interpretation.
Motorized articulation
Tip holds position with less continuous hand pressure, which can reduce fatigue during long inspections.
Mechanical articulation
Inspector may need to maintain pressure for extended periods to hold a viewing angle.
Repeatable inspections are easier to standardize with motorized control
Regulated or high-consequence inspection programs often need consistent image sets, inspection steps, and documentation. Motorized articulation can support guided workflows where inspectors capture required views more consistently. Mechanical articulation is more dependent on each inspector's hand control and technique.
Motorized articulation
Better suited for standardized inspection protocols, auditable data capture, and repeatable image positioning.
Mechanical articulation
More operator-dependent, with greater variation between inspectors and inspection sessions.
Choose articulation based on the inspection decision, not just the probe price. If the job involves measurement, repeatability, long inspection time, or traceable documentation, motorized articulation usually deserves stronger consideration. If the job is a simple visual check with a tight budget, mechanical articulation may be enough.
Top Industries Where Video Borescope Articulation Matters
Ranked by inspection intensity, including regulatory requirements, inspection frequency, and consequence of missed defects.
| S.No | Industry | Components inspected with video borescopes | Usage intensity |
|---|---|---|---|
| 1 | Aerospace & Defense MRO & manufacturing |
Turbine blades, compressor vanes, combustion chambers, fuel nozzles, exhaust ducts, gearboxes, hydraulic lines, airframe welds |
Intensity Critical
98%
|
| 2 | Power Generation Gas & steam turbines |
Turbine blades, combustion liners, heat exchanger tubes, boiler tubes, condenser tubes, steam generator internals |
Intensity Critical
91%
|
| 3 | Oil & Gas Upstream & midstream |
Pipeline interiors, pressure vessels, storage tanks, wellhead components, compressor cylinders, heat exchangers, reactor vessels |
Intensity Critical
88%
|
| 4 | Nuclear Power PWR & BWR plants |
Reactor pressure vessels, steam generators, fuel assemblies, control rod drives, core shrouds, containment piping, heat exchangers |
Intensity Critical
85%
|
| 5 | Automotive OEM & aftermarket |
Engine cylinders, pistons, valves, turbocharger wheels, transmission housings, fuel injection ports, casting bores |
Intensity High
74%
|
| 6 | Marine & Shipbuilding Vessels & offshore |
Ship engine cylinders, ballast tanks, hull welds, propeller shafts, fuel tanks, sea valves, hydraulic lines, pipe systems |
Intensity High
67%
|
| 7 | General Manufacturing Industrial machinery |
Pump housings, castings & forgings, gearboxes, hydraulic cylinders, pressure vessels, weld seams, bore holes |
Intensity High
62%
|
| 8 | Pharmaceutical Process & compliance |
Stainless process pipes, orbital welds, reactor vessels, mixing tanks, filler nozzles, hygienic fittings |
Intensity Medium
52%
|
| 9 | Food & Beverage Processing & hygiene |
Process pipes, filler heads, tank interiors, heat exchanger tubes, sanitary valves, CIP systems |
Intensity Medium
44%
|
| 10 | Infrastructure & Construction Civil & utilities |
Concrete structures, HVAC ducting, plumbing pipes, electrical conduit, bridge welds, sewer or drain lines, fire suppression systems |
Intensity Moderate
34%
|
Source: AIT content reference material. Intensity rating reflects a qualitative composite of inspection frequency, regulatory pressure, and consequence severity of missed defects.
Where Motorized Articulation Delivers the Most Value
The industry table shows why articulation choice matters most in environments where inspection quality affects safety, uptime, compliance, or expensive maintenance decisions. These are the applications where stable positioning, measurement confidence, documentation, and repeatability have the highest practical value.
When Mechanical Articulation Is the Right Choice
Motorized articulation wins for critical inspection, but mechanical articulation is not obsolete. A well-built mechanical videoscope can be the smarter choice when the inspection is simple, the budget is limited, or measurement is not required.
3 Common Myths About Motorized Articulation
Some concerns about motorized articulation come from early servo systems or from comparing enterprise borescopes with low-cost units. The practical reality depends on the platform, the inspection environment, and how the tool is maintained.
How to Choose the Right Articulation Type
Confirm whether the job requires visual confirmation, measurement, defect sizing, documentation, or repeatable inspection paths.
Use motorized articulation when the workflow requires stable tip position, guided inspection, AI readiness, or repeated image capture.
Test video borescope diameter, length, articulation range, lighting, and operator control before making a final purchase or rental decision.
Key Takeaways
- Motorized articulation is strongest for critical inspections that require stable tip control, 3D measurement, automation readiness, and documentation.
- Mechanical articulation still has value for routine visual checks, budget-limited teams, and inspectors who prefer direct tactile feedback.
- The most demanding use cases include aerospace, power generation, oil and gas, and nuclear inspection environments.
- The right choice depends on inspection risk, access path, measurement needs, fatigue, traceability, and total cost of ownership.
The wrong articulation system can slow down inspection, reduce measurement confidence, or make documentation harder than it needs to be.
AIT can help your team compare motorized and mechanical video borescope options based on access path, inspection target, measurement needs, and budget. Contact AIT to discuss your inspection requirements.
