minCam MC50 / MC50Duo Pipe Inspection Camera

SKU: MC50 / MC50Duo Push Camera

60 meters of push rod with 55mm (2.0") camera head. High resolution 8" TFT display with distance counter, Video and still image recording to removable SD card. Add 20m (60') inner push rod with 29mm (1.1") camera head for maximum versatility. Perfect for inspection of pipes 50mm (2.0") to 400mm (16") diameter.

Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

MC50 / MC50 Duo Pipe Inspection Camera Overview:

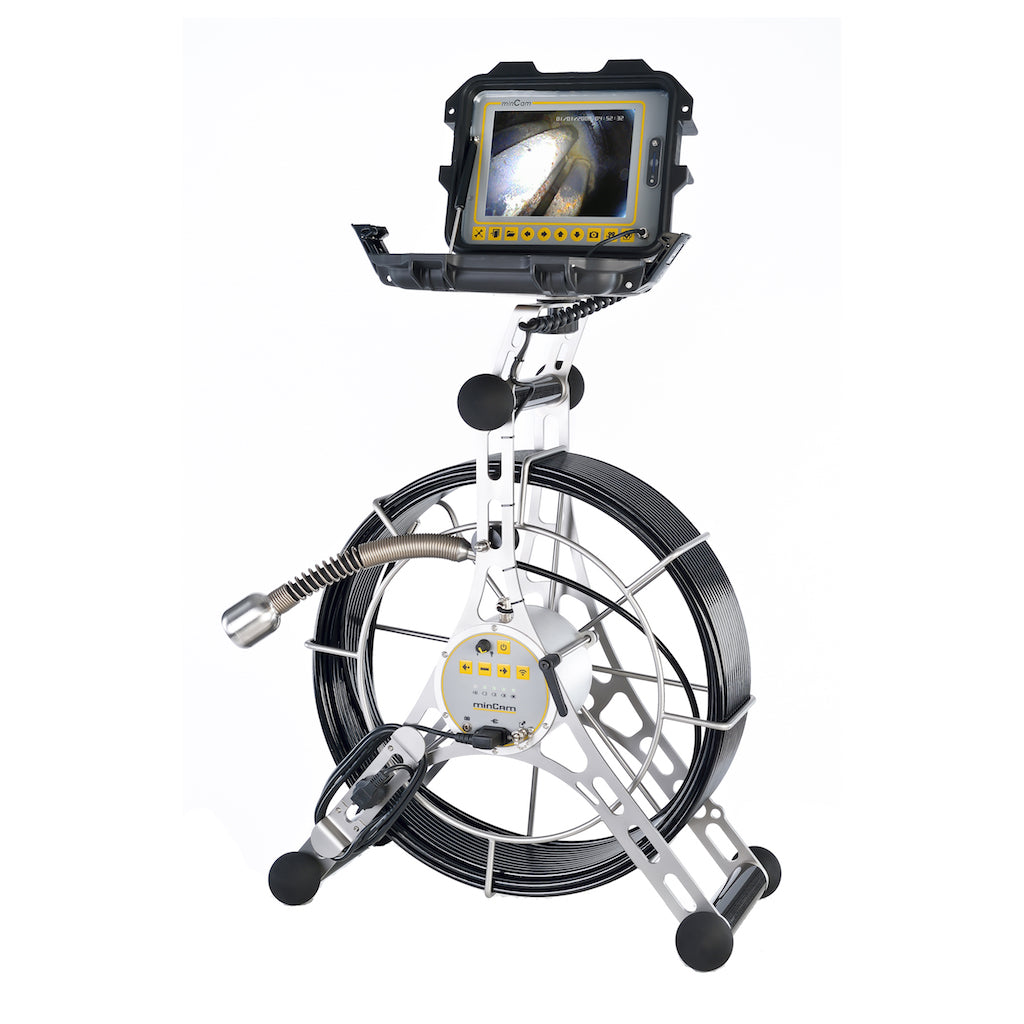

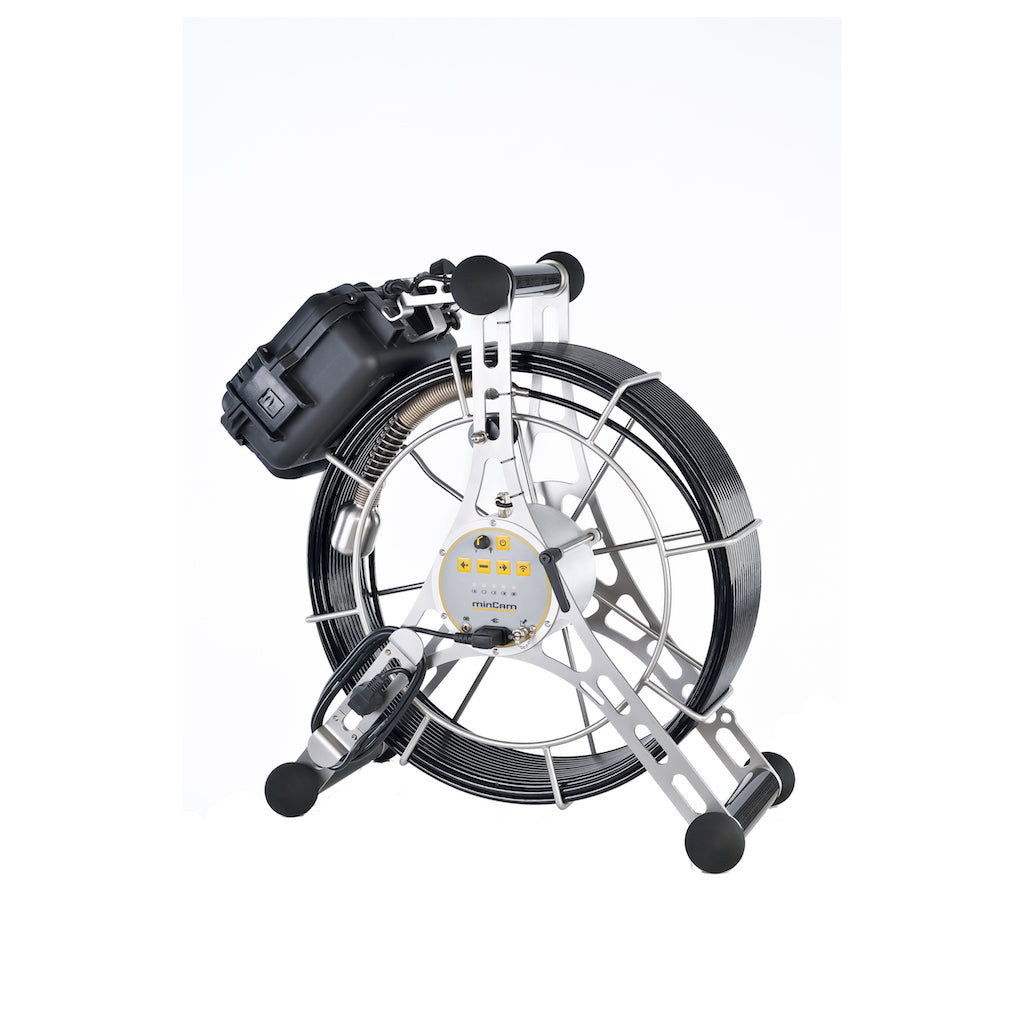

MC50 Set

  • 60m (200') Push Rod
  • KK55SL Self-Leveling Camera Head
    • Diameter: 55mm
    • Cylinder Length: 36mm
    • Pressure Rating: 10bar
    • Resolution: 740 TV-lines
    • Sentisitivity: 0.025Lux@F1.2
    • Field of View: 103°
    • Illumination: 16 LEDs
    • Protection: 4mm Sapphire Lens
  • Construction: Stainless Steel And Carbon Fiber Frame
  • Power: AC And 3 Hour Internal Lithium Ion Battery
  • 8.4” sunlight readable TFT-LCD monitor in a robust Peli Stormcase
  • Recording: Digital Storage Of Video and Still Images
  • Memory: Removable SD Card (32 GB Max.)
  • Counter: Integrated Distance Counter, BNC Video Out (PAL)
  • Weight: (MC30: 17Kg (37 Lbs.)
  • Dimensions: MC30: 645 x 300 x 665mm (25 in. L x 12 in. W x 26 in. H)
  • Incluxes: Spacer KK55SL; D=75mm; Roller Skid (D>130mm), Large wheels (D>200mm)
  • Options: Text Generation, Location Transmitter, Roller Skids, 4 Different Diameter Camera Heads

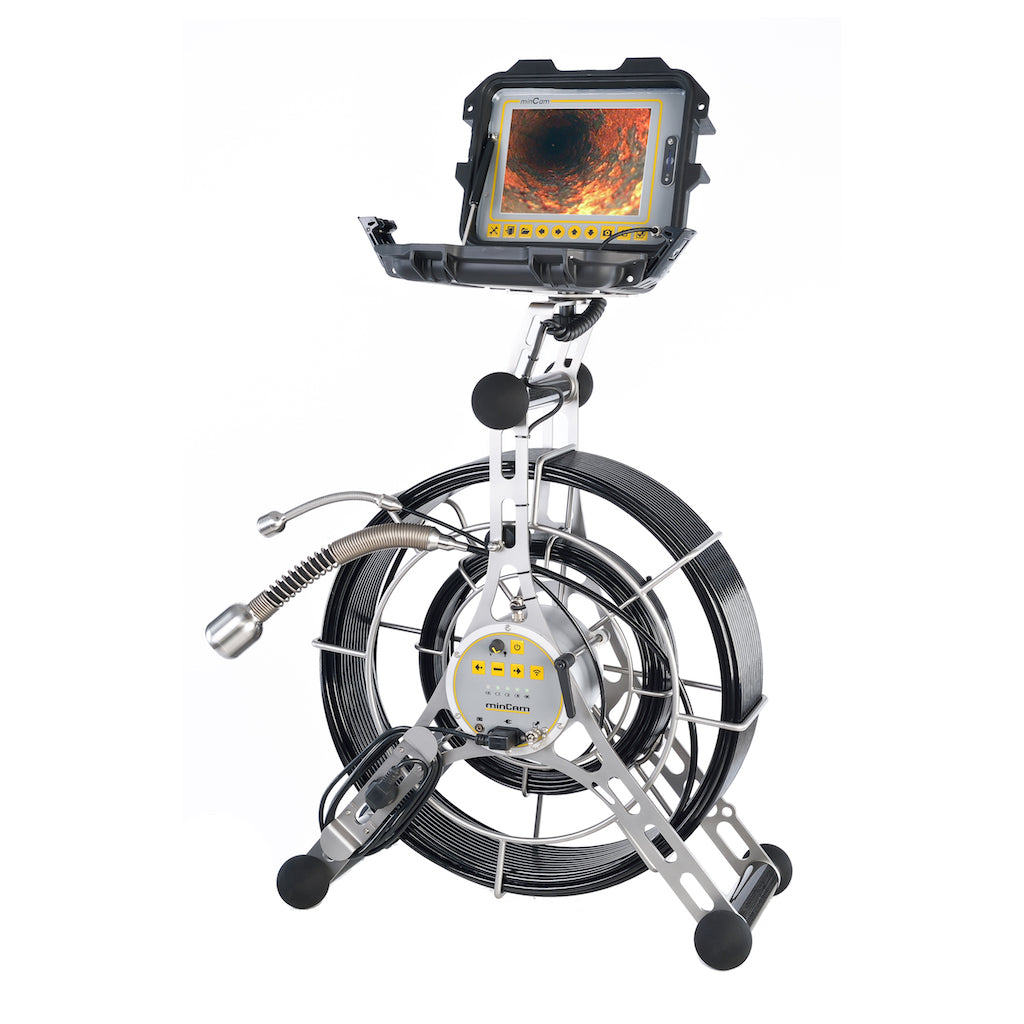

MC50Duo Set

Includes everything in the MC30 Set and a second independent 20m (60') push-pull cable with a 29mm (1.1") camera head

  • KK29SL Self-Leveling Camera Head (Included w/ MC50Duo)
    • Diameter: 29mm
    • Cylinder Length: 16mm
    • Pressure Rating: 10bar
    • Resolution: 560 TV-lines
    • Sentisitivity: 0.02Lux@F1.2
    • Field of View: 121°
    • Illumination: 9 LEDs
    • Protection: 3mm Sapphire Lens
    • Spacers KK29SL; D=45mm; brush D=75, 105, 145mm


minCam MC50 & MC50Duo Pipe Inspection Camera Features and Benefits

  • The MC50 and MC50Duo can utilize the entire range of camera heads to inspect pipe lines from 15mm to 400mm (1/2" to 16")
  • Larger 8" day light readable LCD makes viewing inspections easier
  • Minature keyboard is included in LCD lid for easy annotation when the text option is added
  • 60m (200') of push rod allow inspection of longer pipes

The MC15 is the best push camera for inspection of smaller diameter pipes and tubes from 50mm to 80mm (1/2" to 3")

  • process lines
  • Purity piping
  • Steam lines

The MC15 is the best push camera for inspection of smaller diameter pipes and tubes from 50mm to 80mm (1/2" to 3")

  • process lines
  • Purity piping
  • Steam lines
