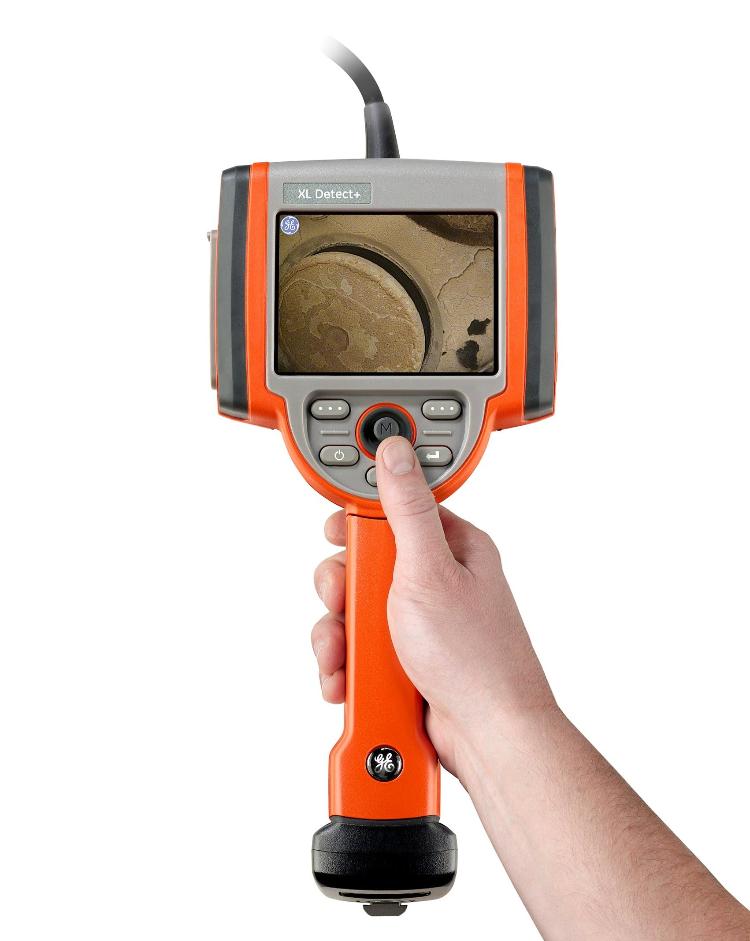

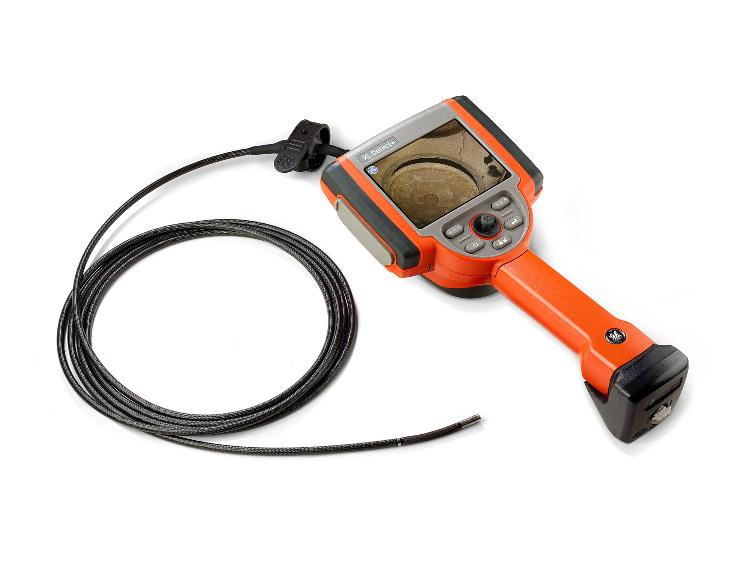

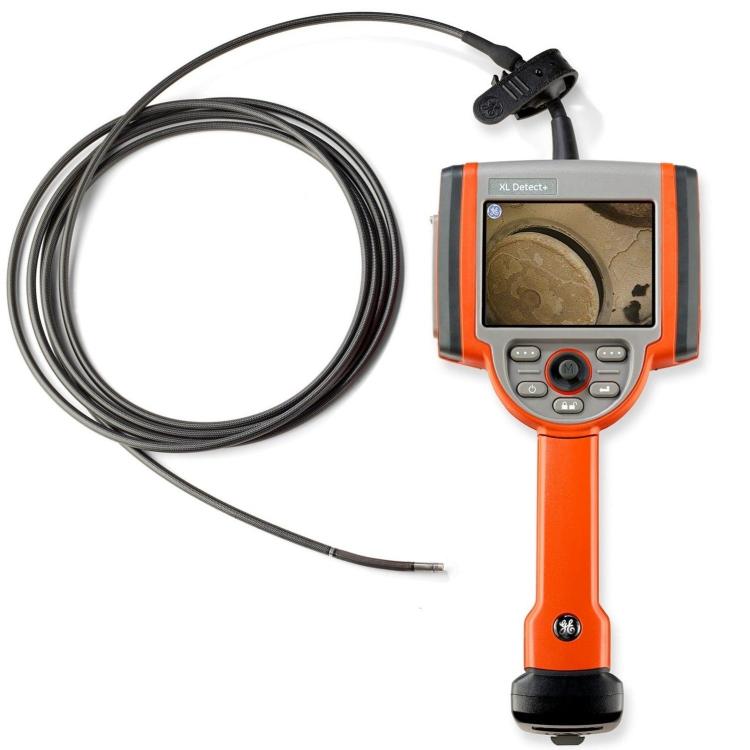

XL Detect / Detect+ VideoProbe

SKU: XL Detect Plus
XL Detect and XL Detect+ offers fantastic remote visual inspection results at a reasonable price. A rugged, lightweight hand-held video borescope with all the features you need including video and still images that can be stored internally or on a removeable USB drive.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Be confident in your results.
Complete fast, precise inspections with superior image quality, plus a 5” LCD screen and 3X brighter display on the XL Detect+.

Cut down on costs.
Lower your maintenance spending with durability you can trust, even in the harshest inspection environments.

 Stay flexible.

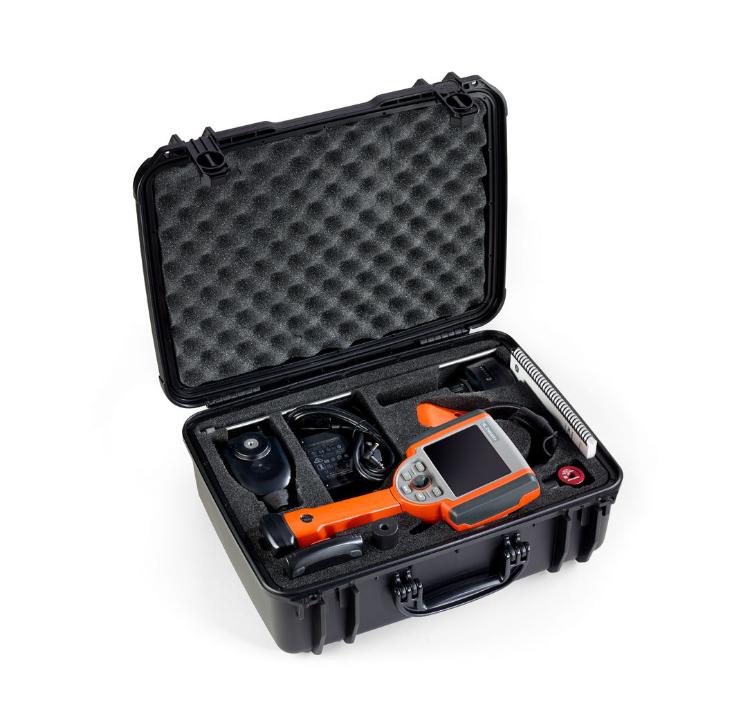

At just 4.3 lbs., the device is lightweight and portable, featuring a rugged carrying case with integrated insertion tube storage reel.

 Learn quickly.
The intuitive interface includes Menu Directed Inspection (MDI) 1.1, an application to guide users through inspections and organize results for simpler reporting

Experience true peace of mind.
Get readily available assistance from Baker Hughes experts, wherever you are.

Now with a 5” LCD screen for clear-cut inspections.
The new XL Detect+ display is 85% larger, with crystal clear image quality unmatched in the industry. That means a simpler interface, less eyestrain on long inspections, and more accurate images right on your device. Because when you can see clearly, you improve POD, speed up your workflow, and deliver results with confidence.

OPERATING ENVIRONMENT

Tip Operating Temp:-25°C to 100°C (-13°F to 212°F) Reduced articulation below 0°C (32°F)

System Operating Temp:-20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F)

Storage Temperature:-25°C to 60°C (-13°F to 140°F)

Relative Humidity:95% max, non-condensing

Waterproof:Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O)

Environmental:XL Detect: Tested to IP55XL Detect+: Tested to IP65

 SYSTEM

Case Dimensions:

48.8 x 38.6 x 18.5 cm (19.2 x 15.2 x 17.3 in)

System Weight:In Case:XL Detect: 6.50 kg (14.30 lb)XL Detect+: 6.74 kg (14.87 lb)

Without Case:XL Detect: 1.77 kg (3.80 lb)XL Detect+: 1.98 kg (4.37 lb)

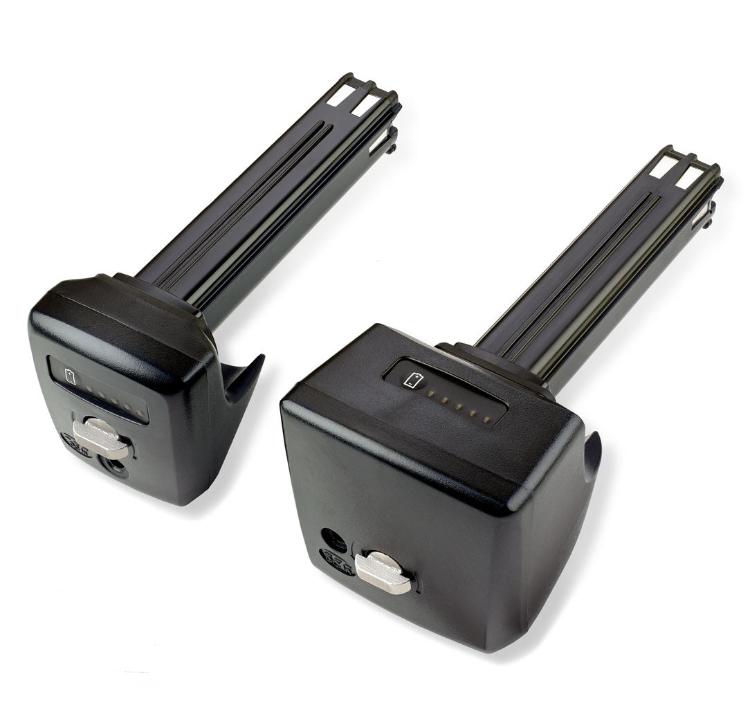

Power (Lithium Ion Battery)8.4 V, 38 Wh (2 hour) 8.4 V, 75 Wh (4 hour)

Power Supply:AC Input: 100-240 VAC, 50-60 Hz, 1.5 A Max DCOutput: 9.5 V, 6.0 A

Construction:Polycarbonate housings with integratedVersalon™(JP) bumpers

Dimensions:9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in)

LCD Monitor:

XL Detect: Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD with XpertBright, 640 x 480 resolution

XL Detect+: Integrated 12.7 cm (5.0) active matrix VGA color LCD, Transmissive display.

Joystick Control:360° All-Way Tip articulation, menu access and navigation

Button Set:Access user functions, measurement and digital functions

Audio:Integrated 2.5 mm headset/microphone jack

Internal Memory:XL Detect: 1 GB Flash memory

XL Detect+: 4 GB Flash memory

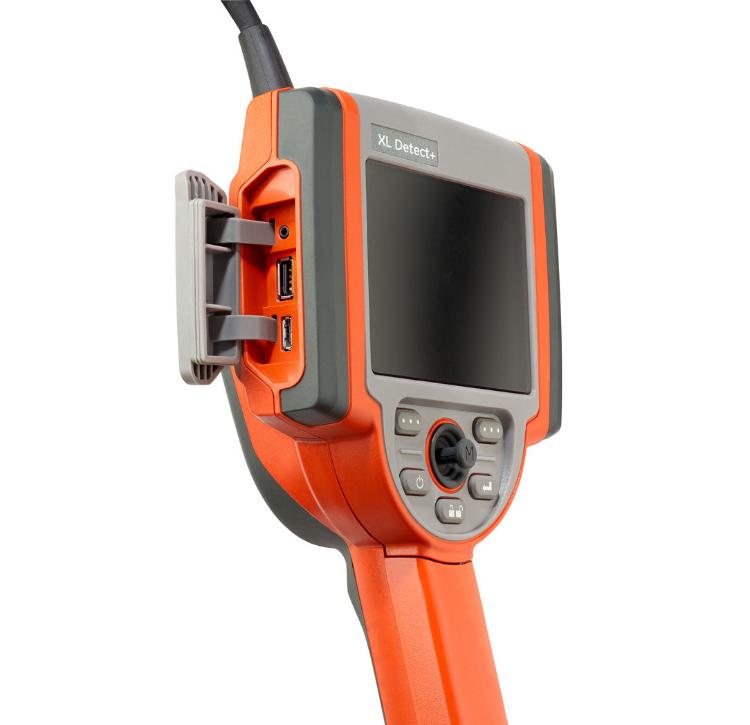

Data I/O Ports:One USB® 2.0 port

Video Port:VGA Video Out

Brightness Control:Auto and Variable

Illumination Type:White LED

Long Exposure:Via auto and manual mode

White Balance:Factory default or user defined



STANDARDS AND COMPLIANCE CLASSIFICATIONS

MIL-STD-810G

Tested to United States Department of Defense Environment Tests Sections 506.5, 507.5, 509.5, 510.5, 511.5, 514.6, 516.6, 521.3

MIL-STD-461FXL Detect: Tested to United States Department of DefenseElectromagnetic Interference RS103 - ABOVE DECK

XL Detect+: Available upon request

Standards ComplianceGroup 1, Class A: EN61326-1 UL, IEC, EN CSA-C22.2:61010-1 UN/DOT T1-T8

IP RatingXL Detect: Tested to IP55

XL Detect+: Tested to IP65



CAMERA

4.0 mm (0.157 in) Diameter Probes

Image Sensor:

1/10 inch Color SUPER HAD CCD camera

Pixel Count:290,000 pixels

Housing:Titanium



6.1 mm (0.242 in) and 8.4 mm (0.331 in) Diameter Probes

Image Sensor:

1/6 inch Color SUPER HAD™ CCD camera

Pixel Count:440,000 pixels

Housing:Titanium



SOFTWARE

Operating System:

Real-time multi-tasking operating system

User Interface:Simple drop-down menu-driven operation. Menu navigation using articulation joystick

File Manager:Embedded file manager software supporting:File & Folder creation, naming, deleting Store to internalFlash (C:\) or USB ThumbDrive Copy between USB and C:\

MDI Software (optional):Provides user defined guided inspection Creates DICONDE compatible inspection files Creates MS Word® compatible inspection reports

Audio Data:PC compatible (.AAC) file format

Image Control:

Invert, Zoom (5X digital) Image Capture and Recall

Digital Zoom:Continuous (5.0X)

Image Formats:Bitmap (.BMP), JPEG (.JPG)

Video Format:MPEG 4

Text Annotation:Built-in full screen text overlay generator Supports internationallanguage character sets 100 text line capacity

Graphic Annotation:User placement of arrows

Articulation Control:

“Steer & Stay” articulation lock/fine articulation Tip
“Home” return to neutral forward-tip orientation

Software Updates:Field updateable via USB ThumbDrive

Languages:English, Spanish, French, German, Italian, Russian, Japanese,Korean, Portuguese, Chinese, PolishOil and Gas Power Generation Automotive Aerospace Food & Beverage Pharmaceutical Manufacturing

Oil and Gas

Power Generation

Automotive

Aerospace

Food & Beverage

Pharmaceutical Manufacturing


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

What’s the difference between the XL Detect and XL Detect+?

Both the XL Detect and XL Detect+ VideoProbes work with 26 different forward and side, standard probe tip options (4.0mm, 6.1mm and 8.4mm) with Fields of View (FOV) options ranging from 40˚ to 120˚ and Depth of Field (DOF) ranging from 1mm to infinity.

The main differences between the XL Detect and XL Detect+ occur between the display size (3.7 in. and 5 in., respectively), the internal flash memory (4GB and 16GB, respectively) and the IP rating (IP55 and IP64), respectively.

What’s the difference between the XL Detect and the XL Flex?

Only the XL Flex includes stereo measurement technology for in-depth indication evaluation. Both systems come with a carry-on case, the XL Flex’s carry-on case is wheeled.

What are the system dimensions?

The system is 9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in.).

How much does the system weigh?

The XL Detect weighs 1.73 kg (3.8 lbs.) as a standalone and 6.50 kg (14.30 lbs.) in the case. The XL Detect+ weighs 1.98 kg (4.37 lbs.) as a standalone and 8.39 kg (18.5 lbs.) in the case.

How large is the LCD monitor?

The XL Detect features an integrated transflective 9.40 cm (3.70 in.) active matrix VGA color LCD with XpertBright, 640 x 480 resolution. The XL Detect+ features an integrated 12.7 cm (5.0 in.) active matrix VGA color LCD with transmissive display.

Can the system store still images and videos?

The XL Detect can hold 4 GB of Flash memory and the XL Detect+ can hold 16 GB of Flash memory.

Is the insertion tube/head waterproof?

Yes, both the XL Detect and XL Detect+ are waterproof. Assuming normal 14.7 psi air pressure, the system can operate at a depth of 1 bar (10.2 m / 33.5 ft.) of H2O.

How big is the case?

Both the XL Detect and XL Detect+ come with a rugged carrying case with an integrated insertion tube storage reel. The case is 48.8 x 38.6 x 18.5 cm (19.2 x 15.2 x 17.3 in.).
