minCam MC50 Duo Dual-Reel Push Camera

SKU: MC50 Duo Set
Dual-reel pipe inspection camera. A 200 ft (60 m) main reel with a 55 mm KK55SL head covers 3 in. to 16 in. mains, and a 65 ft (20 m) inner reel with a 29 mm KK29SL head covers 1.5 in. to 6 in. laterals and branch lines. Both heads self-level and carry a 512 Hz sonde. One detachable 8.4 in. sunlight-readable control unit runs both.
Compare pipe inspection cameras
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

MC50 Duo overview

The minCam MC50 Duo is a dual-reel pipe inspection camera: two push camera reels on one frame with one control unit. The main reel carries 200 ft (60 m) of 9.2 mm rod and the 55 mm KK55SL head for 3 in. to 16 in. lines. The inner reel carries 65 ft (20 m) of 6.7 mm rod and the 29 mm KK29SL head for 1.5 in. to 6 in. laterals, floor drains, and branch lines. A crew that runs both mains and small lines on the same job carries one system and switches heads at the control unit instead of going back to the truck.

Why the MC50 Duo

  • Two reels, one system. Mains and laterals on the same job without a second kit, a second battery, or a second set of recordings to merge.
  • Both heads self-level. Upright image through every bend on the 55 mm and the 29 mm head, so reports from either reel read the same way.
  • 29 mm KK29SL on the inner reel. Reaches 1.5 in. (40 mm) bore and turns 90° bends from 2 in. (50 mm), which a 55 mm head cannot enter.
  • Both heads pressure-tight to 10 bar (145 psi) and both carry a 512 Hz sonde, so locating works from either reel.
  • Detachable 8.4 in. sunlight-readable control unit with distance counter, SD recording, and stepless light control.
  • Stainless steel and carbon frame. Wheel set available for moving the loaded system across a plant floor.
  • 2 to 3 hours per charge on the internal battery, or run on AC.

Choose the MC50 Duo if

You regularly inspect both 3 in. to 16 in. mains and 1.5 in. to 6 in. laterals or drains on the same site. If your work is mains only, the minCam MC50 is the same main reel without the second camera. If it is small lines only, the minCam MC30 carries the 29 mm head on 100 ft of rod. Browse all pipe inspection cameras AIT supplies.

What is included

  • MC50 Duo frame with main reel, 200 ft (60 m) of 9.2 mm push rod
  • Inner reel, 65 ft (20 m) of 6.7 mm push rod

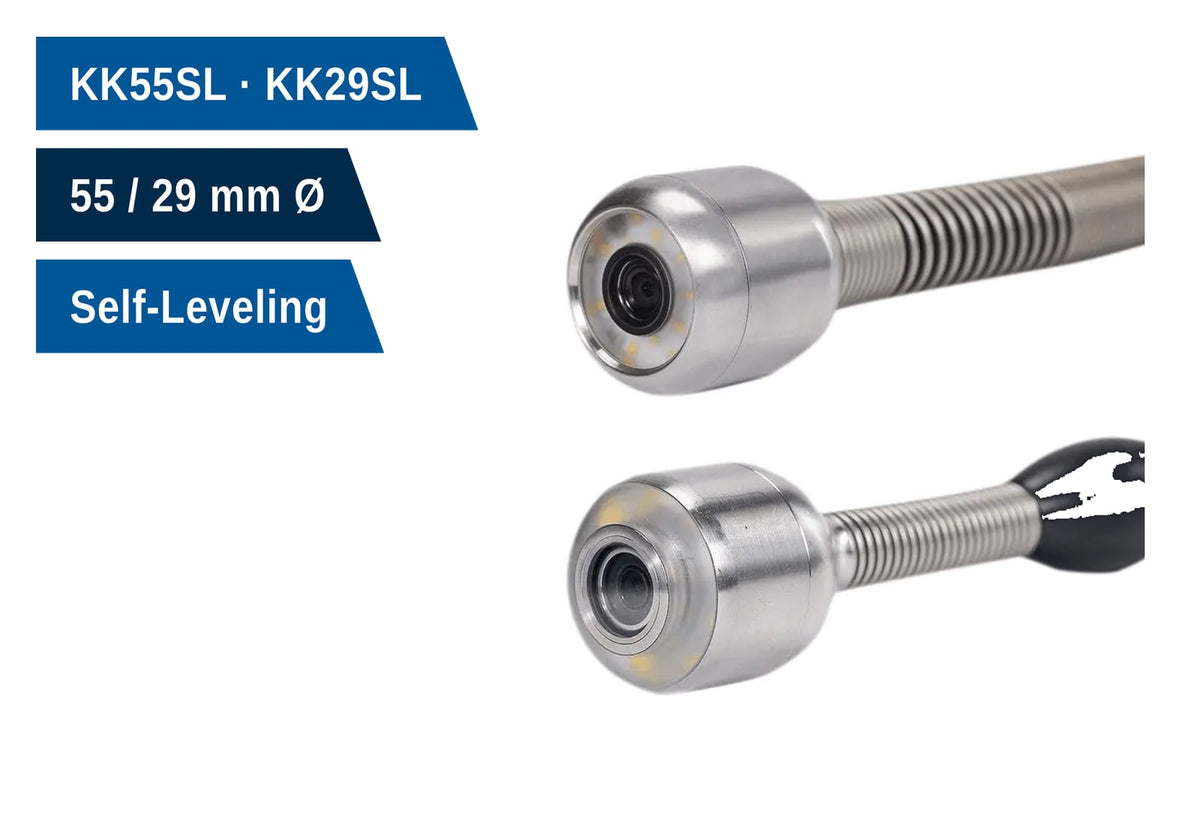

  • KK55SL self-leveling camera head, 55 mm, with 512 Hz sonde
  • KK29SL self-leveling camera head, 29 mm, with 512 Hz sonde
  • Detachable 8.4 in. sunlight-readable control unit
  • Internal Li-ion battery and AC power supply
  • Optional centering skids sized to the pipe range (quoted as needed)
  • SD card and operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977. AIT configures both heads and skid sets for your pipe sizes, supports the system after the sale, and offers a dual-reel minCam rental so a crew can prove the setup on a real job before purchase.

Related models: minCam MC50 · minCam MC30 · rent a dual-reel minCam · pipe inspection cameras

Specifications

  • Main camera head: KK55SL self-leveling, 55 mm (2.2 in.)
  • Main reel pipe range: 3 in. to 16 in. (80 mm to 400 mm) with skids; 90° bends from 3 in. (80 mm)
  • Main reel push cable: 200 ft (60 m), 9.2 mm
  • Inner camera head: KK29SL self-leveling, 29 mm (1.1 in.)
  • Inner reel pipe range: 1.5 in. to 6 in. (40 mm to 150 mm) with skids; 90° bends from 2 in. (50 mm)
  • Inner reel push cable: 65 ft (20 m), 6.7 mm
  • Self-leveling: Both heads
  • Pressure rating: 10 bar (145 psi), both heads
  • Sonde: 512 Hz, both heads
  • Control unit: 8.4 in. sunlight-readable display, detachable, function keys, stepless light control
  • Recording: Video and still images to SD card, distance stamp; text generator optional
  • Distance counter: Integrated, both reels
  • Video out: BNC
  • Power: Internal Li-ion battery or 100 to 240 V AC
  • Battery runtime: 2 to 3 hours per charge
  • Frame construction: Stainless steel and carbon fiber; wheel set optional
  • Origin: German-engineered, Rausch

Applications

  • Commercial and multi-family buildings: 3 in. to 16 in. stacks and mains plus 1.5 in. to 6 in. branch lines and floor drains, one system
  • Municipal lateral programs where the main and the service connection are inspected in the same visit
  • Plant process piping with mixed line sizes across a unit
  • Hospital, campus, and food plant drain systems where small floor drains feed larger collectors
  • Post-cleaning and pre-lining documentation on mixed-diameter systems


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

Can both cameras run at the same time?

No. One control unit runs one head at a time. Switching between reels takes a moment at the control unit, with no tools.

What can the 29 mm inner reel reach?

Lines from 1.5 in. (40 mm) bore, with 90° bends from 2 in. (50 mm), out to 65 ft (20 m) from the access point.

Is there a rental version?

Yes. AIT offers a dual-reel minCam rental so a crew can run a mixed mains and laterals job before buying.
