minCam MC50 Push Camera

SKU: MC50 Set
Self-leveling pipe inspection push camera with 200 ft (60 m) of 9.2 mm push rod, a 55 mm KK55SL head, and a detachable 8.4 in. sunlight-readable control unit for 3 in. to 16 in. pipe. A 300 ft (90 m) reel is available. The picture stays upright through bends, and the 512 Hz sonde in the head lets a locator mark the find from the surface.
Compare pipe inspection cameras
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

MC50 overview

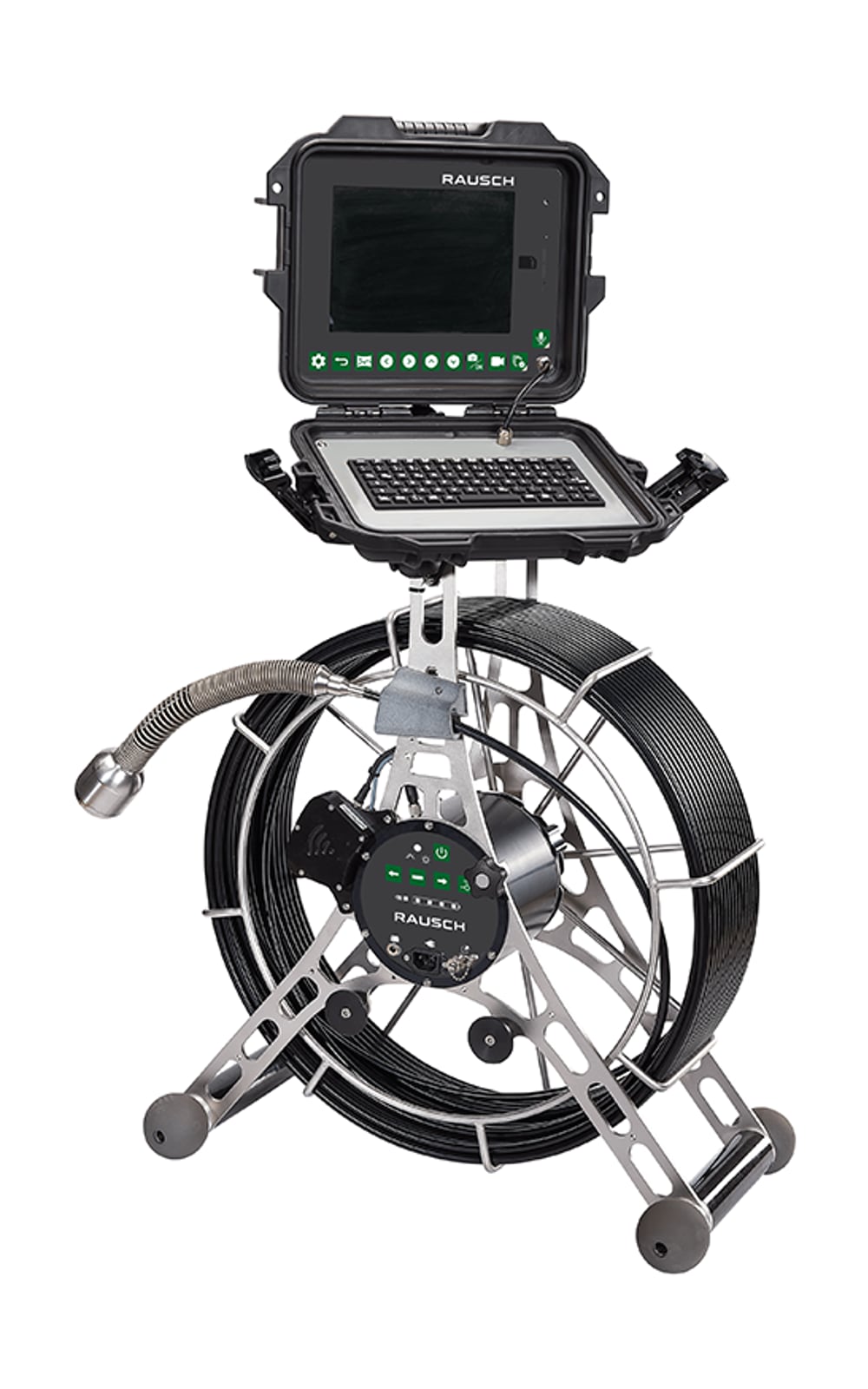

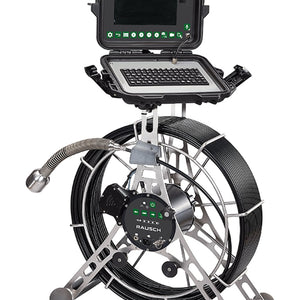

The minCam MC50 is the general-purpose pipe inspection camera in the minCam line: 200 ft (60 m) of 9.2 mm push rod, a self-leveling 55 mm KK55SL head, and the detachable 8.4 in. control unit, on a stainless steel and carbon frame that one person can load. It covers most building drain, plant process, and municipal lateral work from 3 in. to 16 in., and a 300 ft (90 m) version is available for longer runs.

Why the MC50

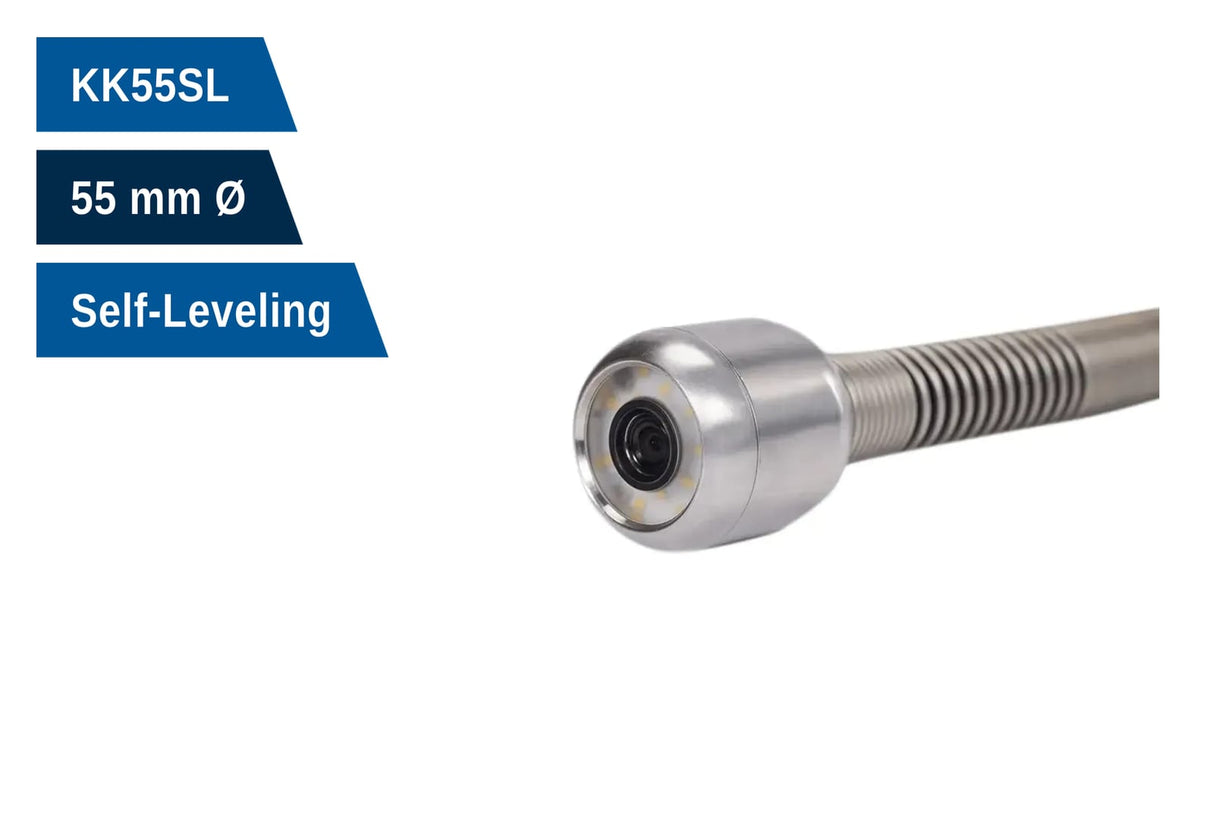

  • Self-leveling KK55SL head. The image stays upright through every bend, so the crew reads clock positions and defect locations straight off the screen and the report.
  • 200 ft (60 m) of 9.2 mm push rod, with a 300 ft (90 m) reel available. Enough stiffness to push through 3 in. (80 mm) bore 90° bends and enough length for most lateral and building work.
  • 55 mm head, pressure-tight to 10 bar (145 psi). Works in flooded and surcharged lines.
  • 512 Hz location sonde in the head. Standard locators find the camera from the surface for marking and excavation.

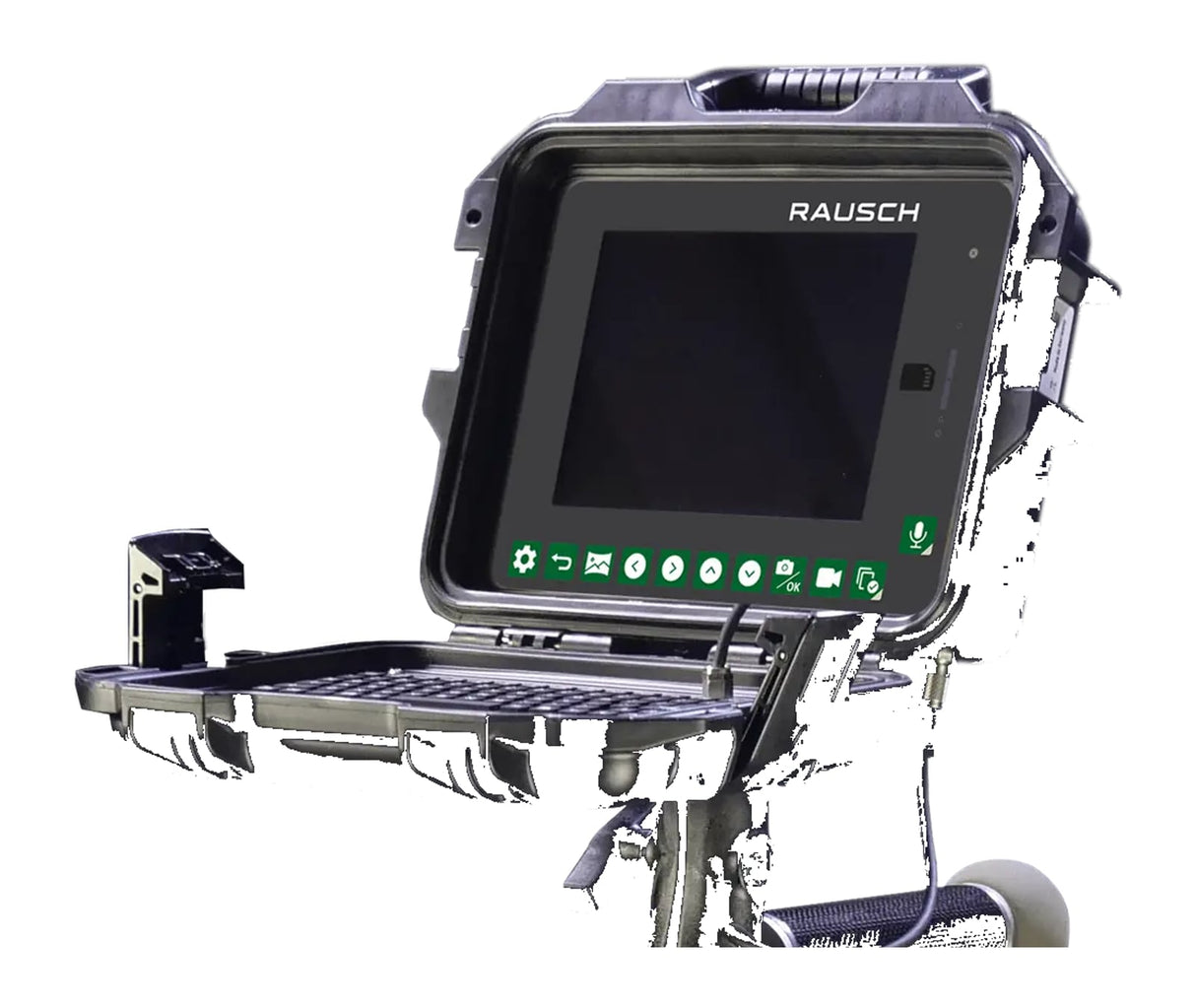

  • Detachable 8.4 in. sunlight-readable control unit. Distance counter, recording, and stepless light control stay with the operator, not the reel.
  • Records video and stills to SD card with distance stamp. Text generator available as an option.
  • Interchangeable heads. The smaller KK29SL runs on the same reel for 1.5 in. to 6 in. lines.
  • 2 to 3 hours per charge on the internal battery, or run on AC.

Choose the MC50 if

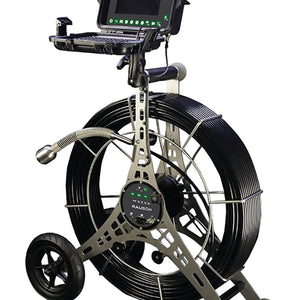

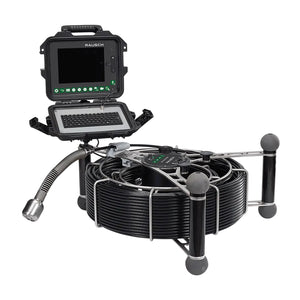

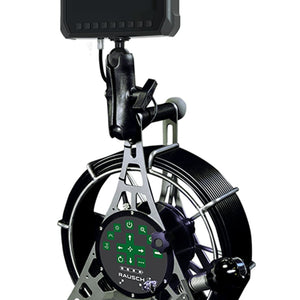

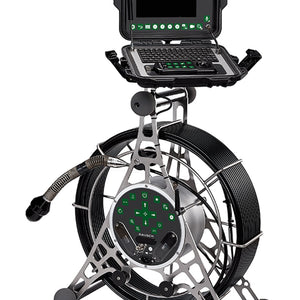

Most of your lines are 3 in. to 16 in. and 200 ft or 300 ft of reach covers them. If you also run 1.5 in. to 6 in. laterals on the same jobs, the minCam MC50 Duo adds a second reel with the 29 mm head. For 425 ft runs see the minCam MC80, and for a head that looks into joints and laterals see the minCam MC360 pan and tilt. Browse all pipe inspection cameras AIT supplies.

What is included

  • MC50 reel with 200 ft (60 m) of 9.2 mm push rod (300 ft / 90 m reel available)
  • KK55SL self-leveling camera head, 55 mm, with 512 Hz sonde
  • Detachable 8.4 in. sunlight-readable control unit
  • Internal Li-ion battery and AC power supply
  • Optional centering skids sized to the pipe range (quoted as needed)
  • SD card and operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977. AIT configures the rod length, head, and skids for your lines and supports the system after the sale. The MC50 is also available as a minCam push camera rental.

Related models: minCam MC50 Duo · minCam MC80 · minCam MC360

Specifications

  • Camera head: KK55SL self-leveling, color
  • Head diameter: 55 mm (2.2 in.)
  • Pipe diameter range: 3 in. to 16 in. (80 mm to 400 mm) with skids
  • 90° bends from: 3 in. (80 mm)
  • Self-leveling: Yes, permanently upright image
  • Pressure rating: 10 bar (145 psi)
  • Push cable: 200 ft (60 m); 300 ft (90 m) reel available
  • Cable diameter: 9.2 mm
  • Control unit: 8.4 in. sunlight-readable display, detachable, function keys, stepless light control
  • Recording: Video and still images to SD card, distance stamp; text generator optional
  • Distance counter: Integrated
  • Sonde: 512 Hz
  • Video out: BNC
  • Power: Internal Li-ion battery or 100 to 240 V AC
  • Battery runtime: 2 to 3 hours per charge
  • Reel construction: Stainless steel and carbon fiber
  • Origin: German-engineered, Rausch

Applications

  • Building sanitary and storm drains, 3 in. to 16 in.
  • Municipal and commercial sewer laterals from cleanout or manhole
  • Plant process, waste, and cooling water lines
  • Out-of-service gas and utility pipe sections up to 16 in. (visual condition)
  • Well casings and vertical drops within the 10 bar rating
  • Post-cleaning, pre-lining, and warranty video documentation


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

Should I order the 200 ft or the 300 ft reel?

Order 300 ft (90 m) if your runs regularly pass 180 ft from the access point. The 200 ft reel is lighter and easier to carry through a building. Both use the same head and control unit.

What pipe sizes and bends does the MC50 handle?

3 in. to 16 in. (80 mm to 400 mm) with appropriate centering skids. The KK55SL turns 90° bends in 3 in. (80 mm) bore and larger.

Self-leveling or pan and tilt: which do I need?

Self-leveling keeps the picture upright while you push and is the right choice for straight-down-the-line condition surveys. Pan and tilt lets the operator aim the camera at joints, laterals, and the pipe crown, which matters for lateral reinstatement checks and defect close-ups. The MC50 is self-leveling; the minCam MC360 is pan and tilt.
