XL Vu Video Borescope

SKU: XL Vu
This product has been retired. The Everest Mentor Flex VideoProbe is the recommended replacement.

The XL Vu is the most affordable stereo measurement video borescope designed for the most demanding industrial inspections. Perfect for borescope inspection and measurement of turbines, welds, pumps. valves, gear boxes, tube, pipes and more. Super powerful light output in a portable package. Available in diameters of 4.0, 6.1 and 8.4mm. Lengths rang from 2.0 to 10m.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

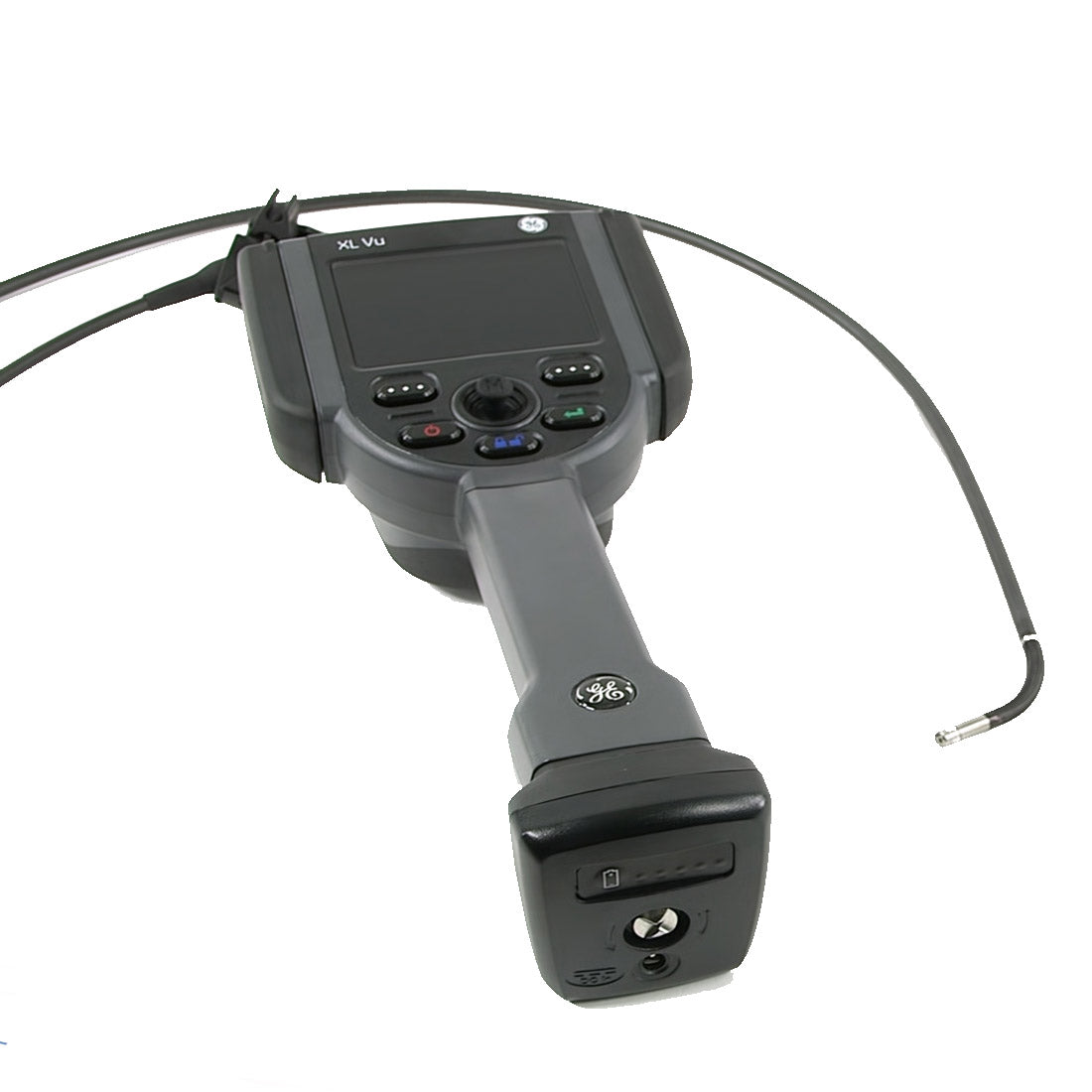

The XL Vu is the most affordable stereo measurement video borescope designed for the most demanding industrial inspections.

Operating Temperature

Tip: -25°C to 100°C (-13°F to 212°F). Reduced articulation below 0°C (32°F)

System: -20° to 46°C (-4°F to 115°F). LCD may require warm-up period below 0°C (32°F)

Storage Temperature: -25° to 60°C (-13°F to 140°F)

Relative Humidity: 95% max, non-condensing

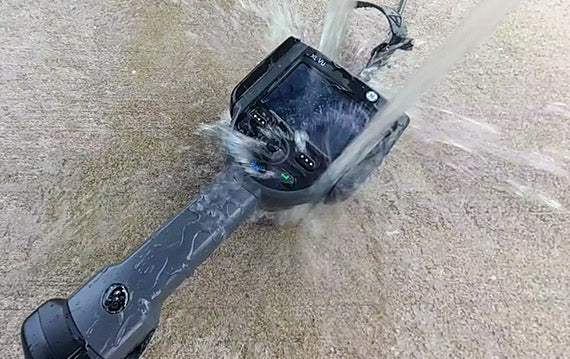

Waterproof: Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft. of H2O)

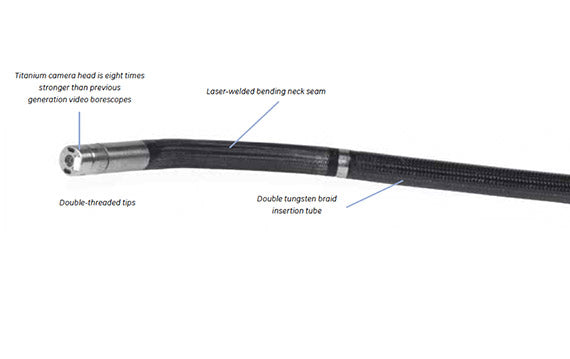

Camera

Diameter Probe: 4.0mm (0.16”), 6.1mm (0.24”), 8.4mm (0.33")

Image Sensor: 1/6” Color Super HADTM CCD camera (6.1) 1/10” (4.0 mm)

Pixel Count: 440,000 pixels

Housing: Titanium

System

Construction: Polycarbonate housing with integrated Versalon™ bumpers

LCD Monitor: Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD, 640 x 480 resolution display, with optically bonded, multipoint capacitive DragontrailTM touchscreen

Joystick Control: 360° All-Way® tip articulation, menu access, and navigation

Button Set: Access user functions, and digital functions

Audio: Integrated 2.5 mm headset / microphone jack

Internal Memory: 1 GB Flash memory

Data I/O Ports: One USB 2.0 port

Video Out: VGA Video Out

Brightness Control: Auto and Variable

Illumination Type: White LED

Long Exposure: Auto and Manual

White Balance: Factory default or user defined

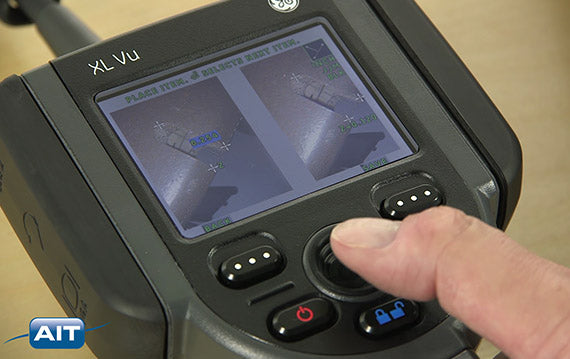

Measurements: StereoProbe and Comparison

MDI Software (optional): Provides user defined guided inspection Creates DICONDE compatible inspection files Creates MS Word® compatible inspection reports

Power:

Lithium Ion Battery: 8.4V, 75Wh (2 or 4-hour)

AC: 90-264 VAC, 50-60 Hz

DC: 10.2V, 4.9A

Aerospace

The XL Vu video borescope is perfect for borescoping commercial and military aircraft engines. Stereo measurement and portability make inspection anywhere a breeze. Borescope inspectors will love using the XL Vu in the shop and in the field.

Automotive

The XL Vu can inspect automotive body and frames, engines, cylinders, fuel nozzles, shafts, bakes, radiators and more

Industrial

The XL Lv video borescope is widely used for many inspections at petrochemical, pharmaceutical, pulp & paper, process and manufacturing facilities to inspect: rotating machinery, gear boxes, heat exchangers, boilers, pipes, foreign object retrieval and more.

Power Generation

The XL Vu is the perfect portable copanion for any power plant or wind turbine. Ealiy transpecrt from inspection to inspection with ease. Stereo measurement is helpful for the most critical inpsctions as well.
