RX130 Industrial Crawler

SKU: RX130
RX130 Crawler is designed to inspect pipeline diameters from 150mm to 1000mm (6 in. to 39 in.) Includes 200m (656 Ft.) cable reelup. Includes: laser measurement, distance counter, text annotation, sonde transmitter, pan, tilt and zoom camera head, large touch screen display with easy to use controls. Records video and still images. Optional ATEX Zone 1 (Division 1) EX Rating.

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

*Optional ATEX Zone 1 Explosion Proof Rating

Industrial Rovver System Overview:

RX 130 CRAWLER Ø 150 MM - 300 MM

  • The application area of the RX130 crawler ranges from DN 150 up to DN 1000 (with elevator and carrier mounted).
  • Powerful six-wheel drive (steerable)
  • Location transmitter can be activated
  • Crawler wheels for all surface conditions
  • Constant monitoring by pitch and roll sensor
  • Constant monitoring of the internal pressure and temperature
  • Integrated backeye camera
  • Optional automatic elevator
  • Optional carrier
  • Optional auxiliary light
  • Compatibility to the SUPERVISION®-(PAL)
  • Inspection System (as of version 2012) and PAL video format

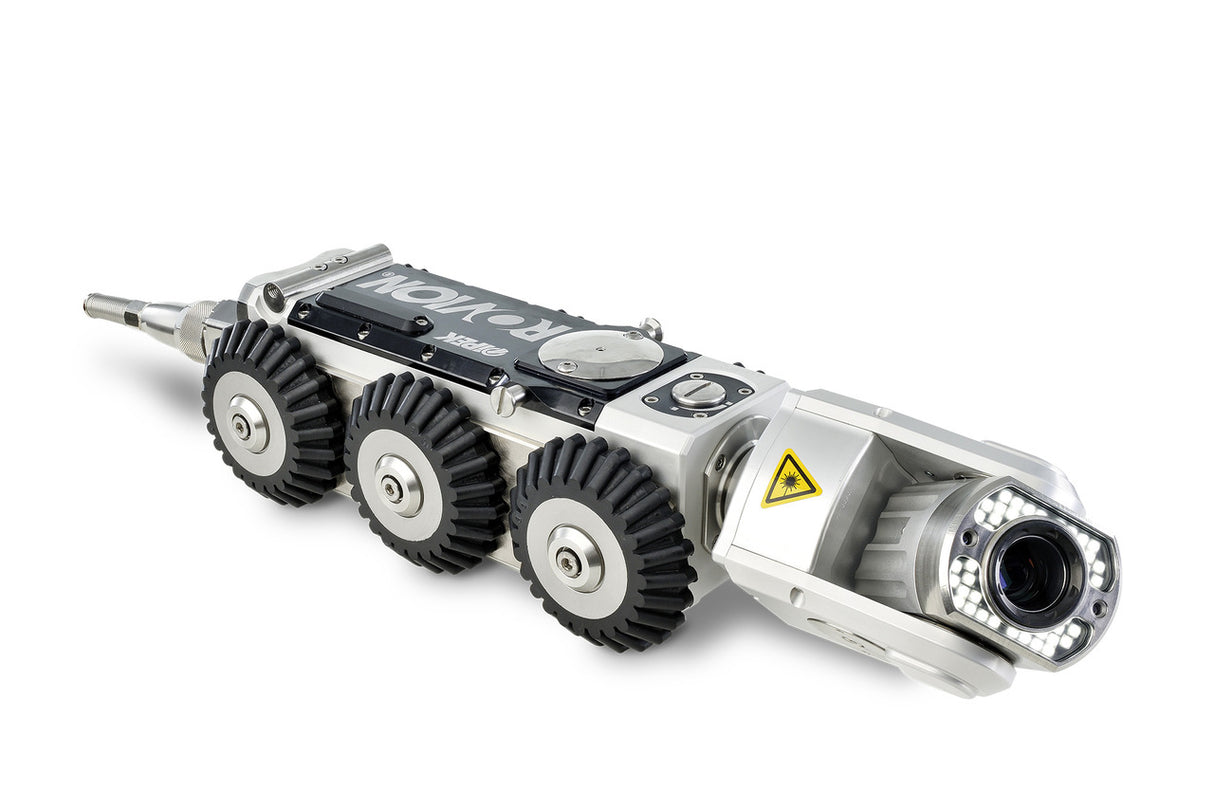

RCX90 Pan & Tilt Camera Head

  • CCD-color camera
  • 10x optical / 12x digital zoom
  • Rotation and pan unit integrated in the camera head
  • Endless rotation range
  • Panning range +/- 135°
  • Integrated laser to determine crack widths
  • Powerful homogenous illumination through LED lighting
  • Step-less light control from 0 - 100%
  • Impact-resistant lighting ring
  • Interruption-free panning of pipe connections
  • Indication of the panning and rotation angle on the GUI of the VC200/ DCX5000 and in the text generator (VC200)
  • Internal pressure indication via system status VC200 / DCX5000
  • Integrated laser to determine crack widths

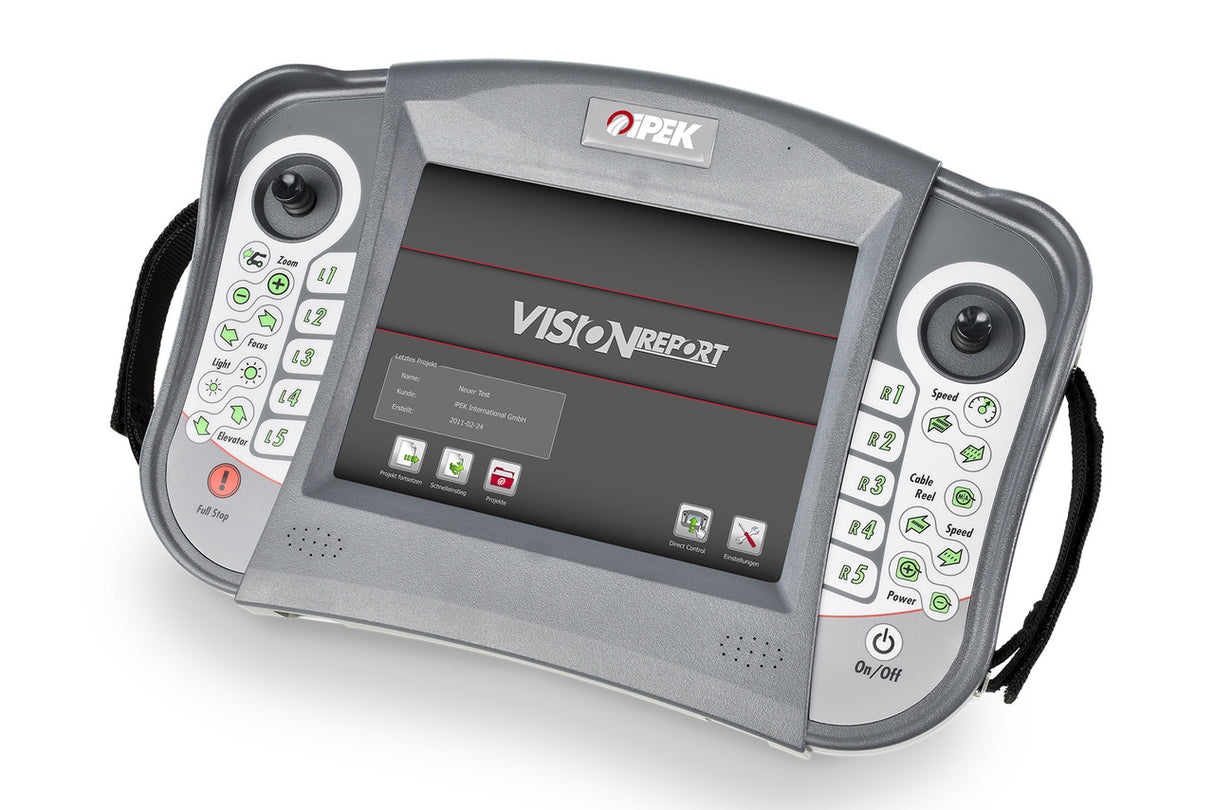

VC200 Display

  • 800 x 600 touch screen display
  • Video recording in MPEG-4 AVC/H.264, picture recording in .BMP
  • Data storage on an internal CF-card (64GB)

  • Data transfer via USB and Ethernet
  • Low weight and ergonomic design for optimal operator convenience

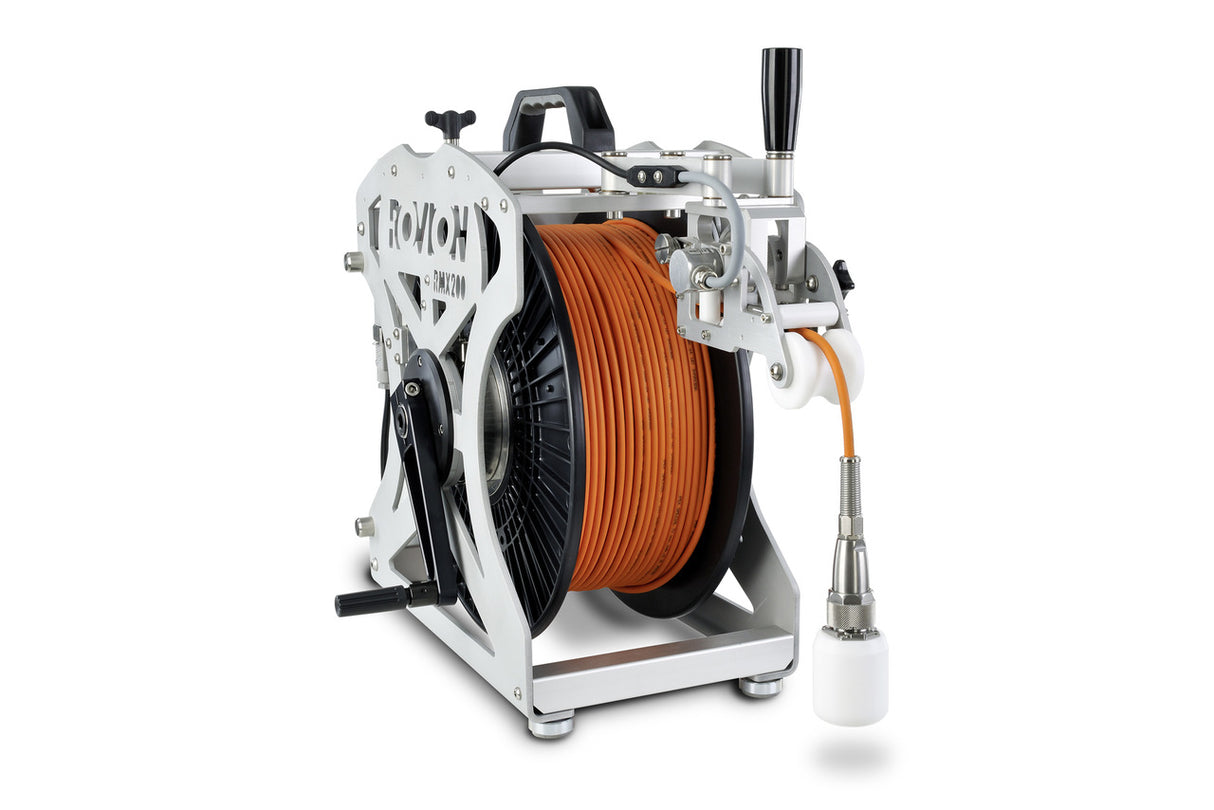

RMX200 Cable Reel

  • 200 m armored camera cable
  • Adjustable brake
  • Hand crank
  • Dirt wiper
  • Winding support
  • Telescopic bar with control panel mount

Features and Benefits of the Industrial Pipe Inspection System:

  • The RCX90 pan tilt $ zoom camera head features a 10 x optical zoom and additionally a 12 x digital zoom camera module. The camera has a pan range of ±135° and an endless rotation range.
  • The multi-functional, portable VisionControl control panel allows carrying out inspections according to predefined standards, while the user can freely configure the text generator as desired. Additionally it is possible to record the inspection video or to take pictures. With a daylight viewable 800 x 600 pixel touch screen display including a virtual keyboard and intuitively operable control elements the VC200 offers everything required for a user-friendly, efficient inspection.
  • The light weight and compact design of the Industrial Rovver makes it perfect for power generation, petrochemical and other industrial applications where portability is a must.
  • The cable reel provides 200m (656 ft.) of continuous cable enabling the Rovver to go deep into industrial systems
  • The RX130 is fully steerable and allows the operator to keep the robotic camera system centered in the pipe without roll over and to turn 90 degree bends.
  • Integrated laser to determine crack widths allows measurement of defects and a better determination of damage to your industrial systems.

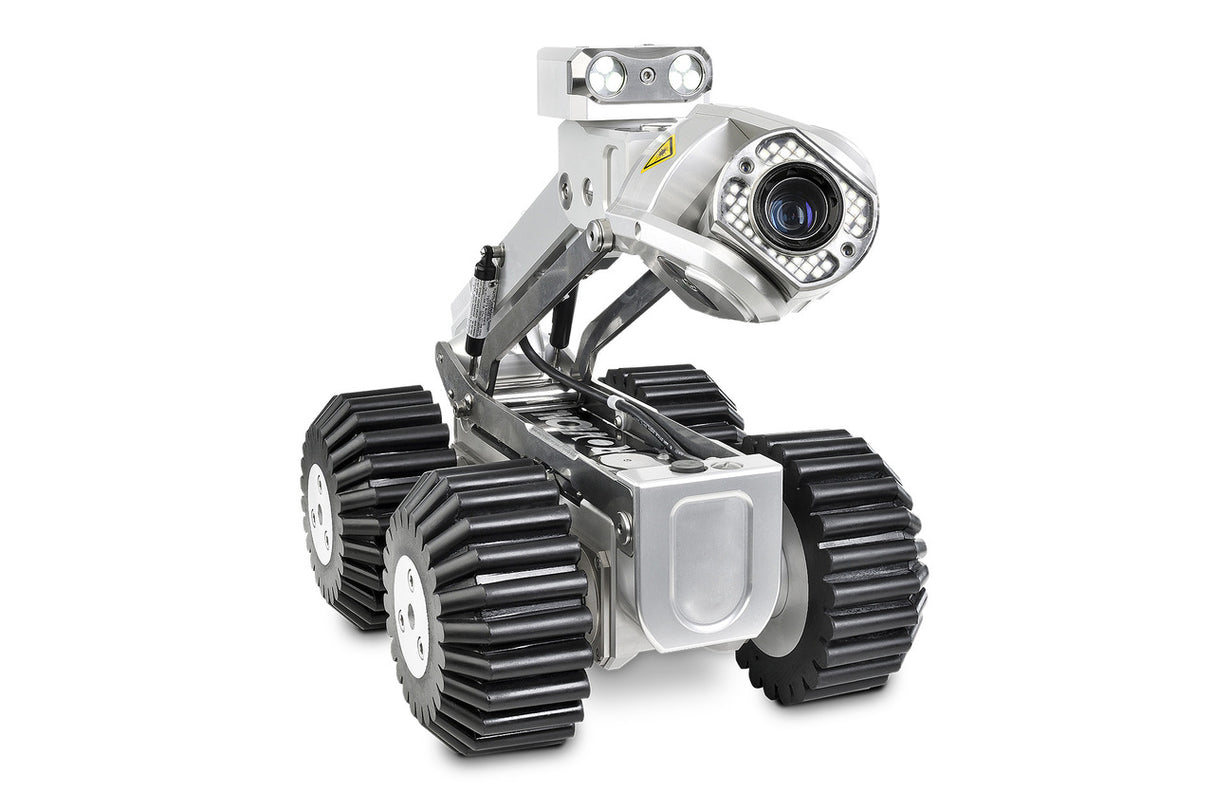

  • Add an optional elevator for inspection of larger pipes.

Typical Configuration

  • RX130 HD crawler body
  • RCX90 HD camera head
  • RAX300 HD reel with 984’ cable
  • VC500 HD control pendant
  • WinCan VX software (basic)
  • Handheld wireless remote control
  • Assortment of wheels
  • Transport case(s)
  • Tools

System

  • Ratings: CE, NRTL
  • Power: 120-240 Vac, 60 Hz
  • Viewing Capability: Pipelines 4–96” diameter
  • Operating Temperature: 32 to 104°F
  • Storage Temperature: -4 to 158°F

Camera (RCX90 HD)

  • Sensitivity: 0.05 lux
  • Resolution: 1920 × 1080 pixels
  • Zoom Lens: 120× (10× optical, 12× digital)
  • Pressure Rating: 1 bar
  • Protection Class: IP68
  • Features: Auto shutter; auto/manual focus
  • Illumination: Dimmable LED, dual mode
  • Articulation: ±135° tilt; infinite pan
  • Measurement: Twin laser diodes spaced 1.97”
  • Sensing: Temperature, pressure, pan/tilt
  • Size: 6.6”×3.2”×2.8” (168×81×72 mm)
  • Weight: 3.3 lb (1.5 kg)
  • Materials: Aluminum, stainless steel

Crawler (RX130 HD, RX130L HD)

  • Drivetrain: Steerable 6-wheel drive
  • Turn Radius: Down to 0.0”
  • Camera: Color rear-view with tri-LED lamp
  • Sensors: Pitch, roll, temperature, pressure
  • Pressure Rating: 1 bar
  • Protection Class: IP68
  • Size (RX130): 12.2”×4.3”×3.5” (310×110×90 mm)
  • Size (RX130L): 15.1”×5.0”×4.6” (384×126×117 mm)
  • Weight (RX130): 13.2 lb (6 kg)
  • Weight (RX130L): 17.6 lb (8 kg)
  • Lift Range (RX130L): 7.1” (180 mm)
  • Materials: Aluminum, stainless steel
  • Sonde Transmitter: 33 kHz / 512 Hz / 640 Hz

Control Pendant (VC500 HD)

  • Controls: Joysticks, touchscreen, power, stop
  • Touchscreen: 10.1” color TFT, multi-touch, 1280×800 px, 1280 cd/m², 150° viewing angle
  • Video Capture: MPEG-4 AVC (H.256)
  • Image Capture: JPEG or PNG
  • Internal Storage: 128 GB
  • Connectivity: LAN, USB 2, USB 3, Wi-Fi, HDMI
  • Protection Class: IP55
  • Size: 11.8”×10.5”×2.8” (300×267×71 mm)
  • Weight: 4 lb (1.81 kg)
  • Housing: Plastic (ABS, PC), IP55-rated

Auxiliary Lamp (RAL200 HD, Optional)

  • Forward Illumination: Twin tri-LED lamps
  • Camera: Color rear-view with tri-LED lamp
  • Sonde Transmitter: 33 kHz / 512 Hz
  • Protection Class: IP68
  • Dimensions: 2.8”×1.3”×4.0” (72×33×102 mm)
  • Weight: 1.3 lb (0.6 kg)
  • Materials: Aluminum, stainless steel

Cable Reel (RAX300 HD)

  • Cable Length: 984’ (300 m)
  • Cable Diameter: ¼” (6.5 mm)
  • Cable Weight: 0.03 lb/ft
  • Cable Conductors: 6
  • Controls (Local): Power, emergency stop
  • Controls (via Pendant): Auto/manual, speed, forward/reverse, pull strength
  • Sensors: Tension, tilt
  • Size: 24.6”×14.5”×22.6” (625×368×575 mm)
  • Protection Class: IP44
  • Weight: 123.4 lb (56 kg)
  • Connections: Pendant, service, video in/out

Optional Accessories

  • Camera Lift: 7.1” (180 mm) range; Aluminum, stainless steel
  • Carriage: 14.5”/12.2” wheelbase (368/310 mm); 34.2 lb (15.5 kg); Aluminum, stainless steel

Wind Power requires regular maintenance to check for corrosion, pitting, cracks and other defects. The inside of wind turbine blades need to be visually inspected to see if these defects are in place. Other remote visual inspection method do not offer the distance or ability to inspect the large diameter and long blades.

New construction: Many power generating plant construction projects may present potential conflicts with existing underground utilities. Experience has shown that relying on information from old plans and records regarding the location of underground utilities may not be the wisest decision. Often, these subsurface facilities are not where records say they are or they are not shown on the records at all. Once construction begins, this inaccurate information can result in costly conflicts, damage, delays, service disruptions, redesigns, claims and even injuries should a backhoe hit an underground pipeline. Damage can be minimized by conducting a survey of underground piping using robotic pipe inspection cameras and mapping the location of existing pipelines and utilities with the sonde locator.

Nuclear Power Plants: Aging of underground piping and tanks has gained increased attention in the nuclear industry, particularly concerning piping systems that may contain some radioactive effluents or environmentally hazardous materials. The Nuclear Strategic Issues Advisory Committee drafted the Underground Piping and Tanks Integrity Initiative in 2010 to provide reasonable assurance of structural and leakage integrity of underground pipes. The Rovver robotic pipe inspection camera is perfect for inspections at nuclear power plants.

Process lines need to be inspected for condition.  The pan and rotate push camera is perfect for navigating the complex geometry of pipes and connections to check pipe walls, welds and joints for pitting, corrosion, erosion, cracking, scaling and other problems.

Cleaning Validation can be performed at pharmaceutical and chemical plants with Rovver robotic crawler camera. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated.  The pan and rotate camera can negotiate larger pipes and longer distances.

Steam feed lines need to be inspected for interior condition. The rovver robotic pipe inspection camera can use its pan and tilt camera to see scale build up, pitting, corrosion, cracking and other defects with ease.

FOSAR: Locate foreign objects, loose parts and other debris in industrial piping. The rovver robotic pipe inspection camera can use its pan and rotate pipe camera to view and locate more debris, and foreign objects than other remote visual inspection methods. Once the pan and tilt push camera locates the foreign material and attached motorized retrieval tool can then be used to remove the objects without tear down.
