minCord XL Compact Pipe Inspection Camera

SKU: MinCord XL
German-engineered small pipe inspection camera in a rugged carry case: 7 in. sunlight-readable screen, 100 ft (30 m) of flexible push cable, and a choice of 13 mm KK13 or 18 mm KK18 head for 0.6 in. to 5 in. lines. Turns 90° bends from 1 in. for drains, tubes, and small process pipe. Three-frequency sonde and SD recording built in; WiFi and text overlay optional.
Compare pipe inspection cameras
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

minCord XL overview

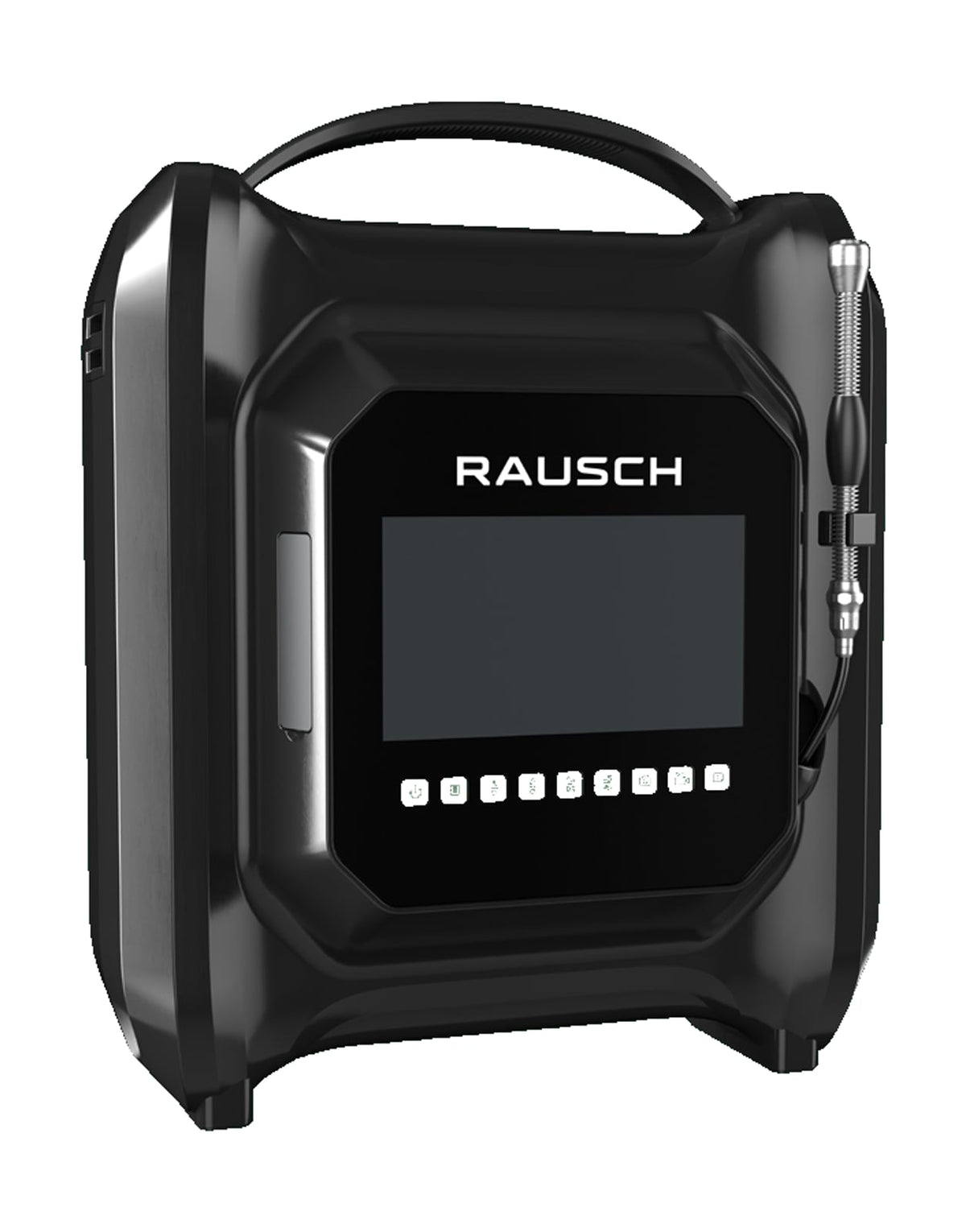

The minCord XL is the long-cable version of the Rausch minCord: 100 ft (30 m) of flexible push cable, a 7 in. sunlight-readable screen, and the recorder and battery built into one rugged case that weighs about 15 lb (7 kg). Order it with the 13 mm KK13 head for tubes and drains from 0.6 in. (15 mm), or the 18 mm KK18 head for 1 in. to 5 in. lines. Either way it turns 90° bends from 1 in. (25 mm), so P-traps, elbows, and tube bends are inside its range.

Why the minCord XL

  • 100 ft (30 m) of cable in a case one person carries. Twice the reach of the minCord 5 without moving up to a reel system.

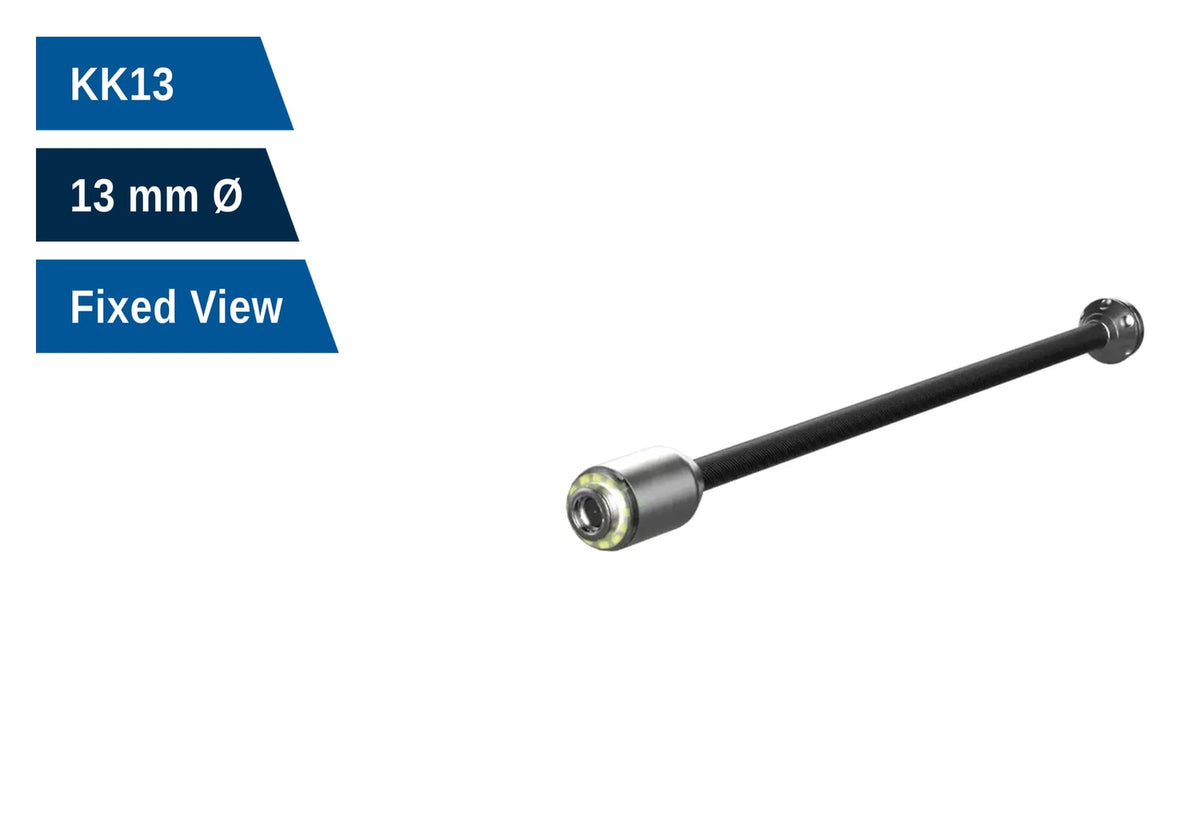

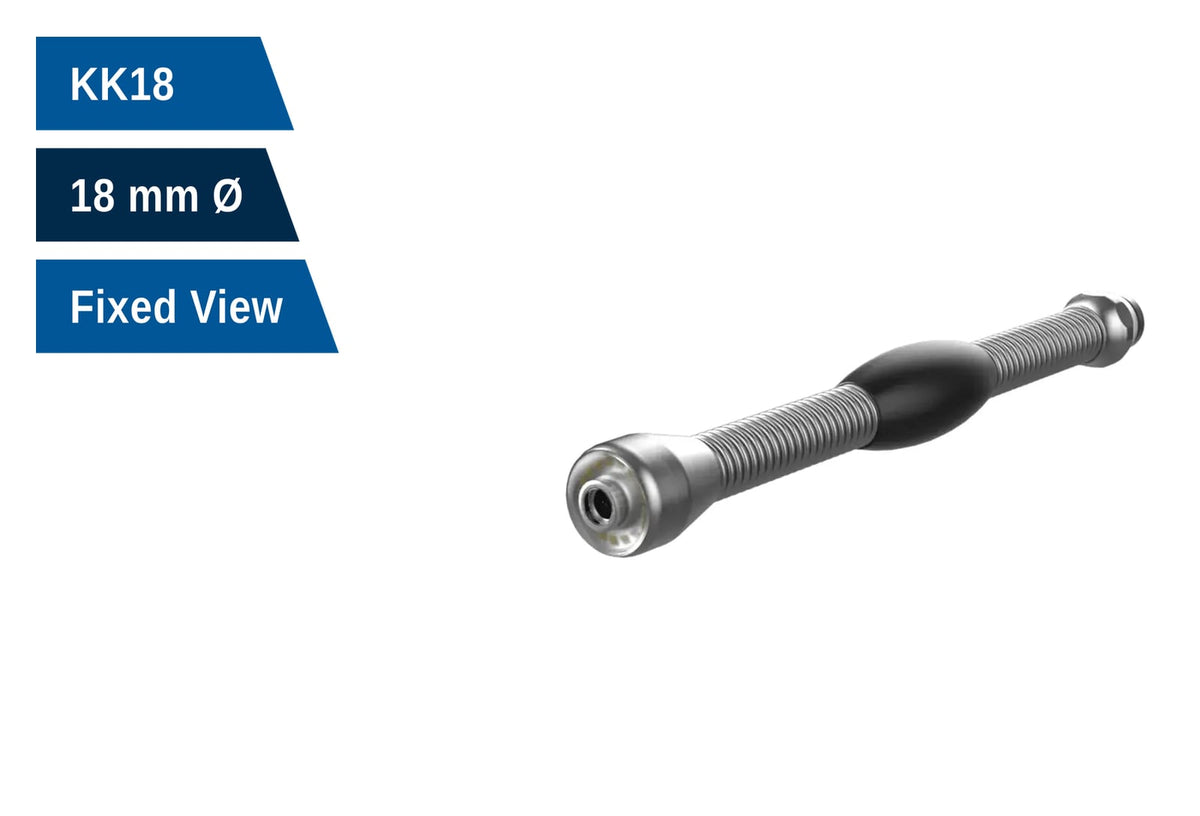

  • Choice of head. KK13 (13 mm) enters 0.6 in. (15 mm) bore for exchanger and boiler tubes; KK18 (18 mm) covers 1 in. to 5 in. drains and process lines.
  • 90° bends from 1 in. (25 mm). Pushes through P-traps and tight elbows in small lines.
  • 7 in. sunlight-readable screen with distance counter. Readable outdoors and in bright plant lighting.
  • Three-frequency sonde (33 kHz, 512 Hz, 640 Hz) in either head, compatible with standard pipe locators.
  • Records video and stills to SD card. Optional WiFi module streams to the minCam Viewer app and adds text overlay for annotated reports.
  • 5 to 7 hours per charge. Pressure-tight to 1 bar (14.5 psi).

Choose the minCord XL if

You need more than 50 ft of reach in lines under 5 in., or you want the 18 mm head option. For the lightest unit with 50 ft of cable, see the minCord 5. For 1.5 in. to 6 in. lines with a self-leveling head on a reel, see the minCam MC30. Browse all pipe inspection cameras and heat exchanger and condenser inspection equipment AIT supplies.

What is included

  • minCord XL unit in rugged carry case with 7 in. screen and 100 ft (30 m) of push cable
  • KK13 (13 mm) or KK18 (18 mm) camera head with three-frequency sonde, per configuration ordered
  • Centering skid for the head ordered
  • Battery charger and AC adapter
  • SD card, carrying strap, and operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977, and tell AIT the smallest line you need to enter so the right head and skid ship with the unit. AIT supports the system after the sale and offers push camera rentals for one-off outages.

Related models: minCord 5 · minCam MC30 · heat exchanger and condenser inspection

Specifications

  • Camera head: KK13 (13 mm) or KK18 (18 mm) axial, color, per configuration
  • Pipe diameter range: KK13: 0.6 in. to 3 in. (15 mm to 80 mm); KK18: 1 in. to 5 in. (25 mm to 125 mm)
  • 90° bends from: 1 in. (25 mm)
  • Pressure rating: 1 bar (14.5 psi)
  • Push cable: 100 ft (30 m), flexible fiberglass
  • Screen: 7 in. sunlight-readable, built in
  • Recording: Video and still images to SD card; text overlay with optional WiFi module
  • Distance counter: Integrated
  • Sonde: 33 kHz, 512 Hz, 640 Hz
  • Wireless: Optional WiFi module with minCam Viewer app
  • Power: Internal Li-ion battery or AC adapter
  • Battery runtime: 5 to 7 hours per charge
  • Weight: About 15 lb (7 kg) with case
  • Origin: German-engineered, Rausch

Applications

  • Building drains, P-traps, and branch lines from 1 in. to 5 in. up to 100 ft from the access point
  • Shell-and-tube heat exchanger and chiller tubes from 0.6 in. (15 mm) ID with the KK13 head
  • Boiler tubes, headers, and small process lines
  • HVAC condensate and refrigeration piping
  • Radiant floor and hydronic loops within the pressure rating
  • Foreign material and cleaning verification in small-bore process piping


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

KK13 or KK18: which head should I order?

Order the KK13 if you inspect tubes or lines under 1 in. (25 mm), such as exchanger and chiller tubes. Order the KK18 if your smallest line is 1 in. or larger; the larger head suits 1 in. to 5 in. drains and process pipe. Both fit the same unit, so a second head can be added later.

Is WiFi included?

WiFi and the Viewer app are an optional module. Without it the unit still records video and stills to SD card with the distance counter in the frame.

How is it different from the minCord 5?

The minCord XL has 100 ft of cable, a 7 in. screen, the KK18 head option, and the WiFi option. The minCord 5 has 50 ft, a 5 in. screen, and the KK13 head only, in a lighter unit.
