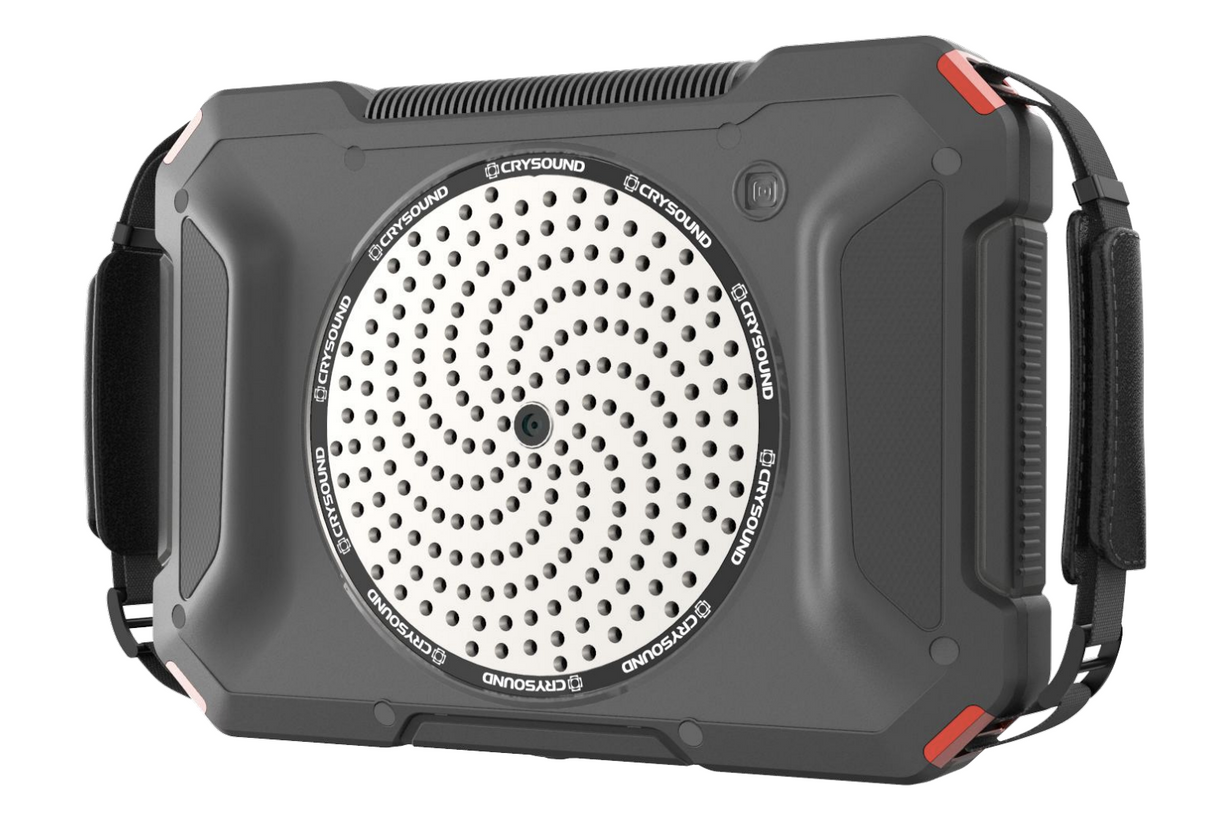

CRYSOUND CRY8125 ATEX/IECEx Acoustic Imaging Camera (200 mics, 2k-100khz)

SKU: CRY8125
The CRY8125 acoustic imaging camera is specifically designed for explosive atmospheres and excels at pinpointing leaks, identifying electrical partial discharge, and detecting mechanical deterioration, performing over 10x faster than traditional methods. In gas leak detection, the acoustic imaging camera can quickly pinpoint the location of gas leaks and estimate leakage volume and economic losses in real time. In partial discharge detection, the acoustic imaging camera can display PRPD charts in real time and identify discharge types to assist in further decision making.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

The CRY8125 lets your team detect leaks in hazardous areas. IECEx / ATEX certification lets you work inside explosive zones with confidence. Point the acoustic imaging camera and see gas leaks appear in real time—complete with leak‑rate and cost estimates. On electrical gear, live PRPD charts tag each partial‑discharge type for faster decisions. You can also catch early signs of bearing wear and other mechanical faults. Inspections finish in minutes, more than 10× faster than traditional methods. That’s why oil & gas, chemical, nuclear, and power‑generation sites put the CRY8125 to work every day.

Acoustic Specifications

  • Microphone Array: 200 channels MEMS microphone
  • Frequency Range: 2k - 100k Hz
  • SPL Range: 28 - 132 dB
  • Test Distance: 0.5 - 200 m (1 - 656 ft)
  • Minimum Detectable Leak:

10 m, 2.7 bar, 0.0029 L/min

0.5 m, 1.9 bar, 0.0028 L/min

Camera

  • Field of View (FOV): 66°
  • Camera Resolution: 13M pixels
  • Focal Length: 4.3 mm (0.17 inches)
  • LED Light: 4*LED

Display

  • Resolution: 1920*1200 (6x digital zoom)
  • Touch Screen: 8 inches, capacitive touch screen
  • Brightness: 600 nits, auto adjustment

Hardware Ports

  • USB-C 1: USB 3.0 for charging, HDMI, data export
  • USB-C 2: USB 2.0 for data export, USB sensor
  • 3.5 mm Audio Jack: Headphone output
  • TF Card Slot: External storage
  • SIM Card Slot: Supports 4G/5G network communication card
  • Analog Input: Connects external analog sensor (4 channels, 20 - 100k Hz)

General Specifications

  • Size: 270 * 190 * 51 mm (10.6 * 7.5 * 2.0 inches)
  • Weight: 1.4 kg (3 lbs)
  • Wi-Fi: 802.11a/b/g/n/ac
  • Bluetooth: BT 5.2
  • GNSS: GPS+BDS+GLONASS+GALILEO+QZSS
  • Operating Temperature: -20 to +50 ℃, 10 - 95% no condensation
  • Storage Temperature: -20 to +70 ℃, 10 - 95% no condensation
  • IP Rating: IP54
  • Storage Capacity: 64G internal, 64G external

Battery

  • Battery Type: Smart battery with indicator, replaceable
  • Battery Capacity: 6600mAh @7.2V
  • Battery Life: Up to 5 hours

Software

  • Functions: Multi-point imaging, directional focus, distance measurement, leak volume estimation, PRPD spectrum, type recognition, picture labeling, report export, and more.

Language Support

  • Languages: Chinese, English, Korean, French, Japanese, Russian, German, Italian, EU Spanish, Portuguese, Hungarian, Dutch, Cambodian, Vietnamese, Turkish, Polish

Aerospace

  • Aircraft pneumatic systems
  • Pressurized cabin testing
  • Fuel system leak detection

Power Generation

  • Compressed air systems in power plants
  • Gas turbines for leaks
  • Switchgear for partial discharge detection

Utilities

  • Electrical substations for partial discharge
  • Gas distribution networks
  • Water treatment plant air systems

Manufacturing

  • Compressed air systems in production lines
  • Pneumatic equipment and tools
  • Vacuum systems for material handling

Automotive

  • Assembly line air compressors
  • Paint booth air systems
  • Tire inflation stations

Food and Beverage

  • Packaging machinery using compressed air
  • Bottling and canning lines
  • Pneumatic conveyor systems

Pharmaceuticals

  • Sterile air systems in clean rooms
  • Tablet press machines
  • Pneumatic controls in production equipment

Oil and Gas

  • Compressed natural gas (CNG) systems
  • Pneumatic control valves
  • Gas processing equipment

Chemical Processing

  • Reactor vessels and piping systems
  • Pneumatic actuators and controls
  • Gas distribution networks

Electronics Manufacturing

  • Clean room air systems
  • Pneumatic pick-and-place machines
  • Vacuum systems for circuit board handling

Textiles

  • Air jet looms
  • Pneumatic material handling systems
  • Air-powered cutting tools

Mining

  • Compressed air systems for pneumatic drills
  • Ventilation systems in underground mines
  • Pneumatic conveyor systems

Pulp and Paper

  • Air systems in paper machines
  • Pneumatic actuators in process control
  • Vacuum systems for paper handling

Healthcare

  • Medical gas distribution systems in hospitals
  • Compressed air for dental equipment
  • Vacuum systems in operating rooms
