minCam MC360 Compact Pan & Tilt Push Camera

MC360 Compact overview

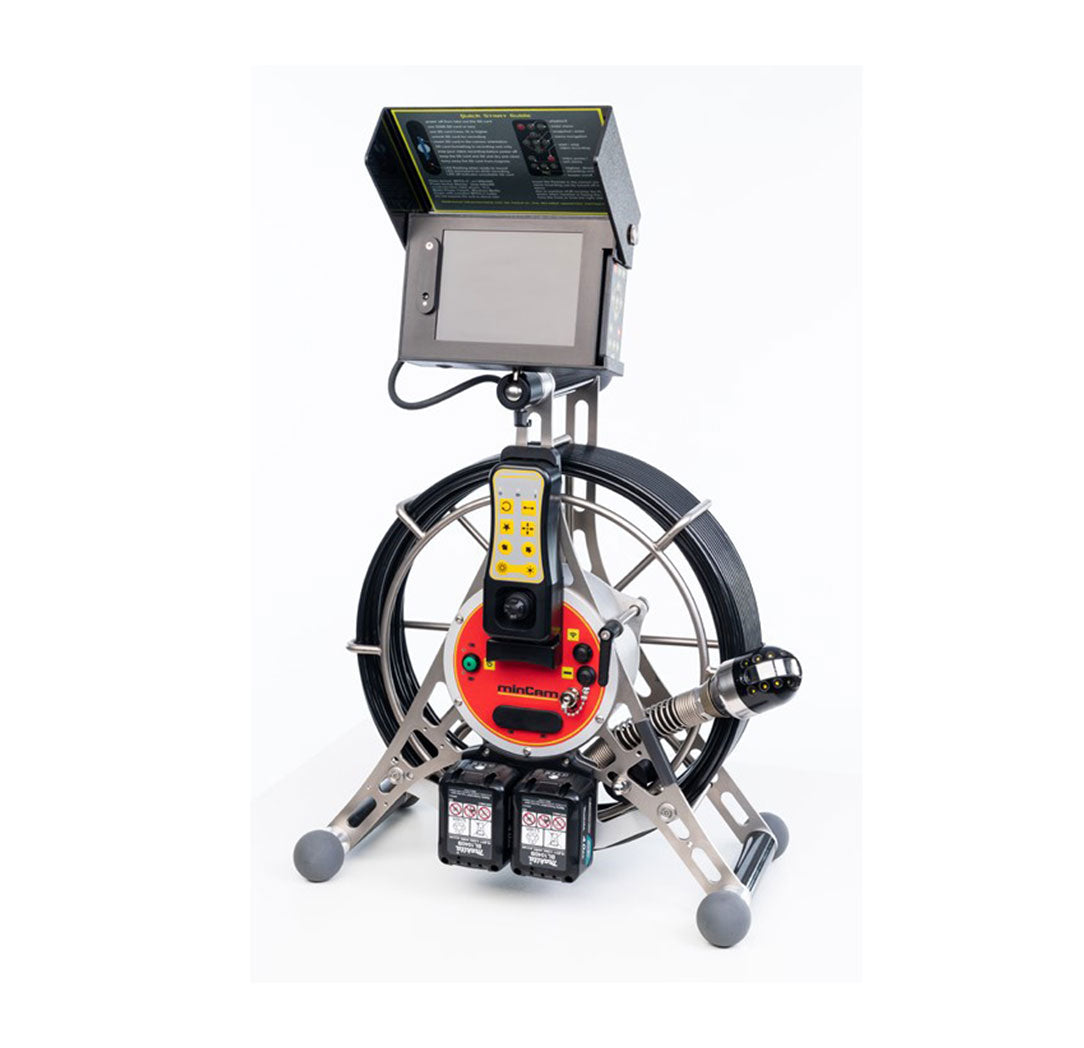

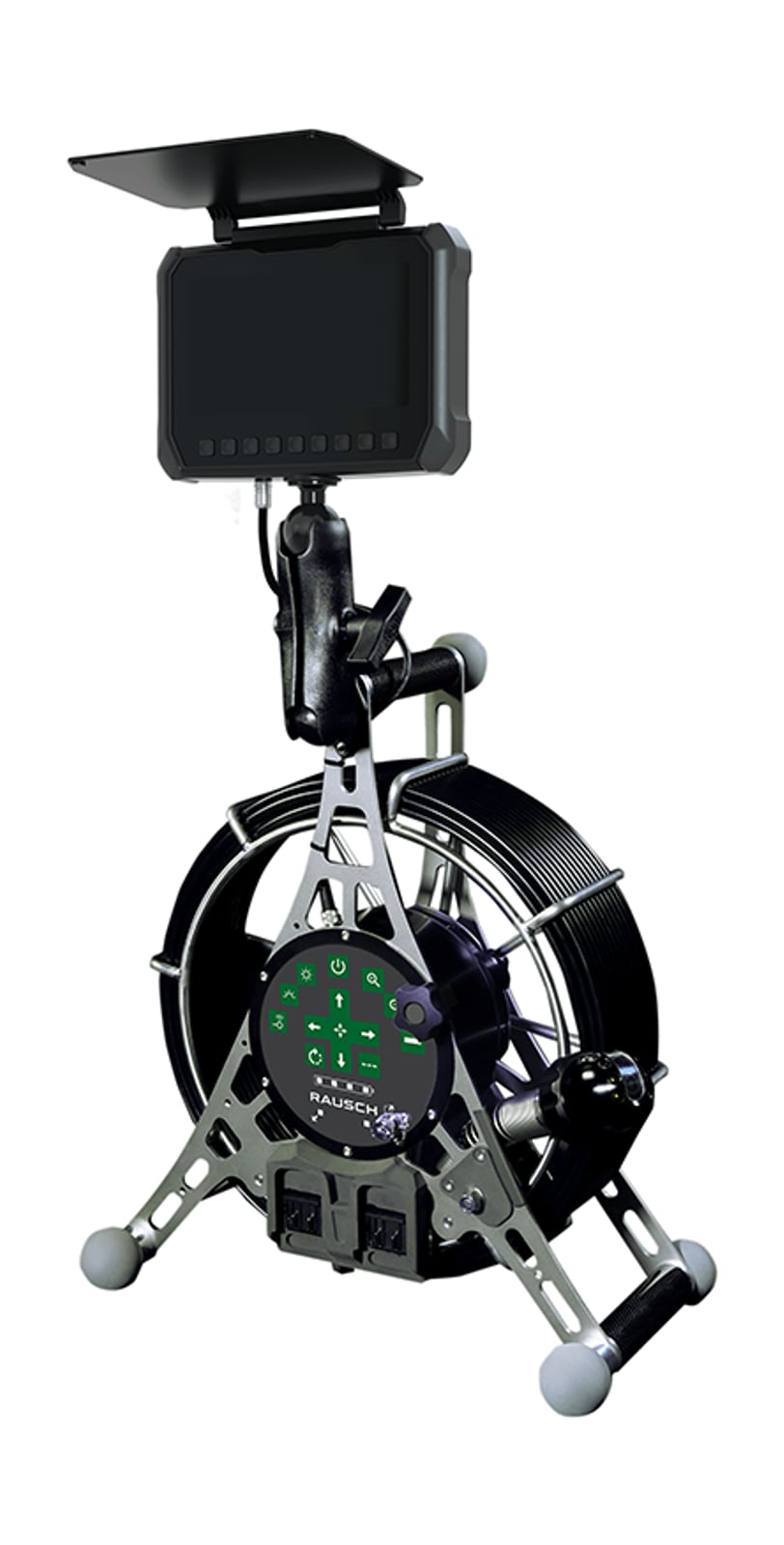

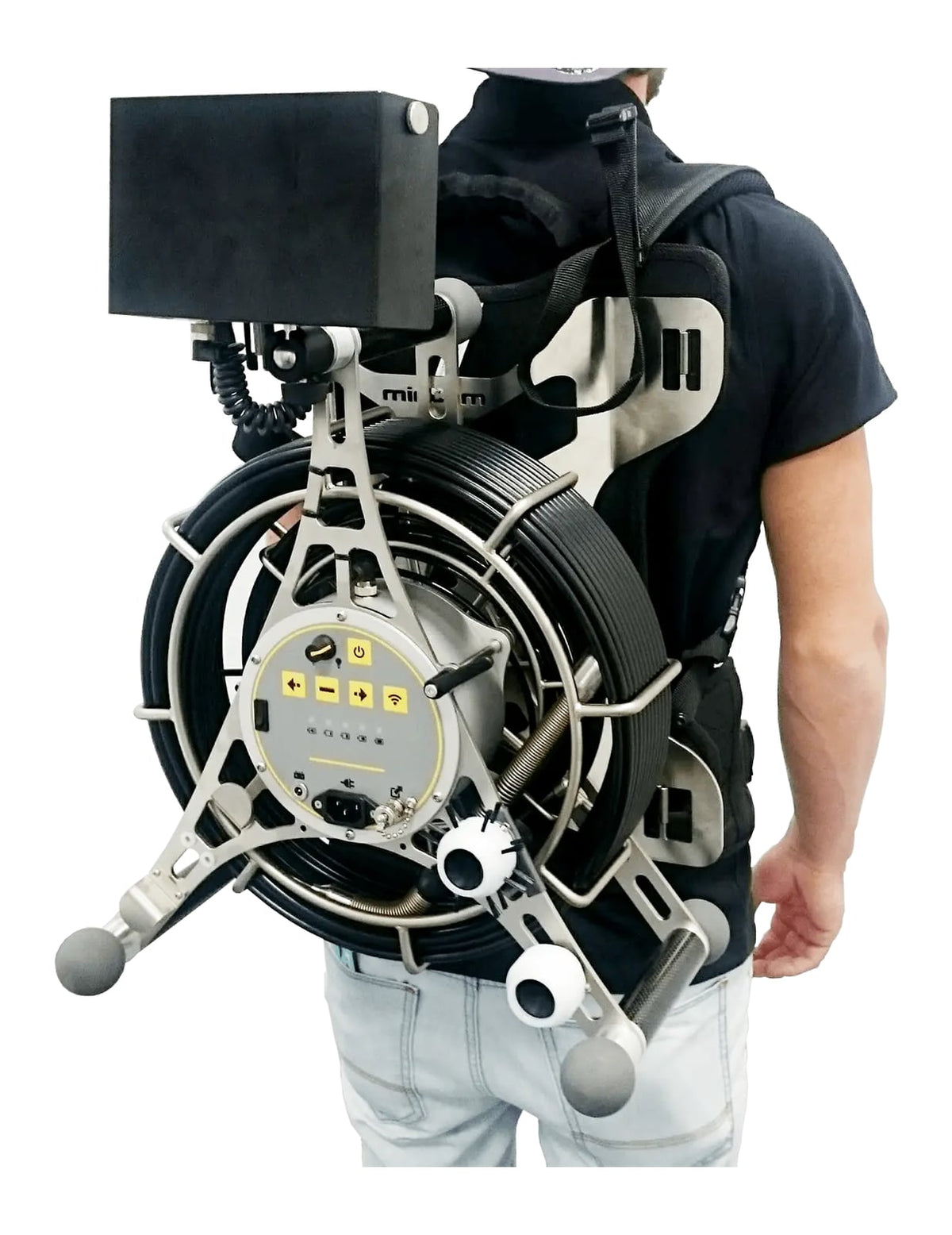

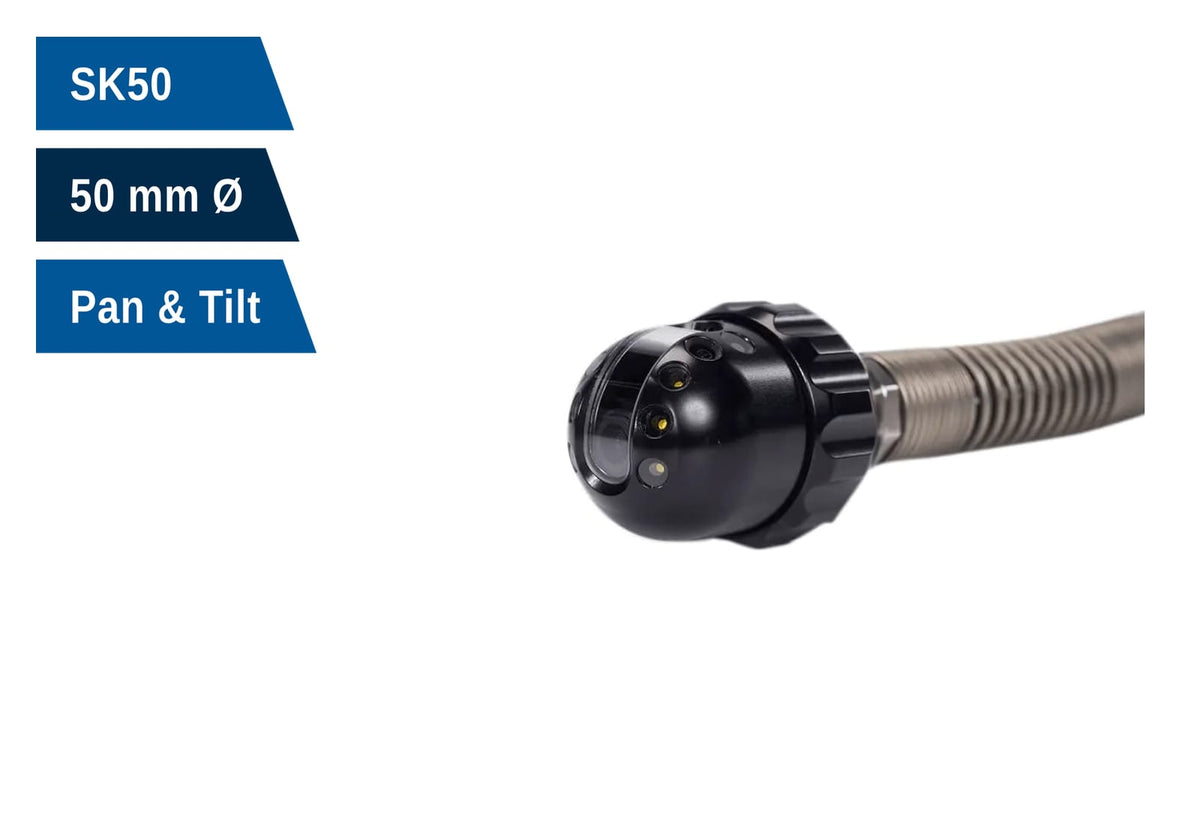

The minCam MC360 Compact is the portable pan and tilt pipe inspection camera in the Rausch minCam line. Its 50 mm SK50 head is one of the smallest pan and tilt heads on the market, so it goes into 3 in. lines that fixed-view push cameras can only look straight down. The reel carries 100 ft (30 m) of 9.2 mm push rod, the 7 in. control unit detaches so the operator can work at the access point, and the whole system is light enough to carry up a stairwell or into a confined space.

Why the MC360 Compact

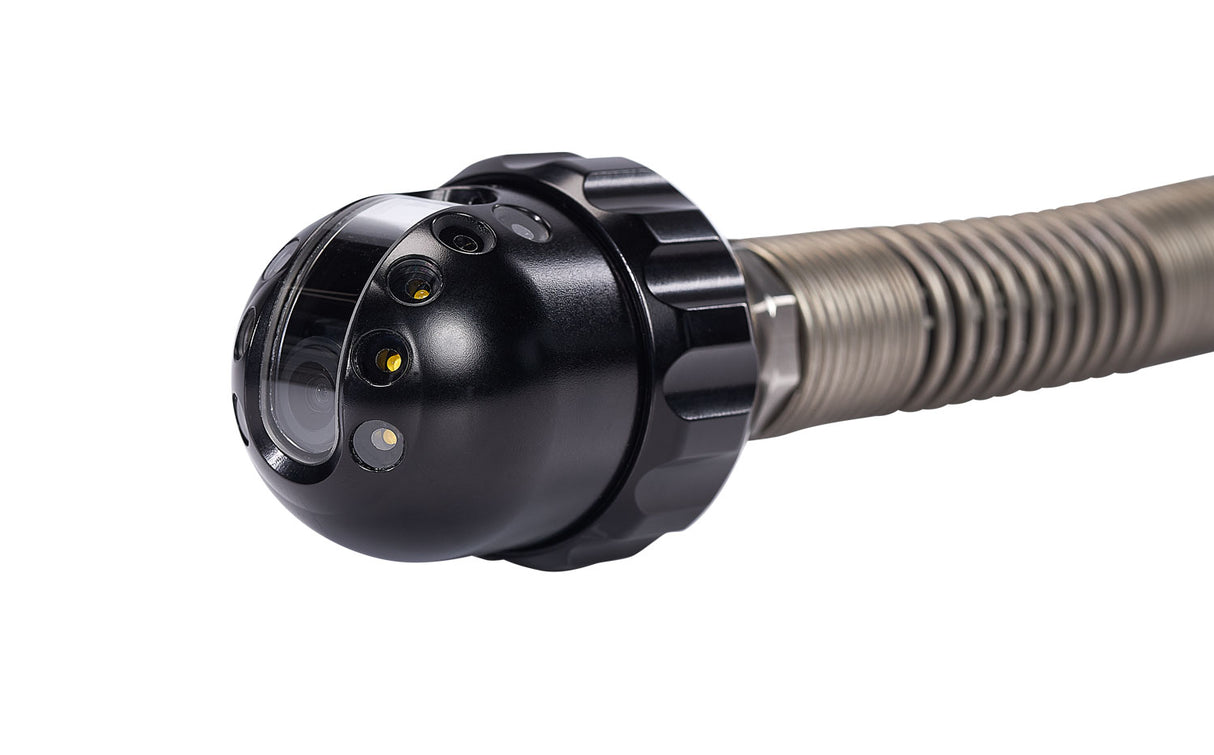

• Pan and tilt in a 50 mm head. Endless 360° rotation and 150° tilt aim the camera at joints, laterals, and the pipe crown without pulling the rod back for a second pass.
• Roll-In Device option. The RID steers the head into lateral connections so branch lines get inspected from the main without a separate access point.

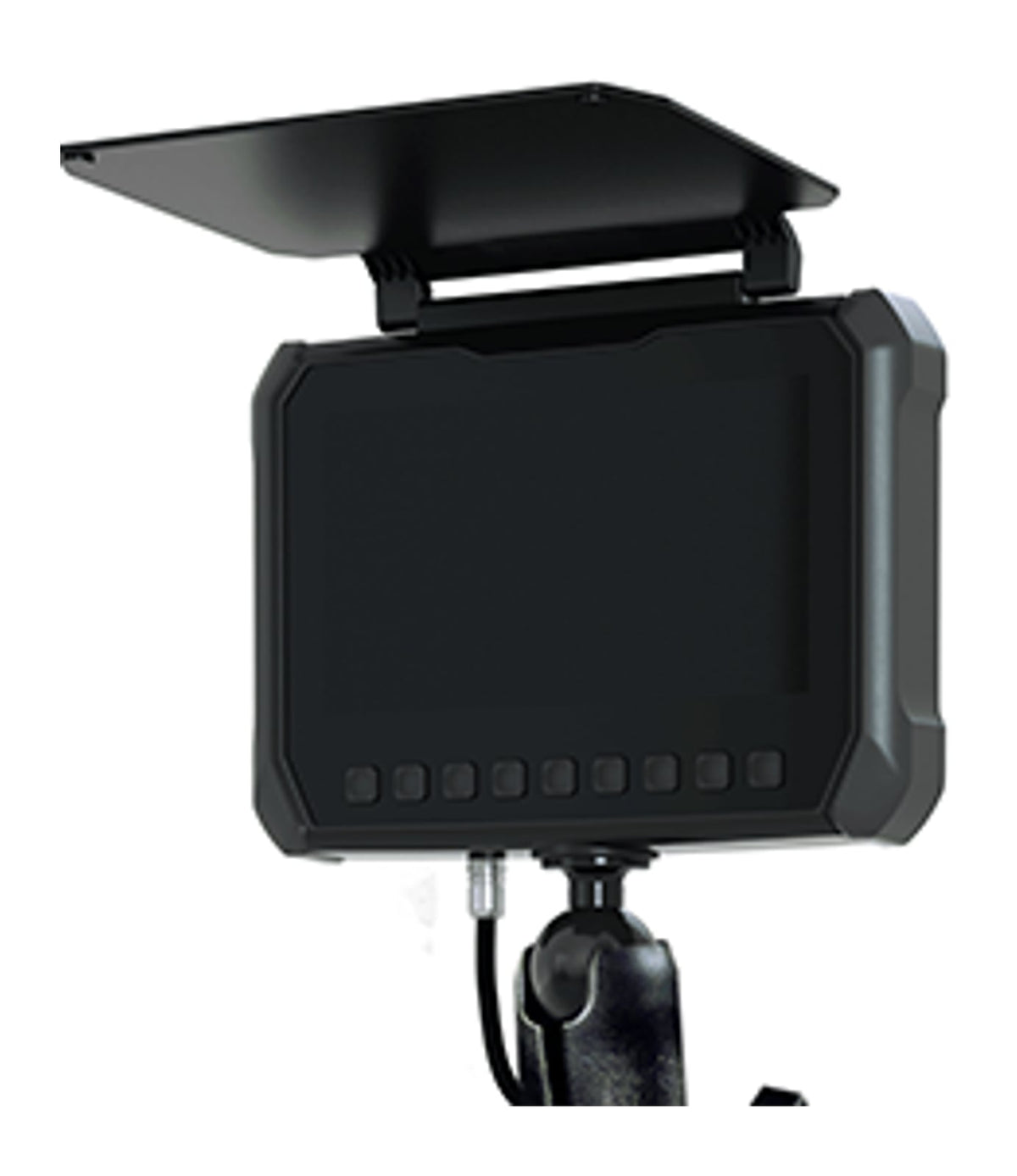

• Detachable 7 in. sunlight-readable control unit. Function keys and head control stay in the operator's hands, outdoors in full sun, away from the reel.

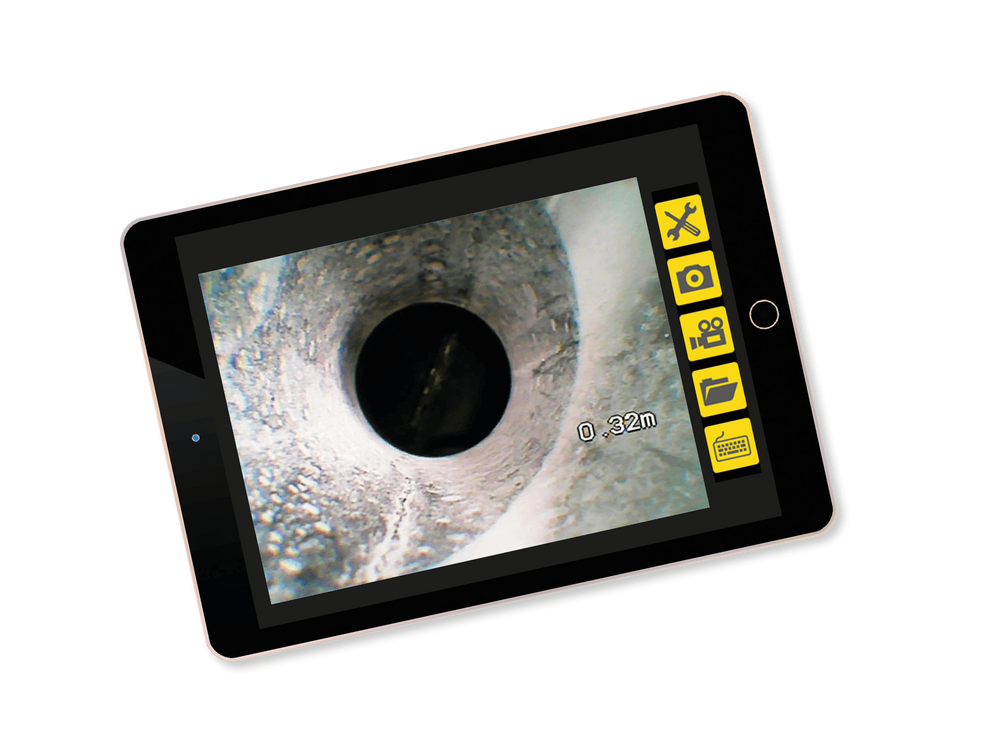

• WiFi and the Rausch Viewer app. Live video on a phone or tablet so a second person can watch or capture at the access point.
• 100 ft (30 m) of 9.2 mm push rod on a stainless steel and carbon reel. Stiff enough to push, flexible enough for 90° bends in 3 in. (80 mm) bore.
• Pressure-tight to 6 bar (87 psi). The SK50 keeps working in flooded lines.
• Dual-frequency sonde (512 Hz and 33 kHz). A standard locator finds the head from the surface so the crew can mark the defect after the visual call.
• Up to 4 hours per charge on interchangeable Li-ion batteries, or run on AC.

Choose the MC360 Compact if

You need pan and tilt in a package one person can carry and 100 ft of reach covers the job. For 200 ft or 300 ft runs and the larger 8.4 in. control unit, see the minCam MC360. For fixed-view inspection of 3 in. to 16 in. lines at a lower price, see the minCam MC50. Compare the full range of pan and tilt push cameras and pipe inspection cameras AIT supplies.

What is included

• MC360 Compact reel with 100 ft (30 m) of 9.2 mm push rod
• SK50 pan and tilt camera head, 50 mm
• Detachable 7 in. sunlight-readable control unit with WiFi
• Li-ion batteries, charger, and AC power supply
• Optional centering skids sized to the pipe range (quoted as needed)
• Operating manual

Buying, renting, and support

Request a quote with the form on this page or call (321) 610-8977. AIT configures the head, optional centering skids, and rod length to the lines you work on, supports the system after the sale, and offers push camera rentals for crews that want to run a job before they buy.

Related models: minCam MC360 · minCam MC50 · pan and tilt push cameras · push camera rentals
