RiFlexio Articulating Camera Rental

SKU: Riflexio Rental

Rent the world's only articulating push camera to make turn-offs in pipes. Also includes pan & rotate camera head with remote focus to view anywhere you need. Perfect for long pipe runs with connecting vertical pipes and turn offs.

Get statrted by completing our online Rental Agreement.

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

RiFlexio Articulating Push Camera Rental Overview:

  • Turn-off camera module: 87° articulation
  • Pan & rotate camera: 140° pan range, unlimited rotation
  • Remote control: adjusts focus, pan, rotate and articulation
  • Push cable length: 165 Ft (50m) x .04 in. (10.3mm)
  • Camera head diameter: 2.2 in. (56mm)
  • Construction: stainless steel frame
  • Power: 100v to 240v ac
  • Display: 5.6 in. high-resolution day bright LCD monitor
  • Recording: digital storage of video and .bmp images
  • Memory: removable SD card (32 GB max.)
  • Text: unlimited text and 60 memorized words
  • Distance counter: integrated distance counter
  • Video Out: BNC
  • Video In: BNC



RiFlexio articulating push camera Rental features and benefits

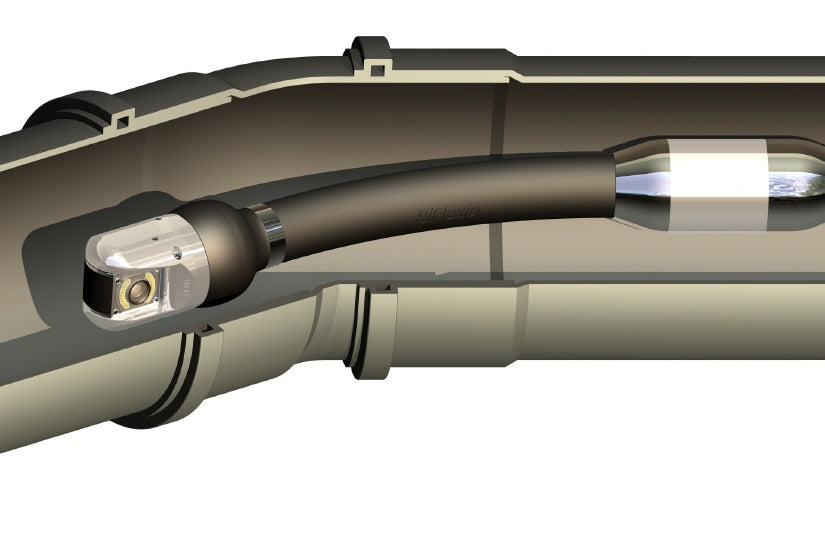

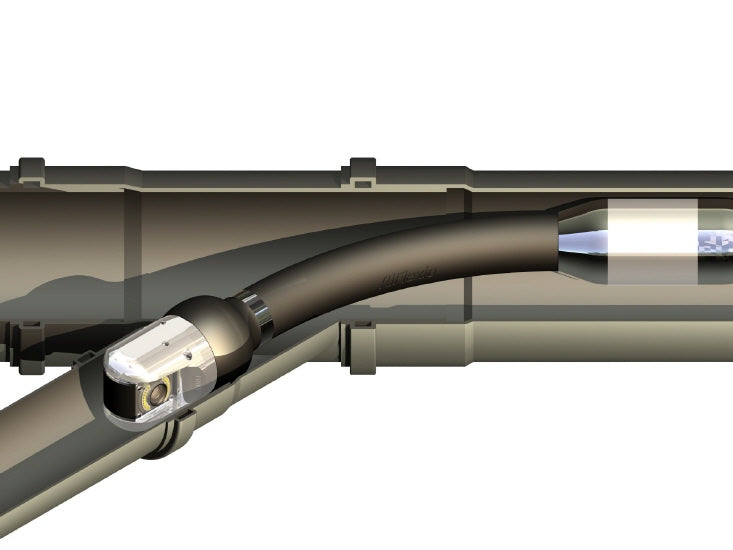

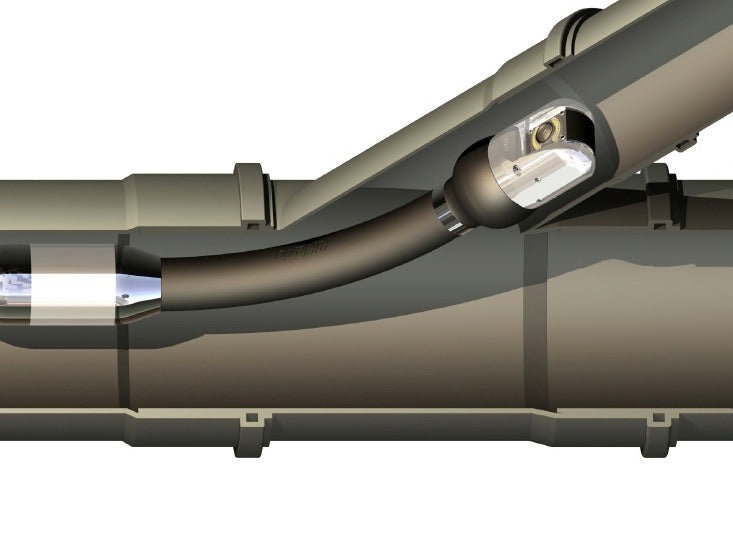

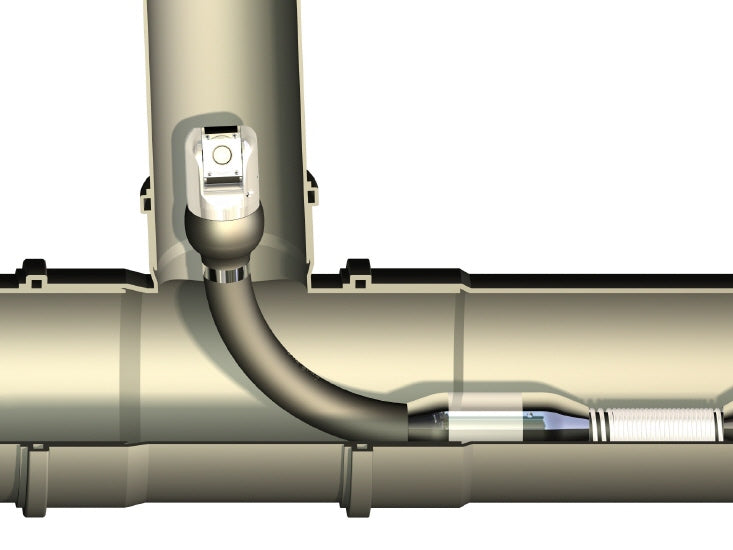

  • An articulating camera head allows the RiFlexio to be remotely steered in any direction desired, even vertical. This allows the camera to turn off where pipes join and go in any direction desired. No other push or pipe inspection camera can do this.
  • Remote focus camera allows the image to be adjusted for optimal resolution regardless of the camera head distance from the area being inspected.

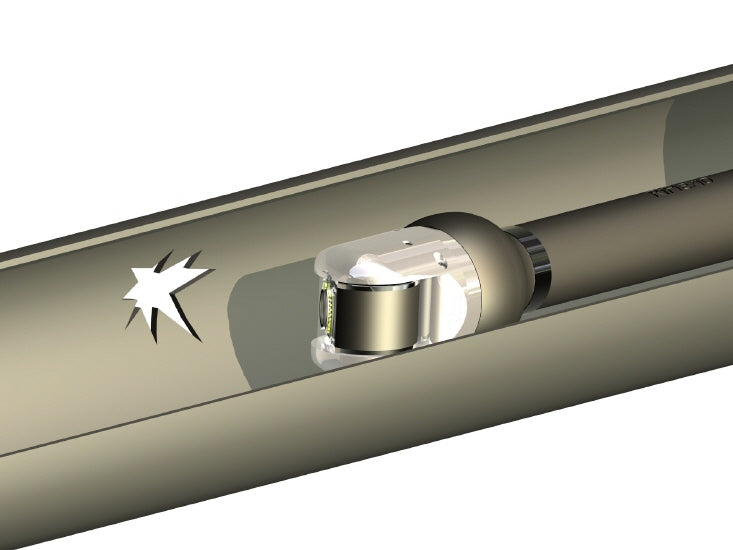

  • Pan & rotate camera allows you to scan the entire area being inspected, not just straight ahead.
  • Text annotation allows logging of inspection notes (serial numbers, dates, condition, location etc.). This saves time and allows for better reporting without the need to retype hand written data.
  • Interchangeable camera heads allows you to take replace the RiFlexio module with a smaller axial or pan & rotate camera depending on the needs of your application.
  • Removable SD card records still images and video for later review and easy transfer to a pc for reporting or sharing via email.
  • Adjustable led lighting allows adjustment of the image in extremely dark and highly reflective areas. This provides the optimum image for inspecting a variety of push camera applications.
  • High-resolution day bright TFT display with 640 x 480 resolution provides the best image possible in any lighting environment.
  • Optional sonde locator allows the exact detection of the camera head to isolate damage in a line for precise corrective action.
  • Meter counter displays length of push rod that is extended to assist in determining the location of damage within a pipeline.
  • Sapphire glass protects the objective lens for maximum durability to provide long life to the pipe inspection camera system.

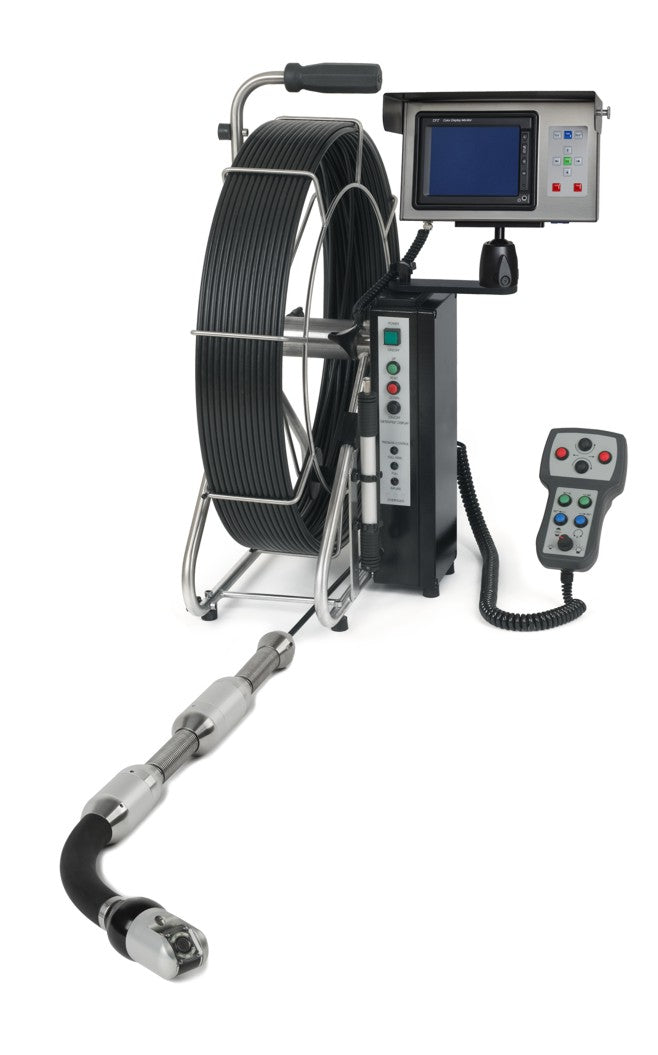

RiFlexio push camera system, includes:

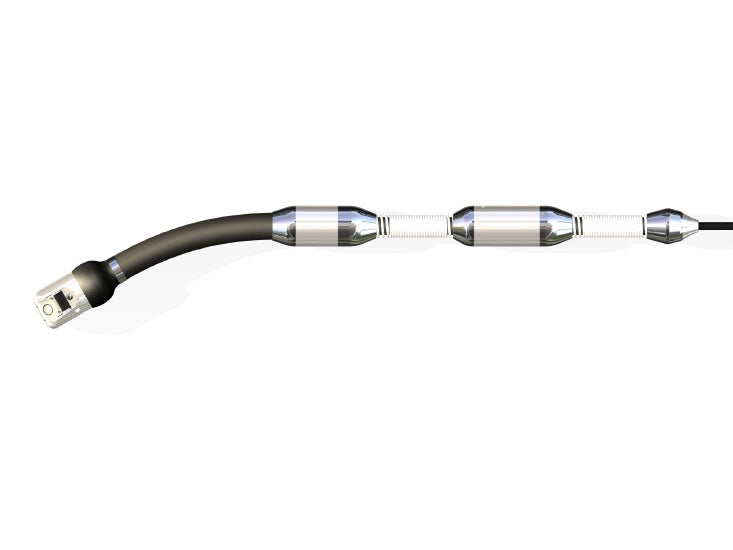

RiFlexio s turn off module with pan & rotate camera
  • For pipes 80mm to 200mm
  • Articulates 45 degrees in 80mm pipes, 87 degrees in 100mm and larger pipes
  • Angle of view range: +/- 141 degrees
  • Rotation: 360 degrees



Push cable with turn off module and pan camera
  • Camera control unit in waterproof housing
  • 50-meter push cable, 10.3mm diameter
  • Arresting brake
  • Friction guide
  • Video in: BNC
  • Video out: BNC
  • Power: 100 to 240v ac
  • Remote control unit for turn off module



Day bright TFT 5.6" color monitor
  • SD memory card slot
  • Adjustable swing arm
  • Robust metal housing and sun shield
  • Includes 2GB SD card
  • Records up to 6,000 still images and 14 hours video on 8gb sd card (max).
  • Best image in daylight
  • Brightness 500 cd/m2 with led backlight



Text generation
  • Free text
  • 60 preset words
  • Date and time stamp
  • Splash proof keyboard



Distance counter
  • Displays cable distance on screen
  • Preset and reset function
  • Display on or off
  • Feet or meter switchable

Process lines need to be inspected for condition.  The RiFlexio push camera is perfect for navigating the complex geometry of pipes and connections to check pipe walls, welds and joints for pitting, corrosion, erosion, cracking, scaling and other problems.

Cleaning Validation can be performed at pharmaceutical and chemical plants with RiFlexio articulating push camera. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated.  The RiFlexio can negotiate larger pipes and long distances. The combination a pan & rotate camera with the ability to articulate will leave no area uninspected.

Steam feed lines need to be inspected for interior condition. The RiFlexio push camera can use the combination of articulation, pan and tilt and remote focus to see scale build up, pitting, corrosion, cracking and other defects with ease.

Locate foreign objects, loose parts and other debris in industrial piping. The RiFlexio has the ability to navigate almost anywhere with the long length cable, articulating head, and pan, rotate and remote focus push camera head. Once the RiFlexio push camera locates the foreign material it can then be used to direct retrieval tools to remove the objects without tear down.

Process lines need to be inspected for condition.  The RiFlexio push camera is perfect for navigating the complex geometry of pipes and connections to check pipe walls, welds and joints for pitting, corrosion, erosion, cracking, scaling and other problems.

Cleaning Validation can be performed at pharmaceutical and chemical plants with RiFlexio articulating push camera. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated.  The RiFlexio can negotiate larger pipes and long distances. The combination a pan & rotate camera with the ability to articulate will leave no area uninspected.

Steam feed lines need to be inspected for interior condition. The RiFlexio push camera can use the combination of articulation, pan and tilt and remote focus to see scale build up, pitting, corrosion, cracking and other defects with ease.

Locate foreign objects, loose parts and other debris in industrial piping. The RiFlexio has the ability to navigate almost anywhere with the long length cable, articulating head, and pan, rotate and remote focus push camera head. Once the RiFlexio push camera locates the foreign material it can then be used to direct retrieval tools to remove the objects without tear down.
