Borescope care and maintenance is the routine process of inspecting, cleaning, handling, and storing a borescope so it remains ready for accurate remote visual inspection. The safest approach is to inspect the system before use, move the probe without force, clean only with manufacturer-approved materials, dry every component, and store the equipment in its protective case.
These habits protect more than the equipment. Clean optics support image clarity and, on measurement-capable videoscopes, can directly affect the reliability of stereo or phase measurements. Always follow the operating manual for the exact borescope, videoscope, fiberscope, or rigid scope in use.
The most important maintenance steps are gentle handling, a pre-use inspection, careful cleaning of the camera head and tip optics, complete drying, controlled storage, and immediate removal from service when damage is found. Clean optics before any critical measurement.
Why Small Maintenance Mistakes Become Expensive Inspection Problems
- Lens contamination can create hazy or misleading images. Oil, grease, lubricants, fingerprints, and fine residue may affect performance even when the tip does not appear heavily soiled.
- Probe damage can affect control and image stability. Kinks, abrasion, crushed sections, or loose braid can interfere with articulation and safe access.
- Moisture can create longer-term reliability problems. Damp connectors, batteries, cases, or metal components may contribute to corrosion or intermittent operation.
- Clean optics support inspection accuracy. A clean optical tip helps the operator separate actual surface conditions from contamination and is especially important when performing stereo or phase measurements.
Measurement Accuracy Example
- A contaminated measurement tip read a 0.100-inch reference as 0.105 inch.
- The same dirty tip read a 1 mm reference at approximately 0.046 inch, rather than roughly 0.039 to 0.040 inch.
- After cleaning, the 0.100-inch reference improved to 0.098 inch.
- After cleaning, the 1 mm reference improved to 0.039 inch.
- This example shows that optic cleaning is part of measurement preparation, not merely cosmetic maintenance.
Teams new to remote visual inspection can review what a borescope is and how industrial inspection cameras work. Operators using digital systems may also benefit from the guide to what a videoscope is.

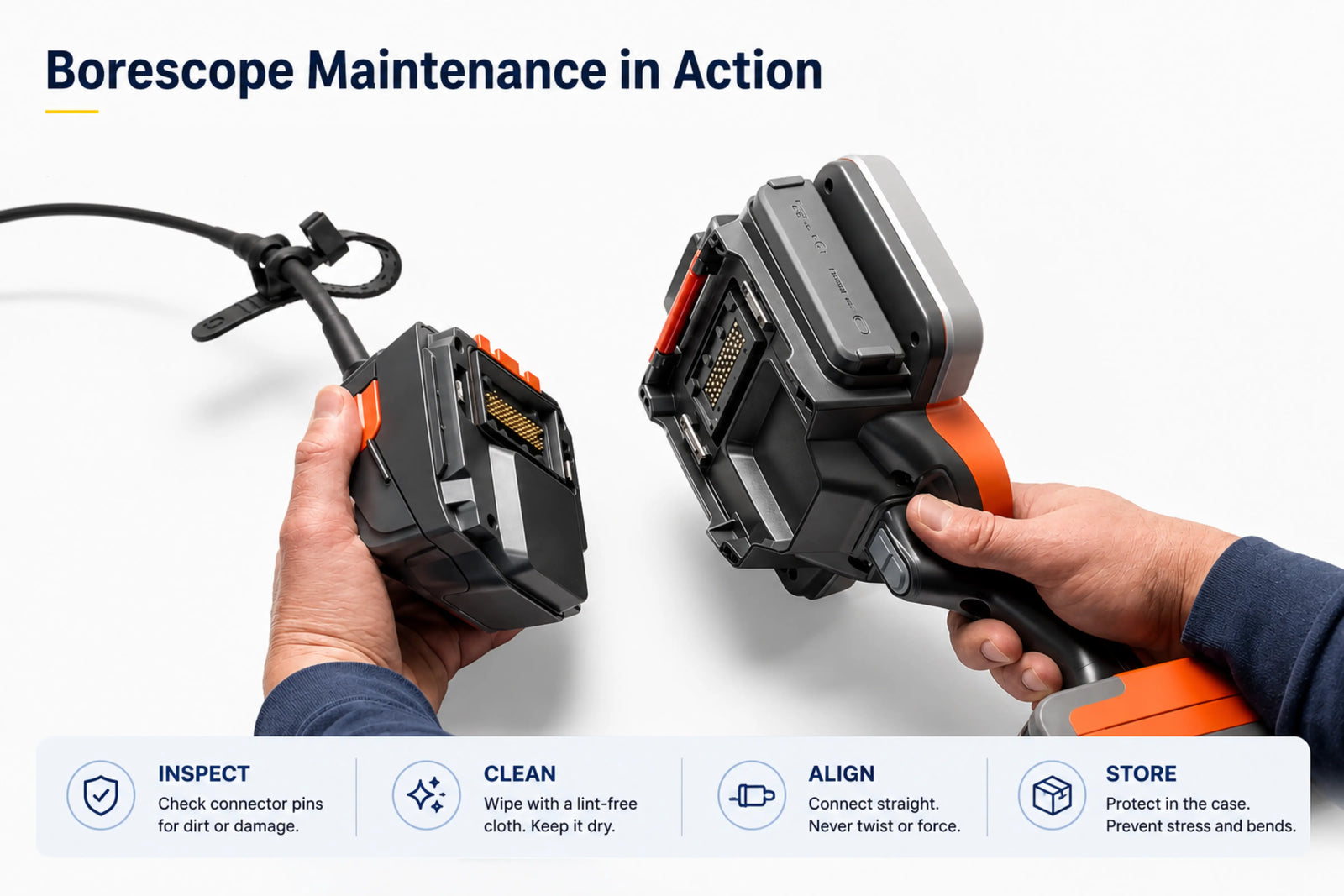

Use This Six-Step Borescope Maintenance Routine
Confirm cleaning agents, immersion limits, temperature limits, charging instructions, and storage requirements for the exact model.
Check the probe, bending section, distal tip, lens, connectors, housing, accessories, and power system for visible damage.
Straighten and relax the articulating tip before insertion or withdrawal. Never force the probe or controls.
Clean before critical measurements and after use. Remove contamination with approved materials and protect components not rated for liquid exposure.
Dry the system fully, then verify imaging, lighting, articulation, recording, and controls before storage.
Place the equipment in its fitted case with caps installed and cables arranged without tight bends.
Do not diagnose a blurry image or questionable measurement until the camera lens and tip optic have been checked. A thin oil film or fingerprint can imitate fogging, poor focus, or a surface defect without appearing heavily soiled.
How to Clean the Lens, Probe, and Control Unit Safely
- Power the system down first unless the manufacturer specifically instructs otherwise.
- Use a lint-free wipe or suitably sized micro-cleaning swab. Ordinary cotton swabs may be too large and can leave loose fibers around small optical features.
- Use only an approved cleaning solution. Moisten the wipe or swab without flooding the lens, camera head, connector, or tip assembly.
- Clean removable tip threads first. You can then hold the tip by its threaded body and clean the external optical face last, reducing the chance of leaving a new fingerprint.
- Replace dirty swabs frequently. A contaminated swab can move grease and debris from one surface to another.
- Inspect the camera-head attachment threads. Dirt on the threads can affect how securely and evenly the tip mounts.
- Clean the camera lens window. Even a light film can reduce image clarity or interfere with measurement performance.
- Inspect the illumination plate or light guide. Contamination can reduce light transmission and create uneven illumination.
- Clean the tip-alignment notch. Debris in this area can prevent the tip from seating flush, which may affect focus and measurement accuracy.
- Clean electrical contact pads only as directed. These contacts are present only on certain systems and should not be treated as universal components.
- Protect phase-measurement pogo pins. Keep the swab away from spring-loaded electrical pins because bent pins may make the tip unusable.
- Avoid unnecessary internal-lens cleaning. Clean an internal lens only when troubleshooting and when permitted by the manufacturer, because an O-ring or gasket may be displaced.
- Wipe the insertion tube carefully. Do not push residue toward joints or connectors, and inspect the braid, bonding areas, and bending section while cleaning.
- Treat the control unit separately. The display, housing, battery area, and connectors may not share the probe's water or chemical-resistance rating.
- Follow model-specific alcohol guidance. Some manufacturers permit approximately 70% isopropyl alcohol and water for routine optical cleaning, while stronger alcohol may be reserved for stubborn contamination and limited use.
- Inspect the finished tip under magnification. A microscope or high-magnification viewing method can reveal oil films and residue that are difficult to see with the naked eye.
- Verify measurement tips after cleaning. When applicable, use the manufacturer's verification block before critical measurements to confirm that the system is reading known dimensions correctly.
Source: https://www.youtube.com/watch?v=h-5YywGJ2ek
Watch the borescope optic cleaning demonstration
The video below shows how contamination can affect image quality and measurement accuracy, which components to clean, the correct cleaning order, and the precautions required around measurement-tip pins, internal gaskets, and optical surfaces.
Match the Maintenance Check to the Borescope Type
- Match the maintenance process to the scope design and the manufacturer's instructions.
- Give articulating videoscopes additional attention around the bending section, distal tip, articulation controls, camera head, and connectors.
- Protect fiberscopes from tight bends and twisting that can damage the fiber bundle.
- Protect rigid scopes from side loading, impact, and shaft bending.
- Do not treat the controlled flexibility of a semi-rigid scope as permission to create sharp bends.
Pre-Use and Post-Use Checklist for Inspection Teams
Six Borescope Care Mistakes to Stop Immediately
When Routine Care Is Not Enough
- Stop using the borescope if the insertion tube has cuts, crushed areas, exposed material, or loose braid.
- Remove the system from service if articulation becomes rough, limited, intermittent, or unresponsive.
- Do not continue using a tip with damaged optics, bent pins, loose internal parts, or repeated focus problems.
- Investigate intermittent video, lighting failure, unusual heat, liquid entry, or unreliable controls before the next inspection.
- Document the condition and prevent additional handling that could worsen the damage.
- Do not attempt field repairs unless the manufacturer authorizes them and the technician is properly trained.
- Arrange qualified assessment when routine cleaning and inspection do not restore normal operation.
Key Takeaways
- Use the operating manual as the final authority for cleaning and environmental limits.
- Inspect the probe, camera head, optical tip, threads, and alignment features before and after every job.
- Clean the camera head and measurement tip before performing critical measurements.
- Clean attachment threads first and the external optical face last.
- Never force insertion, withdrawal, articulation, connectors, or accessories.
- Avoid ultrasonic cleaning unless it is specifically approved for the exact tip.
- Clean with approved materials, dry fully, and store in the fitted case.
- Remove damaged equipment from service before the next inspection.
