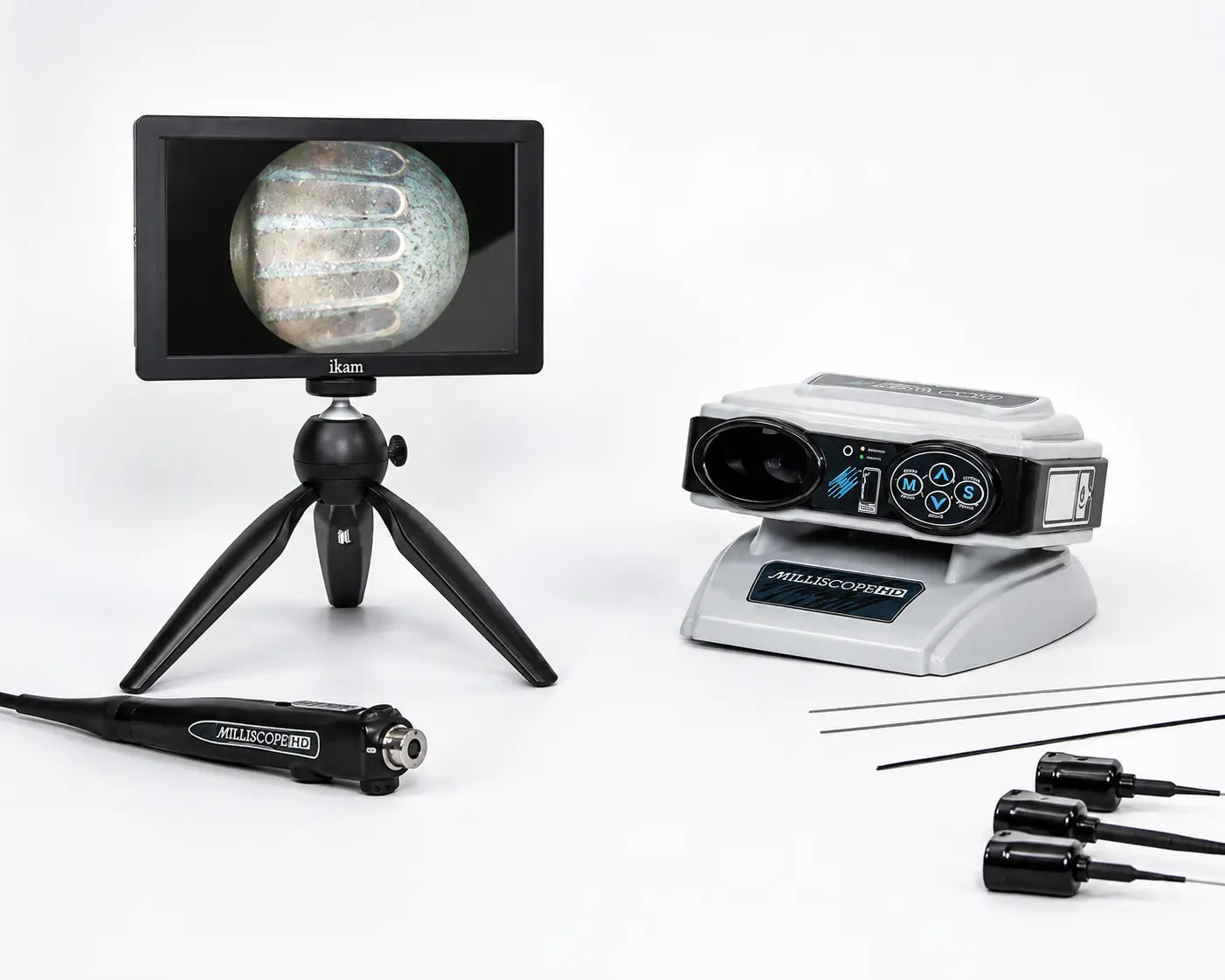

A fiberscope is a flexible optical inspection instrument that carries an image through an ordered bundle of glass fibers. It helps an inspector view internal areas when the entry point is narrow, the access route bends, or direct line of sight is unavailable.
Unlike a digital videoscope, an optical fiberscope does not depend on a camera sensor at the probe tip. The scene is transmitted through the fiber bundle to an eyepiece, where it can be viewed directly or captured through a compatible camera attachment.
Why the Name Matters Before You Compare Equipment
Terms such as fiberscope camera, video fiberscope, flexible borescope, and inspection camera are often used interchangeably. That can hide an important technical difference: where the image is formed.
In an optical fiberscope, the image is formed at the distal lens and carried through a coherent fiber bundle. In a videoscope, an electronic sensor near the distal tip converts the scene into a digital signal.
A camera connected to a fiberscope eyepiece can display or record the view, but the probe remains an optical instrument. Confirming that architecture prevents teams from comparing products that solve the same access problem in different ways.
How Does an Optical Fiberscope Work?
A fiberscope normally contains separate optical paths for illumination and imaging. These systems work together but perform different jobs.
Each fiber acts like one picture element. The arrangement must remain consistent from one end of the image bundle to the other, or the scene would not be reconstructed correctly.
Light stays inside the glass through total internal reflection. This optical principle allows the image path to bend with the insertion tube while still reaching the viewing end. For a general background on the technology, see this overview of the fiberscope.
Fiberscope, Fiberscope Camera, and Videoscope Compared
Where Industrial Fiberscopes Earn Their Place
Industrial fiberscopes are most useful when access geometry is the dominant problem. A micro fiberscope may enter an opening that cannot accept a larger digital probe, while a flexible fiberscope can follow a route that blocks a rigid instrument.

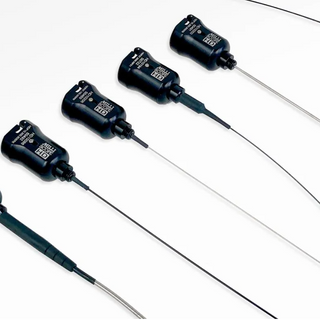

For extremely restricted access, the diameter difference is decisive. The Milliscope HD supports fiberscope diameters from 0.35 mm to 3.1 mm. In practical terms, when the required probe diameter is below 1 mm, a fiberscope should be one of the first inspection technologies evaluated.
Typical fiberscope inspection targets include internal passages in castings, machined components, turbine or engine areas, gearboxes, housings, weld regions, and compact assemblies. The application is less important than the access conditions: opening size, route curvature, working distance, and visibility at the target.
A fiberscope inspection camera can also support manufacturing checks where disassembly would add time, disturb the component, or make the original condition harder to evaluate.
Top Industries Where Fiberscopes Matter
The strongest fiberscope applications are usually found where access is extremely small, teardown is costly, or inspection evidence must be collected without disturbing the component. For AIT, the most important audiences include nuclear organizations, national research laboratories, aerospace teams, and other precision-engineering environments.
Usage intensity note: This is a qualitative AIT application-priority view based on access difficulty, inspection consequence, and observed demand. It is not a market-share percentage or published industry statistic.
Watch Milliscope HD in Action
See how an ultra-small fiberscope reaches a restricted internal passage that is difficult to inspect with a larger probe.
Milliscope HD lumen demonstration using a 1.5 mm fiberscope in a 2.0 mm lumen inspection application.
When a Fiberscope Is Not the Best Choice
An optical fiberscope solves access problems well, but it does not automatically provide the strongest digital inspection workflow. Teams that require large-screen viewing, frequent recording, image enhancement, measurement, or structured reporting may be better served by a videoscope.
Image appearance is also tied to the fiber bundle. If individual fibers break, they can appear as fixed dark points in the view. Excessive force, sharp edges, impact, or bending below the permitted radius can gradually reduce usable image area.
The correct choice is therefore not "optical versus digital" in isolation. It is the instrument that reaches the target, survives the route, and produces evidence suitable for the decision being made.
Six Checks Before Selecting a Fiberscope
Measure the smallest restriction, not only the entry point.
Map bends, offsets, obstructions, and sharp edges.
Verify that the probe can follow the route without overstressing the image bundle.
Select enough reach without adding unnecessary handling difficulty.
Decide whether forward view, side view, or tip control is required.
Account for temperature, fluids, debris, surface condition, and cleaning needs.
Probe diameter alone cannot answer these questions. A scope may physically fit through the opening but still be unsuitable for a tight turn. Review the practical factors behind fiberscope bend radius before committing to a curved inspection route.
Handling Mistakes That Damage Fiber Optics
Consistent inspection, cleaning, and storage habits help preserve image quality and reduce avoidable damage. Use this detailed guide to establish a repeatable fiberscope care and maintenance routine.
Key Takeaways
- A fiberscope is a flexible optical borescope that relays an image through a coherent glass-fiber bundle.
- Illumination fibers and image fibers perform separate functions inside the probe.
- A camera attached at the eyepiece does not turn the probe into a chip-at-the-tip videoscope.
- Industrial fiberscopes are strongest where access size and route curvature control the inspection.
- For sub-1 mm access, fiberscopes should be evaluated early. Milliscope HD configurations begin at 0.35 mm.
- Nuclear organizations, national research laboratories, aerospace teams, and precision manufacturers are priority audiences for micro fiberscope applications.
- Selection should account for bend radius, reach, viewing direction, environment, and documentation needs.
- Force, sharp edges, and tight loops can damage fibers and create permanent dark points in the image.
Choose a Scope That Can Reach the Inspection Area
A suitable fiberscope must do more than pass through the entry point. The complete access path, bends, working length, target orientation, environment, and documentation needs all affect whether the inspection can be completed successfully. Share those requirements with AIT to identify a configuration suited to the full inspection route.
Request Fiberscope Guidance
