Remote Visual Inspection · Tank and Vessel Inspection Guide
A PTZ inspection camera can pan, tilt, and optically zoom inside a tank or vessel. When access, geometry, lighting, and scope are suitable, it lets inspectors examine large internal areas from outside the confined space and can reduce personnel entry during the visual inspection phase.
The value is the ability to position the view, inspect distant surfaces, document findings, and decide where follow-up work is required before committing personnel to internal entry.
PTZ cameras support non-entry tank inspection by combining remote camera movement, optical zoom, lighting, and video documentation. They can reduce or avoid entry for defined visual inspection tasks, but they do not replace every NDT method or site-specific safety decision.
Why Traditional Tank Inspection Creates a High Setup Burden
Large storage tanks can present restricted access, dark interiors, complex structures, and hazardous atmospheres. Conventional internal inspection can require isolation, cleaning, ventilation, atmosphere testing, entry controls, rescue planning, and temporary access equipment.
Those controls remain essential whenever entry is required. Remote visual inspection can first examine the tank through an approved manway, nozzle, or hatch and provide evidence for the next decision.
Where PTZ Inspection Fits Within OSHA and API 653 Requirements
For facilities subject to OSHA's permit-required confined space standard, 29 CFR 1910.146 establishes requirements for evaluating permit spaces and controlling personnel entry. The standard addresses measures such as identifying and evaluating hazards, isolation, atmospheric testing, acceptable entry conditions, ventilation where applicable, attendants, permits, monitoring, and rescue provisions.
A remote PTZ inspection can reduce the need to place personnel inside a tank for defined visual inspection tasks. It does not change the regulatory classification of a confined space or eliminate OSHA requirements when personnel entry is still required.
API 653 inspection context
For aboveground storage tanks, API Standard 653, Tank Inspection, Repair, Alteration, and Reconstruction, provides the industry framework for tank inspection and repair activities. PTZ remote visual inspection can support visual condition assessment and help identify locations that may require closer examination, but it should be treated as one inspection tool within the broader asset-integrity program rather than a replacement for required measurements or complementary NDT.
How Pan, Tilt, and Optical Zoom Expand Inspection Coverage
A fixed camera shows what is directly ahead. A PTZ camera changes direction remotely, allowing the operator to scan broad surfaces and focus on specific areas.
Pan
Moves the view horizontally to sweep around the tank interior and follow circumferential features.
Tilt
Moves the view vertically to examine floors, walls, roof structures, nozzles, and elevated components.
Optical zoom
Magnifies distant details through the lens, helping preserve useful image detail better than relying only on digital enlargement.
This combination is useful when the access point is far from the target. Lighting remains critical because zoom cannot compensate for an inadequately illuminated surface.
Plan the camera position and lighting together. A powerful camera placed behind an obstruction or aimed across reflective residue can still produce incomplete coverage.
What a Non-Entry PTZ Tank Inspection Can Evaluate
The exact scope depends on tank design and access, but PTZ inspection can examine many visible internal surfaces and components.
RVI can locate and document suspected areas, but it cannot replace ultrasonic testing when quantitative wall-loss data is required.
A Practical Non-Entry Tank Inspection Workflow
Define the visual scope
List the surfaces, welds, nozzles, supports, and evidence the inspection must capture.
Verify access and environment
Confirm opening size, deployment path, tank geometry, atmosphere controls, cleanliness, and equipment suitability.
Plan coverage
Select the camera location, support method, lighting, cable route, and sweep pattern to minimize blind spots.
Capture systematically
Record overview images first, then zoom into findings while preserving orientation and location context.
Classify findings
Separate acceptable visible condition, monitoring items, cleaning needs, and areas requiring follow-up NDT.
Decide the next step
Use the visual evidence to support maintenance planning, targeted entry, repair preparation, or return-to-service decisions by authorized personnel.
Non-Entry Inspection Should Produce More Than Video
A successful remote tank inspection should create usable evidence that maintenance, reliability, and asset-integrity teams can act on. The goal is not simply to record footage, but to preserve enough context to understand where a finding is located, what it looks like, and what follow-up action may be required.
Repeatable remote inspection workflows increasingly emphasize inspection-ready digital output, consistent coverage, structured documentation, and data that can be compared across future outages. That approach helps teams turn remote camera access into better maintenance planning rather than a one-time video capture.
Build an inspection record that supports the next decision
What Can Non-Entry PTZ Inspection Save in a Real Application?
Non-entry PTZ inspection is valuable when the visual scope can be completed from an approved access point before a team commits to internal entry, temporary access equipment, or a broader inspection setup.
General storage tank application
12-meter ethylene oxide storage sphere inspected with remote PTZ
In one storage sphere inspection, a customer needed a remote visual review of internal surfaces while reducing the need for confined-space entry during the initial visual inspection phase. A PTZ camera system allowed the inspection team to position the camera through the access point, pan across broad surfaces, tilt toward elevated and lower areas, and zoom into areas that required closer review.
The value was not only the video capture. The PTZ inspection helped the customer review visible tank conditions, document areas of interest, and decide where cleaning, closer examination, or additional NDT may be required.
Note: This case summary is presented as a general PTZ application example. Final project outcomes depend on access, tank condition, atmosphere controls, inspection scope, lighting, and site safety requirements.

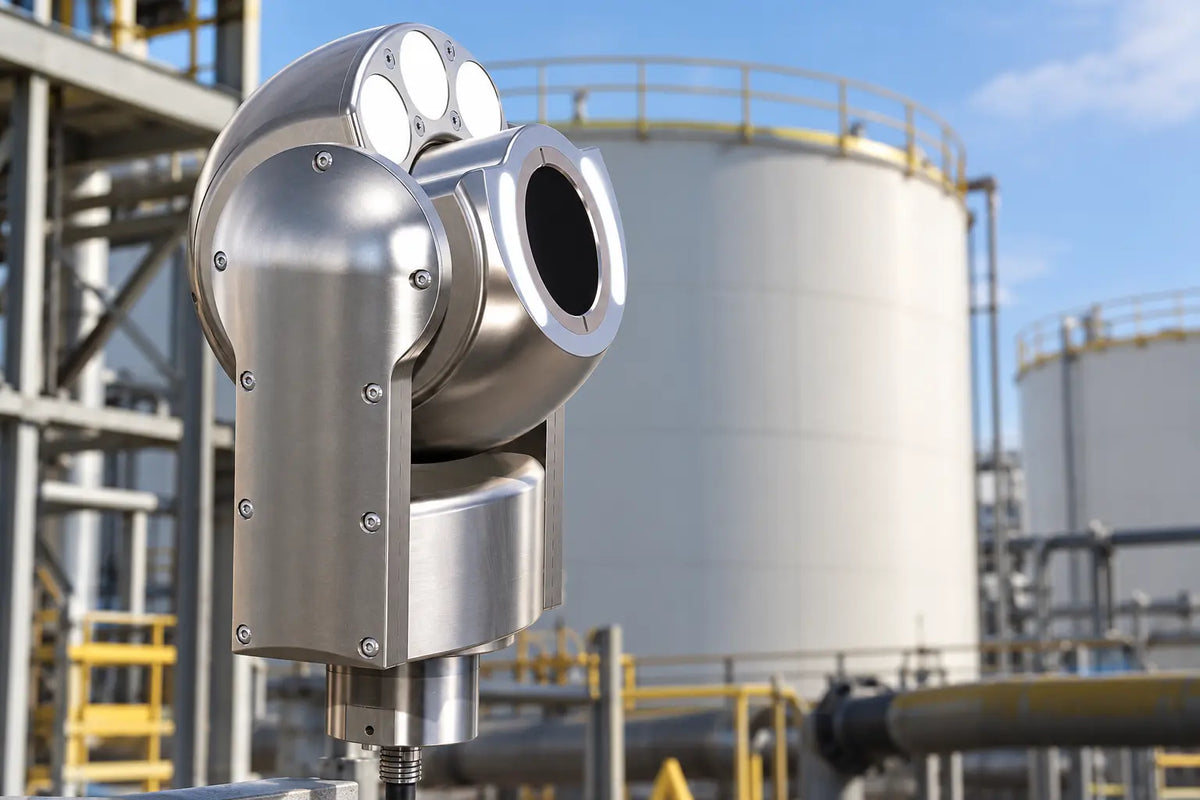

Where the XyloQ PTZ Inspection Camera Fits
The XyloQ PTZ inspection camera is designed for remote visual inspection of tanks, vessels, columns, piping, and other hard-to-reach industrial assets where pan, tilt, optical zoom, lighting, and remote documentation are needed.
XyloQ is a direct fit for applications that require a 30x optical zoom PTZ camera head, 1080p imaging, adjustable LED illumination, and controlled inspection coverage from a stable access point.
XyloQ is also compatible with RDM-10 Radiation Monitor
Do not select a PTZ system by zoom rating alone. Camera-head diameter, access opening, tank geometry, lighting, deployment hardware, environmental conditions, submersion requirements, controller compatibility, and reporting needs all affect whether the system fits the application.
When PTZ Inspection Is a Strong Fit and When It Is Not
Pre-Inspection Checklist for Better Coverage
Measure the opening and deployment path.
Review dimensions, internals, obstructions, and blind spots.
Estimate distance, reflectivity, and auxiliary light needs.
Verify suitability for atmosphere, temperature, liquid, and contamination.
Define image, video, reporting, and location requirements.
Agree on triggers for cleaning, entry, repair, or complementary NDT.
Key Takeaways
- PTZ inspection cameras can reduce or avoid confined space entry for defined visual inspection scopes.
- Pan and tilt provide directional coverage, while optical zoom and lighting support examination of distant internal features.
- Results depend on access, placement, geometry, environment, and a planned coverage pattern.
- RVI should guide decisions and follow-up work, not be presented as a replacement for every inspection method.
