The probe fits through the access port.
It moves forward a little farther.
Then suddenly, it does not want to go any deeper.
The diameter is correct. The probe is flexible. So what changed?
In many industrial inspections, the hardest part is not getting a borescope through the opening. It is getting the probe safely through everything that comes after it.

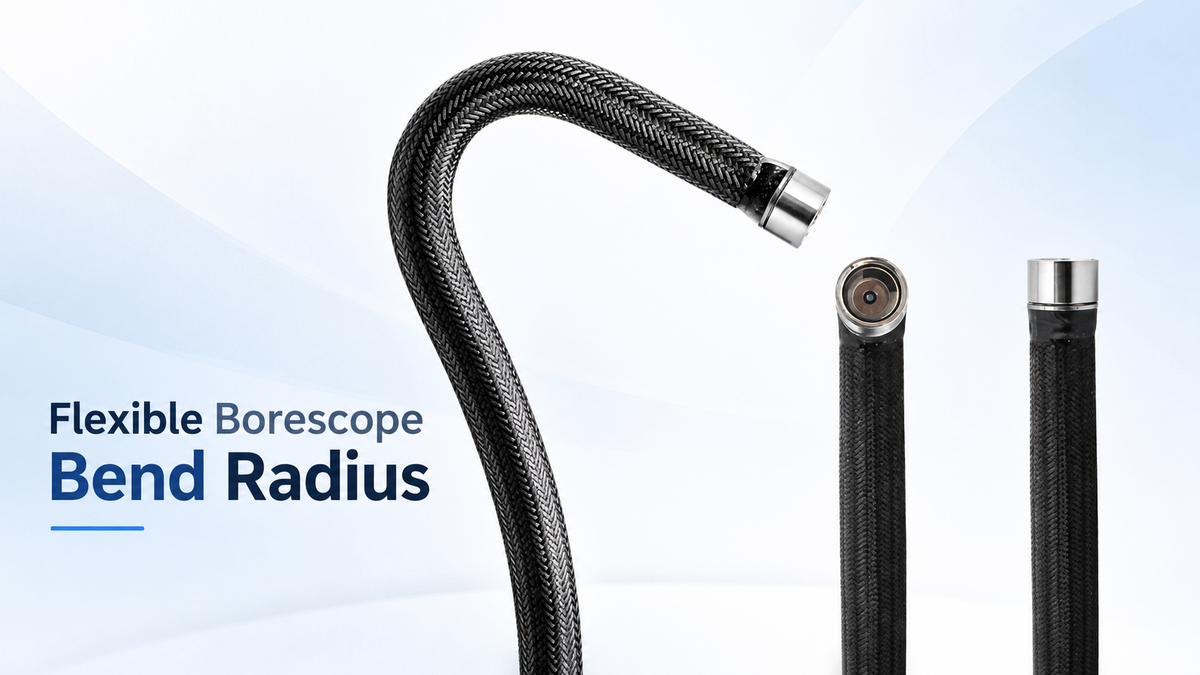

A flexible borescope bend radius helps describe how tightly the insertion tube can curve as it travels through an inspection path. That path may include offsets, elbows, internal restrictions, cast features, long cavities, or several bends before the camera ever reaches the target.
There is no single minimum bend radius that applies to every flexible borescope. Probe construction, diameter, insertion-tube design, working length, articulation system, and inspection geometry all influence how the probe should be routed.
If you are still getting familiar with industrial inspection cameras, AIT's guide to what a borescope is explains how modern borescopes are used for remote visual inspection.
The Access Hole Is Usually Not the Hard Part
Imagine an 8 mm access opening and a 6 mm probe. On paper, the probe fits easily.
Now imagine that behind that opening is a sharp internal turn around a casting feature. Suddenly, diameter is no longer the main challenge. The inspection has become a geometry problem.
The probe must successfully navigate every part of that route, not just the first opening.
That is why experienced inspectors think about access diameter, path length, internal turns, restrictions, unsupported sections, and the final viewing position together.
What Happens When a Flexible Borescope Approaches Its Minimum Bend Radius?
A flexible insertion tube may look like one simple cable, but it is carrying multiple functional components through the inspection path.
Depending on the system, those components can include imaging electronics, electrical conductors, illumination components, articulation elements, protective layers, and other internal structures.
When the probe follows a gentle curve, those components move with the insertion tube. As the route becomes tighter, more complex, or loaded against surrounding geometry, the mechanical demands on the probe increase.
Flexible does not mean infinitely bendable. The insertion tube is designed to follow inspection geometry, but it still has mechanical limits.
This is why the correct minimum bend radius should come from the requirements for the exact probe or system being used rather than from one generic number.
Bend Radius and Articulation Are Doing Two Different Jobs
This is one of the easiest concepts to confuse because both involve the probe bending.
A simple way to understand the difference is to think about your arm and wrist.
Your arm gets your hand into the general position. In the same way, the flexible insertion tube carries the camera through the inspection route.
Your wrist aims your hand once you arrive. The articulating bending section aims the camera toward the surface you need to inspect.
A videoscope can therefore have excellent articulation and still become harder to control if the insertion tube is traveling through several tight bends.
If you want a deeper explanation of tip control, AIT's guide to motorized vs. mechanical articulation explains how different steering systems affect inspection control.
How Multiple Bends Affect a Flexible Borescope Near Its Bend Limits
Here is something inspectors notice quickly in the field.
A probe can articulate smoothly while sitting on a workbench and feel noticeably different after several feet of insertion tube have been routed inside an asset.
The articulation system may not have changed. The route has.
A relatively straight insertion tube provides a simpler mechanical path between the operator and the distal bending section.
Additional bends can introduce more surface contact, friction, torsion, and changes in probe orientation before movement reaches the tip.
Every additional bend can introduce more contact with surrounding surfaces, friction, torsion, and changes in probe orientation.
That means some of the movement applied at the control end has to work through a more complicated mechanical path before the tip reaches the position you want.
Current Mentor Visual iQ+ operating guidance reflects this principle by recommending that the insertion tube be kept as straight as practical during operation and by noting that loops and bends can affect steering performance.
The Tightest Bend Can Matter More Than the Longest Distance
It is easy to assume that long inspections are automatically difficult and short inspections are automatically easy.
That is not always true.
A long inspection with a relatively gentle route may be easier to control than a much shorter inspection containing one extremely tight turn.
Do not ask only, "How far away is the inspection target?" Also ask, "What is the hardest turn between the access point and the target?"
That single question can reveal more about whether a probe is suitable than working length alone.
Does a Smaller Borescope Automatically Bend Tighter?
It is tempting to think that a smaller probe always means a smaller minimum bend radius.
Sometimes smaller-diameter probes can navigate tighter spaces, but diameter alone does not determine how a flexible borescope should be routed.
Probe construction matters too.
Two probes with similar diameters may use different internal components, protective structures, articulation systems, working lengths, or bending-section designs.
That distinction is especially important when comparing fiberscopes and modern videoscopes.
AIT's fiberscope bend radius guide includes bend-radius information for specific fiber configurations. Those values should not be treated as universal limits for every flexible borescope or videoscope.
If your application involves extremely small openings or precision access, AIT's micro borescope guide explains how small diameter, access geometry, viewing requirements, and inspection technology interact.
The Moment You Feel Resistance, the Inspection Is Telling You Something
Resistance is not just an inconvenience. It is feedback from the inspection path.
When probe behavior changes, the route may be telling you that the geometry, orientation, or friction has changed.
The probe may have reached a restriction, obstruction, sharp turn, or unfavorable orientation.
Several bends or loops may be increasing friction or reducing effective tip control.
The insertion tube may have rotated while moving through the inspection path.
The surrounding geometry may be placing load on the insertion tube or bending section.
The correct response is generally not to add more force.
Withdraw slightly, relax the articulation where appropriate, reposition the insertion tube, and reconsider the route.
AIT's guide to borescope care and maintenance provides additional guidance for protecting the probe during inspection and handling.
Why the Part of the Probe Outside the Asset Still Matters
Inspectors naturally focus on the probe inside the equipment, but the insertion tube outside the asset is still part of the mechanical system.
Imagine trying to steer a garden hose through a pipe while several loops of hose are lying behind you.
Movement at one end has to work through those loops before it reaches the other end.
The same basic idea helps explain why unnecessary insertion-tube loops can influence steering response.
Keep the accessible insertion tube reasonably straight and organized while working. Good external routing can make the internal inspection easier to control.
Current MViQ+ operating guidance also recommends avoiding sharp bends and maintaining appropriate insertion-tube routing during operation.
Sometimes the Best Flexible Borescope Setup Includes Something Rigid
Flexibility is useful where you need flexibility.
But not every part of an inspection route needs to bend.
For example, imagine a probe entering through a large housing before eventually reaching a smaller internal passage.
A guide tube or rigidizer can support the insertion tube through open or straight areas so the flexible portion is easier to control when it reaches the more complex part of the route.
Current MViQ+ documentation identifies rigid and semi-flexible guide tubes as accessories that can help support the insertion tube during insertion or when spanning recessed areas.
You can also explore AIT's VideoProbe accessories for application-specific probe support and inspection setups.
Before You Insert the Probe, Mentally Drive the Route
One of the simplest ways to improve a difficult borescope inspection is to think through the route before inserting the camera.
Do not visualize only the final target.
Mentally drive the probe from the access point all the way to the inspection surface and then back out again.
That last question is easy to overlook.
An inspection path is not complete when the camera reaches the target. The probe still has to be withdrawn without catching the distal tip or placing unnecessary stress on the bending section.
For articulating videoscopes, follow the manufacturer's procedure for relaxing or straightening the bending neck before withdrawal.
A Better Way to Think About Minimum Bend Radius
Minimum bend radius is not just another specification in a product table.
It is part of the relationship between the probe and the route the inspector is asking it to travel.
That is why choosing a flexible borescope should start with the inspection path rather than with camera resolution alone.
For readers who want a broader understanding of modern inspection systems, AIT's guide to what a videoscope is explains how probe design, articulation, imaging, and inspection workflow come together.
Key Takeaways
- A probe fitting through the access opening does not guarantee that it can navigate the complete inspection path.
- There is no universal minimum bend radius for every flexible borescope or videoscope.
- The insertion tube and articulating tip perform different jobs.
- Multiple bends, external loops, friction, and probe rotation can change steering behavior.
- The tightest turn can matter more than the overall inspection distance.
- A smaller probe diameter does not automatically mean a specific minimum bend radius.
- Resistance is useful feedback. Do not substitute additional force for understanding the route.
- Plan the entry path, inspection position, and withdrawal path before inserting the probe.
The goal is not simply to find a probe that fits the opening. It is to find a probe and inspection setup that can reach the target, remain controllable through the route, and return safely after the inspection.
