Interchangeable probes let an inspection team change probe diameter, working length, viewing configuration, or other probe characteristics while continuing to use the same core inspection system. In industrial remote visual inspection, that can remove a common source of downtime: stopping a job because the current probe cannot fit, cannot reach, or has been damaged.
AIT offers several borescope platforms built around interchangeable or detachable modular probe systems, including the AIT K Series HD Videoscope, AIT T Series HD Videoscope, Mentor Flex+ VideoProbe, Mentor Visual iQ+ HD VideoProbe, and VUMAN E3/E3+. Their probe ranges and feature sets differ, but the operating idea is similar: match the probe to the route instead of forcing one fixed configuration to cover every inspection.
Interchangeable probes can reduce borescope inspection downtime by letting one core system cover different probe sizes and lengths, and by allowing a compatible backup probe to replace a damaged probe when the platform supports field changes.
Where Borescope Inspection Downtime Really Starts
Borescopes already reduce one major source of maintenance downtime by giving inspectors internal access without unnecessary teardown. Once remote visual inspection is the chosen method, the job can still stall for a simpler reason: the probe does not match the route.
That mismatch can happen before the first image is captured or halfway through an inspection. A route may narrow farther inside the asset, a longer reach may be needed, another inspection area may require a different probe size, or the active probe may be damaged during field work.
The Probe Will Not Fit
The access port may be large enough while a deeper restriction is not. If the probe cannot pass the full route, the inspection stops before image quality matters.
The Probe Cannot Reach
A configuration that works for one port may be too short for another. Longer routes can require a different probe length even on the same asset.
The Probe Is Damaged
Probe damage can turn a usable control unit into unavailable equipment when the probe is fixed to the system or no compatible backup is staged.
The Next Asset Is Different
A turbine, gearbox, pipe, valve, or heat exchanger may present a different opening, bend radius, reach, or viewing requirement than the previous inspection.
Fixed Probe Vs Interchangeable Probe: What Changes In The Workflow
The probe connection changes what the team can do when the inspection requirement changes after the equipment is already on site.
Interchangeability only saves time when the right spare probe is already available. Before an outage or field job, verify probe diameter, length, optical tips, batteries, guide tubes, and backup needs instead of treating the control unit as the only critical item.
How Interchangeable Probes Help Keep An Inspection Moving
A modular probe platform works best when the inspection route is planned first. The aim is to make a probe change straightforward when a different route, asset, or inspection requirement calls for it.
Record the smallest opening, total reach, bends, target direction, and working environment.
Choose the probe that covers the primary inspection path without forcing unnecessary diameter or length.
Move to another compatible probe when a different route or asset requires a different diameter, length, or viewing setup.
Stage a compatible spare when downtime risk is high and the inspection window cannot wait for probe service.
The Biggest Downtime Advantage Can Appear When A Probe Is Damaged
Probe damage is one of the clearest reasons interchangeable probes matter. With a fixed-probe system, damage to the insertion tube, bending section, or camera assembly can take the whole videoscope out of service until it is repaired or replaced.
On a field-changeable platform, a compatible backup probe can keep the core system in use while the damaged probe is handled separately, provided the inspection procedure and product configuration allow the change.
Repair and careful probe handling still matter, but only the damaged probe may be unavailable when a compatible spare can be fitted. For recurring inspections, outages, and field programs, spare-probe planning can be more practical than staging a complete second system.
For tips, guide tubes, batteries, retrieval tools, and other field items, AIT also maintains VideoProbe accessories and replacement parts. Teams planning outage work can also use AIT's VideoProbe accessory selection guide to check common compatibility details before the inspection date.
One Core System Can Support Very Different Industrial Inspection Jobs
Interchangeable probes become more useful when the same inspection team moves between assets with different access conditions. The value comes from configuration flexibility rather than treating one probe as universal.
Aviation And Helicopter MRO
Engines, gearboxes, and drivetrain components can require different access paths. Waygate's helicopter inspection resource highlights the value of visual access where conventional gearbox disassembly is labor intensive. View the helicopter inspection resource.
Power Generation And Wind
Wind and turbine inspection routes can differ by component and access port. A modular probe platform can help the same inspection team cover restricted openings, longer routes, and different viewing requirements without carrying a separate control unit for every setup. View the wind inspection resource.
Pharmaceutical And Process Assets
Valves, piping, vats, welds, cleanliness checks, and corrosion reviews can create different viewing requirements within the same facility. Probe changeability can also simplify handling when contamination control matters. View the pharmaceutical inspection resource.
General Industrial Maintenance
Machinery, piping, heat exchangers, and confined internal components often vary by route. A team may need a smaller diameter for one asset, more reach for another, or a working-channel configuration when compatible foreign object retrieval is part of the job.
Probe Interchangeability Is Only One Part Of Reducing Inspection Downtime
Changing probes addresses one source of interruption. Other delays can come from hot equipment, poor image orientation, repeated data entry, or a second access cycle when a visible indication still needs to be measured.
Inspect At Higher Temperature
Mentor Flex+ is specified for optimized imaging at probe-tip temperatures up to 100°C. Where the maintenance procedure allows it, that can reduce cooling wait time before inspection.
Keep Orientation Clear
Orientation tools such as Always-Up and Auto-Rotate on Mentor Flex+ can help inspectors maintain a consistent view while navigating complex internal paths.
Reduce Reporting Friction
Guided capture and connected reporting on platforms such as Mentor Flex+ and Mentor Visual iQ+ can reduce repeated tagging, file handling, and manual report preparation.
Measure Without Re-Access
Real3D measurement options on Mentor Flex+ and Mentor Visual iQ+ can support defect sizing during the same inspection when the procedure requires more than visual confirmation.
In September 2026, the FAA proposed repetitive borescope inspections for certain CFM56 engines because of reported high-pressure turbine seal concerns. The proposal does not specify a particular borescope model. For teams running recurring borescope inspections, equipment readiness, backup planning, and repeatable records remain operational priorities.
Choose The Interchangeable-Probe Platform Around The Inspection Route
The best starting point is the route: smallest opening, total reach, bends, viewing direction, temperature, measurement requirement, and whether retrieval or another specialty function is needed. The platforms below cover very different ranges, so interchangeability does not make them interchangeable with one another.
If defect measurement is a deciding factor, AIT's guide on when 3D borescope measurement is needed can help separate visual-only work from measurement-driven inspections.
Interchangeable-Probe Borescopes Available From AIT
AIT K Series HD Videoscope pairs one control unit with interchangeable probe options from 1.0 mm to 8.0 mm. The platform is built for teams that move between tight access points, longer routes, and different viewing directions across MRO, power generation, manufacturing, and plant maintenance.
Motor-driven articulation, front, side, and dual-view configurations, hot-swap power, and onboard reporting make the K Series a strong fit when one inspection team needs a broad range of probe setups without carrying a separate videoscope for every job.
AIT T Series HD Videoscope uses a detachable modular probe system so the same core unit can be configured around different access points, insertion lengths, viewing directions, and inspection modes.
Mechanical joystick articulation, probe locking, multiple standard diameters, and an optional UV and white-light configuration make the T Series useful for teams that need a configurable platform without moving to a larger advanced measurement system.

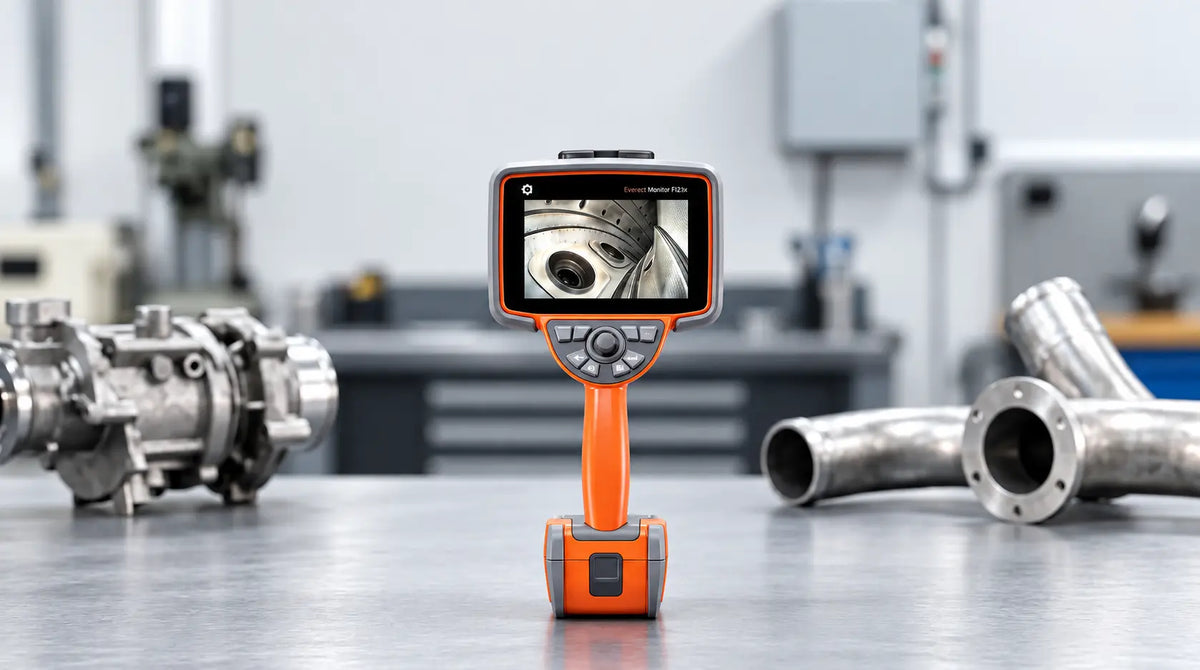

Mentor Flex+ VideoProbe is a configurable industrial video borescope for teams that need one handset to cover changing access routes, measurement needs, and inspection environments.
Interchangeable 4.0 mm, 6.1 mm, and 6.2 mm probe families sit alongside TrueSight imaging, Real3D measurement, optimized imaging up to 100°C, guided inspection capture, and InspectionWorks connectivity. The 6.2 mm working-channel option also supports compatible foreign object retrieval tools.
Mentor Visual iQ+ HD VideoProbe
Mentor Visual iQ+ HD VideoProbe is built for inspection programs where probe flexibility, dimensional measurement, and repeatable data capture all matter.
The platform supports interchangeable probes across multiple diameters, compatible small-diameter USB probe options, Real3D Stereo, 3D Phase Measurement, Menu Directed Inspection, and connected reporting. It fits programs where the inspection result may need measured defect data rather than visual evidence alone.
VUMAN E3/E3+ is a long-range industrial videoscope system built around interchangeable INVIZ probes. Probe changes can be made on site so one base unit can support different diameters and working lengths.
With probe diameters from about 6.4 mm to 12.7 mm and working lengths from 5 m to 30 m, VUMAN is aimed at long pipes, tubes, vessels, and other industrial routes where reach becomes the main selection constraint.
When Interchangeable Probes Add Less Value
Interchangeable probes are most useful when inspection routes change, multiple assets share one inspection team, or a backup-probe strategy matters. A repeatable inspection through one fixed access path may be well served by a fixed-probe system.
Probe range still sets the limits. Interchangeability cannot make a probe fit an opening outside its diameter range or extend beyond the available working length. AIT's Remote Visual Inspection Tool Selection Guide starts with the route, environment, and evidence requirement before narrowing the product family.
For outage work or recurring inspections, also decide whether a compatible backup probe should be part of the setup. AIT can review the smallest opening, total reach, bends, viewing direction, inspection temperature, measurement needs, retrieval requirements, and backup strategy before you request a quote or demo.
Key Takeaways
- Interchangeable probes can reduce one source of downtime when the active probe is the wrong size, too short, or damaged while the core system remains usable.
- AIT's interchangeable and modular platforms cover very different diameter, length, articulation, measurement, and application ranges.
- A backup strategy only helps when the compatible spare probe and required accessories are already available.
- High-temperature imaging, guided workflows, connected reporting, and 3D measurement can address other delays beyond probe changes.
- Start with the inspection route and procedure, then choose the platform and probe configuration that fit them.
