A UV videoscope is a type of industrial videoscope that brings ultraviolet illumination into internal areas that are hard to see directly. In fluorescent penetrant inspection, it can help an inspector view fluorescent indications inside aerospace bores, passages, cavities, and other limited-access geometry after the component has been processed under the approved penetrant procedure.
For aerospace teams, the useful question is not simply whether a videoscope has UV light. The probe still has to fit the access path, reach the target, show the surface from the right direction, and support the viewing method required by the inspection procedure.
Use a UV videoscope when fluorescent penetrant indications must be viewed inside a component that cannot be examined directly. The AIT TU configuration uses a dedicated 6 mm front-view probe with UV and white light. Choose the standard T Series when the job needs white-light RVI or different probe and viewing options.
What A UV Videoscope Adds To Aerospace FPI
Fluorescent penetrant inspection is used to reveal discontinuities that are open to the surface. Penetrant enters those openings during the approved process, and the retained fluorescent material is then viewed under ultraviolet illumination.
A UV borescope does not replace that process. Its job is to bring the viewing point into an internal area where the inspector cannot get a direct line of sight with a normal UV lamp and unaided vision.
That distinction matters in aerospace work. The penetrant process creates the indication, while the videoscope gives the inspector a way to see that indication inside geometry that would otherwise require more disassembly, a different access method, or a direct line of sight that may not exist.
This is also why a UV videoscope should not be treated as a stand-alone crack detector. The value comes from combining the approved fluorescent penetrant process with a camera, probe, and light source that can reach the inspection area and present the indication clearly enough for the inspector to evaluate it under the governing procedure.
The FPI Process Creates The Indication
Cleaning, penetrant application, excess penetrant removal, development when required, and examination conditions still come from the controlling inspection procedure.
UV Makes Fluorescence Visible
Ultraviolet illumination excites the retained fluorescent penetrant so the indication can be seen against the surrounding surface.
The Videoscope Solves The Access Problem
An articulating probe carries the camera and light into a bore, passage, cavity, or other area that is difficult to examine from the outside.
The videoscope is part of the examination setup, not a replacement for the FPI procedure. Confirm UV-A output, working distance, visible-light limits, penetrant system, and approval requirements before acceptance work.
Why Internal Aerospace FPI Is Harder Than Bench Inspection
A fluorescent indication can be clear on an open bench and still be difficult to examine inside a component. Internal geometry introduces access limits, bends, viewing-angle problems, and surfaces that may only be visible from one direction.
That makes probe selection part of the inspection plan. A 6 mm UV probe is useful only if the complete route accepts that diameter and the front-view camera can see the surface that matters.
The entry hole is only the first checkpoint. The route may narrow deeper inside the component, change direction, or place the target on a surface that cannot be viewed head-on. Those details can matter more than the nominal size of the access port.
Reach matters for the same reason. A probe that fits but stops short of the target still does not solve the inspection problem. Before selecting a UV system, map the smallest restriction, total insertion distance, major bends, and the direction the camera needs to face when it arrives at the inspection area.
- Confirm the smallest opening along the complete insertion route, not only the entry port.
- Confirm the working length and whether a front-view camera can see the target surface.
- Verify that the approved FPI procedure permits the planned remote viewing method.
- Confirm the required UV examination conditions and recordkeeping before acceptance work.
White Light First, UV Second: A Practical Inspection Flow
The dual-mode idea matters because navigation and fluorescence examination are different tasks. White light helps the inspector understand geometry and position the probe. UV is then used for the fluorescence check.
Complete the required FPI preparation and penetrant steps.
Reach the target and confirm the surrounding geometry.
Examine the processed surface for fluorescent indications.
Record the indication with enough context to identify its location.
Apply the governing indication and acceptance criteria.
Integrated white and UV illumination lets the inspector navigate in visible light, then examine fluorescence without losing the target location.
That can make the workflow easier to control inside complex parts. White light provides normal surface context so the operator can identify features, orientation, and nearby geometry. After the probe is positioned, UV mode is used for the fluorescence check without requiring a second scope or a separate re-entry path.
Image capture also becomes more useful when the inspector records both context and the fluorescent indication. A white-light image can show where the probe is positioned, while the UV image can document what became visible during fluorescence examination. The exact documentation method should still follow the site's inspection procedure.
AIT T Series Vs TU: The Difference Is Small But Important

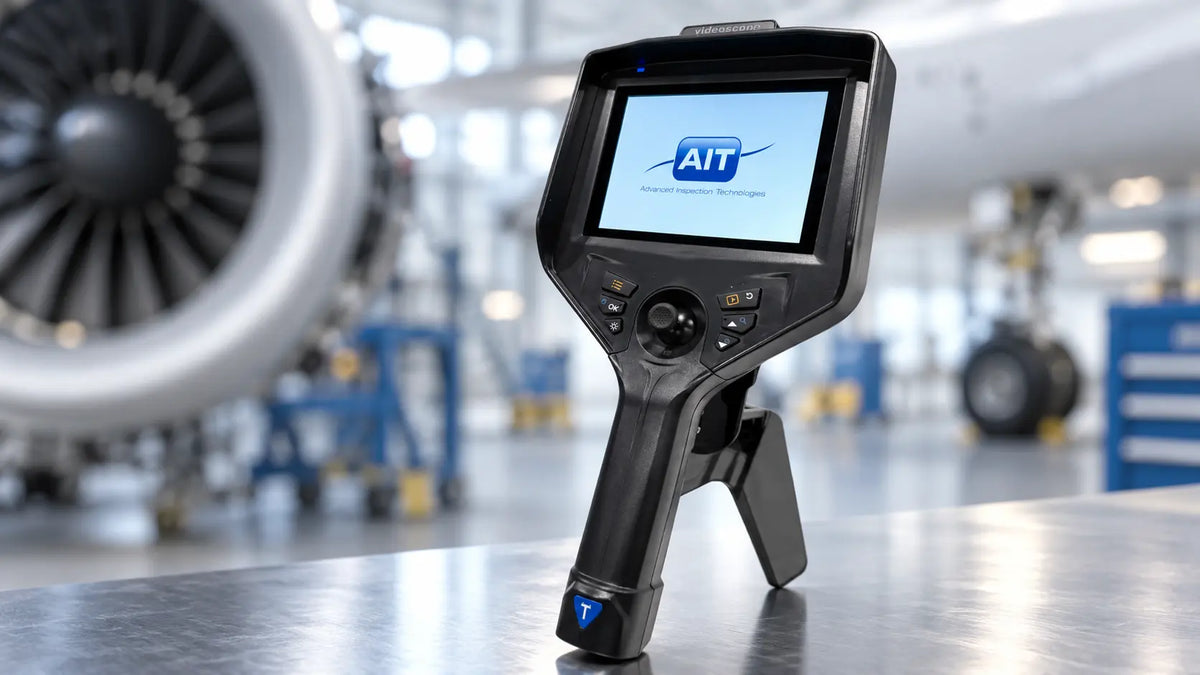

The AIT T Series HD Videoscope is the standard white-light configuration for general remote visual inspection. The TU configuration uses the same product family but adds a dedicated UV and white-light probe for compatible fluorescence inspection procedures.
Both configurations are part of AIT's broader remote visual inspection offering. For company background, inspection focus, and support context, visit About AIT.
The important buying difference is not that one version is generally better. The T Series gives the inspection team more flexibility in probe diameter and viewing direction for normal white-light RVI. The TU configuration is more specialized because its dedicated 6 mm front-view probe is built around UV and white-light fluorescence work.
For an aerospace shop that performs both general internal visual inspection and fluorescent penetrant work, that difference should be planned around the actual jobs. If most inspections need smaller diameters or side viewing, the standard T configurations may cover more day-to-day work. If the recurring requirement is internal fluorescence examination and the 6 mm front-view route fits, the TU configuration becomes the more direct match.
AIT T Series For Standard White-Light RVI
The T Series is the broader white-light option, with multiple probe diameters, lengths, and viewing directions. Choose it for routine aerospace RVI, smaller access routes, or jobs where side or dual viewing matters more than UV illumination.
Review the AIT T Series brochure for current configuration details.
AIT TU Series For Fluorescence Inspection
The TU configuration uses a dedicated 6 mm front-view probe with white and ultraviolet illumination. It is available in 1.5 m, 3.0 m, and 5.0 m lengths, so access diameter and target orientation should be checked before ordering.
Review the AIT TU Series brochure for the UV and white-light configuration.
When The TU Configuration Is The Right Fit
The TU Series makes the most sense when the inspection requirement is already clear: a processed fluorescent penetrant surface must be viewed inside a limited-access aerospace component, and a 6 mm front-view probe can reach and see the target.
- Your approved process requires fluorescence examination.
- The complete route accepts the 6 mm probe and front-view approach.
- A 1.5 m, 3.0 m, or 5.0 m insertion length reaches the target.
- White-light navigation and UV viewing are useful in the same inspection.
If the job does not need fluorescence, or the geometry needs a smaller diameter, side view, or another specialized configuration, start with the standard T Series instead of forcing the TU probe into the application.
What To Confirm Before Ordering A UV Videoscope
Start with the inspection procedure, not the camera catalog. The procedure should tell the inspection team what examination conditions matter, while the component tells you what probe geometry is physically possible. The videoscope has to satisfy both sides of that decision.
Next, confirm the relationship between the probe and the target surface. Diameter, insertion length, articulation, and viewing direction determine whether the camera can actually reach the indication area. For the TU configuration, the 6 mm diameter and front-view design should be checked against the complete route before a quote is finalized.
Then review how the inspector will work once the target is reached. If white-light navigation, UV examination, still-image capture, and video documentation are all part of the workflow, the setup should support those steps without making the operator repeatedly withdraw and reposition the probe.
Finally, separate product capability from procedure approval. A videoscope can provide UV illumination and remote viewing, but the inspection organization remains responsible for confirming that the equipment, settings, calibration practices, and examination conditions meet the requirements of the procedure used for acceptance work.
Four Buying Mistakes To Avoid With A UV Borescope
Buying UV Before Checking The Procedure
UV capability alone does not prove that a scope is approved for your FPI process. Confirm the examination conditions and equipment requirements before purchase.
Checking Only The Entry-Port Diameter
The smallest restriction may be deeper inside the component. Review the full route, bends, and target position before deciding that a 6 mm probe will fit.
Ignoring The Viewing Direction
The TU configuration is front view. If the surface sits on a sidewall or behind geometry that cannot be approached head-on, another probe arrangement may be required.
Treating A Bright Indication As An Acceptance Decision
The videoscope helps you see and document fluorescence. Final evaluation still follows the indication criteria in the controlling inspection procedure.
Key Takeaways
- A UV videoscope extends fluorescent penetrant viewing into internal aerospace areas that are difficult to examine directly.
- The videoscope supports the examination stage but does not replace the approved FPI process or acceptance criteria.
- The AIT TU configuration uses a dedicated 6 mm front-view UV and white-light probe in 1.5 m, 3.0 m, and 5.0 m lengths.
- Choose the standard T Series when the job needs white-light RVI or other probe diameters and viewing directions.
- Confirm the route, view, length, and procedure requirements before requesting a quote.
