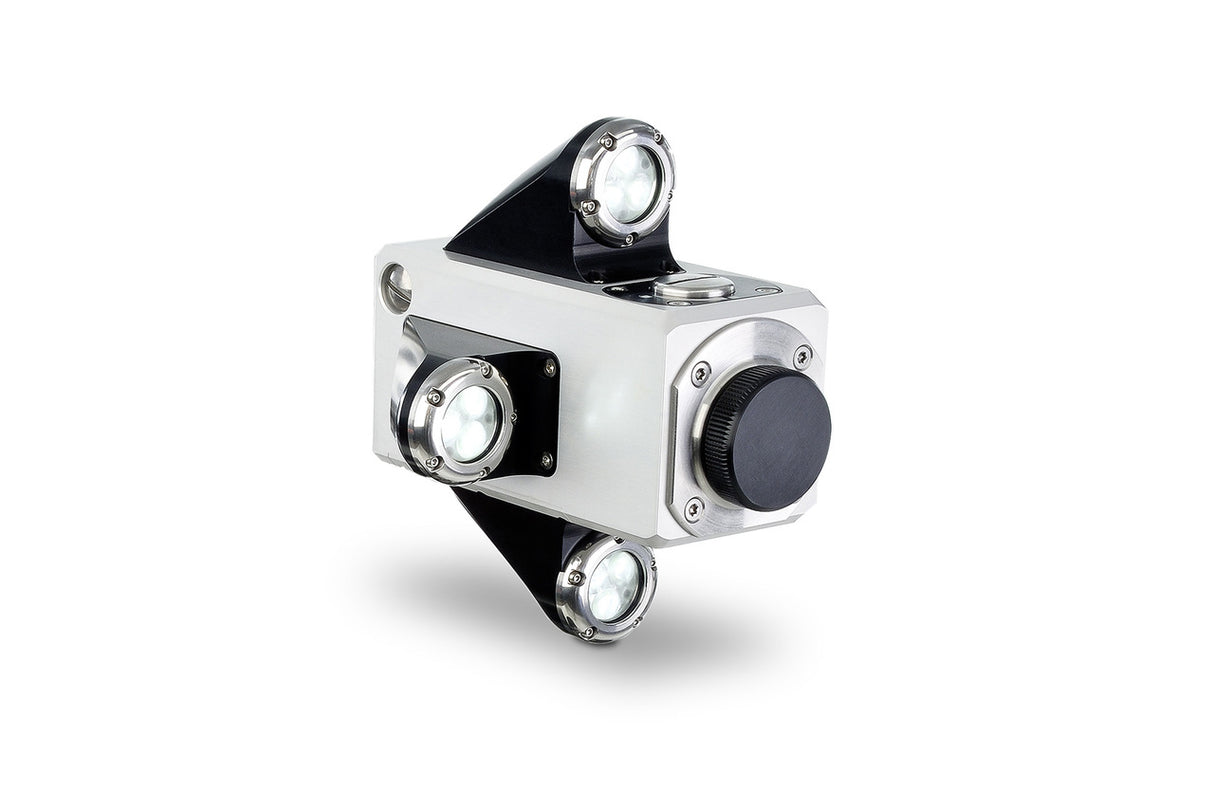

Long Distance Auxiliary Light

SKU: RAL1000-Rcx90
Long Distance Auxiliary Light for inspections in pipe systems with a diameter range of 600 mm - 1000 mm and in combination with the pan & tilt camera head RCX90 the ROVVER pipeline inspection system offers auxiliary lights for these special fields of application. The radiation angles of the illumination have been specially adjusted to provide increased luminance.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

RAL1000-Rcx90 For P&T Zoom Camera Ø 600 Mm - 1000 Mm

For inspections in pipe systems with a diameter range of 600 mm - 1000 mm and in combination with the pan & tilt head camera RCX90 the ROVION® pipeline inspection system offers auxiliary lights for these special fields of application. The radiation angles of the illumination have been specially adjusted to provide increased luminance.

  • Powerful and homogenous long-distance illumination
  • 12 high power LEDs distributed to 4 focusing lenses
  • Light control from 0 - 100%
  • Internal pressure indication via system status VC200 / DCX5000
  • Simple, fast installation
  • Auxiliary light for RX130 with elevator (RED200) and carrier (RCR1000) in combination with RCX90 camera

Nominal pipe widths

DN 600 - DN 1000

Pressure tightness

up to max. 1 bar

Internal pressure sensor

-

Illumination

12 HighPower LEDs

Special features

-

Protection class

IP68 up to 10 m water depth

Ambient temperature range

0 °C - 40 °C

Storage temperature range

0 °C - 40 °C

Material

aluminum

Dimensions (L x W x H)

155 x 140 x 140mm

Weight

1.3kg
