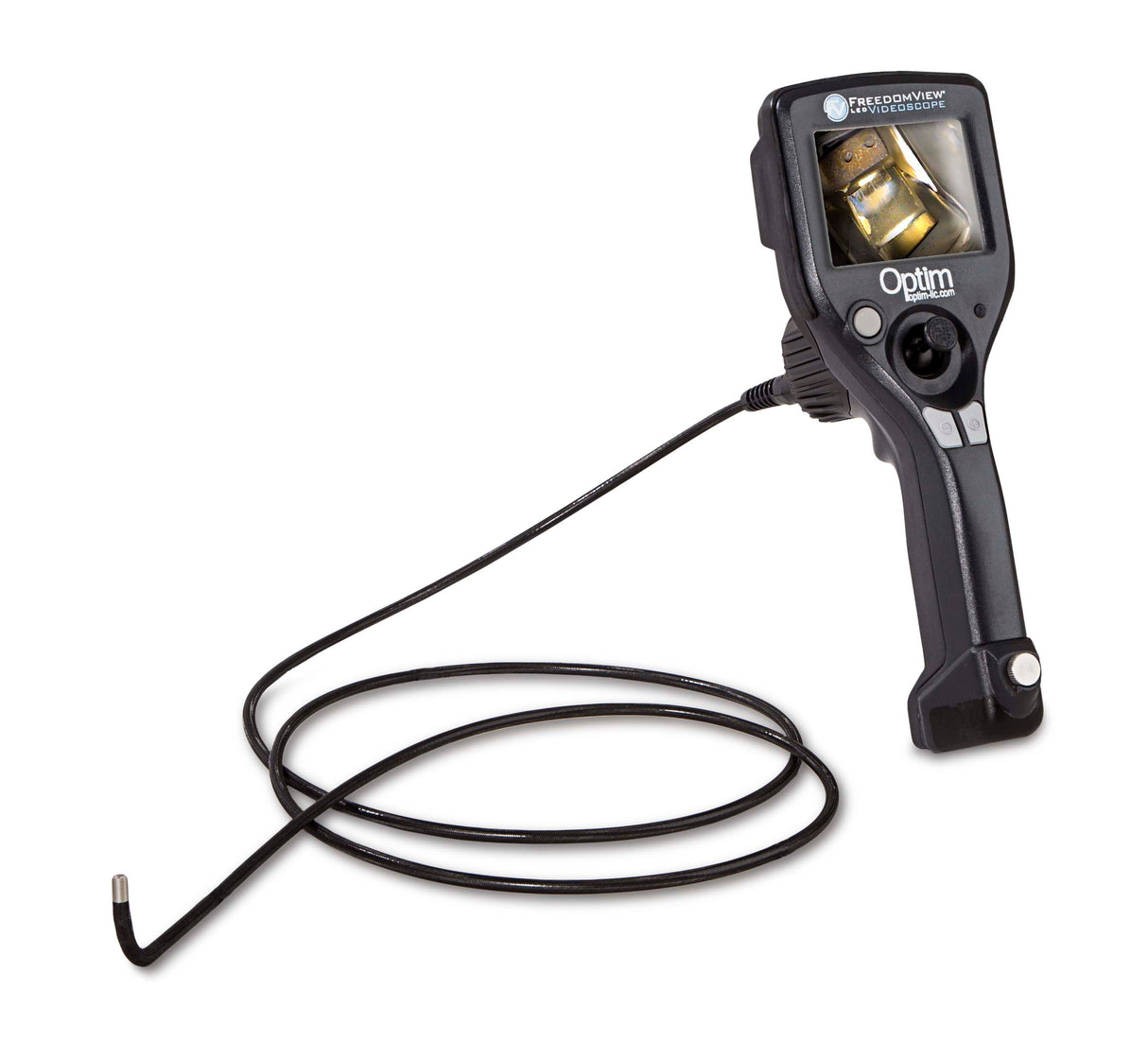

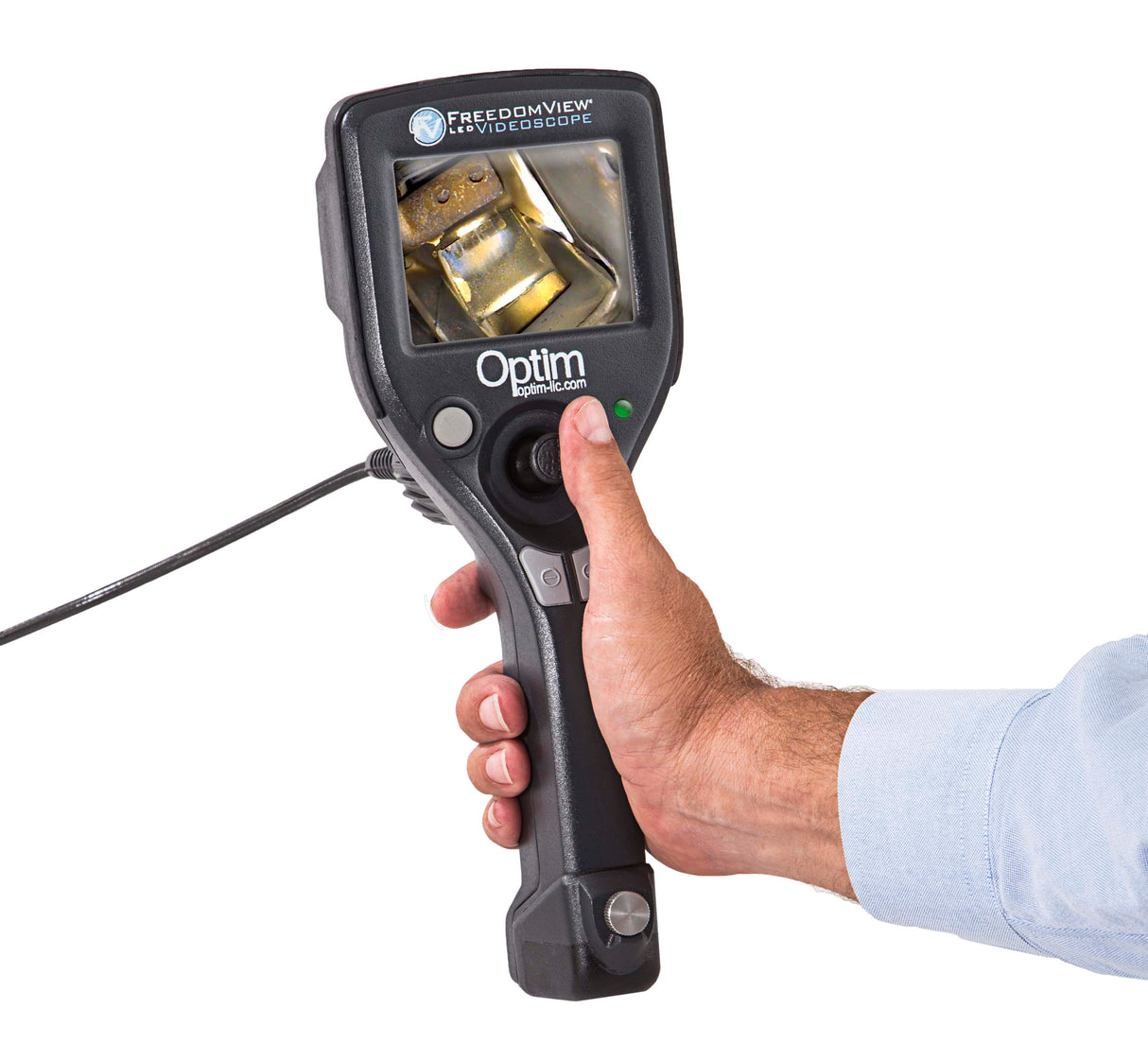

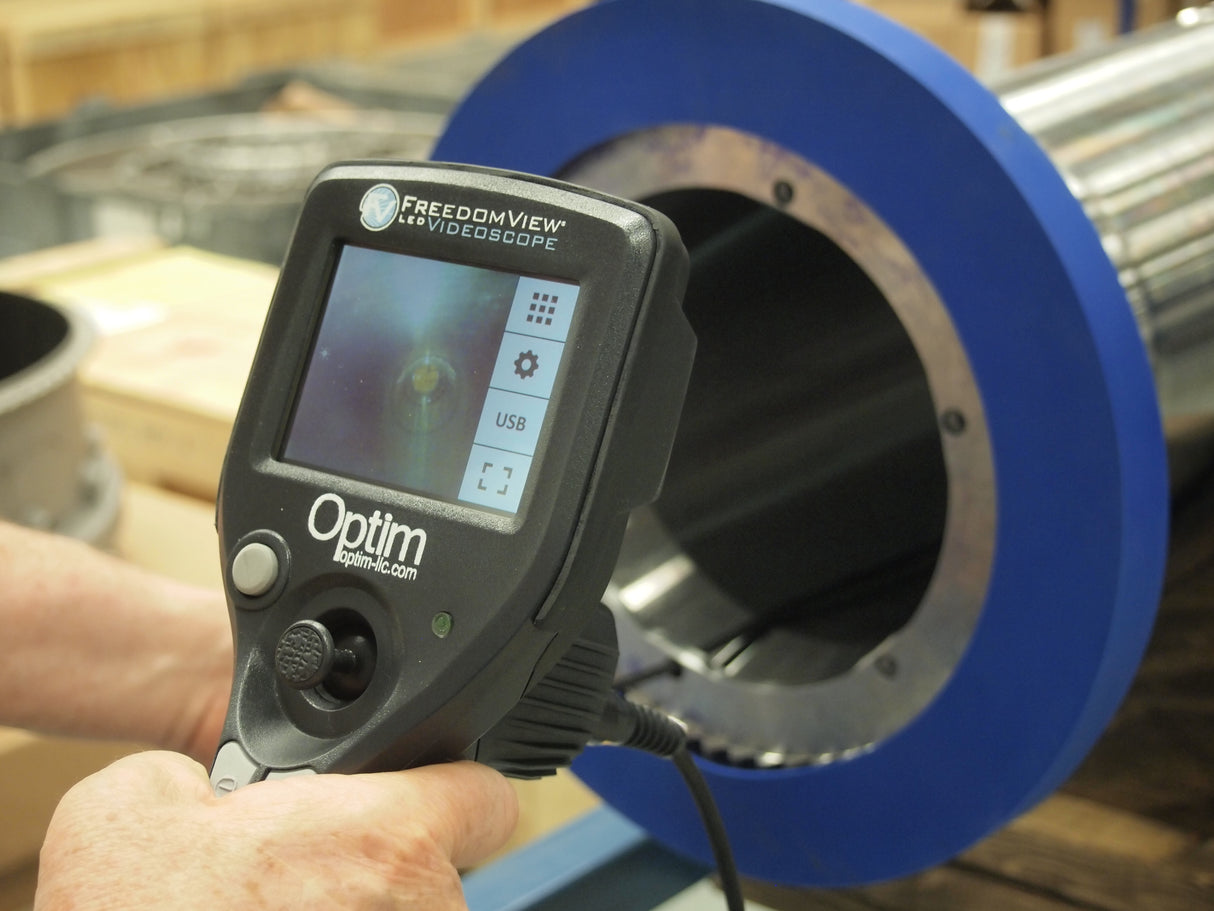

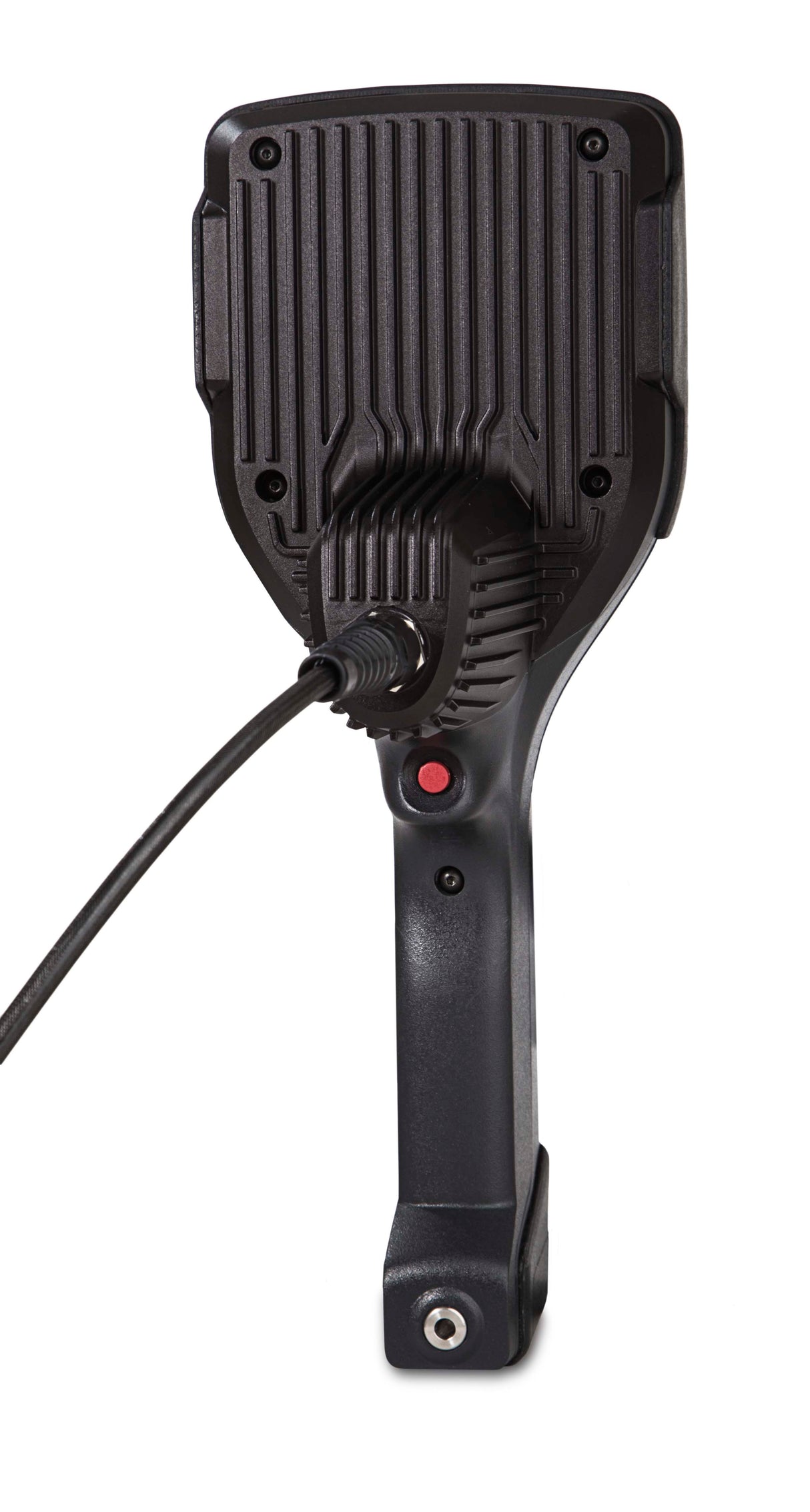

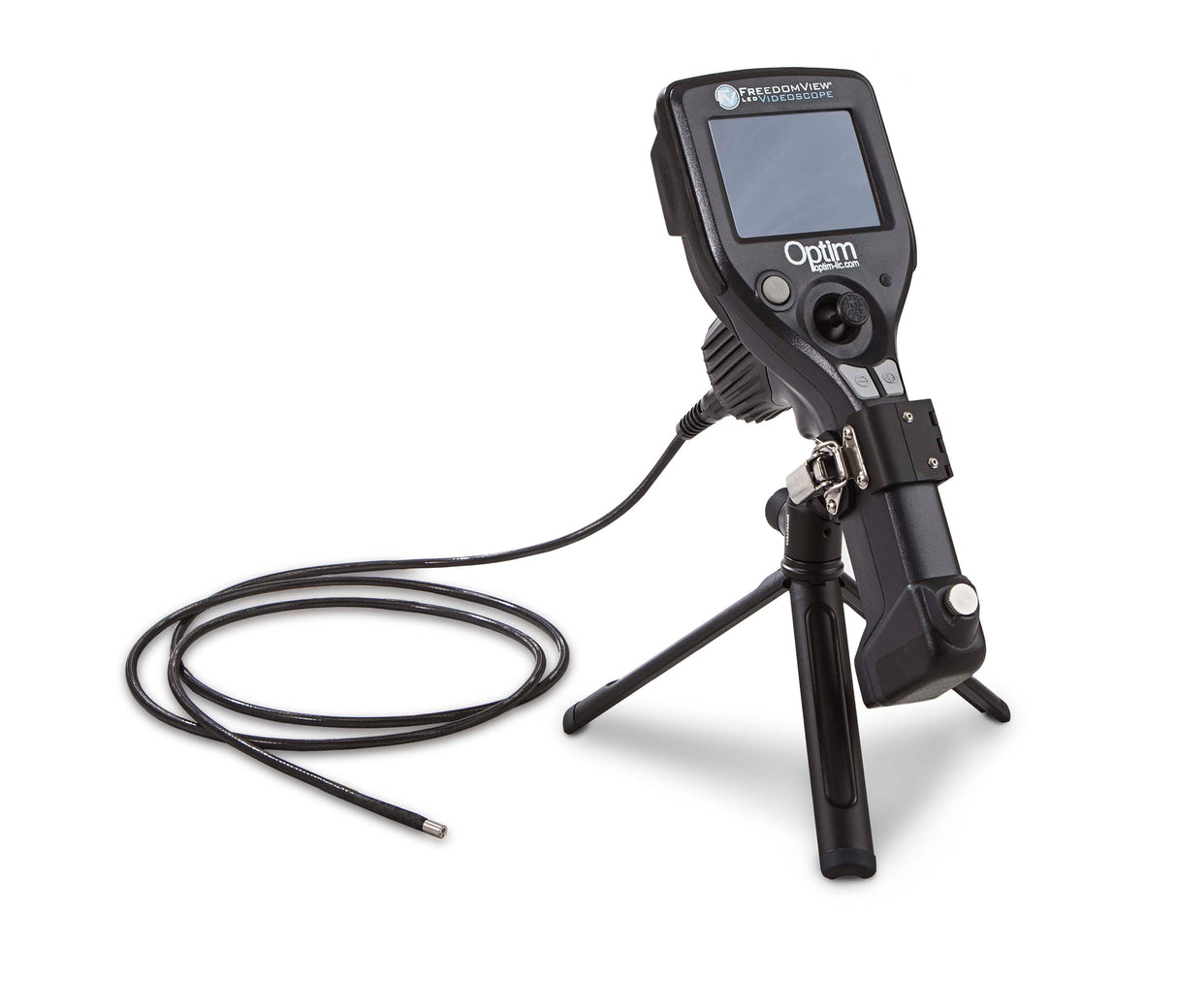

FreedomView LED Videoscope

Flexible length

2.0m (79”)

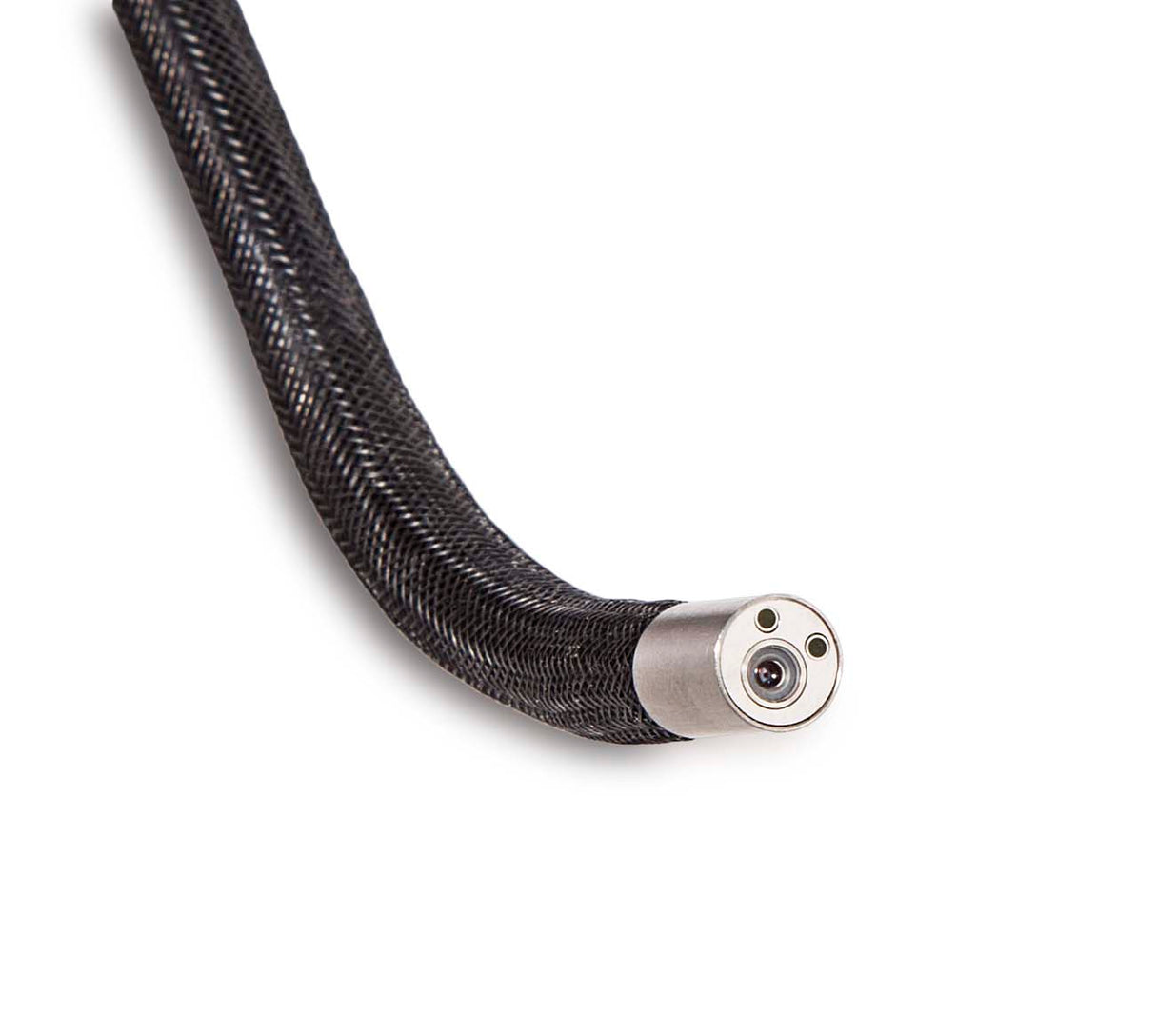

Shaft diameter

6.0mm

Exterior

Tungsten Braid

Weight

1,000 g / 2.3 lbs

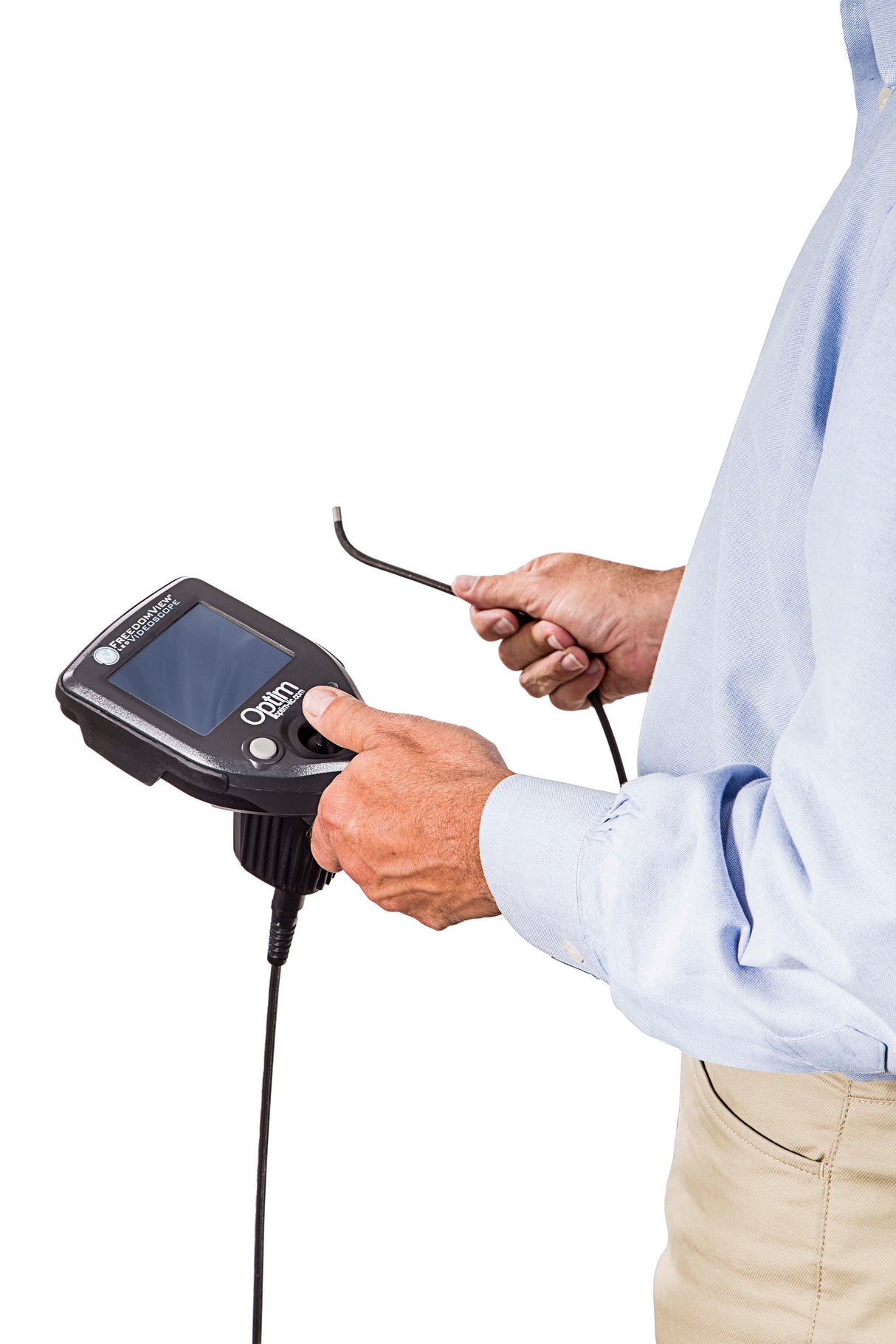

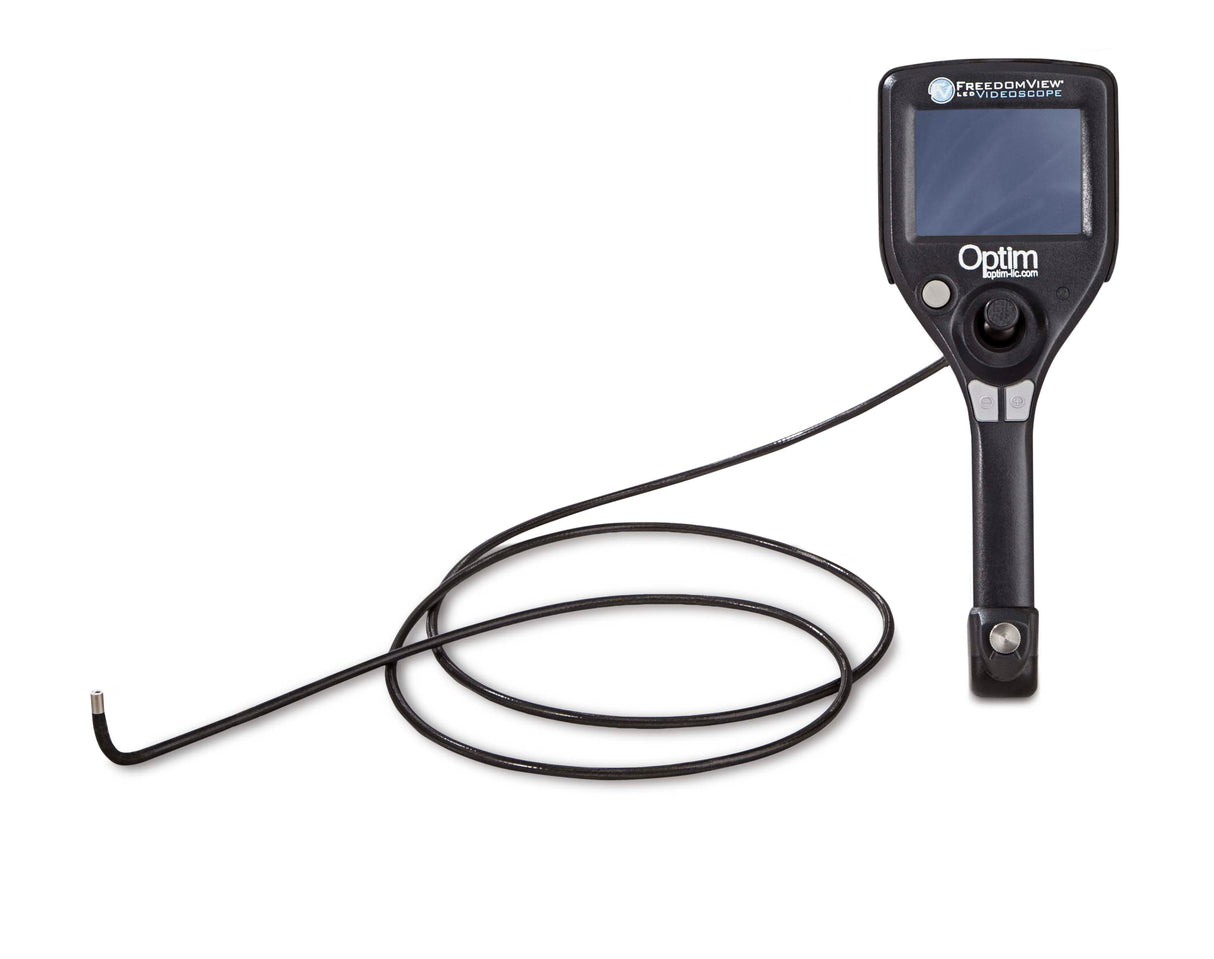

Articulation

Joystick Control - 110° up/down/left/right

Depth of field

5mm to ∞

Field of view

80°

Illumination

Integrated LED Light Source

Image Capture

Still images and Streaming video

USB Output

Mini B Terminal Ver 2.0 Video Capture

Media Storage

SD Card

Media Storage Location

Side access

Still Image

JPEG 400 x 400 pixels

Streaming Video

Motion JPG (AVI file extension)

Removable Storage Capacity

Approx. 8000 images (8 GB SD card)

Still Image Display

Full screen display or thumbnail (9-images)

Video Controls

Play / Pause

Stored Image Delete

Yes

Time and Date Stamp

Yes

Language

English

Operating Temperature

InAir:-25°C-70°C InLiquid:10°C-30°C

Power Supply

Rechargeable Li-Ion Battery

Battery Life

2+ hours operating time

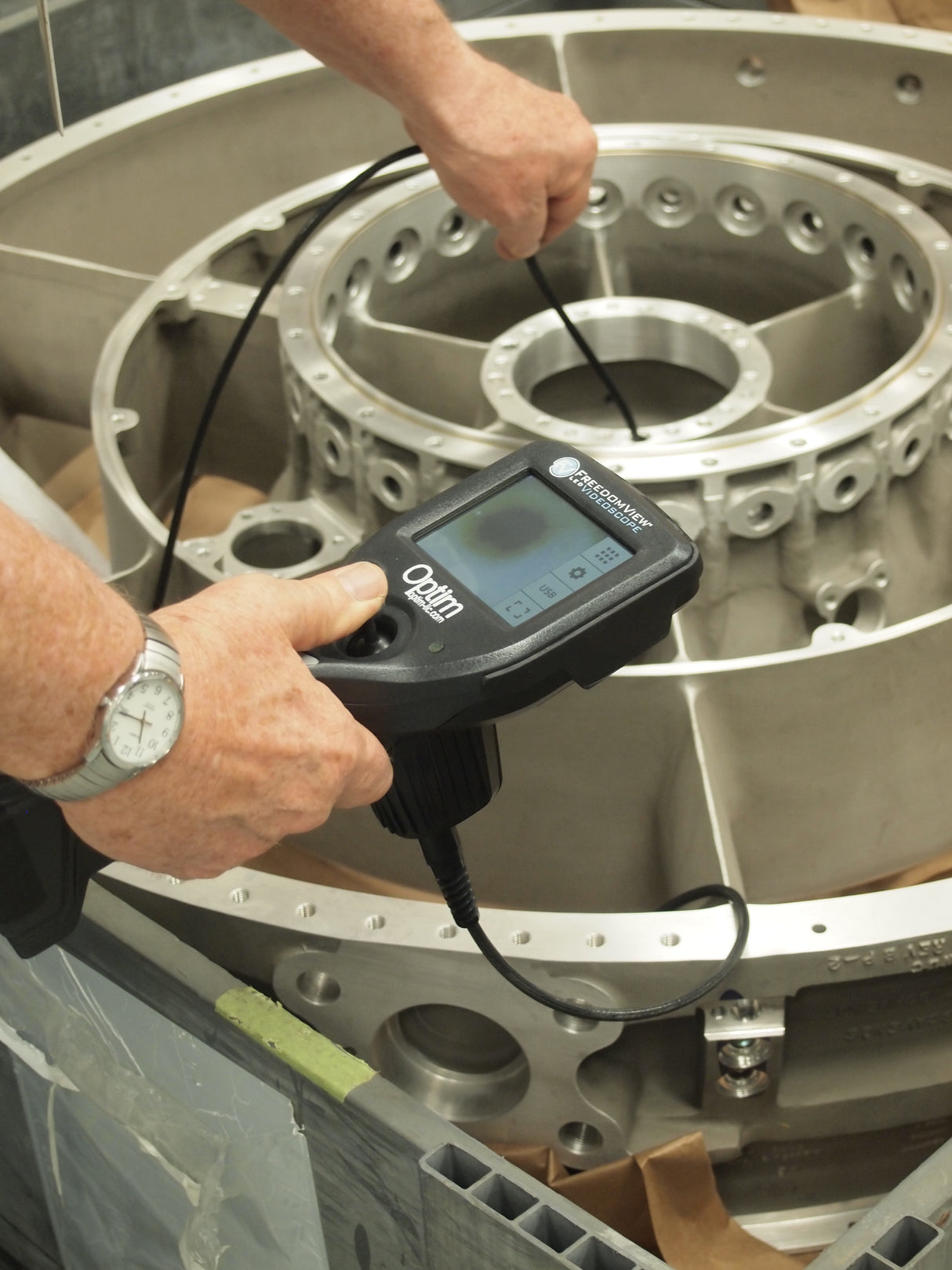

Aerospace

A Videoscope allows quality control, maintenance and troubleshooting tasks to be performed with the minimum downtime, while maximizing safety, efficiency and operational time. Videoscopes allow Inspection of turbines, combustion chambers, low-pressure compressors and high-pressure compressors, aircraft wings, structures brakes, other difficult-to-access areas and the Location of foreign object damage (FOD).

Wind Turbines

A portable videoscope provides cost-effective examination of internal structures without teardown. Portable videoscopes are used to examine gearboxes, blades, motors, yaw drive and generators.

Oil Gas and Chemical Industry

An industrial portable videoscope allows engineers to check for pitting, cracking, corrosion, erosion, weld and other defects, thus minimizing downtime and optimizing planned maintenance. Portable videoscopes can inspect condenser tubes, heat exchangers and tubes, glass line vessels, pipelines, steam and gas turbines, pumps, gearboxes, compressors, boilers, headers and valves.

Power Generation

A portable videoscope allows engineers to check for pitting, cracking, corrosion, erosion, weld and other defects, thus minimizing downtime and optimizing planned maintenance. Both fossil and nuclear power plants use Videoscopes to inspect vital equipment such as turbines, pipelines, condenser tubes, pumps, boilers, heat exchangers, valves, pressure vessels and many other items of plant.

Archeology and Nature Studies

A portable videoscope prevents disassembly that would destroy experiments or damage irreplaceable artifacts. The use of video borescopes provides a cost-effective solution for applications such as archaeology nature studies. Uses of remote visual inspection equipment include examinations inside Egyptian mummies & tombs, historical ships & aircraft, and antique musical instruments, and architectural restorations and nature studies.

Security

Portable videoscopes are used effectively for bomb disposal (EOD / IEDD), counter terrorist activities, Hostage situations, smuggling of drugs, illegal aliens and other contraband. Portable videoscopes are use in the search of buildings, vehicles, ships, aircraft, freight and difficult to access areas.

Quality Control

A portable videoscope allows manufactures to inspection components for defects. Portable videoscopes provide the ability to inspect internal components, bore holes, castings and other manufactured items such as turbine blades, circuit boards, rifle barrels, welds.

High purity Weld Inspection

Portable videoscopes allow certified weld inspectors to inspect orbital welds on site. Portable videoscopes are used in the pharmaceutical, chemical, fertilizer, food, and health care and electronics industries to verify that welds on high purity piping were completed properly.
