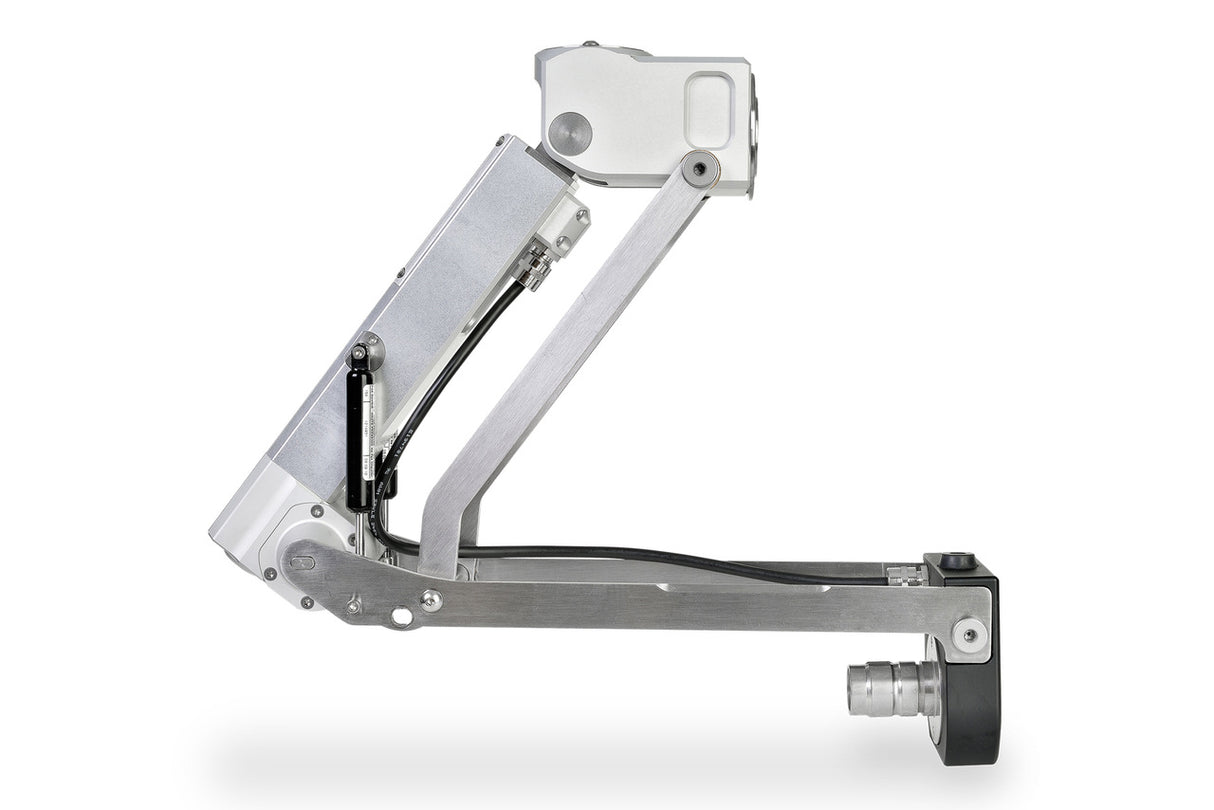

Elevator For RX130 Crawler

SKU: RED200
For inspections with pipe diameters of more than 300mm up to 600mm (12 in. to 24 in.) your ROVVER system can be upgraded with an optional elevator. This elevator can automatically be moved up or down though the control panel thus offering perfect centering of the camera unit inside the piping system in each and every inspection situation.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

ATEX Zone 1 Explosion Proof

Optional ATEX Zone 1 Explosion Proof Rating



Elevator For RX130 Crawler

For inspections with pipe diameters of more than 300mm up to 600mm (12 in. to 24 in.) your ROVVER system can be upgraded with an optional elevator. This elevator can automatically be moved up or down though the control panel thus offering perfect centering of the camera unit inside the piping system in each and every inspection situation.

  • Simple and fast mounting to / removal from the crawler
  • Motor-driven
  • Step less height adjustment
  • Interface for cameras and auxiliary lights
  • Exclusively compatible to the RX130 crawler

Nominal pipe widths

DN 300 up to DN 600

Pressure tightness

up to max. 1 bar

Drive

motor-driven

Optional accessories

auxiliary lights RAL130, RAL200, RAL1000-RCX90, RAL1000-DSIII; ca- mera RCX90, RAC50, PTP70II; fisheye camera DSIII

Power supply

via cable reels

Special features

-

Protection class

IP68 up to 10 m water depth

Ambient temperature range

0 °C - 40 °C

Storage temperature range

0 °C - 40 °C

Material

aluminum anodized

Dimensions (L x W x H)

retracted: 315 x 80 x 145 mm extended: 315 x 80 x 320 mm

Weight

3.2 kg
