The Milliscope HD Fiberscope is a small diameter fiberscope system for inspecting tiny passages, precision parts, castings, surgical instruments, catheters, electronic components, and other confined features where a standard borescope may not fit. The system combines interchangeable small diameter scopes with an HD camera handle, integrated LED illumination, optical zoom, focus control, and digital recording.
Choose the Milliscope HD when the inspection route requires very small diameter access and the team still needs clear image viewing, focus control, optical zoom, and still image or video recording from a compact inspection system.

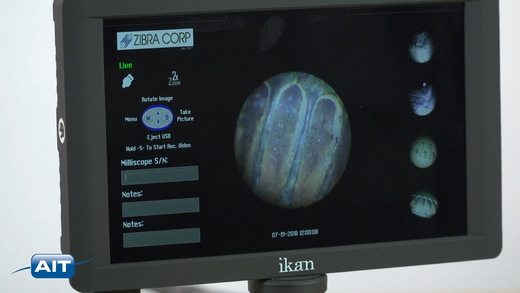

Watch the Milliscope HD Fiberscope in Action
This video gives readers a quick visual reference for how the Milliscope HD fiberscope supports small diameter inspection work.
Video: Milliscope HD Fiberscope demonstration for small diameter inspection applications.
What Is the Milliscope HD Fiberscope?
The Milliscope HDF is a high-definition small diameter fiberscope system built for internal visual inspection where access is the main challenge. Instead of forcing inspectors to work around multiple cables, separate cameras, and separate light sources, the design brings the camera, LED illumination, focus, zoom, and capture controls into a more compact workflow.
That matters because many micro inspection tasks fail before image quality even becomes the deciding issue. The probe may need to enter a tiny bore, lumen, channel, casting feature, surgical instrument, catheter, or precision component before the inspection can begin.
Why the 2018 Milliscope HD Announcement Still Matters
The original 2018 news post announced the Milliscope HD as a small diameter fiberscope that could deliver high definition images through very small scope diameters. The key message was simple: make small passage inspection easier by reducing equipment complexity and improving image capture workflow.
For inspection teams, the practical benefit is not just the small diameter. It is the combination of access, illumination, image control, and recording in a system that can support real inspection documentation.
Do not choose a fiberscope by diameter alone. Confirm the smallest restriction, total route length, bend radius, lighting needs, target orientation, focus distance, and whether still image or video documentation is required.
Milliscope HD Specification Snapshot
Current product information lists the Milliscope HD as a compact system with interchangeable scopes, diameters from 0.35 mm to 3.1 mm, scope lengths from 61 mm to 7.5 meters, 1080p digital video, still image and video recording, integrated LED illumination, manual focus, and 3x optical zoom.
Where the Milliscope HD Fits Best
The Milliscope HD is strongest when the inspection target is inside a passage that is too small or too delicate for a conventional borescope. These use cases are common in manufacturing, medical device production, precision machining, casting inspection, and research environments.
How to Evaluate Whether the Milliscope HD Is the Right Fit
The right fiberscope choice depends on the complete inspection route, not just the entry hole. A probe that fits the first opening can still fail if the bend is too tight, the route is too long, the target is not facing the lens, or the inspection requires a different documentation method.
Measure the smallest restriction, route length, bend points, and target location before selecting a scope diameter.
Confirm whether the team needs visual confirmation, still images, recorded video, zoom, or repeatable documentation.
Verify the diameter, working length, optics, compatibility, and availability before using the system for a real inspection.
Common Selection Mistakes to Avoid
The smallest probe may fit, but a slightly larger scope may provide easier handling, better light, or a more practical workflow when the access path allows it.
A probe can physically reach the feature but still fail if the target is outside the useful focus range or not illuminated well enough.
Casting inspection, catheter inspection, and electronic component inspection can require different diameter, length, flexibility, and documentation choices.
Key Takeaways
- The Milliscope HD Fiberscope is built for small diameter visual inspection where access is the controlling requirement.
- Current product information lists scope diameters from 0.35 mm to 3.1 mm and lengths from 61 mm to 7.5 meters.
- The system combines an HD camera, integrated LED illumination, manual focus, 3x optical zoom, and recording support.
- Best-fit applications include castings, surgical instruments, catheters, precision parts, electronic components, and other small passages.
- Inspectors should confirm the full route, not only the entry diameter, before selecting a fiberscope configuration.
Share the smallest opening, total reach, bend locations, target orientation, and documentation needs with AIT. That information helps match the Milliscope HD configuration to the inspection route instead of guessing from diameter alone.
