A tube inspection camera is a push camera built to read the inside wall of boiler and heat exchanger tubes. A pipe camera sold for drain and sewer work pushes a similar head on a similar rod, so the two get lumped together in search results and on purchase requests. Inside a boiler tube, the differences show up on the first pass.
Five things separate the categories: whether the head clears the tube ID with room for a centering device, how much of the wall the lens sees, whether the lighting holds up in a dark, scaled bore, whether the cable reaches the far end, and whether the footage leaves the job tied to a tube number. Drain cameras are designed around a different job, and most of those five come out wrong in a boiler.
Keep the drain camera for drains, laterals and larger process lines where the question is whether the line is open. For boiler and heat exchanger tube ID work, specify a camera whose head and centering device fit the smallest tube ID, whose lens covers the wall in one pass, and whose files carry the tube number into the outage report.
Why a Search for a Tube Inspection Camera Returns Drain Cameras
Search for a tube inspection camera and most of the first page is drain, sewer and pipe inspection camera listings, plus consumer cameras sold on marketplaces. The vocabulary overlaps. "Push camera", "pipe camera" and "inspection camera" all describe a camera head on a semi-rigid push rod, and plumbing buyers search those terms far more often than reliability engineers do.
Those cameras are good at their own job. A drain reel is built to find a root intrusion, an offset joint or a collapsed section in a 1.5 to 16 in line, usually with a distance counter and often with a locating sonde.
A Drain Line and a Boiler Tube Are Different Inspection Jobs
Drain or Sewer Line
One line per call, 1.5 in (38 mm) and larger. The question is whether the line is open, broken or blocked, and where. A screenshot and a distance reading usually close the job.
Boiler or Exchanger Tube
Dozens to hundreds of tubes in one outage, most with IDs under 2 in (51 mm). The question is wall condition along the ID: deposits, scale, pitting, erosion, corrosion, blockage and foreign material. Every finding needs a tube number.
The tube job also runs on an outage clock. A drain crew can come back tomorrow. A planner who misses a row of tubes waits for the next outage, and the reliability engineer reading the report months later needs to know which tube each image came from.
Pipe Camera vs Tube Inspection Camera, Side by Side
The table compares the two categories. The right column uses Edgevision as the reference because its specifications are published on the product page.
What Goes Wrong When a Drain Camera Goes Into a Boiler Tube
Most of these failures are quiet. The camera goes in, video gets recorded, and nobody sees the gaps until someone sits down to write the report.
The Head Does Not Clear the Tube
A head sized for a 2 in lateral will not enter a tube with a 1.5 in ID. A smaller head that does fit rides the bottom without centering, so the video shows the floor of the tube and misses the crown.
The Lens Misses the Wall
A drain view is set up to look down the line. Tube condition sits on the wall, so a narrow forward view takes more passes and still leaves gaps between them.
The Lighting Washes Out
Light set up for a wide pipe floods a small bore with glare off wet scale or leaves part of the wall in shadow. Pitting and deposits need even, close light to read.
The Footage Has No Tube Number
Two hundred clips named by timestamp have to be matched to a tube map by hand after the outage. Some never get matched, and those tubes drop out of the record.
When a General Push Camera Is the Right Tool

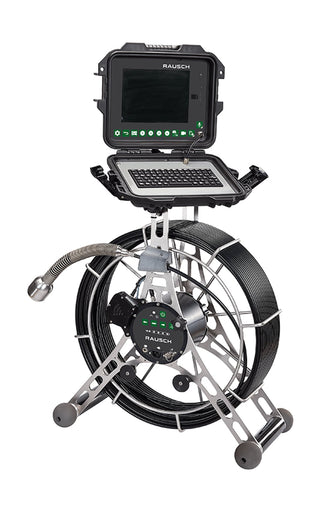

A drain or pipe camera is the right buy when the line is 1.5 in or larger, the question is flow or damage rather than wall condition, and one clip per line is enough. Building drains, laterals, storm lines, conduit and larger process piping all fit. The minCam MC50 Duo, for example, covers 1.5 to 16 in lines with two reels on one control unit.
A general push camera also handles plant work that is not tube ID inspection: checking a cooling water return for debris, looking down a large process line before a tie-in, or confirming a drain is clear after maintenance. Edgevision is not built or sold for drain and sewer work, and a drain crew would pay for tube features it never uses.
When to Switch to a Tube Inspection Camera
Switch categories when any of these describes the job:
-
The target is the ID surface of boiler or heat exchanger tubes, entered from a drum or a tube sheet.
-
The tube ID is too small for a drain head to enter with a centering device.
-
The scope covers many tubes in one outage window, and each finding needs a tube number.
-
A reliability engineer or client reviews the footage later, without the inspector in the room.
-
The site has no reliable internet, so recording and reporting have to run on the unit.
-
A supervisor needs to watch live without crowding the tube sheet.
What to Look for in a Tube Inspection Camera
Spec the camera against the smallest tube and the longest run on the job, then against the record you need at the end.
Head and Centering
Head plus centering device must clear the smallest ID on the route. A detachable head is replaceable on site.
Wall Coverage
A wide lens (176° on Edgevision) shows more wall from the tube centerline. Centering keeps that view even.
Lighting
Directed LED light built for a close bore, with no hot spot in the middle of the frame.
Tested Resolution
Ask how resolution was measured. AIT rates Edgevision at more than 800 TV lines against a resolution chart.
Reach
Cable must cover the longest tube plus the path from the manway or tube sheet. Edgevision runs 98.4 ft (30 m).
Record and Report
Decide before the outage between capture only and a report built on the unit, and whether captures carry a tube ID.
Measure the ID at the tube end, not from the drawing. Ferrules, inserts, rolled ends and inlet deposits are the tightest point on many exchangers, and they set the head size you need.
Where Edgevision Fits
Edgevision for Boiler and Exchanger Tube ID Work
Edgevision pairs an under 1 in (25 mm) detachable, submersible head with a sealed 176° lens, 10 white LEDs and a 1920 x 1080 HDTV video chain. It pushes on 98.4 ft (30 m) of rod, ships with three centering devices, runs on two hot-swap batteries and weighs about 20 lb (9 kg), small enough for round and oval drum manways.
An onboard NVIDIA Jetson computer records offline. Basic captures video and stills; Report Generator adds an on-device job report; Image Analysis adds AI anomaly flagging and is listed for Q1 2027.
Review the Edgevision brochure for current configurations.
The full case for a purpose-built boiler and heat exchanger inspection camera is in Boiler and Heat Exchanger Tube Inspection: Why Purpose-Built Push Camera Matters. For the reporting side, read How Edgevision Uses AI-Assisted RVI to Speed Up Reporting.
Tubes Edgevision Does Not Fit, and What to Use Instead
If the tube ID does not clear the head plus a centering device, Edgevision is the wrong tool. Many shell-and-tube exchangers use 3/4 in or 1 in OD tubes, which puts the ID under 1 in (25 mm), so send AIT the ID and gauge before planning on a push camera for those bundles. When the head will not fit, use a videoscope: the AIT K Series HD Videoscope runs 6.0 mm and 8.0 mm probes up to 10 m long, with motor-driven articulation to aim at the wall.
A camera also does not measure remaining wall. If the question is wall loss, plan IRIS, eddy current or UT through the plant's NDT contractor and use the camera to document surface condition. The governing procedure or code decides whether either method's findings are acceptable.
What to Send AIT Before You Order
-
Tube OD, gauge or wall thickness, and material
-
Smallest ID on the route, including ferrules, inserts and bends
-
Access point (tube sheet, steam drum or mud drum) with manway dimensions
-
Longest tube run and the distance from the access point
-
Tube count per outage and the conditions you are looking for
-
The report format your team or client expects
Email sales@aitproducts.com, call (321) 610-8977, or use the contact form. We will confirm the head fit and configuration, and we run demos on your own tubes.
Key Takeaways
- Pipe and drain cameras find problems in open lines 1.5 in and larger. Tube inspection cameras read the ID wall of boiler and exchanger tubes.
- Four checks decide the tube job: head plus centering against the smallest ID, wall coverage, even lighting, and a record tied to each tube.
- A general push camera is still the right buy for drains, laterals and larger process lines.
- Edgevision pairs an under 1 in (25 mm) head, 176° lens, 98.4 ft (30 m) cable and offline recording for tube ID work.
- Tubes smaller than the head need a videoscope, and wall-loss questions need IRIS, eddy current or UT.
