iFlex Fiberscope Rental

SKU : iFlex Fiberscope Rental

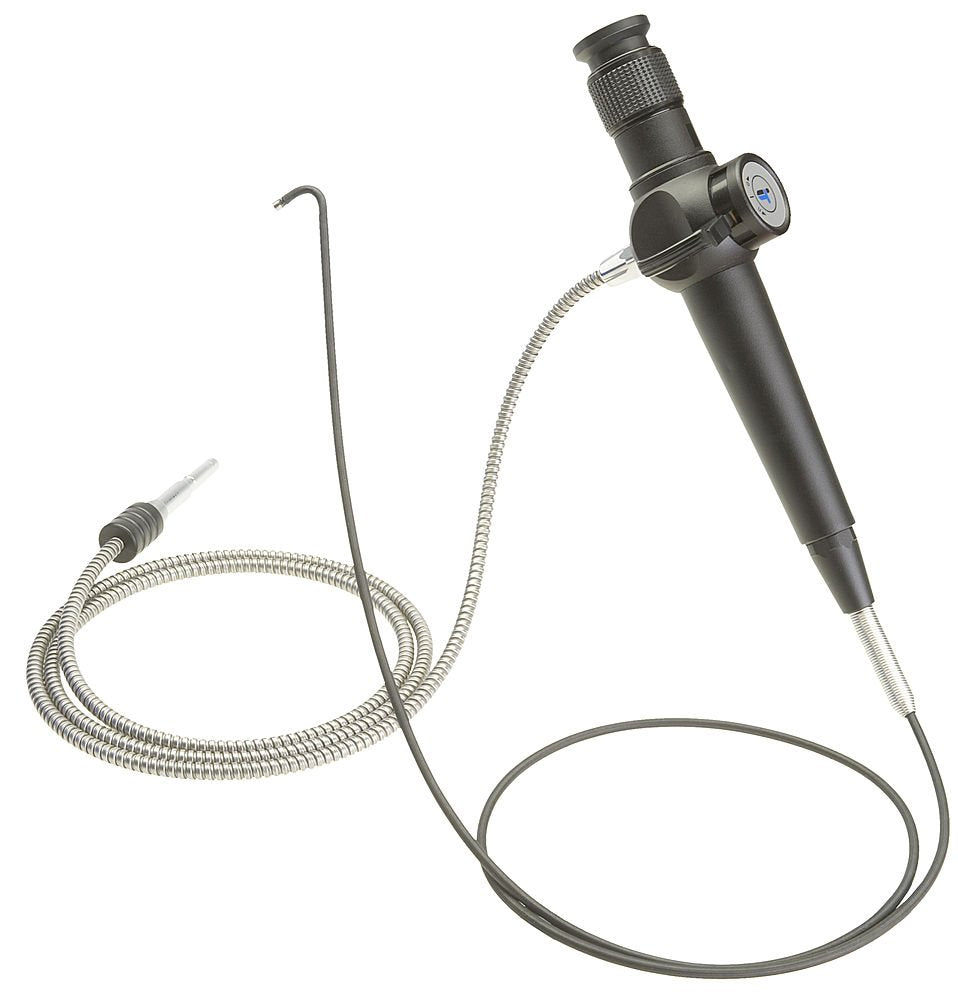

2.4mm diameter flexible fiberscope rental. Video system included to record your inspection. 2-Way articulating tip allows precise views of area needed to be inspected.

Get statrted by completing our online Rental Agreement.

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

iFlex Fiberscope Rental Overview

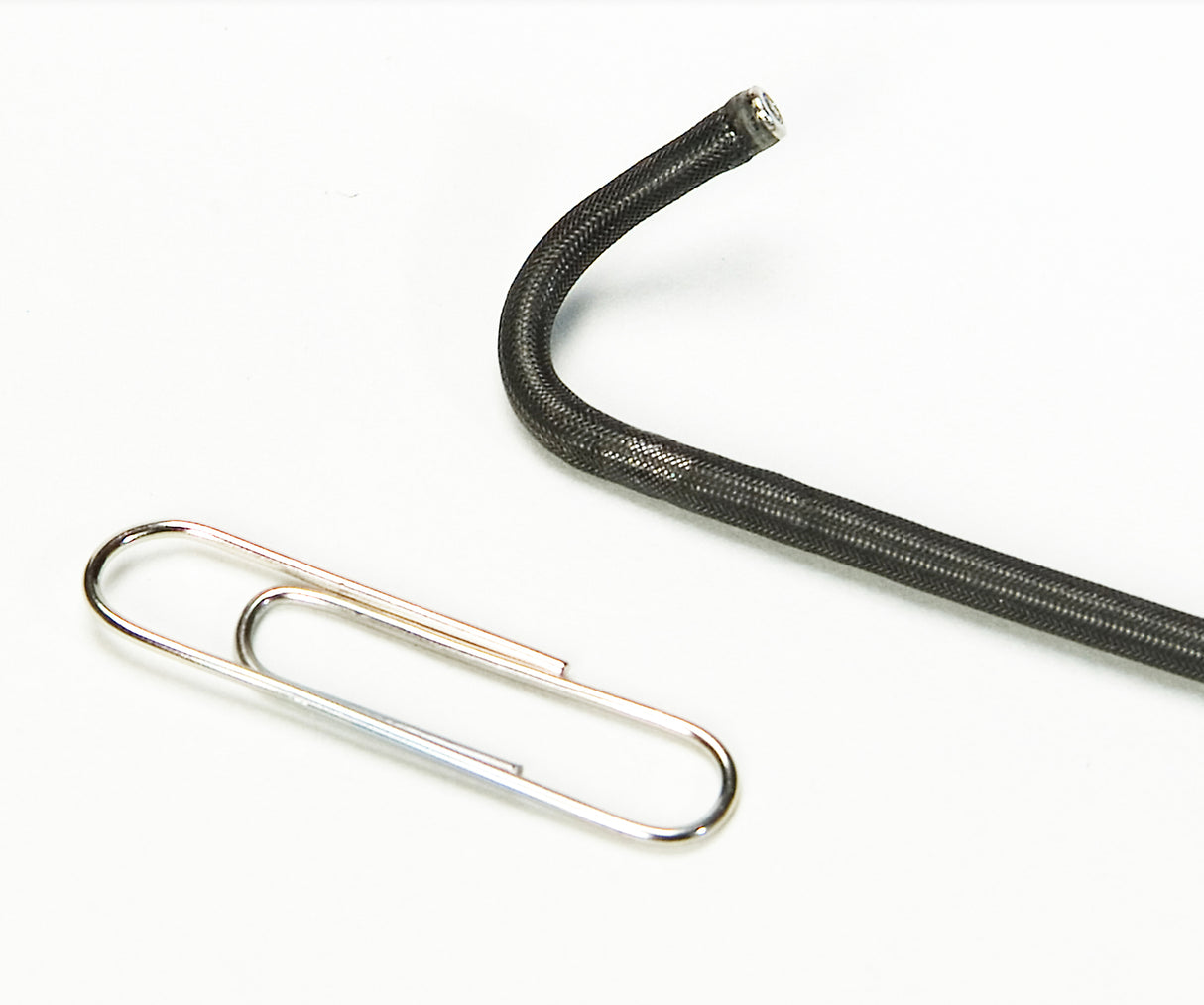

  • Diameter: 2.4mm (.094 inch)
  • Length: 70 cm (2.3 Ft.)
  • Direction of View: 0° Forward
  • Field of View: 70°

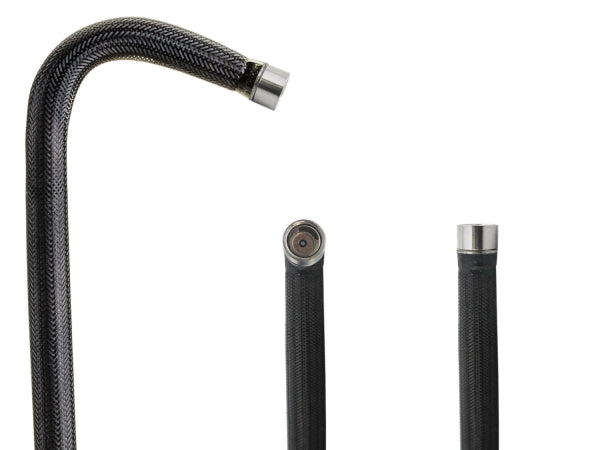

  • Articulation: 2-Way and 4-Way
  • High Resolution Leached Fiber Optic Scope
  • Water Proof: YES
  • Fiberscope Construction: Tungsten Braided Sheath
  • Industrial Grade Storage and Transportation Case



Features and Benefits of iFlex Fiberscope Rental

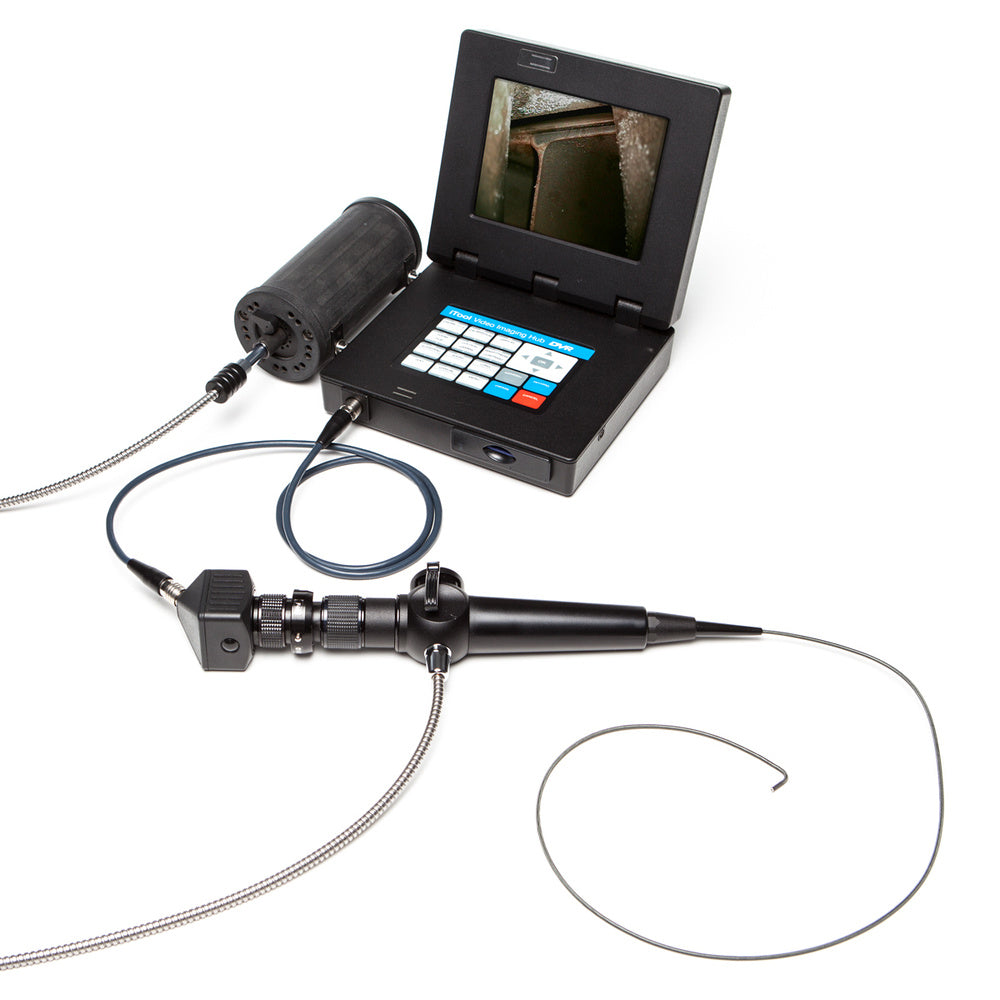

  • The iFlex 2.4mm fiberscope rental universally adapts to any video system for recording video or digital still images to store inspection results and import the images to your PC.
  • 2-way and 4-Way articulation allows the fiberscope to easily navigate tight inspection areas.
  • The tungsten outer braid has 5 times the wear resistance of stainless steel. This means your fiberscope will stand up to the wear and tear of industrial applications.
  • Water tight Insertion Tube in: Water, Mineral and Synthetic Oils, Hydraulic Fluids, Aviation Fuel, Kerosene, Gasoline and Diesel Fuel.
  • Adapts to any existing light source with interchangeable light guidepost adapters to allow compatibility with existing equipment.Rugged Aluminum with matt powder finish hand piece construction withstands harsh industrial environments for years of use.

Diameters: 2.4, 3.5, 4.0 and 6.0mm (.094, .137,.157 and .236 inch)

Working Lengths: 70 to 300 cm (2.3 to 10 Ft.)

Articulation: 2-way 120°

Direction of View: 0° Forward, Optional Side View Tip adapter For 4 and 6mm

Field of View: 40°

Depth of Field: 5mm (.197 in) - 100mm (3.94 in)

Side View Tip: 4mm and 6mm only

Optical System: Leached Image Guide

Pixel Size: 6.2µm (Micrometer)

Eyepiece Magnification: 35X

Insertion Tube Sheathing: Tungsten Braid

Insertion Tube Bend Radius: 15mm (1.59 in)

Integral Light Guide Cable: 1.5m (4.9 ft)

These scopes are also available with a light guide post on the scope handpiece instead of an integral light guide cable.

Light Guide Cable Plug: IT Concepts

Other light guide plug adapters are available including Olympus and Machida configurations.

Hand piece: Aluminum with matt powder finish

Operating Temperature:

Working Length -10° to 80° C (14° to 176° F)

Housing and Light Guide Cable -10° to 50° C (14° to 122° F)

Fluid Resistance: Working length will withstand immersion in water, mineral and synthetic lubricating oils and hydraulic fluids, aviation fuel, kerosene, gasoline and diesel fuel.

Pressure Resistance: Working length is resistant to 1 bar (14.5 psi)

Case: Supplied in a standard carrying case (500-0004) with Fiberscope form fitting foam insert.
