CCD Borescope Camera with USB Output

SKU: STC-TC152USB-AS

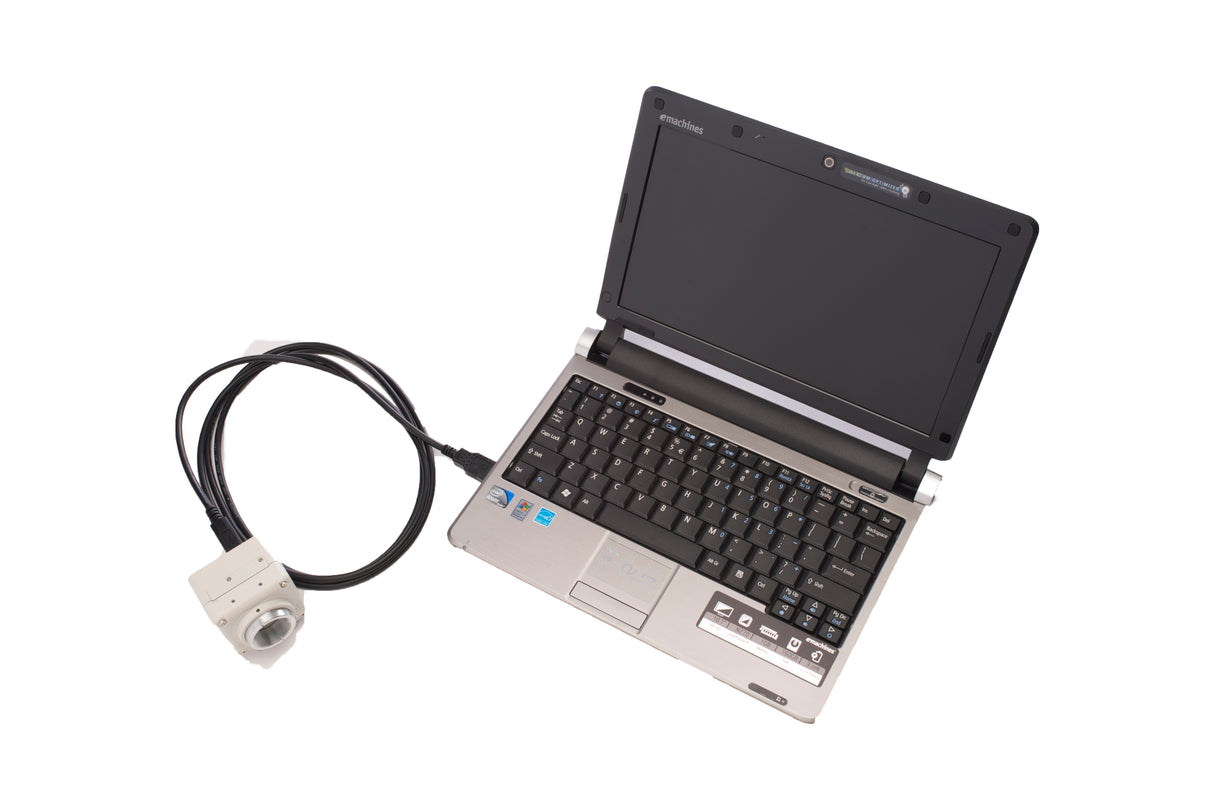

Color CCD for use with Milliscope II and Multiscope borescopes and fiberscopes. Displays video on your PC via USB 2.0 connection. Video recording, image capture, digital zoom, and a feature-rich user based menu set up and control.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

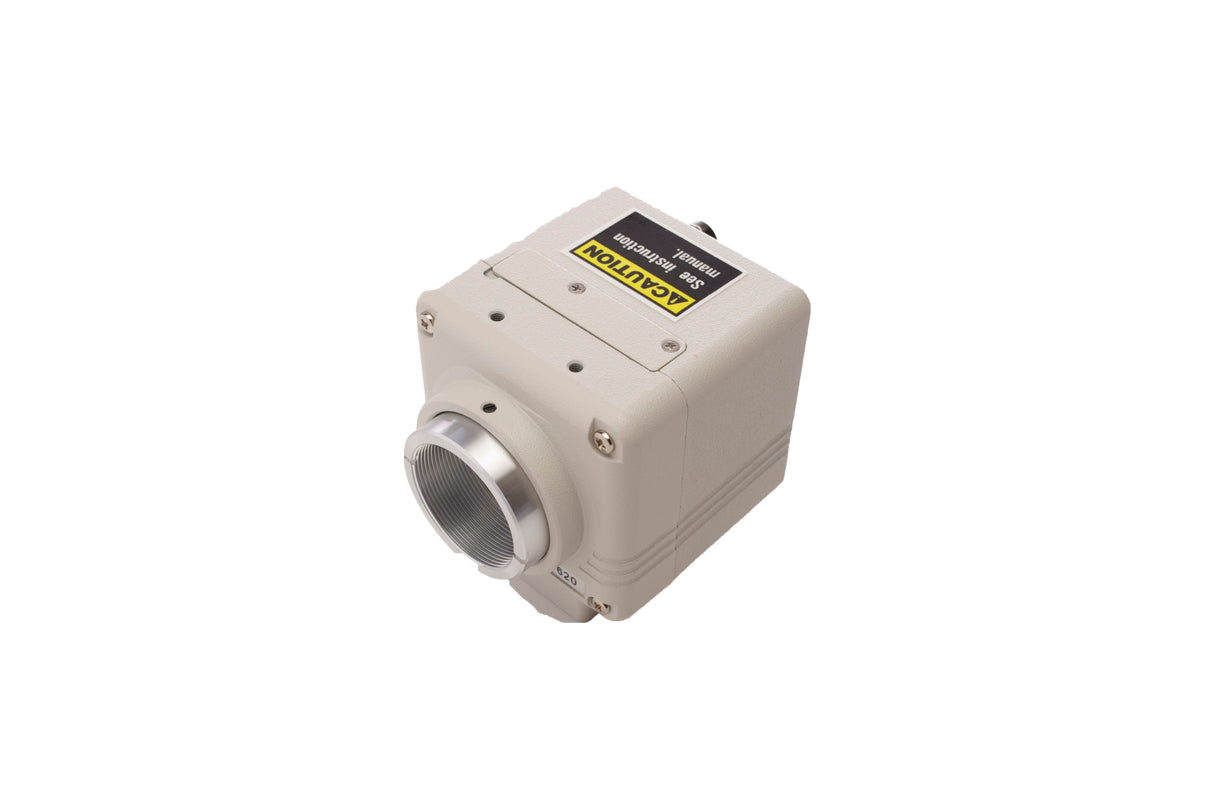

½” USB 2.0 Camera

  • USB 2.0 Digital Resolution
  • C-mount camera interface
  • Integrated frame capture software
  • All needed cables
  • PC required

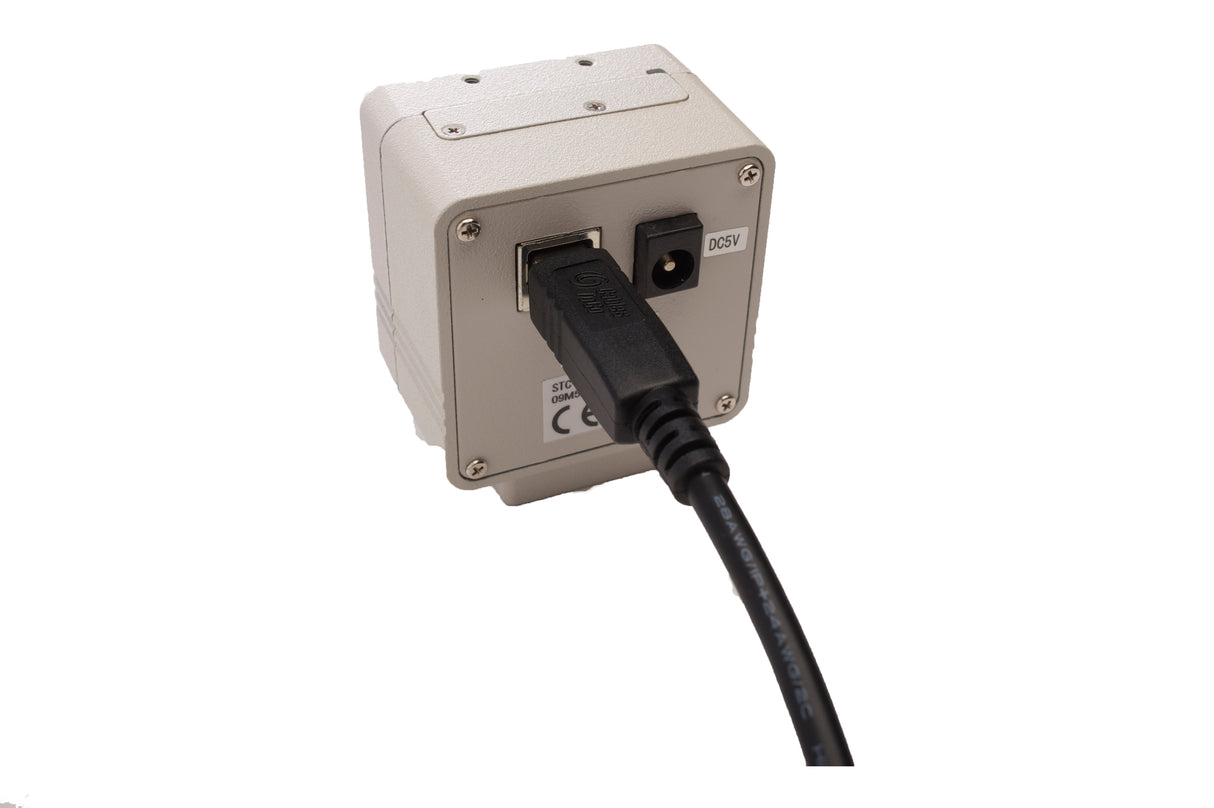

The STC-TC152USB-A is a compact, progressive scan, SXGA, USB camera with a 1/2” color CCD. It features 19fps, software triggering, image capture, digital zoom and a feature-rich user based menu setup and control. The STC-TC152USB-A is a cased model available with a top or rear USB connector. USB cameras include a SDK, DirectX, Twain and Linux driver, as well as the Viewing Software.

Model NoSTC-TC152USB-AImager1/2” Interline SXGA Color Progressive CCD: ICX205AKTotal Picture Element1434 (H) x 1050 (V)Active Picture Element1360 (H) x 1024 (V)Chip Size7.60 (H) x 6.20 (V) mmCell Size4.65 (H) x 4.65 (V) µmScanning SystemProgressiveScanning MethodsFull Scanning, 1/1 Partial Scanning, 1/2 Partial Scanning, 1/4 Partial Scanning, Variable Partial ScanningPixel Frequency36.818 MHz (Normal) / 18.4090 MHz (1/2 clock) / 9.20453 MHz (1/4 clock)Maximum Frame Rate-Full Scanning19.26 fps (Normal) / 9.63 fps (1/2 clock) / 4.815 fps (1/4 clock)1/2 Partial38.52 fps (Normal) / 19.26 fps (1/2 clock) / 9.63 fps (1/4 clock)1/4 Partial77.04 fps (Normal) / 38.52 fps (1/2 clock) / 19.26 fps (1/4 clock)Resolution1360 (H) x 1024 (V) (Full Scanning) 1360 (H) x 472 (V) (1/2 Partial Scanning) 1360 (H) 176 (V) (1/4 Partial Scanning)Minimum Scene Illumination3.22 Lux at F1.2Sync SystemInternalElectronic ShutterAuto / Manual (software selectable)GainAuto / Manual (software selectable)GammaManual (software selectable)White BalanceAuto / Manual / One shot (software selectable)Trigger ModeFree-run / Edge preset trigger / Pulse Width Trigger / Start & Stop Trigger (Software Selectable)Input / OutputUSB 2.0 High SpeedPower-Input Voltage+5 Vdc through USB connector / DC JackConsumptionLess than 450 mADimensions-AS Model51 (W) x 51 (H) x 48.8 (D) mm AT Model51 (W) x 51 (H) x 46.1 (D) mmLens MountC MountTripod2 screws on the bottom plateWeightApproximately 145gTemperatureOperational0 to 40 deg. CStorage-30 to 65 deg. CVibration20 Hz to 200 Hz to 20 Hz (5 min. /cycle), acceleration 10G, 3 directions 30 min. eachShockAcceleration 70G, half amplitude 6 ms, 3 directions 3 times eachStandard CompliancyEMS :EN61000-6-2, EMI :EN61000-6-3 (Class B)RoHSRoHS Compliant
