VUMAN E3/E3+

SKU : Vuman E3 Videoscope
The VUMAN E3/E3+ is the only portable borescope designed with long probe lengths and full tip articulation. Inspections up to 30m are now possible with probes as small as 6mm diameter. Remote focus technology produces the best resolution possible at any tip to target distance and eliminates the need for additional tip adapters.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

VUMAN® E3/E3+ VIDEOSCOPE SYSTEM: Remote Visual Inspection (RVI) with interchangeable INVIZ® video probes up to 30 m working length.

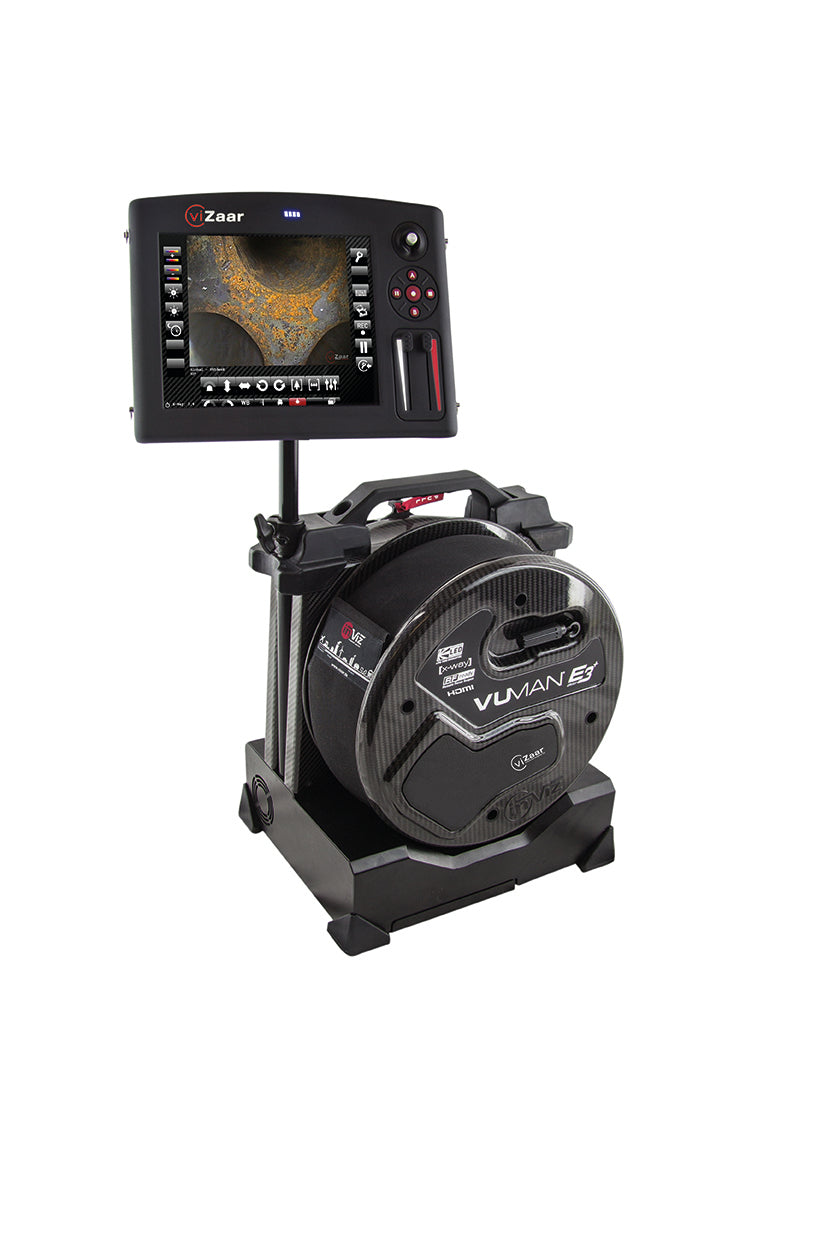

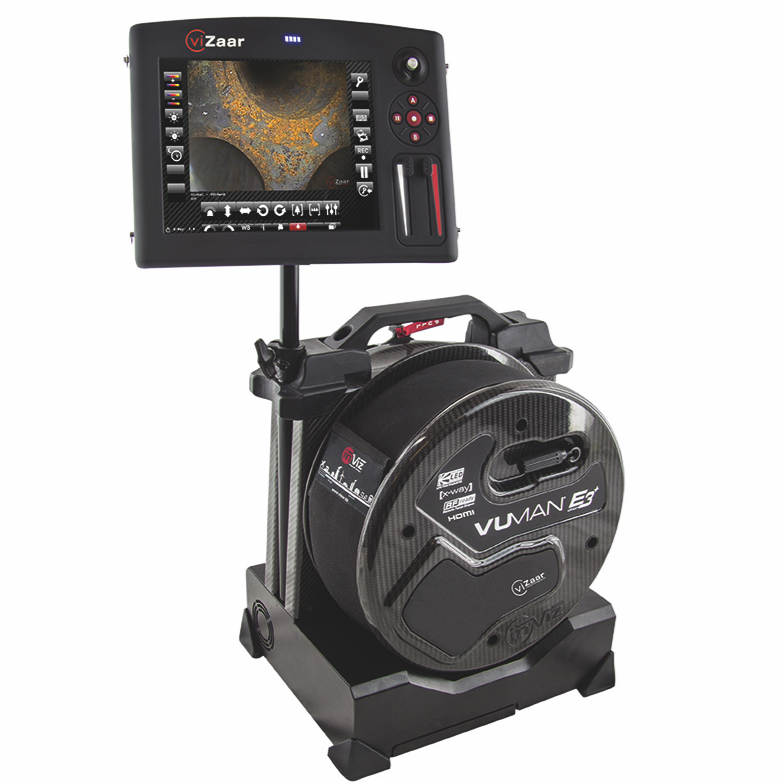

The VUMAN E3 series system. Designed from the very beginning to meet or exceed any long-range inspection requirement with maximum performance and minimum disruption, it is the ultimate long-range inspection system. The VUMAN E3 has a range of unique features that enable a wider range of inspections than any other product available on the market.

  • Interchangeable Probes up to 30m in length
  • Various Probe Diameters (6mm/8mm/12mm)
  • X-WAY pneumatic articulation (4-way)
  • Remote Focus for crystal clear images (0.02mm to ∞)
  • joystick control
  • Battery powered and portable
  • easy to use, simple to deploy
  • integrated control and documentation unit
  • Onboard solid-state hard drive (10GB or 80GB)
  • Carbon fiber housing
  • NiMH (air transportable) Integrated Battery Pack
  • PPE / Glove Compatible Touchscreen Unit
  • ‘HOT SHOP’ Repair Facility available
  • Lifetime Warranty on housing and LED

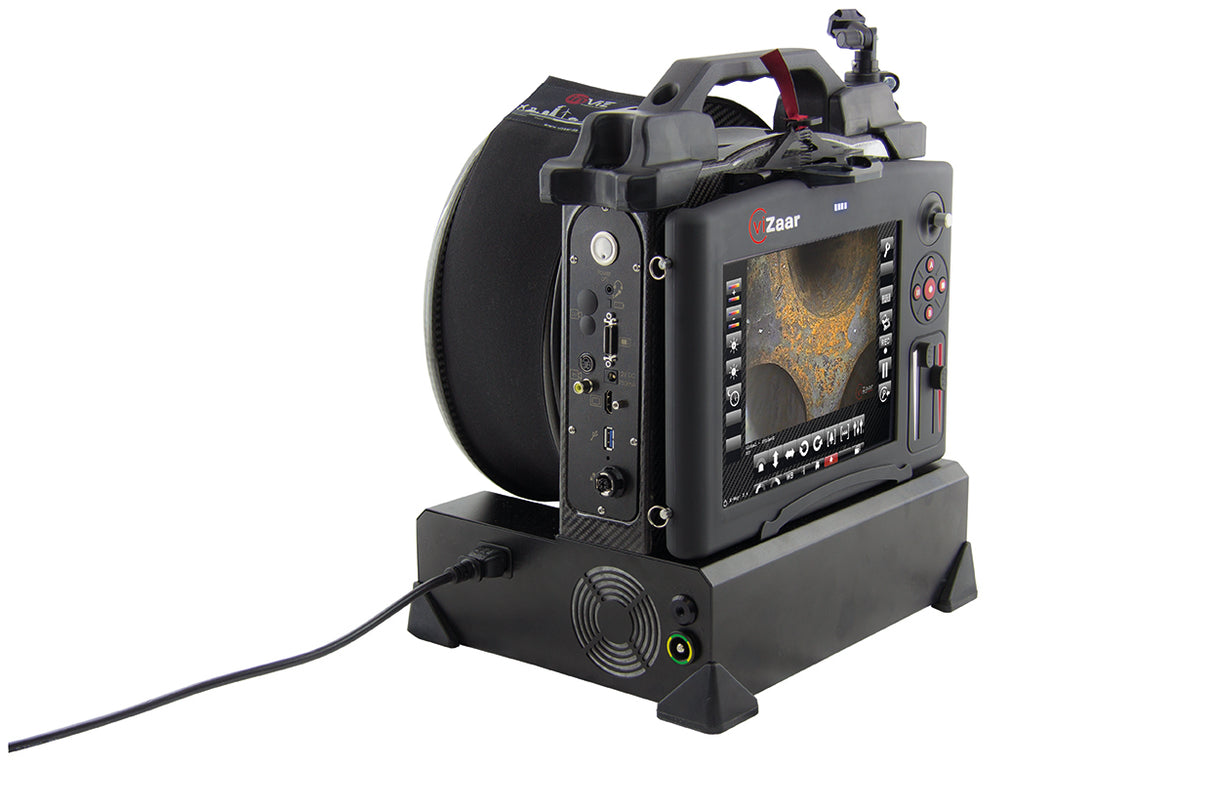

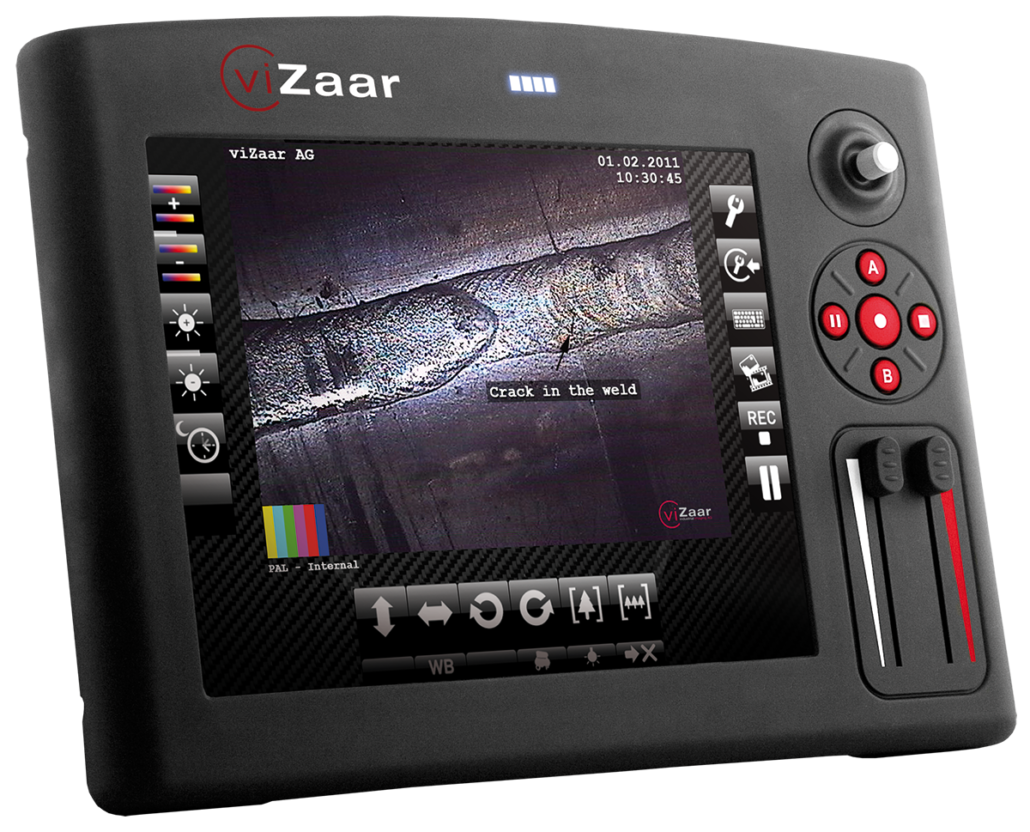

VUSCREEN Control Unit

A fully integrated, ergonomic and robust control unit for the VUMAN system.  It can be stowed on the system within the housing, mounted on the integrated telescopic pole or used as a portable device (with neck strap).  Featuring a resistive, true colour, 10.4” touchscreen TFT with LED backlight and native resolution of 1024 x 768, viewing and use of the system is simple, straightforward and suitable for long duration inspection.

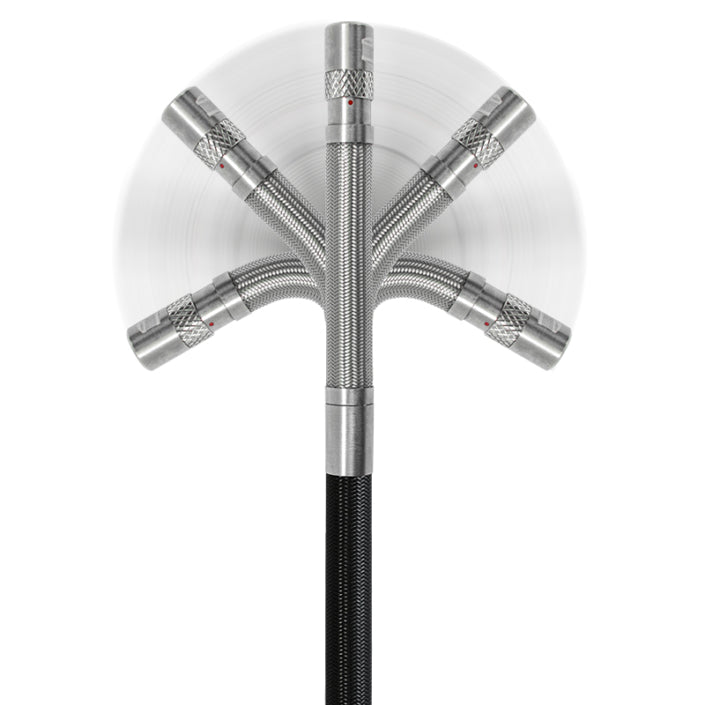

 X-WAY Articulation

The proprietary pneumatic X-WAY articulation system allows for full 4 axis (up/down/left/right) articulation of all VUMAN X-WAY probes.  The system is controlled by the joystick on the VUSCREEN control unit and is powered by an integrated, computer controlled micro-compressor, so there is no need for external air sources or external gas canisters.

VUMAN V3 probes

The VUMAN V3 series of probes have been designed in close consultation with key industries and their associated applications in mind.  The range has been tailored to provide a universal solution to both current and future applications. The probes are sophisticated, class leading, interchangeable products.

Interchangeable Probe Concept

A unique feature allowing quick and simple exchange of probes with the base unit if your inspection application requires the use of different diameters or lengths of probes. This avoids the need to carry multiple base units, ensures modular repair capability and allows for an overall cost-effective solution.  In the event of use within a contaminated environment (i.e. chemical, nuclear, food, pharmaceutical), it also allows for the probe to be removed or disposed of without having to clean or dispose of the entire system.

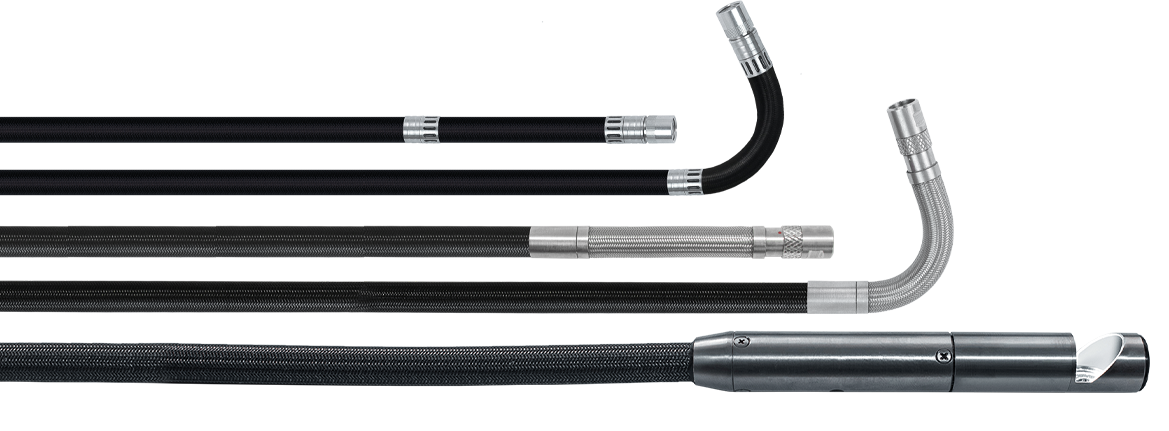

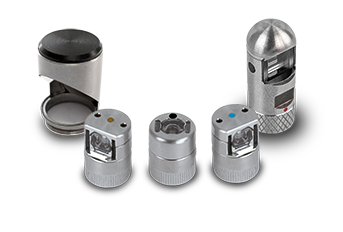

Interchangeable INVIZ® video probes

The videoscope VUMAN® E3/E3+ enables easy and quick probe changes on-site with its INVIZ® interchangeable video probes. Different inspection requirements demand the operation of various video endoscope probes. Benefit from the wide range of INVIZ® interchangeable video probes from 6,4 mm to 12,7 mm diameter and working lengths from 5 m to 30 m.

Base Unit Inviz Vuman E3Inviz Vuman E3 X-WayInviz Vuman E3+Inviz Vuman E3+ X-WayDimensions in mm / inch (W) 335 x (H) 410 x (D) 275 (W) 13.19 x (H) 16.14 x (D) 10.83 (W) 335 x (H) 410 x (D) 275 (W) 13.19 x (H) 16.14 x (D) 10.83 (W) 335 x (H) 410 x (D) 275 (W) 13.19 x (H) 16.14 x (D) 10.83 (W) 335 x (H) 410 x (D) 275 (W) 13.19 x (H) 16.14 x (D) 10.83 Weight in kg / lbs 8.5 / 18.7 10.0 / 22.08.5 / 18.7 10.0 / 22.0X-WAY drive - Integrated compressor, maintenance free. - Integrated compressor, maintenance free. Probe length max. 20 m max. 20 m max. 20 m max. 20 m or 30 m* Construction Aluminum–Carbon fiber with elastomer bumpers Aluminum–Carbon fiber with elastomer bumpers Aluminum–Carbon fiber with elastomer bumpers Aluminum–Carbon fiber with elastomer bumpers LED dual light source Lifetime guaranteeLifetime guaranteeLifetime guaranteeLifetime guaranteeHigh efficiency LED illumination 7.8 WattHigh efficiency LED illumination 7.8 WattHigh efficiency LED illumination 7.8 WattHigh efficiency LED illumination 7.8 WattColor temperature 6.500 K Color temperature 6.500 K Color temperature 6.500 K Color temperature 6.500 K System memory 10GB SSD 10GB SSD 80GB SSD 80GB SSD Connectors USB 3.0USB 3.0USB 3.0USB 3.0Recording remote control 12V(DC) / 750mA Aux-Out Optional external compressed air Rechargeable battery Recording remote control 12V(DC) / 750mA Aux-Out Optional external compressed air Rechargeable battery Recording remote control 12V(DC) / 750mA Aux-Out Optional external compressed air Rechargeable battery Recording remote control 12V(DC) / 750mA Aux-Out Optional external compressed air Rechargeable battery Video input - - PAL / NTSC, Composite, S-Video PAL / NTSC, Composite, S-Video Video output HDMI HDMI HDMI,HDMI,optionally with additional TV-Out (Composite, S-Video) optionally with additional TV-Out (Composite, S-Video) AC input 90V(AC) - 264V(AC) 47Hz - 63Hz max. 140 Watt 90V(AC) - 264V(AC) 47Hz - 63Hz max. 220 Watt 90V(AC) - 264V(AC) 47Hz - 63Hz max. 150 Watt 90V(AC) - 264V(AC) 47Hz - 63Hz max. 240 Watt Environmental specifications Operation: -15°C (+5°F) to +48°C (+118°F) Storage: -25°C (-13°F) to +65°C (+150°F) Relative humidity: max. 95%, non condensing Operation: -15°C (+5°F) to +48°C (+118°F) Storage: -25°C (-13°F) to +65°C (+150°F) Relative humidity: max. 95%, non condensing Operation: -15°C (+5°F) to +48°C (+118°F) Storage: -25°C (-13°F) to +65°C (+150°F) Relative humidity: max. 95%, non condensing Operation: -15°C (+5°F) to +48°C (+118°F) Storage: -25°C (-13°F) to +65°C (+150°F) Relative humidity: max. 95%, non condensing Software Kit E3 E3 E3+ E3+ VuScreenDimensions in mm / inch (W) 320 / 12.6 x (H) 30 / 1.18 x (D) 230 / 9.06 Weight in kg / lbs 1.6 / 3.5 Mounting On base unit: integrated mounting | Portable: shoulder strap Display 10.4“ touch screen | Transreflective LED backlight | Viewing angle all directions +/- 80° Contrast 700:01:00Brightness 700 cd/m2 Colors True Color Operation Touch screen incl. five direct access buttons and joystick (approved for operation with working gloves). Construction Carbon fiber design with all around elastomer bumper; 2.5 m / 8.2 ft cable designed for harsh environments Functions Imagerecording | Videorecording | Freeze | Togglefunction | Articulationcontrol | Articulationlock | Probelock | RemoteFocusslidebar | Illuminationslidebar

6 SIDE VIEW 8 X-WAY 8Probe diameter in mm / inch 6.4 / 0.25 8.4 / 0.33 8.4 / 0.33 Probe length in m / ft. 8 / 26.3 15 / 49.3 5 / 16.4 8 / 26.3 12 / 39.4 15 / 49.3 20 / 65.6 30 / 100 8 / 26.3 15 / 49.3 Probe length extension (up to 30 m / 100 ft.) % - - Weight in g / lbs 820 / 1.8 1140 / 2.5 920 / 2.0 990 / 2.2 1175 / 2.6 1360 / 3.0 2330 / 5.4 3300 / 7.2 870 / 1.9 1240 / 2.7 X-WAY camera head articulation up / down / left / right - +/- 90° to +/- 120° - Remote Focus (RF) YESYESYESDirection of view (DOV) 90° 0° / 90° 0° / 90° Field of view (FOV) 65° 70° 70° Focus range < 1 mm to ∞ < 1 mm to ∞ < 1 mm to ∞ Resolution 440.000 px, (H) 752 x (V) 582 YESYESYESMounting for centering device YESYESYESMounting for side view adapter - YESYESSelf centering supple bending section at camera head % - % Hard wearing stainless steel braid on polyurethan probe YESYESYESWatertight up to 1.5 bar / 22 psi YESYESYESSplash waterproof YESYESYESCentering device kit included in scope of delivery YES- -


Connect with an AIT Inspection Specialist for FREE Technical Consultation

Need help finding the right tool? Complete the form, call us at (321) 610-8977, or email sales@aitproducts.com.

Our specialists typically respond within the same business day.

Frequently Asked Questions

Where are industrial videoscopes used?

Industrial videoscopes are popular inspection cameras for non-destructive testing. Remote visual inspections with an industrial videoscope such as the VUMAN take place for example in nuclear industry, pharmaceutical industry, power generation and many other industrial sectors. The VUMAN videoscope is especially designed for the inspection of long pipes and tubes. With up to 30 m work length, pneumatic articulation and Remote Focus it is the most suitable industrial videoscope for long distance inspections.

What are the advantages compared to other industrial videoscopes?

The VUMAN industrial videoscope system shows many advantages compared to other video endoscopes. It is a modular system with interchangeable video probes in 18 standard variants. For any kind of inspection we are able to provide you with the suitable video probe, be it a small diameter videoscope with Ø 6.1 mm or a long range video probe with 30 m length. Articulating and endlessly rotating camera heads are also a possible configuration. The concept of changeable probes also gives you the opportunity in case of contamination only to dispose of the probe, not of the entire videoscope system.
Furthermore, the VUMAN E3/E3+ comes with viZaar’s patented remote focus technology. The VUMAN is thus the only industrial videoscope with remote focus – no need for tip changes!
The NiMH battery allows for independent inspections and is approved for air transport.
An integrated and maintenance-free micro compressor, precise joystick articulation and the bright dual LED illumination with lifetime warranty are also great benefits of the VUMAN videoscope.

How often does the micro compressor need maintenance?

Never. The integrated micro compressor is completely maintenance free. However, we recommend sending your system in for overall maintenance once a year, in order to make sure the videoscope runs error-free and to prevent from possible defects that might happen when seemingly minor issues are not taken care of.

Can I upgrade my VUMAN E3 to a VUMAN E3+?

Yes, if you purchase a VUMAN E3, you are later able to upgrade your industrial videoscope. Therefore, it must be send to us and we will make the necessary hardware and software upgrades.

Can the videoscope screen be used with gloves?

Yes, the touchscreen of our industrial videoscope (VUSCREEN) is operable with gloves. The joystick, buttons and slidebars, as well, can be used while wearing gloves.

What do I do if my industrial videoscope is broken?

If your videoscope is broken, you can always contact us. Our service is there to help you with possible issues. We also offer an endoscope repair service that will only repair what is necessary instead of replacing large parts of the system.

How do I transfer my data from the VUMAN E3/E3+?

Data transfer from the VUMAN is very simple and intuitive via USB drive. The data management of the VUMAN is similar to the data management of your computer. Simply mark, copy and paste the folders, pictures and videos.
