Wohler VIS 700 Plus HD Pan & Tilt Push Camera

SKU : 7498

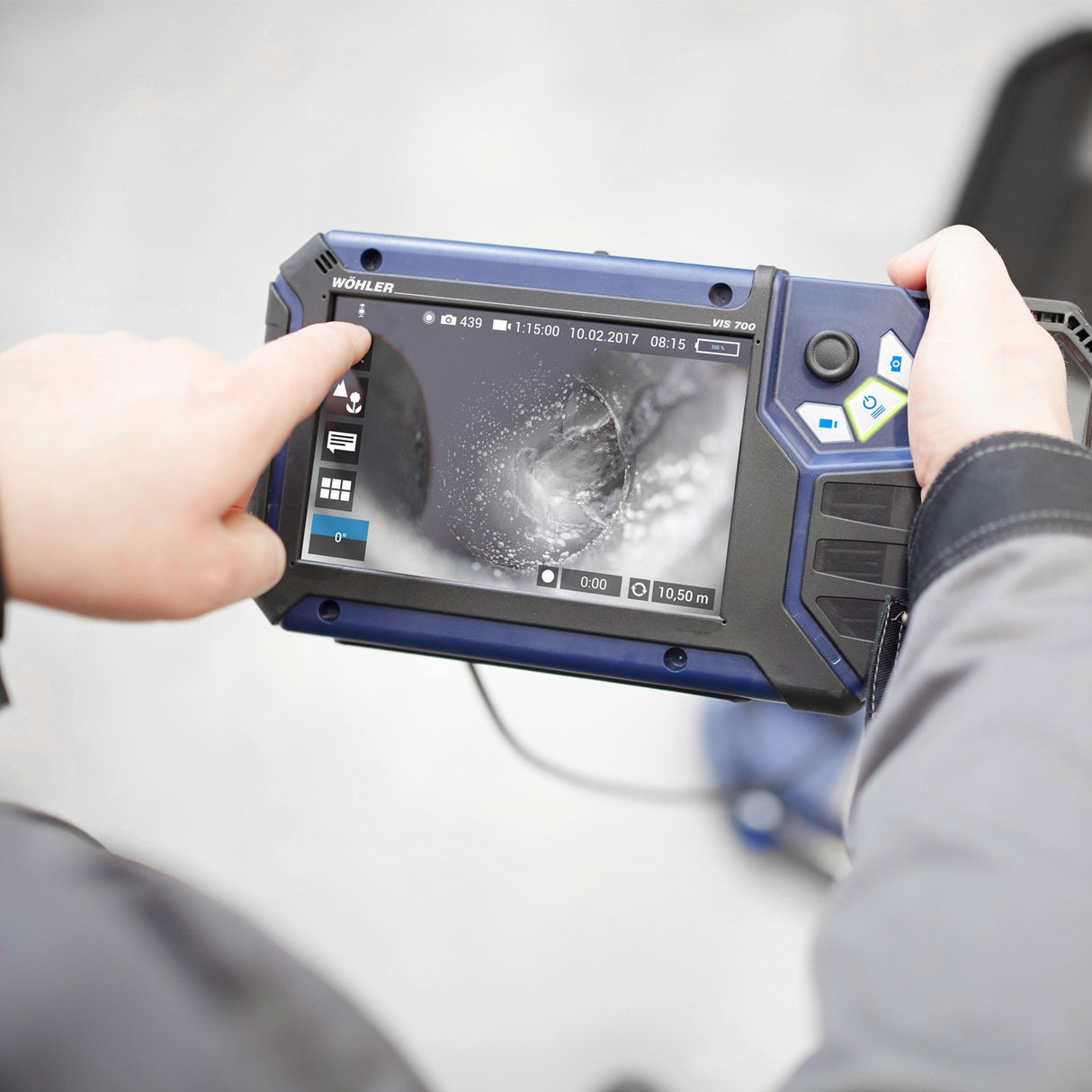

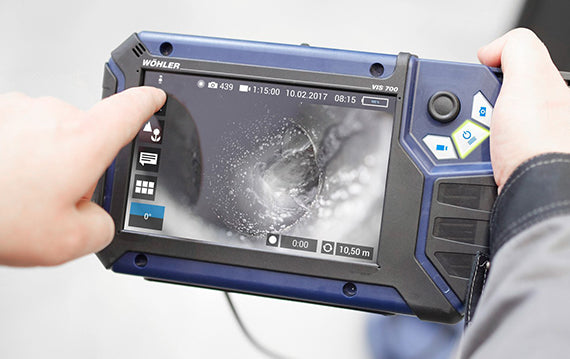

Wohler VIS 700 Plus HD-Video Inspection System is the first true high definition push rod camera system with a remotely controlled pan & tilt camera. A brilliant 7" touchscreen LCD allows you to remotely control camera direction, focus add text annotation, view camera position and level. Super portable and operates on AC or DC power (4 hour rechargeable Li-ion battery).
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Wohler VIS 700 Plus HD Inspection Camera Overview

The best image possible is now available on the VIS 700 Plus HD pan & Tilt camera. The high definition camera provides a super crisp and clear image. Now you can access advanced features like zoom and remote focus. The VIS 700 Plus is the only pan & tilt push camera with a true HD 1280 x 720 image.

True HD Resolution: Inspectors will find the resolution will greatly enhance inspection of boilers, pipes pressure vessels and other confined spaces.

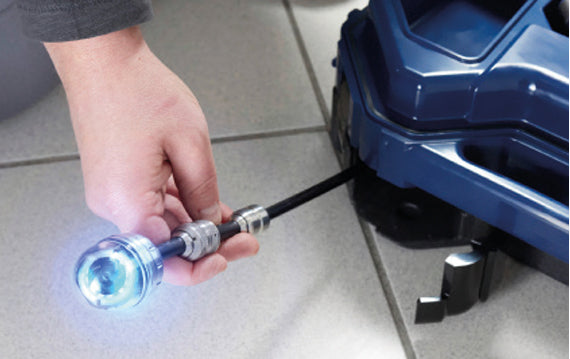

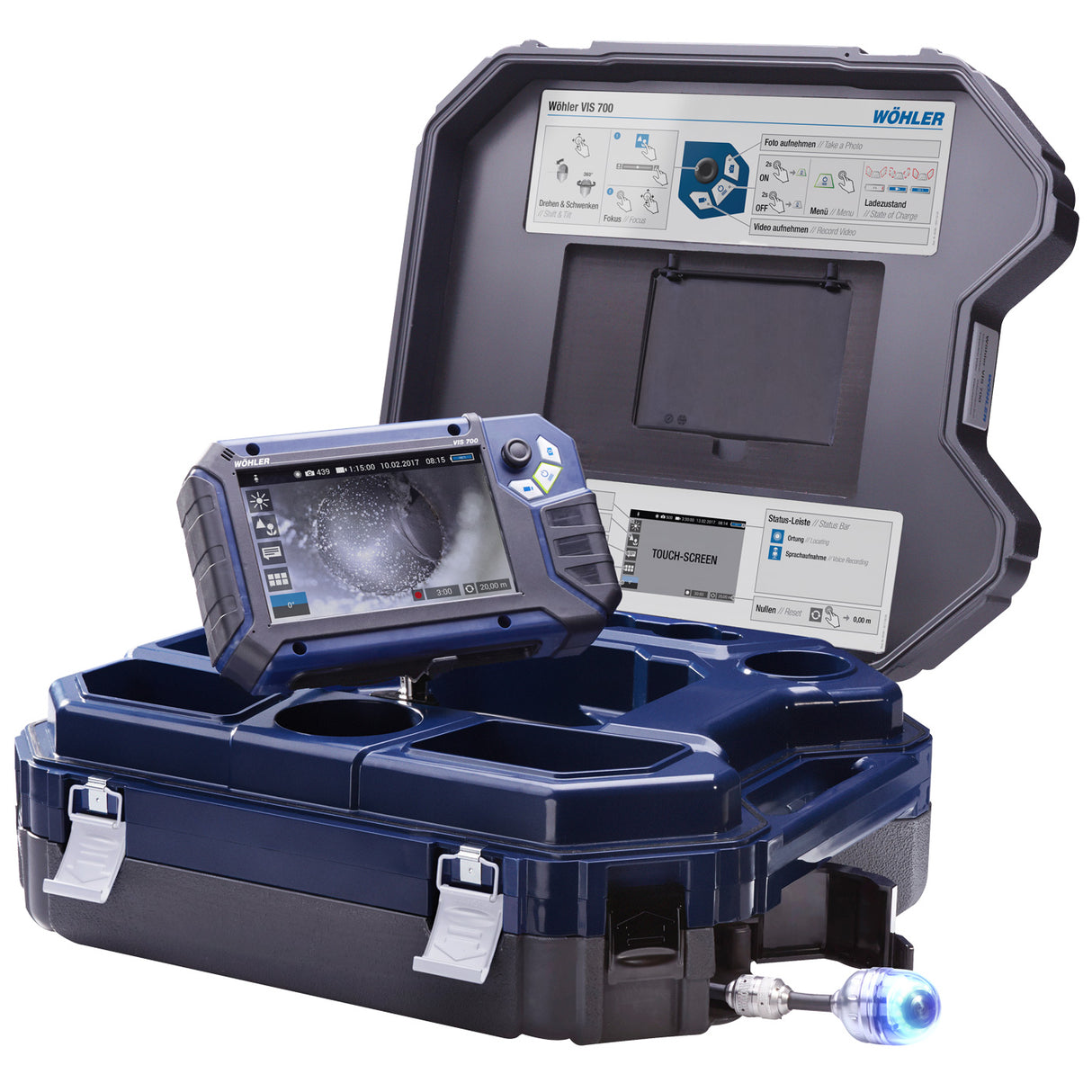

Compact Design: The Wohler VIS 700 Plus is a super compact design. The push rod is housed inside the sturdy case and can be easily accessed for cleaning and service. An easy to read 7" LCD display tucks neatly inside the case. The entire pipe camera system is extremely light weight and can be transported with ease. The system is also battery powered for use in remote locations.

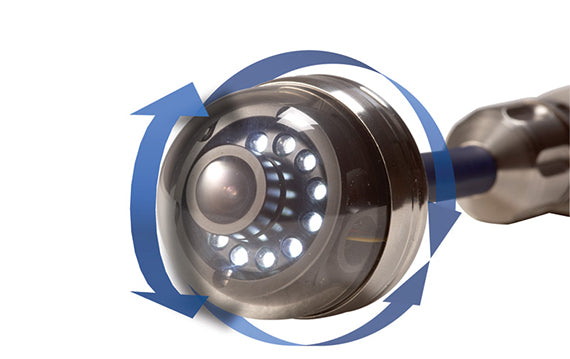

HD Pan & Tilt Camera: The HD pan and tilt camera head allows you to see anywhere. Look forward, to the side or quickly scan an orbital weld. The camera head has 180° of tilt and 360° of rotation. The durable camera is IP67 rated and can be used up to 40' under water.

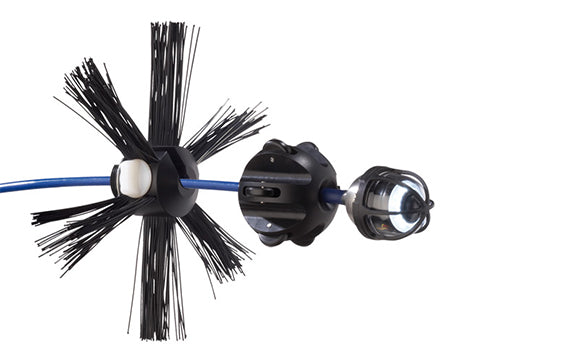

HD Accessories: The Wohler VIS 700 Plus has a wide range of accessories to help you do your job. Protective sleeve for the camera, bushes and roller skids help to center the camera in a pipe for the ideal image.

    Monitor

    • Dimensions housing:10 x 6 x 2 in
    • TFT display: 7" / 16:9 format 1280 x 800 px
    • Weight: 2 lbs.
    • Power supply: USB C 5 V / 3 A
    • Power supply: 3.7 V, 11.4 Ah rechargeable Li-Ion battery
    • Battery operating time: 4 h (battery status in display)
    • Operating temperature: 32…104 °F
    • Storage temperature: -4…122 °F

    Wöhler 1280 x 720 HD pan & tilt camera head:

    • Type: 1/2.7" Color CMOS
    • IP rating: IP 67
    • Viewing angle, diagonal: 160°
    • Focus distance: 1 inch…∞
    • Light source: 10 white LEDs
    • Protection: Waterproof to IP 67 (up to 40 ft. depth for 30 mins.)
    • Dimensions: 1.5 x 2.5 inches
    • Transmit frequency of Locator: variable

    Camera rod

    • Length: 100 ft.
    • Diameter: .33“ x .22“
    • Distance Counter: Digital
    • Resolution: 1 inch
    • Max. deviation: 5% of reading

    Memory

    • Max. capacity of SD card: 32 GB
    • Technology: SD or SDHC, speed class 10
    • Recording capacity:.Approx. 3 GB/h
    • Resolution recording: 1280 x 720 HD, max. 25 fps
    • Recording format: AVI (H264)

    Double-walled storage & transport case

    • Dimensions: 7 x 18 x 20 inches
    • Total weight incl. monitor, camera head and push rod: 22 lbs.

    Locator receiver

    • Display: Graphic camera position indicator
    • headphones: Typ. 32 Ohm
    • Frequency: ~9 kHz
    • Power supply: 3.7 V rechargeable Li-Ion battery
    • Operating temperature: 0 to104 degrees F
    • Storage temperature: 14 °F…104 °F
    • Weight: 1.5 lbs.
    • Dimensions:12 x 6 x 3 inches

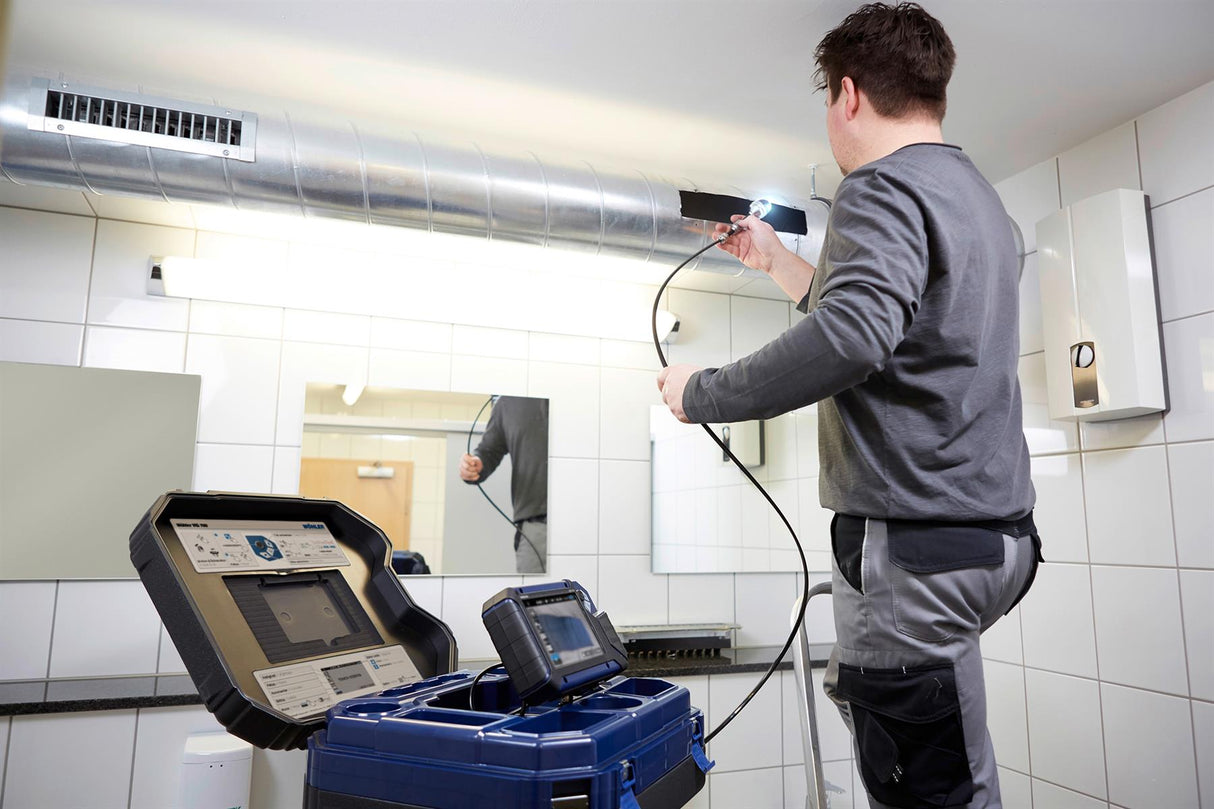

    HVAC systems: need to be inspected for the presence of mold, asbestos, Dust and for overall condition. The Wohler VIS 700 HD pan and tilt push camera allows inspectors to snake through long ducts and passages with ease and see in all directions.

    Chimney Inspection: The Wohler VIS 700 HD video inspection system is the perfect Chimney inspection camera. The camera easily snakes up or down stovepipes and chimneys to inspect for condition. The inspection of household and industrial chimneys is extremely important to the safety of a family or business. The 360° pan capability makes the Wohler VIS 700 HD the perfect chimney inspection camera.

    Inspection of floor drains: Food plants need to check floor drains for cleanliness and blockages or food borne bacteria can grow. The Wohler VIS 700 HD is perfect to inspect long lines quickly and efficiently due to the uniques ability of the camera to rotate and pan for viewing the most remote area.

    Process lines: need to be inspected for condition: The Wohler VIS 700 HD push camera or pipe inspection camera allows fast inspection of long industrial lines to check for pitting, corrosion, erosion, cracking, scaling and other problems. The pan & tilt camera is particularly useful when needing to view side walls and other difficult to see areas.

    Cleaning Validation: Needs to be performed at pharmaceutical and chemical plants to check for cleanliness. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated. A video or drain camera is used to ensure no residue is remaining after cleaning. The Wohler VIS 700 HD's 360 degree pan and tilt camera ensures that all areas can be checked for cleanliness. The true high definition HD camera also means nothing will be missed.

    Steam feed lines need to be inspected for interior condition. A pipe inspection camera such as the Wohler VIS 700 HD can see scale build up, pitting, corrosion, cracking and other defects.

    Foreign Material Exclusion (FME) programs benefit from the capability of a pipe camera to locate foreign objects, loose parts and other debris in industrial piping. The pan & tilt capabilities of the Wohler VIS 700 HD make it possible to see the entire inspection area for objects and material.
