PTZ70HD Inspection System

SKU : PTZ70HD
Designed for confined spaces, the PTZ70HD features a compact 2.83” (72mm) diameter, ideal for accessing tight openings, with a 7.73” (196mm) length at full extension. With standard cable lengths ranging from 150' to 750' (extendable via fiber optics), it provides exceptional reach for remote inspections. This high-performance camera system includes a full HD camera with WDR, ultra-bright LED lighting, 360° pan, 270° tilt, and up to 120X zoom. Submersible to 100 meters, its pressurized, corrosion-resistant aluminum housing with a sapphire window ensures reliable performance in demanding environments.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

PTZ70HD Inspection System Overview

PTZ70HD Camera System was designed to perform detailed remote visual inspection and monitoring in confined spaces and hazardous environments where personnel access is often limited.

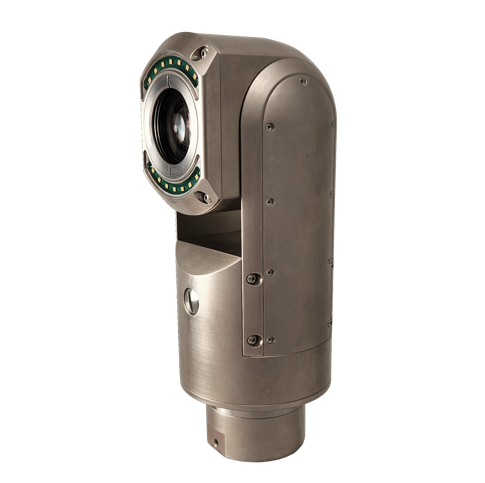

PTZ70HD utilizes a top-of-the-line full HD camera with WDR and features ultra-bright LED array lighting, 360º continuous pan, 270º tilt, 10X optical zoom and up to 120X full zoom. The camera head can be pressurized and is submersible up to 100 meters. The housing is made from lightweight, corrosion resistant, nickel-plated aluminum with a sapphire viewing window and stainless-steel hardware.

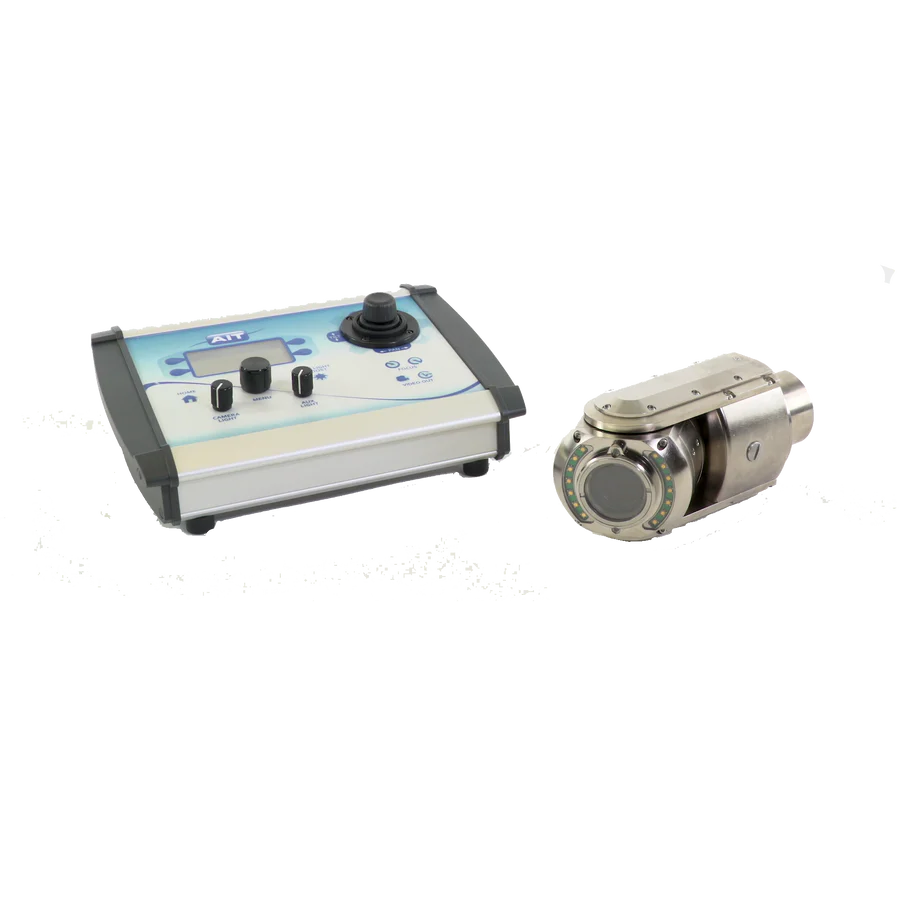

The system includes a portable controller with joystick, light control, locking power connector, multiple outputs and more. Multiple controller models are available including DVR with on-board memory storage. The controller is compatible with both the PTZ70HD and PTZ90HD.

Features:

  • 1080p resolution with WDR
  • Adjustable shadowless LED illumination
  • Nickel-plated aluminum housing
  • Submersible down to 100 meters
  • 360º continuous pan & 270º tilt range
  • 10X optical zoom
    (with up to 120X zoom)
  • Full camera feature access
  • Standard cable lengths at 150’ to 750’
    (extended lengths available via fiber)

Camera Specifications:
  • Resolution: 1080p
  • Image Sensor: 1/2.8" Exmor R CMOS
  • Effective Pixels: 2.13 million (1945(H) x 1097(V))
  • Sensitivity: Day: 0.05 Lux @ F1.6, Night: 0.03 Lux @ F1.6
  • Shutter Speed: 1/25(30)/1/50(60) ~ 1/30,000 sec
  • Signal/Noise Ratio: 52 dB
  • Back Light Compensation: OFF / BLC / HLC / WDR
  • White Balance: Auto / ATW / Indoor / Outdoor / Push / Manual
  • LED Illumination: Yes
  • Operating Temperature: -10ºC to 50ºC
  • Storage Temperature: -20ºC to 60ºC
  • Zoom: 10x Optical, 12x Digital (120x AF Zoom)
  • Cable Length: 150'-750' (up to 2000' with fiber)
  • Wide Dynamic Range: Yes
  • Pressure Rating: 10 Bar (334')

Controller Specifications:
  • Compression Format: H.264/H.265
  • Frame Rate: 60fps
  • Data Storage (DVR Model Only): 2x SD Cards up to 512GB each (1TB total)
  • Photo Format: JPG/JPEG
  • Image Resolution: Up to 8MP
  • Image Capture: Yes
  • HDMI Video Resolution: 1920 X 1080
  • CVBS Video Resolution: 720 X 576
  • Video Format: MP4 (H265+AAC)
  • Power Supply: 36vDC
  • System Language: Multiple Options
  • Illumination Control: Yes, variable 0-100%
  • Operating Temperature: -17ºC to 48ºC [0ºF to 120ºF]

Nuclear Power Plant Inspections

  • Reactor pressure vessel and cooling pump inspection.
  • Visual checks on fuel rods, spent fuel, and steam generators.
  • Underwater inspections with submersible capabilities up to 100 meters, ideal for fuel pools and reactor cavities.
  • IWE/IWL (Inservice Inspection of Containment Structures) exams for compliance and structural integrity.

Oil and Gas Facility Inspections

  • Inspection of storage tanks, pipelines, valves, and reactors.
  • Monitoring confined or hazardous spaces with limited personnel access.
  • Underwater and explosion-proof inspections for offshore and onshore facilities.

Chemical and Process Industry Maintenance

  • Visual inspection of process equipment, boilers, and pressure vessels.
  • Reducing confined space entry (CSE) by using remote inspection tools.
  • Suitable for areas with hazardous or corrosive environments.

Power Generation (Fossil and Nuclear)

  • Inspecting high-pressure steam headers, baffle plates, and tank interiors.
  • Monitoring for Flow-Accelerated Corrosion (FAC) and Microbiologically Influenced Corrosion (MIC).

Water and Wastewater Treatment

  • Inspection of underground tanks, pipelines, and valves.
  • Visual inspection of hard-to-access infrastructure to monitor cleanliness and structural integrity.

Mining and Exploration

  • Inspecting remote, underground equipment and shaft structures.
  • Monitoring safety and stability in high-risk, low-light environments.

Marine and Offshore Applications

  • Inspection of ship hulls, ballast tanks, and offshore structures.
  • Subsea inspections with corrosion-resistant, waterproof design.

Industrial Manufacturing Facilities

  • Inspection of machinery, robotics, and assembly lines in manufacturing plants.
  • Monitoring wear and tear in harsh environments to prevent costly breakdowns.

Refining and Petrochemical Plants

  • Visual inspection of tray towers, refractory vessels, glass-lined tanks, and pipe racks.
  • Ensuring cleanliness and mechanical integrity of pressure components.

Aerospace and Defense

  • Inspection of aircraft fuselages, and structural components.
  • Visual checks in confined areas to prevent foreign object debris (FOD).

Construction and Civil Infrastructure

  • Monitoring of high-rise structures, bridges, and tunnels.
  • Inspections for integrity checks in hard-to-reach or hazardous locations.

Food and Beverage Industry

  • Inspection of tanks, piping, and manufacturing equipment for cleanliness and contamination prevention.
  • Ensuring compliance with hygiene standards through remote inspections.

Utilities and Telecommunications

  • Inspection of underground ducts, vaults, and electrical equipment.
  • Monitoring overhead infrastructure and substations remotely.

Rail Car Inspections

  • Visual inspection of rail car tanks and vessels to ensure cleanliness, structural integrity, and safety compliance.
  • Remote monitoring of hard-to-access areas inside rail cars, especially for hazardous material transport.
