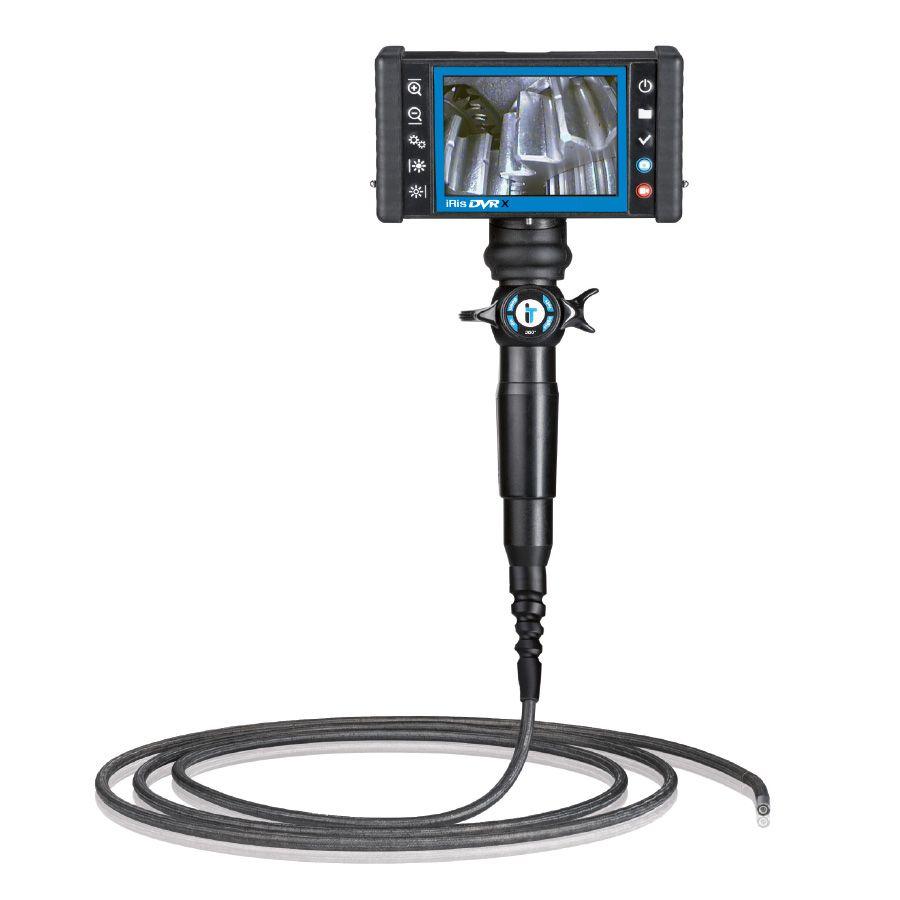

iRis DVR X Articulating Videoscope

SKU : iRis DVR X
Hand held videoscope with video & image recording, text, 4-Way articulation, large 5" LCD, rechargeable 6-hour battery and comparison measurement. Available in 4 & 6mm diameters. Lengths from 1.5 to 7.5m. Perfect for a variety of industrial and aerospace related video borescope inspections.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

iRis DVR X Videoscope Overview:

  • Diameter: 4mm (.157 in) | 6mm (.236 in)
  • Length: 1.5M (4.9 Ft) to 7.5M (24.6 Ft)
  • Articulation: 4-Way
  • Direction of View: 0° Degrees (Forward)
  • Field of View: 90° Degrees
  • Display: 5 inch (12.7 cm) VGA LCD
  • Still Image Recording: Yes
  • Video Recoding: Yes
  • Media: Removable 32GB SD Card
  • Text Annotation: Yes
  • Digital Zoom: 3.5X
  • Comparison Measurement
  • Battery Life: 6 Hours
  • Working Length: Multi Layered Tungsten Braid
  • Water Proof: 14.7psi (1 Bar)
  • Weight: 1.35 Kg (2.97 Pounds)

 iRis DVR XA Upgrade:

  • Available in 6.0mm diamters only
  • XA Model includes Interchageable Side View Tip Adapter
  • Field of View: 90° Degrees

Features and Benefits of the iRis DVR X Videoscope

  • Interchangeable Side View Tip Adapter: The iRis DVR XA Option offers an interchangeable forward and side view tip adapter. This increase the video borescope's ability to inspect orbital weld, turbines, around tight passages and more.

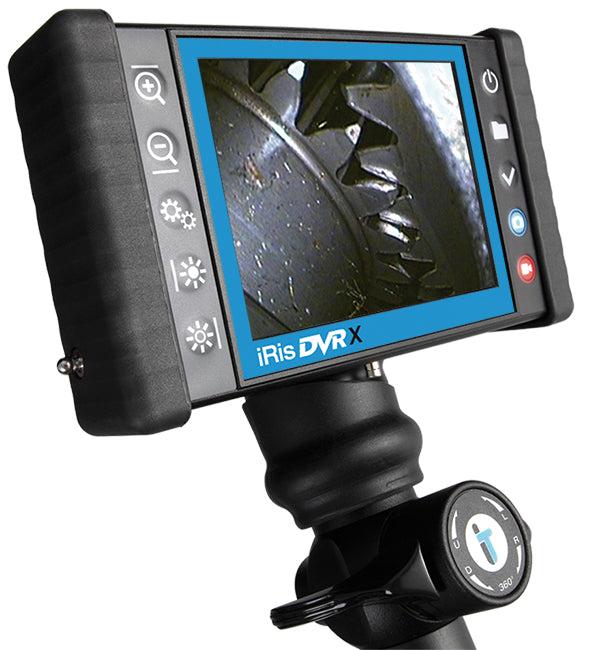

  • 5.0“ (12.7cm) Display: The large integrated display on the iRis DVR X Videoscope system provides superior image resolution versus other video borescope’s tiny 3.0” displays. The large and razor-sharp images on the DVR X Video Borescope
  • 6 Hour Operation Time: The iRis DVR X Videoscope includes a rechargeable high-capacity battery that extends uninterrupted operation time up to 6 hours. This is 3 times longer that comparable videoscopes and video borescopes, allowing you to complete your inspection with time to spare.

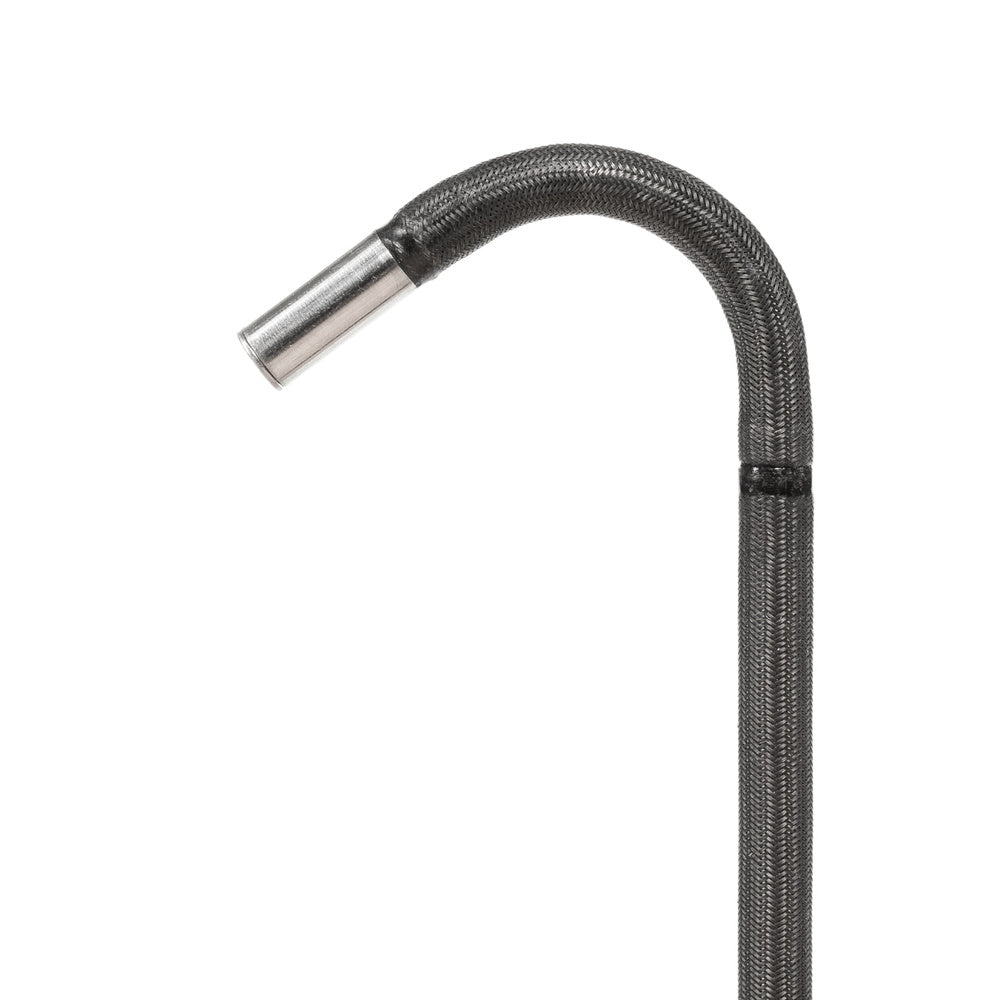

  • 4-Way Articulation: Users can easily steer the iRis DVR X Videoscope in all directions with deflections as high as 160°.  Other comparable systems fall flat with weak 90° deflections. The iRis DVR X Videoscope achieves precise tip positioning and can see in areas other video borescopes cannot.
  • Large Digital Storage Capacity: The iRis DVR X Videoscope can record as much as 32 hours of video and thousands of digital images. Other video borescope systems will only record one hour of video, hardly enough to complete most inspections.
  • Video Borescope Measurement: The iRis DVR X Videoscope uses the comparative measurement method to determine the size of a damaged spot. This is the only video borescope in its range to offer any sort of measurement feature.
  • Multilayered Tungsten Braid: The iRis DVR X Videoscope has a flexible working length that is constructed from high strength tungsten. Comparable video borescopes offer stainless steel or PVC. Tungsten resists 5 times the abrasion stainless steel does and makes a tougher, longer lasting video borescope.
  • Text Annotation: The iRis DVR X Videoscope is the only video borescope in its class that offers text annotation. Information can be directly written on the inspection image for later review and reporting.

Operating unit

  • Display size: 5.0“ (12.7cm) TFT color
  • Display resolution: VGA (640x480 pixel)
  • Operating system: Real-time operating system, with on-screen menu
  • User interface: Direct action keys / function keys / arrow keys
  • Languages: English, German, Polish, French, Spanish, Italian, Turkish
  • Video interface: Composite video-out (BNC)
  • Power supply, primary: Rechargeable Li-ion battery. 6 Hour Operating Time
  • Power supply, secondary: 12V adapter (optional accessory)



Documentation

  • Video format: AVI (.avi) (with time and date stamp)
  • Image format: BMP (.bmp) (with time and date stamp)
  • Storage: SDHC memory card up to 32GB (FAT32) (8GB is provided in delivery set)


Camera control

  • Image sensor: Advanced chip on the tip image sensor
  • White balance: Factory default or user defined


Image control

  • Zoom: x 3.5
  • Invert: Horizontal and vertical image inversion
  • Brightness: Adjustable
  • Contrast:  Adjustable
  • Color: Adjustable
  • Text annotation: Built-in full screen text overlay generator


Illumination

  • Type: High-power LED (4mm fiber / 6mm - LED on the tip)
  • Illumination control: 3 steps
  • Color temperature: 6500k
  • Average lamp lifetime: 5000h


Video borescope Probe

  • Diameter: 4.0mm and 6.0mm
  • Working length: 4.0mm = 4.9 - 9.8ft (1.5 -3.0m), 6.0mm= 4.9 -24.6ft (1.5 - 7.5m)
  • Articulation: 4-way / 360° control 4-way / 360° control
  • Articulation angle: L/R | U/D: 100°/100° | 160°/130°
  • Integrated objective lens: 90° FOV 90°FOV
  • Braid: Multi-layer tungsten braid on PU jacket


Construction

  • Ergonomics: ± 90° rotatable display unit, alt. ±90° rotatable scope handle
  • System weight: 1.35Kg (2.9 Lb)
  • Dimensions: 180mm x 105mm x 45mm
  • Housing: Rugged PU, with integrated rubber shock caps
  • Protection class: IP53


Operating environment

  • Tip operating temperature: -13°F to 176°F (-25°C to +80°C)
  • System operating temperature: -13°F to 115°F (-25°C to +46°C)
  • Storage temperature: -13°F to 140°F (-25°C to +60°C)
  • Relative humidity: 95% max. - non condensing
  • Waterproof: Probe and distal end up to 14.7 psi (1 bar- 10.2m H2O)
  • Resistance: Probe and distal end to oils and saline

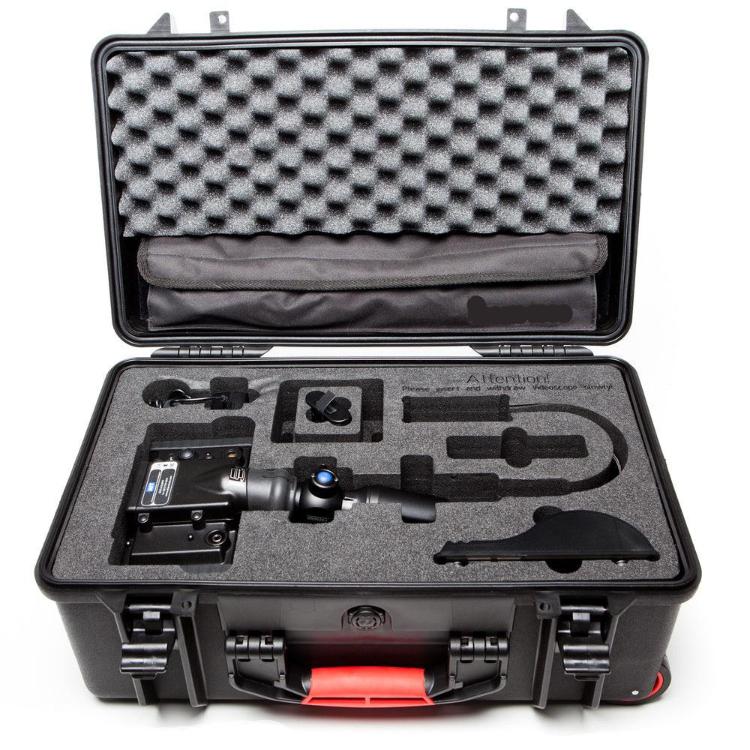

  • Carrying Case: 508mm x 373mm x 147mm / 4.5kg

Aerospace

A Video Borescope or video inspection camera allows quality control, maintenance and troubleshooting tasks to be performed with the minimum downtime, while maximizing safety, efficiency and operational time. Video borescopes allow Inspection of turbines, combustion chambers, low-pressure compressors and high-pressure compressors, aircraft wings, structures brakes, other difficult-to-access areas and the Location of foreign object damage (FOD).

Wind Turbines

A portable video borescope provides cost-effective examination of internal structures without teardown. Portable video borescopes are used to examine gearboxes, blades, motors, yaw drive and generators.

Oil Gas and Chemical Industry

An industrial portable video borescope allows engineers to check for pitting, cracking, corrosion, erosion, weld and other defects, thus minimizing downtime and optimizing planned maintenance. Portable video borescope can inspect condenser tubes, heat exchangers and tubes, glass line vessels, pipelines, steam and gas turbines, pumps, gearboxes, compressors, boilers, headers and valves.

Power Generation

A portable video borescope allows engineers to check for pitting, cracking, corrosion, erosion, weld and other defects, thus minimizing downtime and optimizing planned maintenance. Both fossil and nuclear power plants use Video borescopes to inspect vital equipment such as turbines, pipelines, condenser tubes, pumps, boilers, heat exchangers, valves, pressure vessels and many other items of plant.

Archeology and Nature Studies

A portable video borescope prevents disassembly that would destroy experiments or damage irreplaceable artifacts. The use of video borescopes provides a cost-effective solution for applications such as archaeology nature studies. Uses of remote visual inspection equipment include examinations inside Egyptian mummies & tombs, historical ships & aircraft, and antique musical instruments, and architectural restorations and nature studies.

Security

Portable video borescope are used effectively for bomb disposal (EOD / IEDD), counter terrorist activities, Hostage situations, smuggling of drugs, illegal aliens and other contraband. Portable video borescopes are use in the search of buildings, vehicles, ships, aircraft, freight and difficult to access areas.

Quality Control

A portable video borescope allows manufactures to inspection components for defects. Portable video borescopes provide the ability to inspect internal components, bore holes, castings and other manufactured items such as turbine blades, circuit boards, rifle barrels, welds.

High purity Weld Inspection

Portable video borescopes allow certified weld inspectors to inspect orbital welds on site. Portable video borescopes are used in the pharmaceutical, chemical, fertilizer, food, and health care and electronics industries to verify that welds on high purity piping were completed properly.
