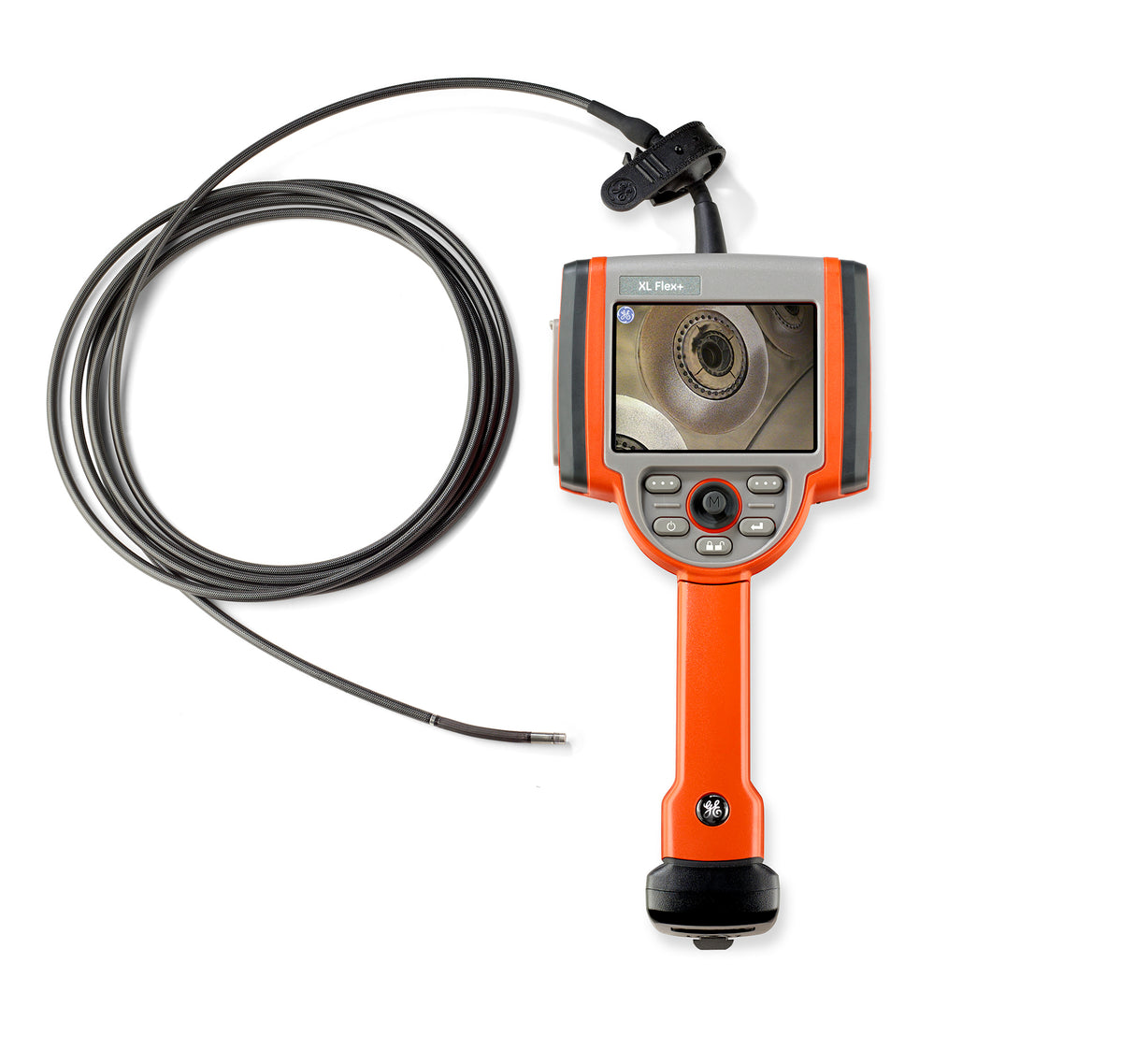

XL Flex / Flex+

SKU : XL Flex+
This product has been retired. The Everest Mentor Flex VideoProbe is the recommended replacement.

The XL Flex+ offers even more visual accuracy with a 5” LCD screen. Stereo measurement combined with a lightweight and ruggedly portable design ensures that proactive maintenance decisions can be made on the spot based on highly accurate measurement results

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Benefits of the XL Flex+ Video Borescope

Get accurate results, fast.
Complete efficient, precise inspections with unmatched image quality, plus a 5” LCD screen on the XL Flex+.

Believe it when you see it.
Reduce eyestrain with powerful light output and a 3X brighter display in the XL Flex+.

Cut down on costs.
Lower your maintenance spending with durability you can trust, even in the harshest inspection environments.

Evaluate defects in depth.
Stereo measurement provides accurate analysis as you work.

Stay flexible.

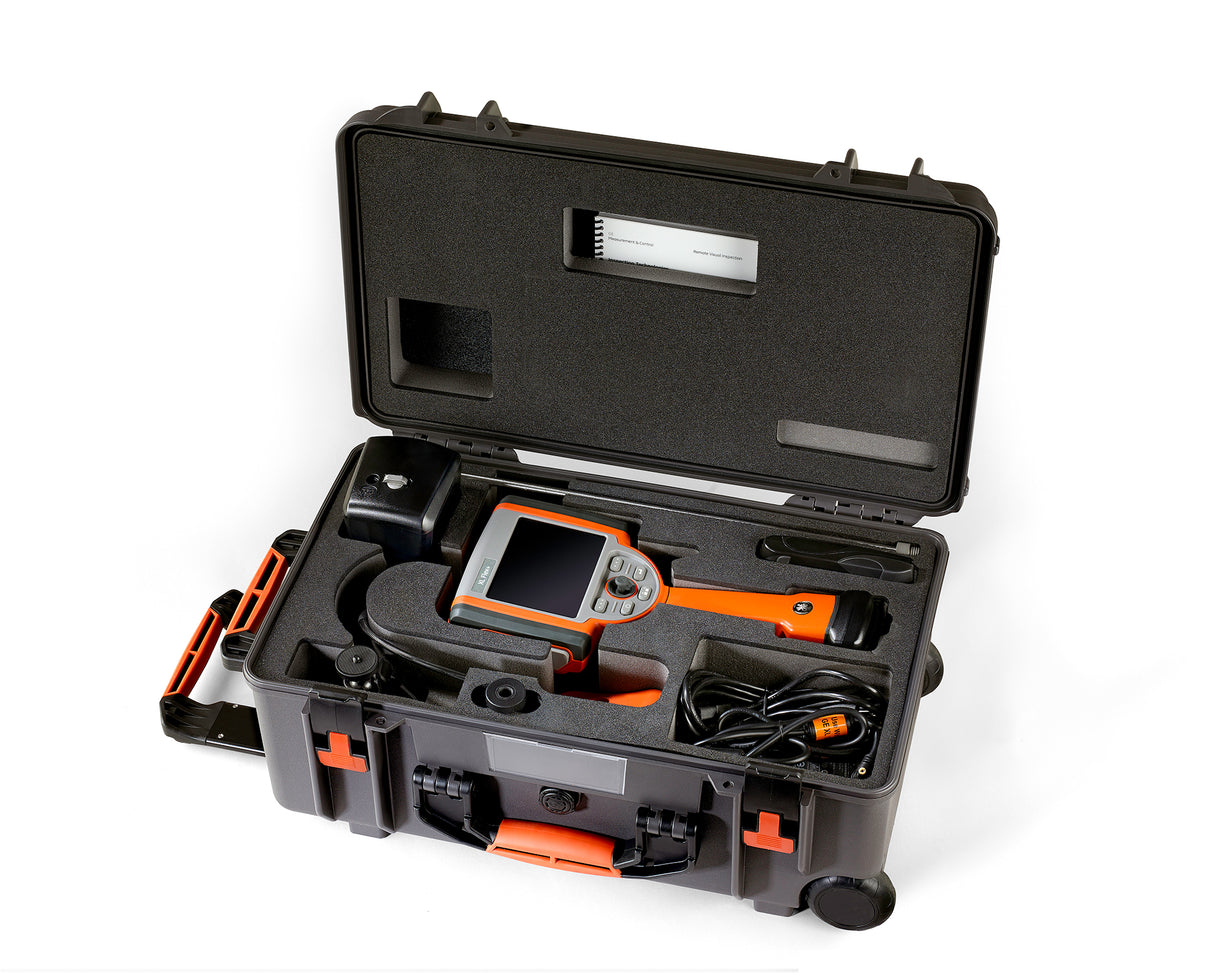

At just 4.3 lbs., the device is lightweight and portable, with a wheeled carry-on case for easy transport.

Learn quickly.
The intuitive interface includes Menu Directed Inspection (MDI) 2.0, an application to guide users through inspections and organize results for simpler reporting.

Experience true peace of mind.
Get readily available assistance from GE experts, wherever you are.

Now with a 5” LCD screen for clear-cut inspections.
The new XL Flex+ display is 85% larger and 3X brighter, with crystal clear image quality unmatched in the industry. Paired with advanced optics and powerful light output, that means sharper images right on your device. Because when you can see clearly, you improve POD, speed up your workflow, and deliver results with confidence.

OPERATING ENVIRONMENT

Tip Operating Temp:-25°C to 100°C (-13°F to 212°F) Reduced articulation below 0°C (32°F)System Operating Temp:-20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F)  Storage Temperature:-25°C to 60°C (-13°F to 140°F)Relative Humidity:95% max, non-condensingWaterproof:Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O)Environmental:XL Flex: Tested to IP55XL Flex+: Tested to IP65



SYSTEM

Wheeled Case:54.9 x 34.6 x 23.6cm (21.61 x 13.62 x 29)System Weight:In Case:XL Flex: 6.50 kg (14.30 lb)XL Flex+: 8.39 kg (18.5 lb)Without Case:XL Flex: 1.73 kg (3.8 lb)XL Flex+: 1.98 kg (4.37 lb)Power (Lithium Ion Battery)8.4 V, 38 Wh (2 hour) 8.4 V, 75 Wh (4 hour)Power Supply:AC Input: 100-240 VAC, 50-60 Hz, 1.5 A Max DCOutput: 9.5 V, 6.0 AConstruction:Polycarbonate housings with integratedVersalon™(JP) bumpersDimensions:9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in)

LCD Monitor:

XL Flex: Integrated transflective 9.40 cm (3.70 in)active matrix VGA color LCD with XpertBright,640 x 480 resolutionXL Flex+: Integrated 12.7 cm (5.0) active matrixVGA color LCD, Transmissive display.Joystick Control:360° All-Way tip articulation with XpertSteer, bump gesture, menu access and navigationButton Set:Access user functions, measurement and digital functionsAudio:Integrated 2.5 mm headset/microphone jackInternal Memory:XL Flex: 4 GB Flash memoryXL Flex+: 16 GB Flash memoryData I/O Ports:Two USB® 2.0 portsVideo Port:VGA Video OutBrightness Control:Auto and VariableIllumination Type:White LEDLong Exposure:Via auto and manual modeWhite Balance:Factory default or user defined



STANDARDS AND COMPLIANCE CLASSIFICATIONS

MIL-STD-810GTested to United States Department of DefenseEnvironment Tests Sections 506.5, 507.5, 509.5, 510.5, 511.5, 514.6, 516.6, 521.3MIL-STD-461FXL Flex: Tested to United States Department ofDefense Electromagnetic Interference RS103 - ABOVE DECKXL Flex+: Available upon requestMIL-STD-461GOn select XL Flex and XL Flex+ model. Available upon request.Standards ComplianceGroup 1, Class A: EN61326-1UL, IEC, EN CSA-C22.2:61010-1UN/DOT T1-T8IP RatingXL Flex: Tested to IP55XL Flex+: Tested to IP65



CAMERA

4.0 mm (0.157 in) Diameter Probes

Image Sensor:1/10 inch Color SUPER HAD CCD cameraPixel Count:290,000 pixelsHousing:Titanium



6.1 mm (0.242 in) and 8.4 mm (0.331 in) Diameter Probes

Image Sensor:1/6 inch Color SUPER HAD™ CCD cameraPixel Count:440,000 pixelsHousing:Titanium



SOFTWARE

Operating System:Real-time multi-tasking operating systemUser Interface:Simple drop-down menu-driven operation. Menu navigation using articulation joystickFile Manager:Embedded file manager software supporting:File & Folder creation, naming, deleting Store to internalFlash (C:\) or USB ThumbDrive Copy between USB and C:\Measurements:StereoProbe and ComparisonMDI Software (optional):Provides user defined guided inspection CreatesDICONDE compatible inspection files Creates MS Word®compatible inspection reportsAudio Data:PC compatible (.AAC) file format

Image Control:

Invert, Zoom (5X digital) Image Capture and RecallDigital Zoom:Continuous (5.0X)Image Formats:Bitmap (.BMP), JPEG (.JPG)Video Format:MPEG 4Text Annotation:Built-in full screen text overlay generator Supports internationallanguage character sets 100 text line capacityGraphic Annotation:User placement of arrowsArticulation Control:

“Steer & Stay” articulation lock/fine articulation Tip
“Home” return to neutral forward-tip orientation
User selectable fine or coarse control
XpertSteer probe articulation offers quick steering responsiveness
for tight probe control – bump steering enables slight adjustments to probe position

Software Updates:Field updateable via USB ThumbDriveLanguages:English, Spanish, French, German, Italian, Russian, Japanese,Korean, Portuguese, Chinese, Polish

Oil and Gas
Power Generation
Automotive
Aerospace
Food & Beverage
Pharmaceutical Manufacturing
