Wohler VIS 340 Push Camera

SKU : VIS 340

This product has been retired. The Wohler VIS 350 Pipe Inspection Camera is the recommended replacement.

Remotely controlled pan & tilt push camera head with a 100 Ft cable. Video recording, battery power, large 7" LCD display, and push rod distance measurement. Perfect for close inspection of pipes, vessels, HVAC, chimneys, drains, behind walls, and more.

Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Wohler VIS 340 Pipe Inspection Camera Overview:

Replaced with Vis 350 Push Camera System (Click Here to View)

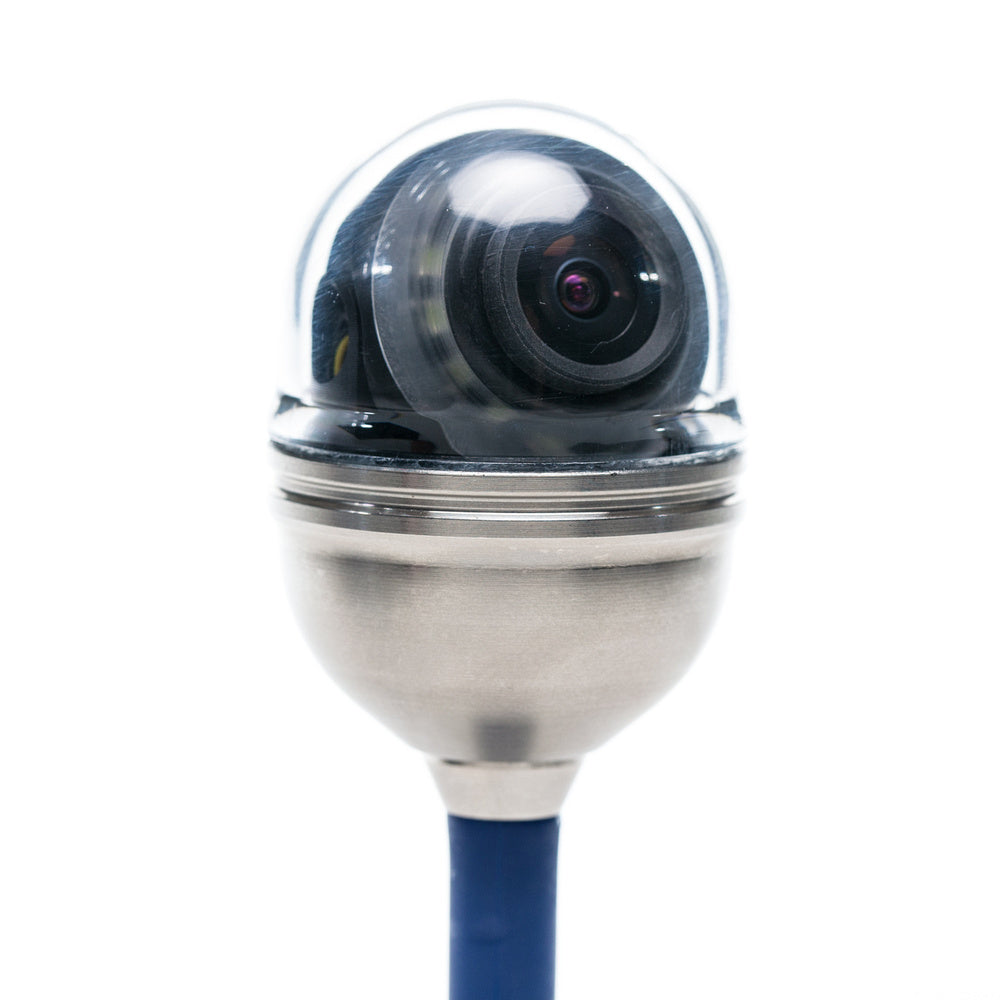

  • Pan and Tilt Camera Head: 1.5 x 2.4 inch (38 x 60mm)
  • Pan: 360°
  • Tilt: 180°
  • Field of View: 120 Degrees
  • Camera Sensitivity: 0.5 Lux
  • Waterproof: IP 67
  • Push Rod: 100 Ft x 0.26 in (30M x 6.6mm)
  • Display: 7 inch TFT (Removable)
  • Integral Color Video Recording
  • Media: 2 GB Removable SD Card
  • USB File Transfer
  • Digital Foot/Meter Counter
  • Lighting: 12 White LEDs
  • Power: 12V DC or AC (2 Batteries Included)
  • Battery Lifetime: 1.5 Hours
  • Video Output: RCA
  • Dimensions: 20 x 17 x 7 in (508 x 431 x 177mm)
  • Weight: 18 lb.

 *Vis 340 Plus includes additional 1.0 inch forward view camera head



 Vis 340 Push Camera Features and Benefits:

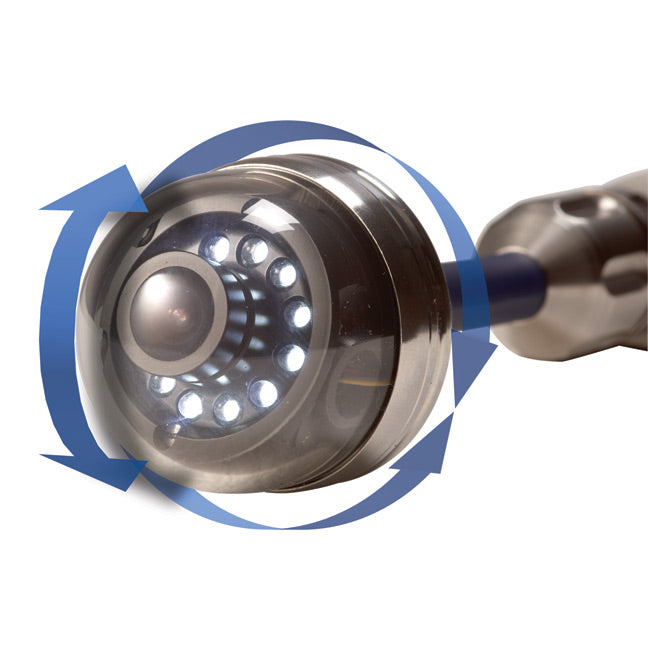

360° degree pan and 180° tilt camera head: allows the Vis 340 push camera see in all directions. Other push rod inspection camera systems only see straight ahead and cannot see the detail of sidewalls like the Vis 340.

Large flip up 7 inch LCD: allows for optimal viewing. Other cameras for drains do use cumbersome old-fashioned monitors that are heavy and offer little true resolution.

SD Card Storage: The Wohler 340 push rod inspection camera offers a removable SD card slot to easily record video. SD card storage is superior to USB thumb drive, DVD or tape recording. SD cards are able to record hours of video on the most modern and universally accepted recording media.

USB file transfer: The Vis 340 includes a USB connection to quickly transfer files directly to your PC. Direct USB file transfer is faster for transferring large video files compared to other media such as thumb drives, DVDs or videotape.

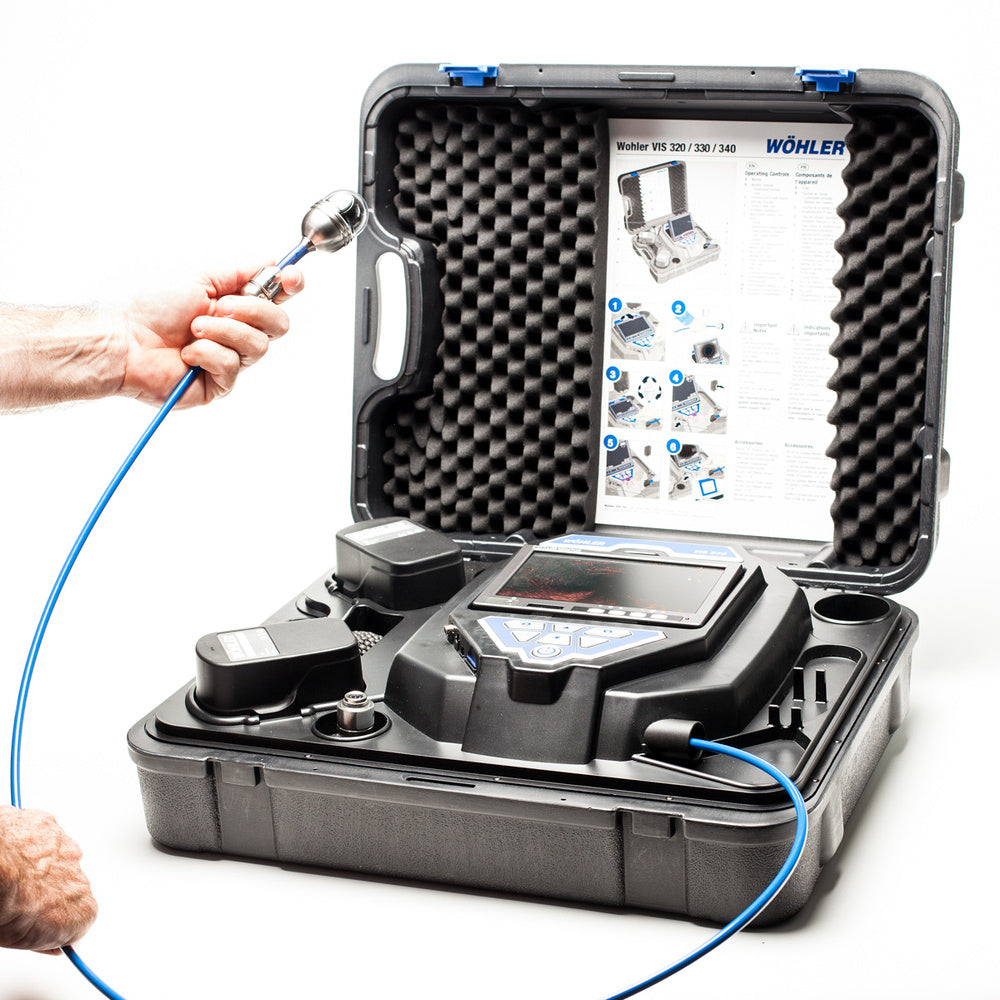

Portability: The Vis 340 push camera weighs in at only 15 lb and is self-contained in a convenient system case. Other inspection or drain cameras have heavy metal storage reels and separate viewing monitors that add to their bulk and weight.

Battery Power: included with the Vis 340 are 2 batteries for extended use in the field when AC power is not available. This is superior to chimney, pipe, push and drain camera systems that rely on DC power only.

Digital Distance Meter: The Vis 340 reveals how far the push rod has travelled for better location of problem areas. This is better than guessing haw far a blockage is when is come time to make repairs.

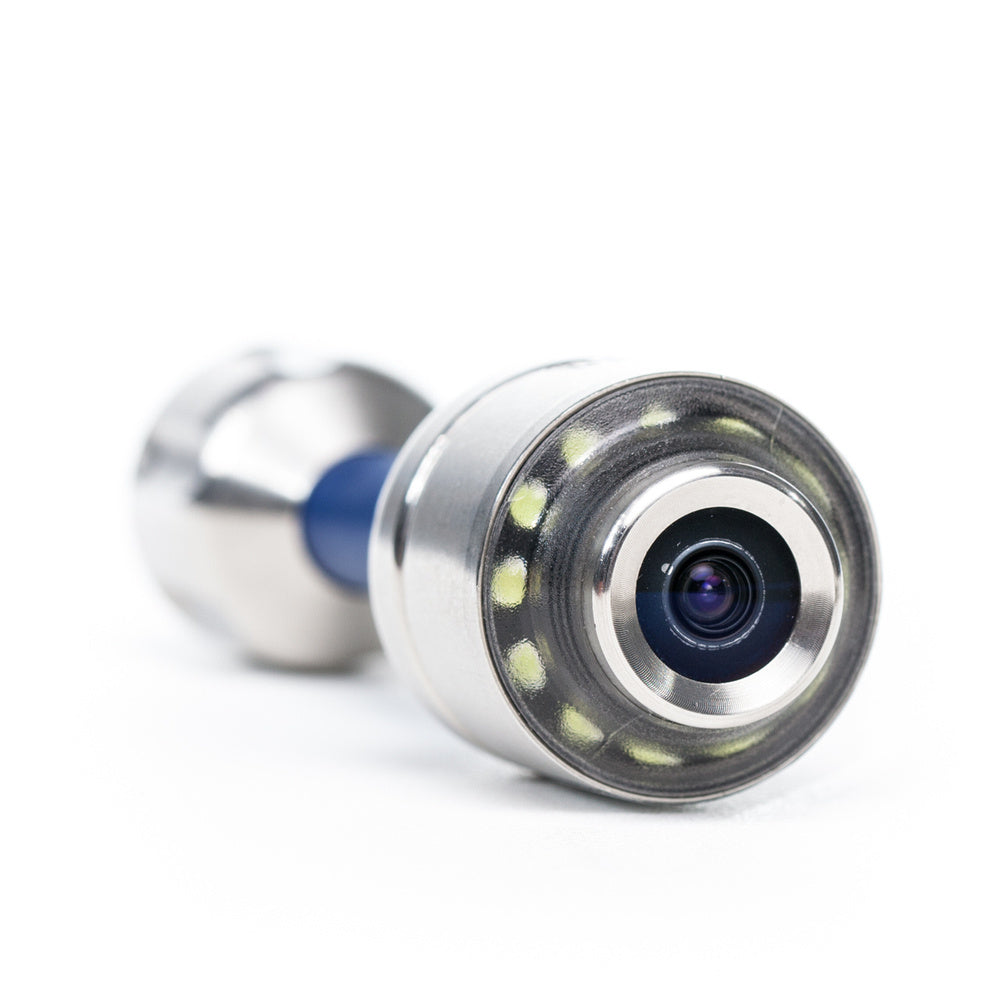

Vis 340 Plus includes Additional One Inch Camera Head: Perfect for the smaller applications that require a smaller push camera head. This enables the push rod camera to navigate tight pipes and passages that the standard pan and tilt will not.

Monitor

Size: 7" x 4.5" x 1.3"

TFT size: 7"/ 16:9 format

Video out: FBAS

Weight: 1 lb.

Power Supply 2 x rechargeable batteries 12 V/1.2 Ah

Operating time approx2 hrs. per battery

Mini P&T Color Camera Head

Sensor type: 1/3" COLOR CMOS

Sensitivity: 0.5 Lux

Lens system: f = 0.08”, F = 2.4

Field of view: 120°

Light source: 12 super-bright white LEDs

Protection: waterproof IP 67

Size: Ø 1.5" x 2.4"

Distance indicated push rod

Length: 100 ft.

Diameter: 0.26"

Case

Size: 20" x 17" x 7"

Weight: 18 lbs.

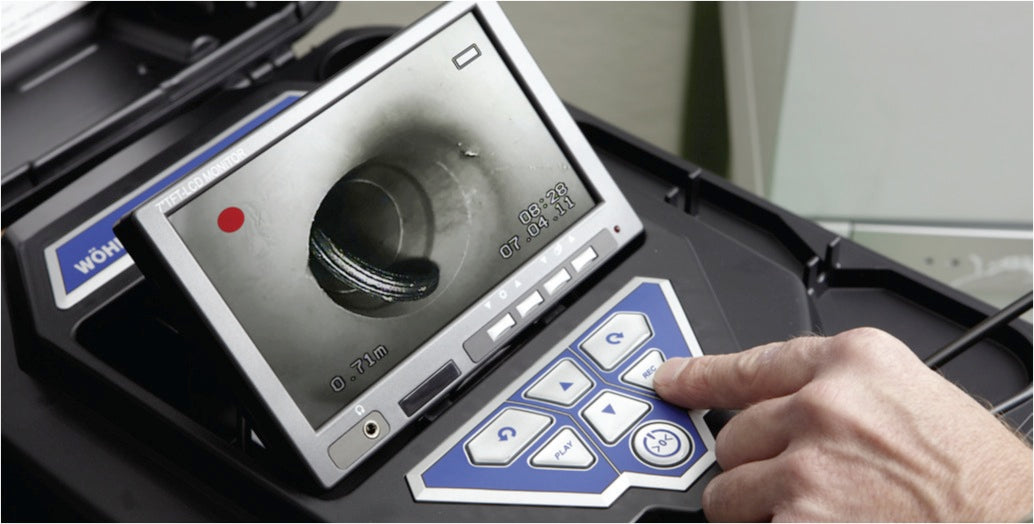

Digital Recording

Recording: 2 GB SD-Card (2.5 h recording)

Interface: Mini USB-Adapter

The Wohler VIS 3xx Push Camera combines state-of-the-art camera technology, cordless operation, compact portability and rugged durability. This provides the ultimate value package for visual inspection.

Features:

360° pan- and 180° tilt camera eye

Camera head measures 1 ½” Diameter

Fully encapsulated waterproof camera head with replaceable domes

90° – bends are easily negotiable for camera

Dual rechargeable 12V batteries

Heavy Duty carrying case

Anti-slide mat for steadying case

Digital distance measurement

RCA video output for recording

Super bright TFT color monitor

Built in recording

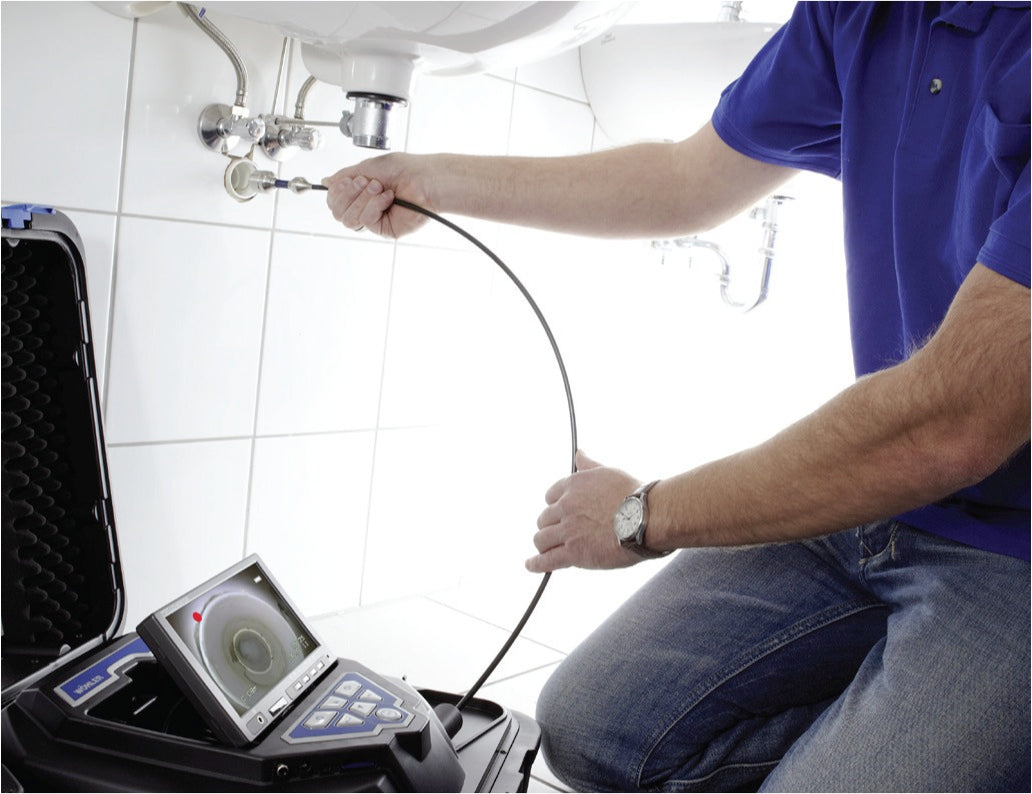

HVAC systems: need to be inspected for the presence of mold, asbestos, Dust and for overall condition. The Wohler Vis 340 pan and tilt push camera allows inspectors to snake through long ducts and passages with ease and see in all directions.

Chimney Inspection: The Wohler VIS 340 is the perfect Chimney inspection camera. The camera easily snakes up or down stovepipes and chimneys to inspect for condition. The inspection of household and industrial chimneys is extremely important to the safety of a family or business. The 360° pan capability makes the Wohler 340 the perfect chimney inspection camera.

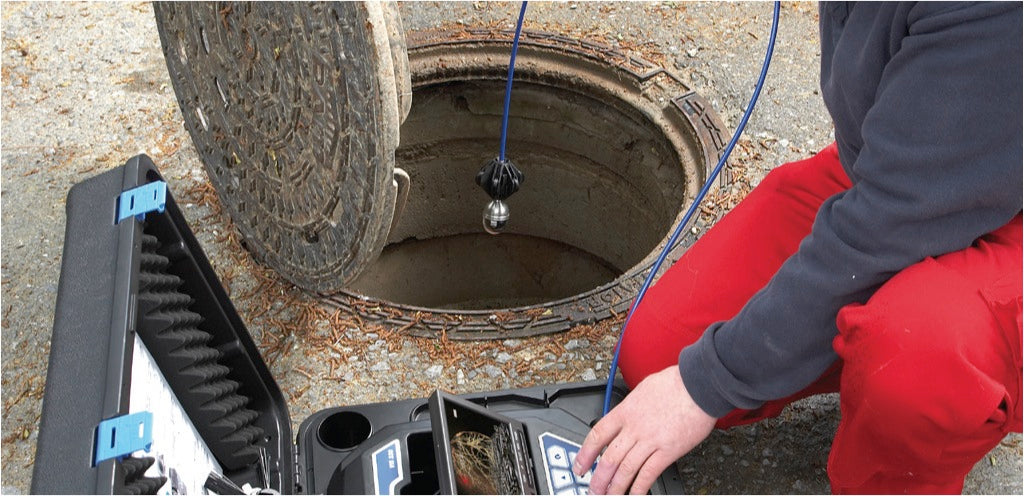

Inspection of floor drains: Food plants need to check floor drains for cleanliness and blockages or food borne bacteria can grow. The Vis 340 is perfect to inspect long lines quickly and efficiently due to the uniques ability of the camera to rotate and pan for viewing the most remote area.

Process lines: need to be inspected for condition: The Wohler 340 push camera or pipe inspection camera allows fast inspection of long industrial lines to check for pitting, corrosion, erosion, cracking, scaling and other problems. The pan & tilt camera is particularly useful when needing to view side walls and other difficult to see areas.

Cleaning Validation: Needs to be performed at pharmaceutical and chemical plants to check for cleanliness. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated. A video or drain camera is used to ensure no residue is remaining after cleaning. The Vis 340's 360 degree pan and tilt camera ensures that all areas can be checked for cleanliness.

Steam feed lines need to be inspected for interior condition. A pipe inspection camera such as the Vis 340 can see scale build up, pitting, corrosion, cracking and other defects.

Foreign Material Exclusion (FME) programs benefit from the capability of a pipe camera to locate foreign objects, loose parts and other debris in industrial piping. The pan & tilt capabilities of the Vis 340 make it possible to see the entire inspection area for objects and material.
