Wohler VIS 250 Push Camera

SKU : VIS 250

A lightweight, portable and affordable push rod inspection camera system. Includes video & still image recording to a removable SD card and an interchangeable camera head. Camera orientation and angle is displayed on screen. Built in radio location transmitter helps to gives the exact position of the camera head with the optional locator wand. The Vis 250 allows for close inspection of plumbing, sewers, pipes, HVAC, heat exchanger tubes, ducts, chimneys, drains, behind walls and ductwork.
Want to learn more about this product?
Typical Response Time: <1 business day

The AIT Advantage

×

Proud U.S. Government Supplier

We simplify purchasing for U.S. Government buyers by accepting Government Purchase Cards (VISA, MasterCard, American Express) and regular credit cards. We also offer Net 30 terms to most federal, state, and local agencies.

CAGE Code: 9U7N2

AIT is a Small Business, as defined by SBA Small Business Size Standards. Contact us to submit an RFQ or purchase order.

×

FREE Lifetime Tech Support

AIT is your partner for life. We’re here to help with any questions you may encounter after the purchase, for as long as you own the product.

×

AIT Authenticity Guarantee

Mission-critical projects demand top-quality equipment—there’s no room for error. AIT guarantees 100% authentic products, rigorously inspected to ensure manufacturer-direct quality. Trust AIT to eliminate the risks of counterfeit or compromised gear.

×

FREE Technical Consultation

At AIT, you'll speak directly with real experts who have decades of experience in visual inspection. Whether it's a hard-to-reach turbine blade, pipe, duct, or a circuit board, we offer solutions tailored to your unique needs.

Our expertise is available at no cost and with no obligation.

×

Flexible Financing Options

Get essential equipment now without waiting on budget cycles. Our flexible financing options turn capital expenses into operational costs, preserving your capital budget.

Getting a financing quote is quick, easy, and free. In just a few simple steps, you’ll have a tailored quote to help secure the equipment you need without delay. Contact us for more information.

Product Information
Specifications
Applications
Downloads

Wohler VIS 250 Pipe Inspection Camera Overview:

  • Camera Diameter: 1.0 inch (25mm)
  • Push Rod: 100 Ft x 0.26 in (30M x 6.6mm)
  • Built in Multi Frequency Location Transmitter
  • Field of View: 120 Degrees
  • Still Image & Video Recording
  • On Scree Gravity Indicator For Image Orientation
  • On Screen Angle Indicator Show Camera Angle
  • Media: 2 GB Removable SD Card
  • USB File Transfer
  • Digital Foot/Meter Counter
  • Camera Sensitivity: 0.5 Lux
  • Waterproof: IP 68
  • Display: 7 inch TFT (Removable)
  • Lighting: 12 White LEDs
  • Power: 12V DC or AC Battery (1 Included)
  • Battery Lifetime: 2 Hours
  • Video Output: RCA
  • Dimensions: 20 x 17 x 7 in (508 x 431 x 177mm)
  • Weight: 18 lb.

 Includes: Guidance Sleeve (3827) and Stabilization Ball (3634)

Features and Benefits of the Vis 250 Push Rod Inspection Camera:

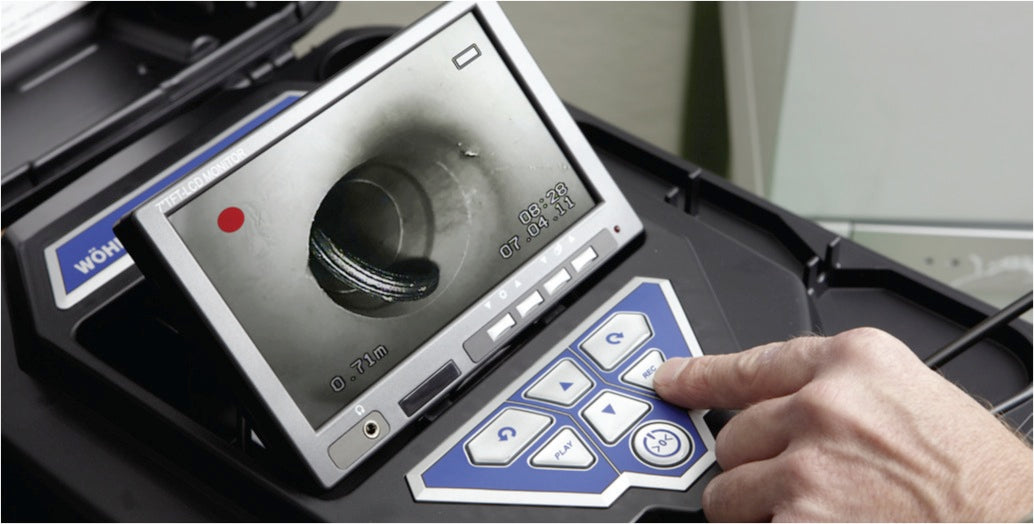

Large flip up 7 inch LCD: allows for optimal viewing. Other cameras for drains do use cumbersome old-fashioned monitors that are heavy and offer little true resolution.

Gravity Indicator: Orientation of the camera is displayed so you always know the orientation of the pipe.

Camera Angle Indiactor: The Vis 250 is the only pipe inspection or sewer camera with the ability to show the angle of the camera head. This will reveal dips and low points in pipes and if the push rod camera is moving up or down.

Built in Radio Locator: The Vis 250 also includes a multi frequency radio location transmitter that reveals the location of the push rod camera head when used with a location wand.

SD Card Storage: The Wohler Vis 250 inspection camera offers a removable SD card slot to easily record video and still images. SD card storage is superior to USB thumb drive, DVD or tape recording. SD cards are able to record hours of video on the most modern and universally accepted recording media.

USB file transfer: A USB connection to quickly transfer files directly to your PC. Direct USB file transfer is faster for transferring large video files compared to other media such as thumb drives, DVDs or videotape.

Video Output: Allows you to connect the Vis 250 to any external recording device or monitor.

Portability: The Vis 250 includes a 100-foot push rod inspection camera, weighs in at only 18 lb and is self-contained in a convenient system case. Other inspection or drain cameras have heavy metal storage reels and separate viewing monitors that add to their bulk and weight.

Battery Power: included with the Vis 25 is one 2 hour battery for extended use in the field when AC power is not available. This is superior to chimney, pipe, push and drain camera systems that rely on DC power only.

Distance Measurement: The Vis 250 offers a digital meter counter on the LCD. This is better than guessing haw far a blockage is when is come time to make repairs.

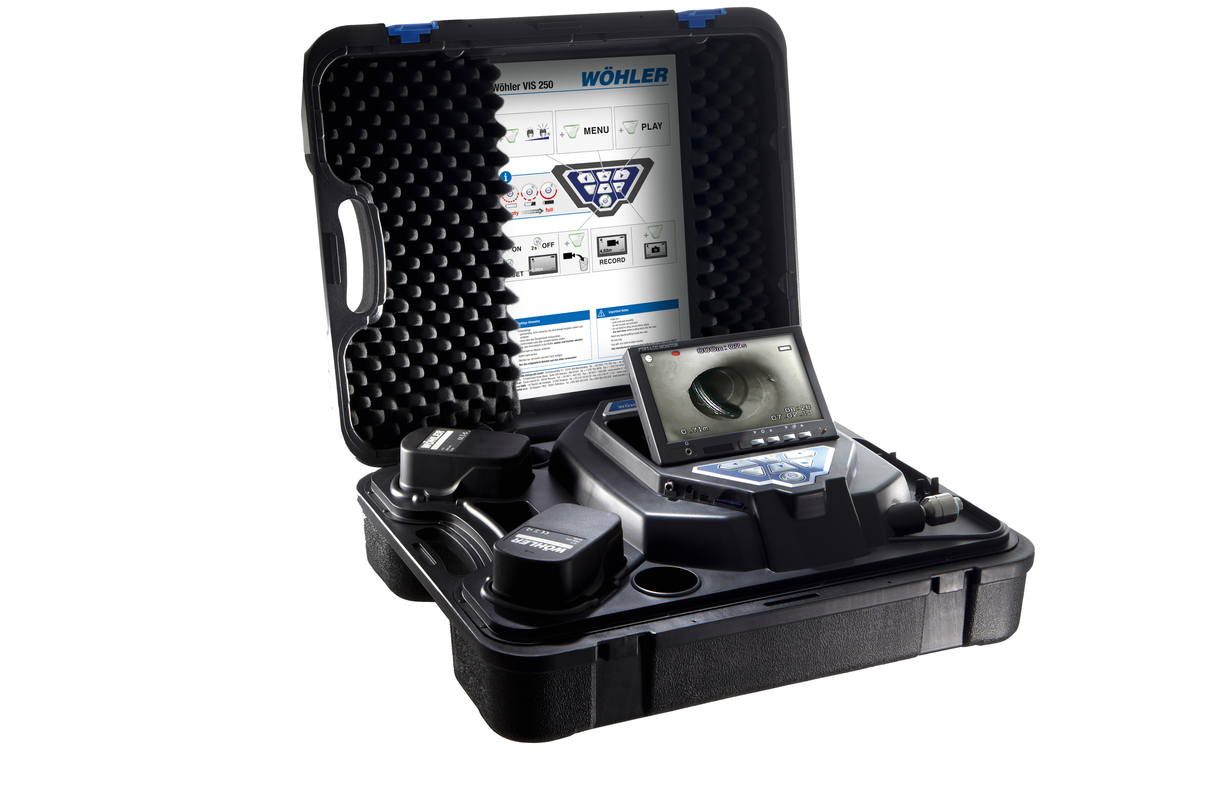

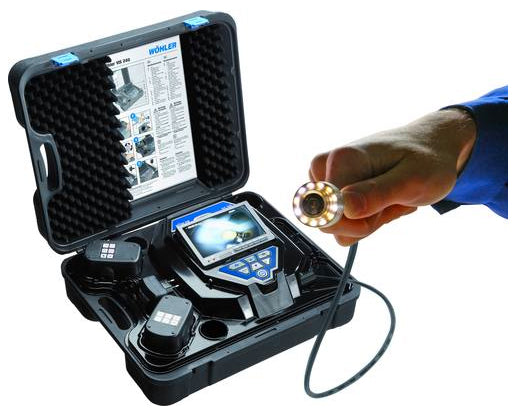

Vis 250 Push Rod Inspection Camera System

LCD Size: 7" x 4.5" x 1.3", 16:9 format

Video out: Standard Video Signal

Weight: 12 oz.

Power Supply: 1 rechargeable battery 12 V/1.2 Ah

Operating time: approx. 2 hrs per battery

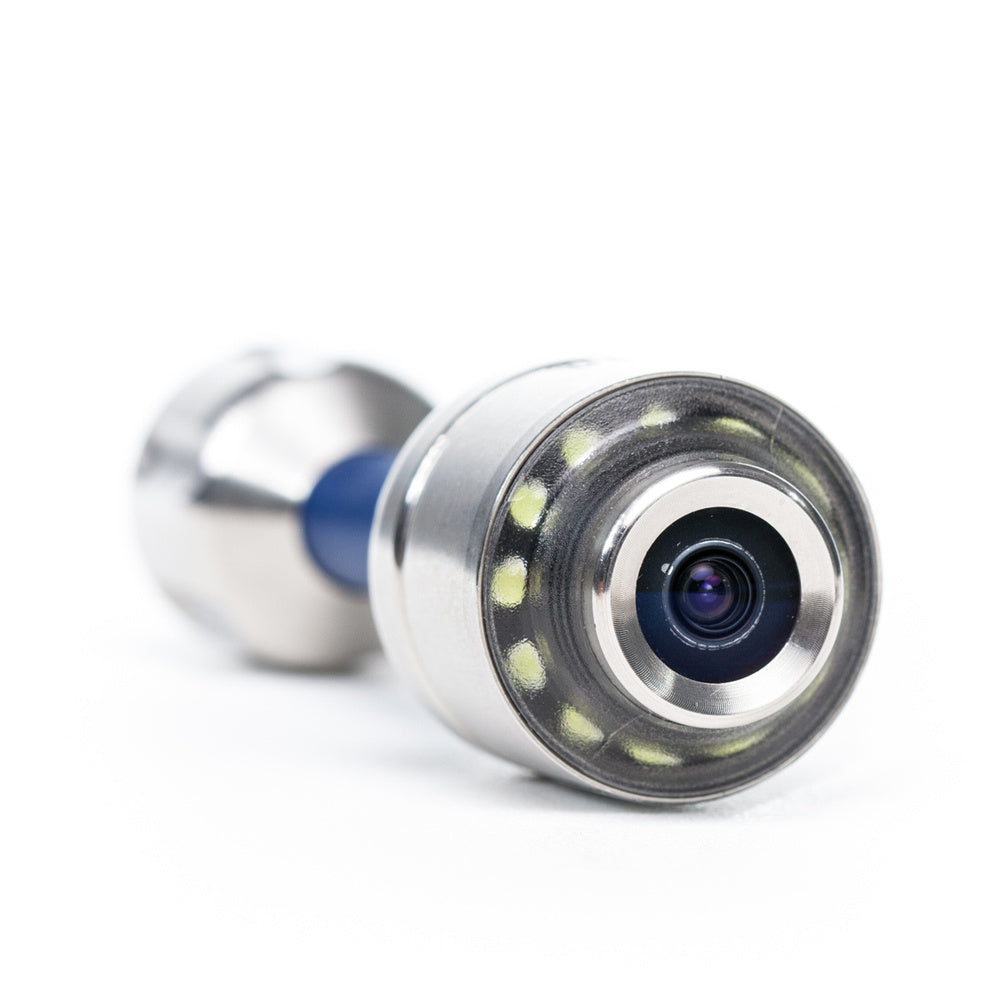

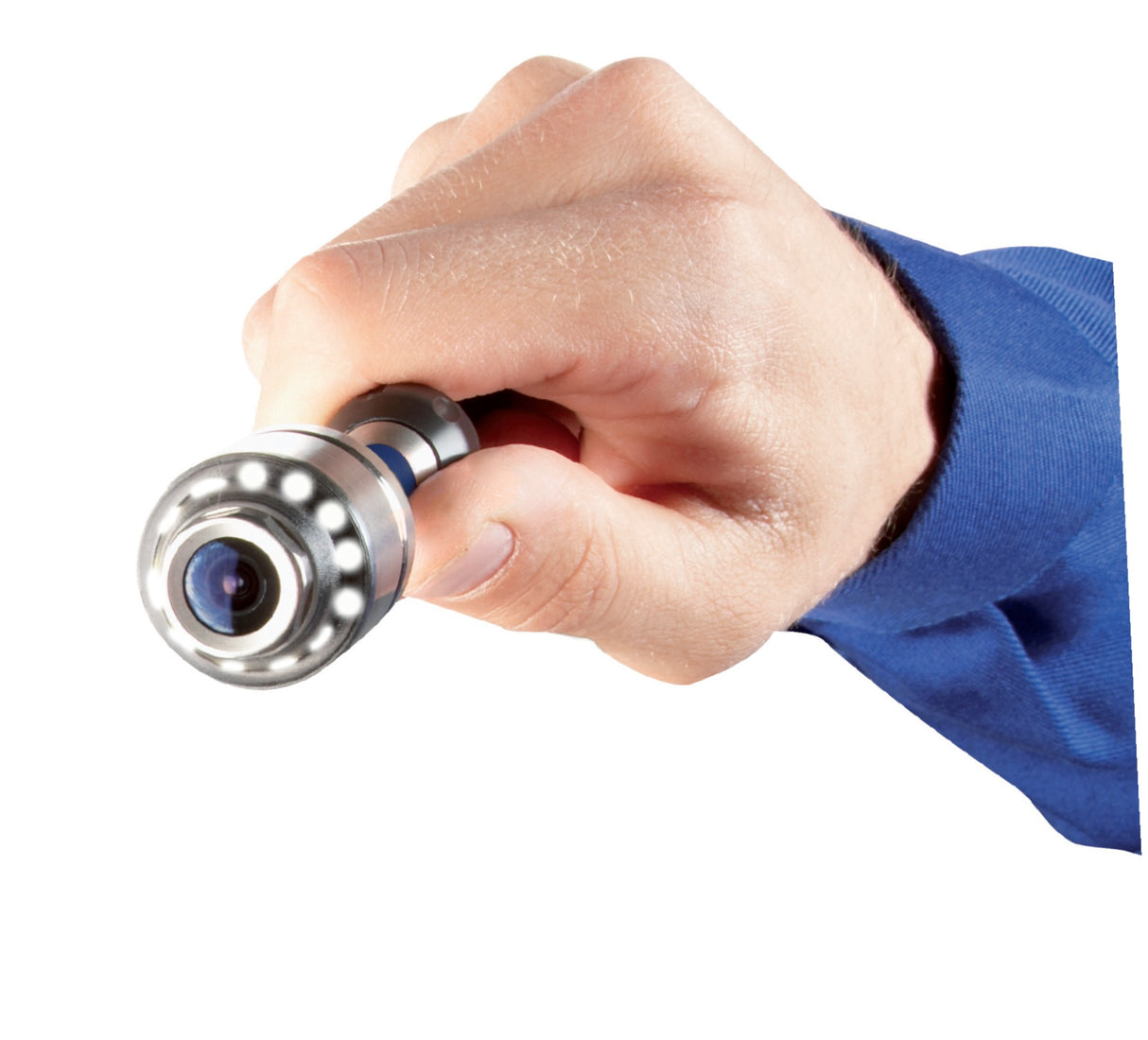

1" Mini Color Camera Head

Sensor type: 1/3" COLOR CMOS

Resolution: 420 Lines

Pixel: 500 x 582 (PAL), 500 x 592 (NTSC)

Sensitivity: 0.5 Lux

Lens system: f = 2.3 mm, F = 1.2

Field of view: 120°

Lightsource: 12 superbright white LEDs

Protection: waterproof nach IP 68

Size: Ø 1" x 1.5"

Working Temperature: 14… 122°F, RH 95% MAX

Length: 100 ft.

Diameter: 0.26"

Length Measurement

Wohler VIS 220: metric marked rod

Wohler VIS 240: electronic distance measurement

System Case

Size: 20" x 17" x 7"

Weight: 18 lbs.

Digital recording (VIS 240)

Recording: 2GB SD-Card (2.5 h recording)

Interface: mini USB-adapter

The Wohler VIS 2XX Service Camera combines state-of-the-art camera technology, cordless operation, compact portability and a rugged durability. This provides the ultimate value package for visual inspection.

Features:

1" diameter stainless steel camera head

Automatic Gain Control (AGC)

100 ft. distance indicated push rod cable

Super bright TFT color monitor

Single rechargeable 12V battery

Heavy duty carrying case

Camera head WATERPROOF up to 100 ft.

RCA video output for recording

Built-in recording (VIS240)

HVAC: systems need to be inspected for the presence of mold, asbestos, Dust and for overall condition. The Wohler camera allows inspectors to snake through long ducts and passages with ease.

Chimney Inspection: The Wohler VIS 250 is the perfect Chimney inspection camera. The camera easily snakes up or down stovepipes and chimneys to inspect for condition. The inspection of household and industrial chimneys is extremely important to the safety of a family or business.

Inspection of floor drains: Food plants need to check floor drains for cleanliness and blockages or food borne bacteria can grow. The Vis 250 is perfect to inspect long lines quickly and efficiently.

Process lines: need to be inspected for condition: The Wohler 240 pipe camera allows fast inspection of long industrial line to check for pitting, corrosion, erosion, cracking, scaling and other problems. The pan & tilt camera is particularly useful when needing to view side walls and other difficult to see areas.

Cleaning Validation: Needs to be performed at pharmaceutical and chemical plants to check for cleanliness. Process lines at these plants need to be cleaned of previous product ingredients or the next batch may be contaminated. A video or drain camera is used to ensure no residue is remaining after cleaning.

Steam feed lines need to be inspected for interior condition. A pipe camera can see scale build up, pitting, corrosion, cracking and other defects.

Foreign Material Exclusion: (FME) programs benefit from the capability of a pipe camera to locate foreign objects, loose parts and other debris in industrial piping. The pan & tilt capabilities of the Vis 250 make it possible to see the entire inspection area for objects and material.
