Tip Adapters
SKU :
ITC Objectives
Interchangeable forward view and side view objective tip adapters for your iTool or iRis DVR 5 Videoscope. Select the best field of view, depth of field and direction of view for your inspection.
Tip Adapters est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Have a question about this product?
Typical response <1 business day
Product Information
Specifications
Applications
Downloads

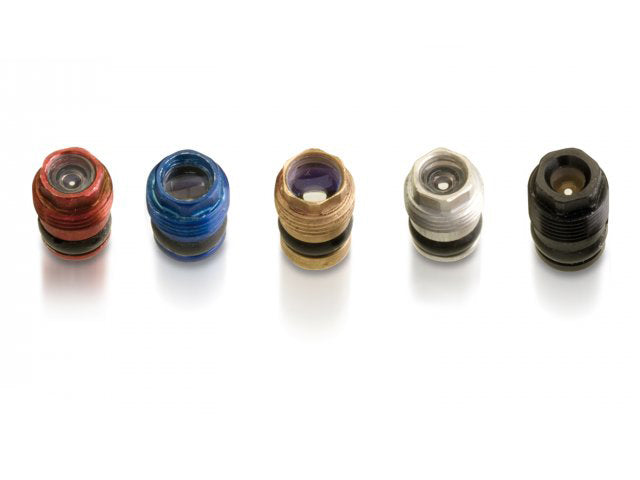

iTool and iRis DVR 5 Videoscope Tip Adapters
8mm |
6mm |
4mm |
| Side View (Regular Focus) | Side View (Regular Focus) | Side View (Regular Focus) |
| Diameter: 8mm (.315 in) | Diameter: 6mm (.236 in) | Diameter: 4mm (.157 in) |
| Direction of View: 90° | Direction of View: 90° | Direction of View: 90° |
| Field of View: 60° | Field of View: 60° | Field of View: 60° |
| Depth of Field: 5.0 to ∞ | Depth of Field: 5 to 60 mm | Depth of Field: 5 to 45mm |
| Color Code: None | Color Code: None | Color Code: None |
| Part Number: 110-0048 | Part Number: 110-0050 | Part Number: 110-0060 |
| Forward View (Far Focus) | Side View (Close Focus) | |
| Diameter: 8mm (.315 in) | Diameter: 6mm (.236 in) | |
| Direction of View: 0° | Direction of View: 90° | |
| Field of View: 60° | Field of View: 60° | |
| Depth of Field: 10mm to ∞ | Depth of Field: 5 to 15 mm | |
| Color Code: Black | Color Code: None | |
| Part Number: 110-0034 | Part Number: 110-0057 | |
| Forward View (Close Focus) | Forward View (Regular Focus) | |
| Diameter: 8mm (.315 in) | Diameter: 6mm (.236 in) | |
| Direction of View: 0° | Direction of View: 0° | |
| Field of View: 60° | Field of View: 60° | |
| Depth of Field: 10mm to ∞ | Depth of Field: 10mm to ∞ | |
| Color Code: Red | Color Code: Black | |
| Part Number: 110-0033 | Part Number: 110-0052 | |
| Forward View (Far Focus) | Forward View (Close Focus) | |
| Diameter: 8mm (.315 in) | Diameter: 6mm (.236 in) | |
| Direction of View: 0° | Direction of View: 0° | |
| Field of View: 60° | Field of View: 90° | |
| Depth of Field: 15.0 to ∞ | Depth of Field: 7 to 15mm | |
| Color Code: Gold | Color Code: Red | |
| Part Number: 110-0056 | Part Number: 110-0051 | |
| Forward View (UV-Close Focus) | Forward View (Far Focus) | |
| Diameter: 8mm (.315 in) | Diameter: 6mm (.236 in) | |
| Direction of View: 0° | Direction of View: 0° | |
| Field of View: 90° | Field of View: 60° | |
| Depth of Field: 5mm to ∞ | Depth of Field: 10mm to ∞ | |
| Color Code: White | Color Code: Gold | |
| Part Number: 110-0046 | Part Number: 110-0069 | |
| Forward View (UV-Far Focus) | ||
| Diameter: 8mm (.315 in) | ||
| Direction of View: 0° | ||
| Field of View: 28° | ||
| Depth of Field: 25 to ∞ | ||
| Color Code: Blue | ||
| Part Number: 110-0035 |
UV = For use with iSeries Ultraviolet Video Borescope

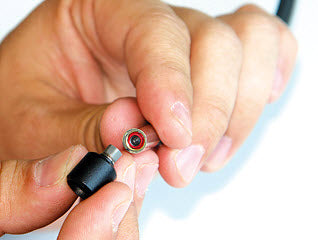

| 6mm Objective Lens Tool | Part Number: 110-0053 |
| 8mm Objective Lens Tool | Part Number: 110-0032 |
