How to Choose the Right Borescope Diameter for Aircraft Engine Inspections

The borescope diameter is the outer width of the probe, usually between 2mm and 8mm for aircraft engine inspection. The right borescope diameter is the largest size that fits through your engine’s access port while leaving enough space for safe movement and articulation.

This decision often happens on the job. You’re in front of an engine that needs inspection, but you’re unsure which size to use. A larger probe may not fit through the port. A smaller one may fit, but the image quality drops, making it harder to spot defects.

This guide explains how to choose the right diameter step by step. It covers access port measurement, diameter trade-offs, engine-specific recommendations, and common mistakes. For example, a CFM56 engine may have an 8mm port, but a 6mm borescope is usually the correct choice because it balances fit and performance.

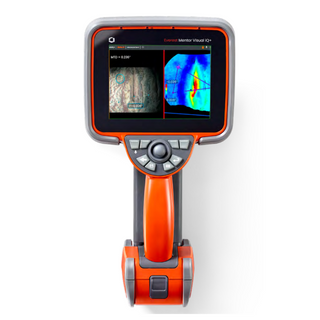

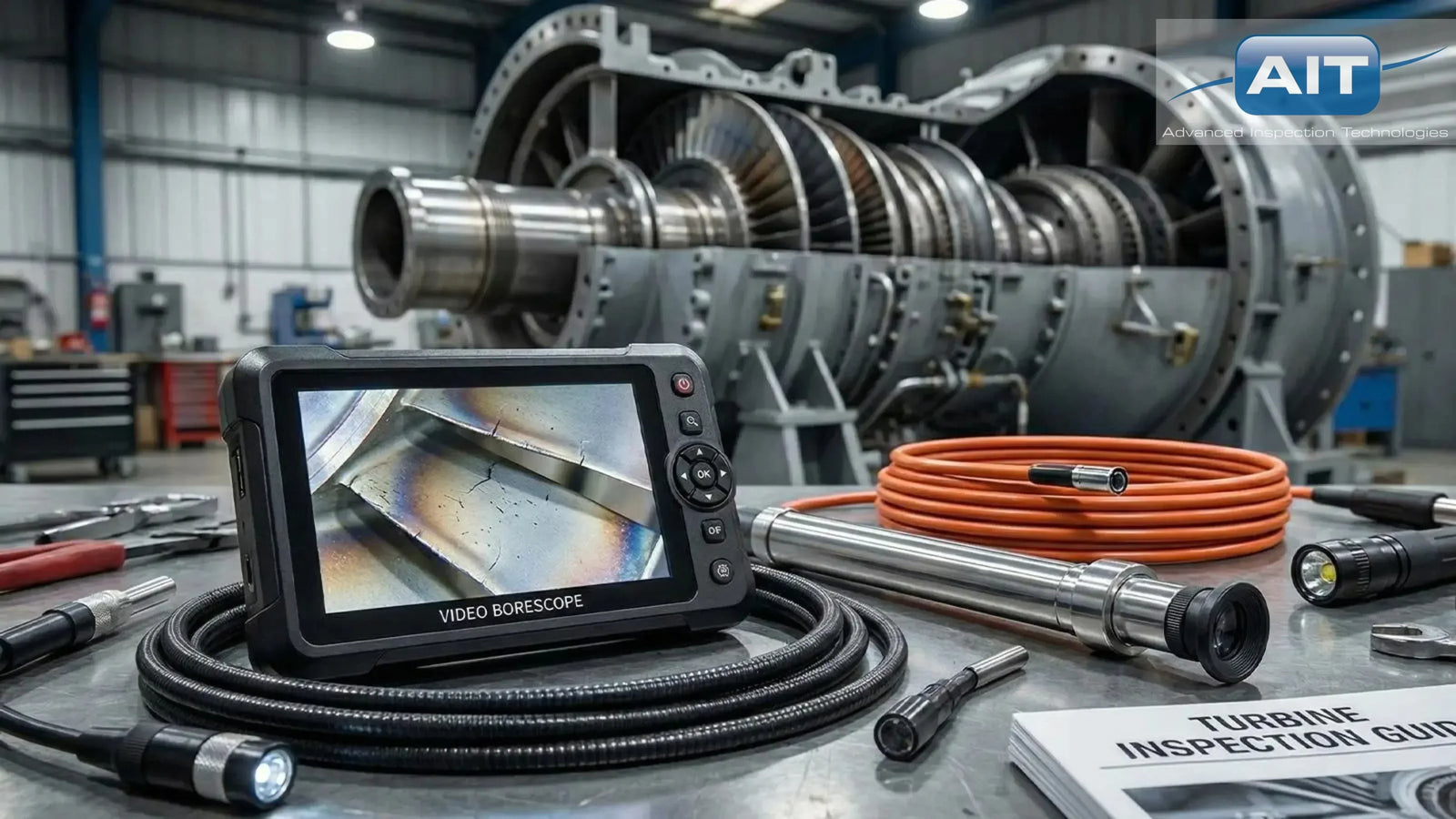

If you're unsure, explore our video borescopes or speak with a specialist to find the right option for your inspection needs.

Why Borescope Diameter Matters More Than You Think

Quick answer: The wrong diameter limits either access or visibility. The right one balances both.

The borescope diameter is the most important specification in any inspection camera. It directly affects what you can inspect and how clearly you can see.

A larger diameter gives:

• Better image quality
• Stronger light output
• More reliable articulation

A smaller diameter gives:

• Access to tight spaces
• Easier insertion
• Better portability

“The rule is simple:
Always choose the largest diameter that fits through your access port with at least 2mm clearance.”

Example:
A technician using a 4mm probe in an 8mm port will lose image clarity, even though a 6mm probe would perform much better.

Diameter Comparison

Know Your Engine’s Access Port Specifications First

Quick answer: Always check the maintenance manual before choosing a diameter.

You cannot select the right borescope without knowing the access port size.

Step-by-step process:

1. Check the engine maintenance manual

• Look for port size and restrictions

2. Measure the port if needed

• Use callipers or a bore gauge
• Account for seals and fittings

3. Apply the 2mm rule

• Choose a probe 2mm smaller than the port

Example:

• Port size: 8mm
• Recommended probe: 6mm
• Why: Allows safe insertion and articulation

Depth also matters. If the inspection area is deep inside the engine, you need to match the probe length accordingly.

Common Aircraft Engine Types and Recommended Diameters

Different aircraft engines require different approaches.

CFM56 Engines (Boeing 737)

6mm is used for most inspections.
4mm works for tighter access areas.

PT6 Turboprop Engines

4mm is the standard size.
2.8mm may be needed for restricted sections.

Industrial Gas Turbines

6mm or 8mm works best.
A larger diameter helps with deeper inspections.

Auxiliary Power Units (APUs)

Usually require 4mm or smaller due to limited space.

Engine Comparison Table

Four Critical Factors Beyond Port Size

Choosing the right diameter is not just about fit.

1. Image Quality

Crack detection needs high clarity. Larger diameters perform better.

2. Working Distance

Longer inspections require more light. Larger probes handle this better.

3. Articulation

6mm probes provide smoother control. Smaller probes are limited.

4. Portability

Smaller tools are easier to carry. Larger ones perform better in fixed setups.

Common Diameter Selection Mistakes Technicians Make

Mistake 1: Choosing based on price instead of application
A smaller borescope diameter may cost less, but it reduces inspection quality and increases time.
Fix: Choose based on performance, not price.

Mistake 2: Not verifying probe length alongside diameter
A correct diameter won’t help if the probe cannot reach the inspection area.
Fix: Match both length and diameter to the job.

Mistake 3: Ignoring articulation needs
A probe may fit but still fail to inspect properly if it cannot move.
Fix: Ensure the diameter supports proper articulation.

Mistake 4: Forgetting about compatible accessories
Some diameters may not work with guide tubes or retrieval tools.
Fix: Check compatibility before selecting equipment.

How to Verify Your Diameter Choice Before Purchase

Quick answer: Test before you buy.

Verification steps:

1. Talk to technicians working on the same engine
2. Consult AIT technical specialists
3. Try a borescope rental before purchase
4. Check maintenance manuals
5. Test multiple diameters if needed

A small rental cost can prevent a costly mistake.

Real-world testing helps you understand:

• Image clarity
• Ease of use
• Articulation performance

Conclusion

Choosing the right borescope diameter is about understanding your engine and inspection needs. The safest approach is to use the largest diameter that fits with proper clearance.

For most aircraft engine inspection tasks:

• 4mm and 6mm cover the majority of use cases
• Smaller sizes work for restricted access
• Larger sizes provide better clarity and depth

In real-world scenarios, this decision is rarely made from specs alone. Different engines, access points, and inspection goals often require a more practical approach. That’s where experience makes the difference.

Advanced Inspection Technologies works closely with aviation maintenance teams to help select the right equipment for specific engine types and inspection conditions. Whether it’s choosing between a 4mm or 6mm probe, testing options through borescope rental, or matching tools to turbine inspection requirements, the goal is always the same: to get accurate results without wasting time or effort.

If you’re planning your next aircraft engine inspection and want to avoid trial-and-error, it’s worth getting input from specialists who deal with these use cases every day.
